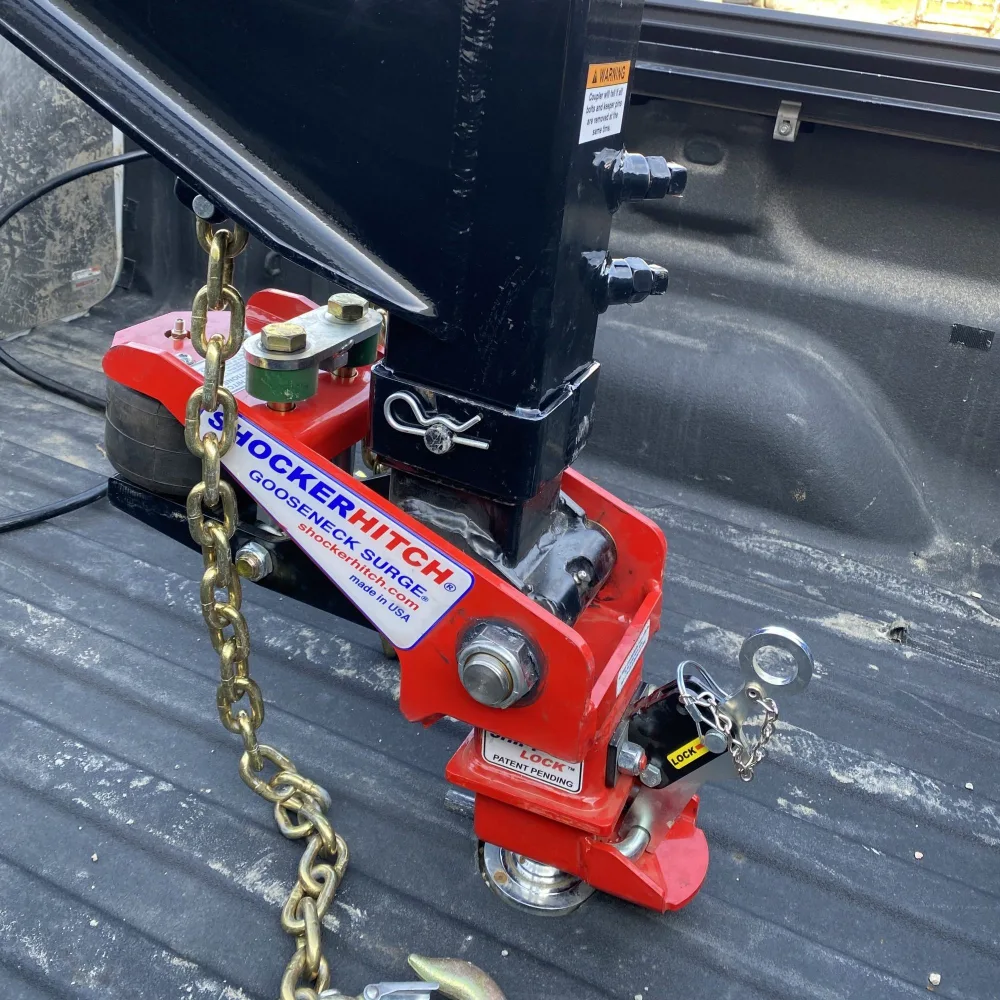

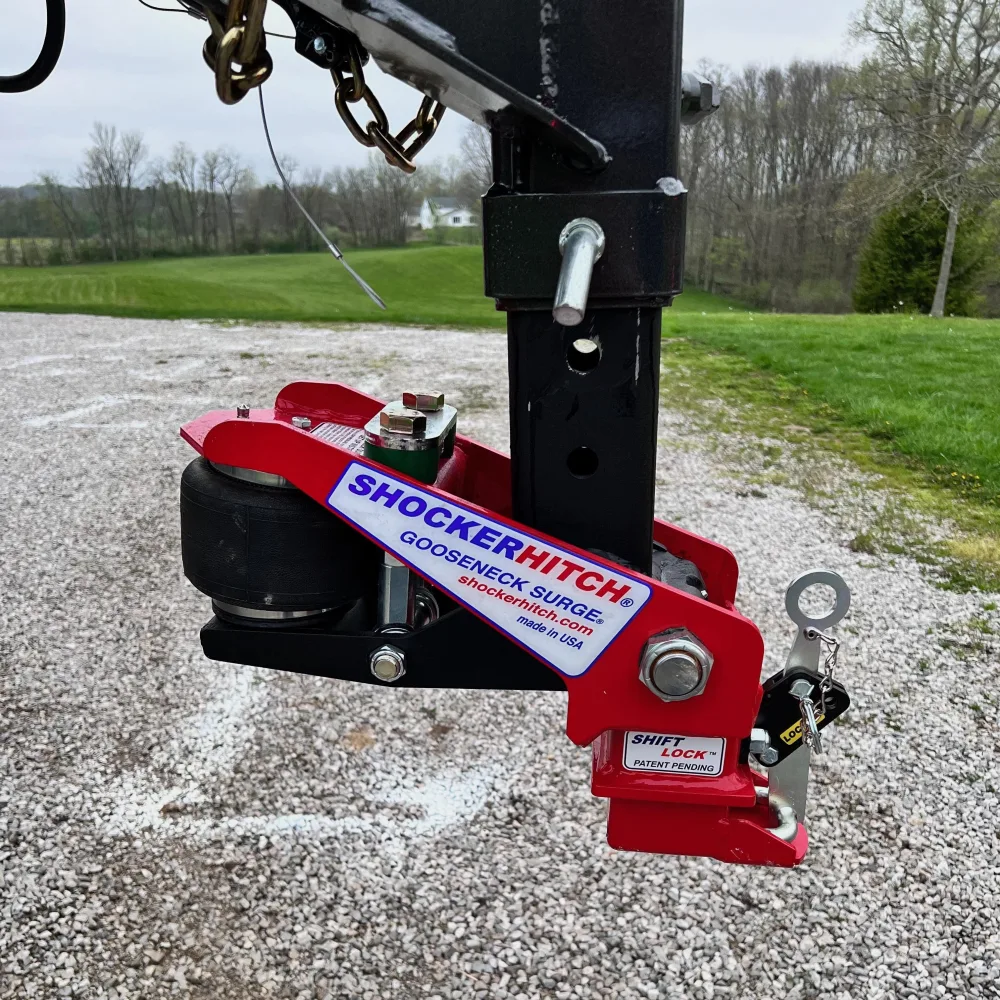

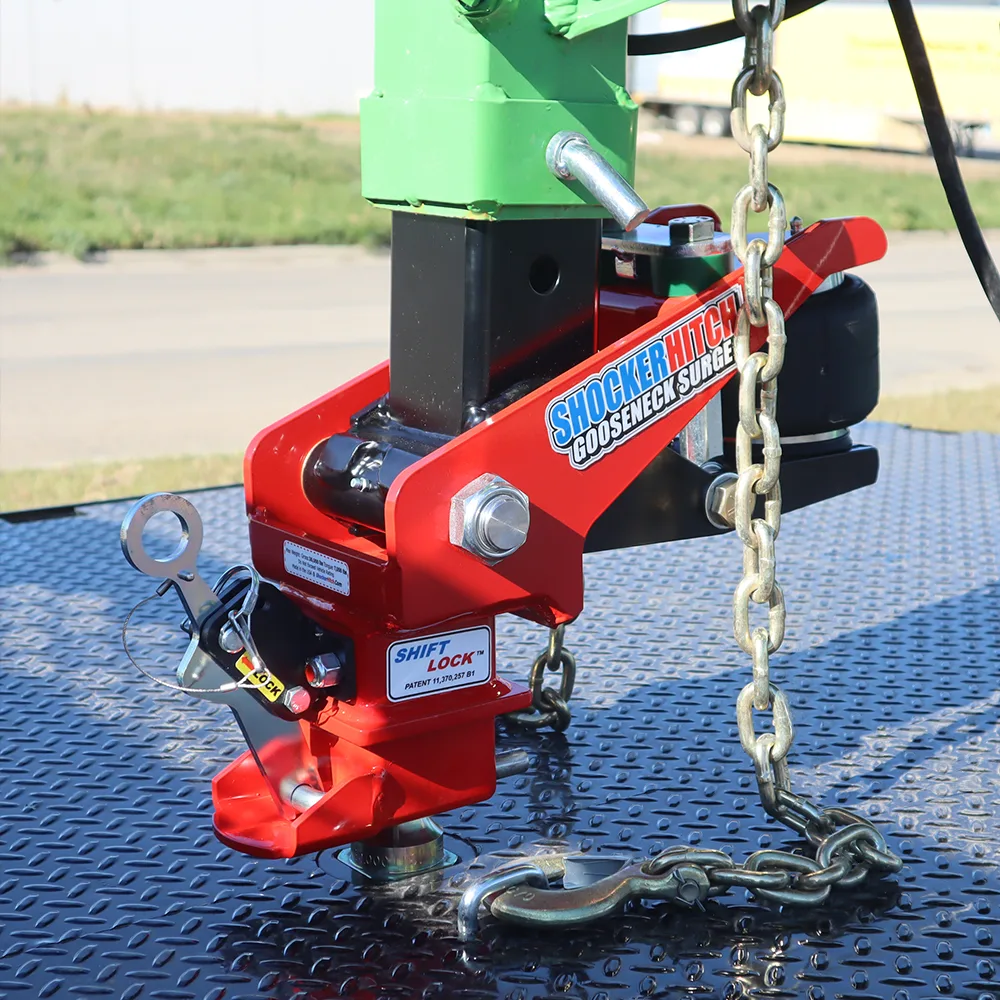

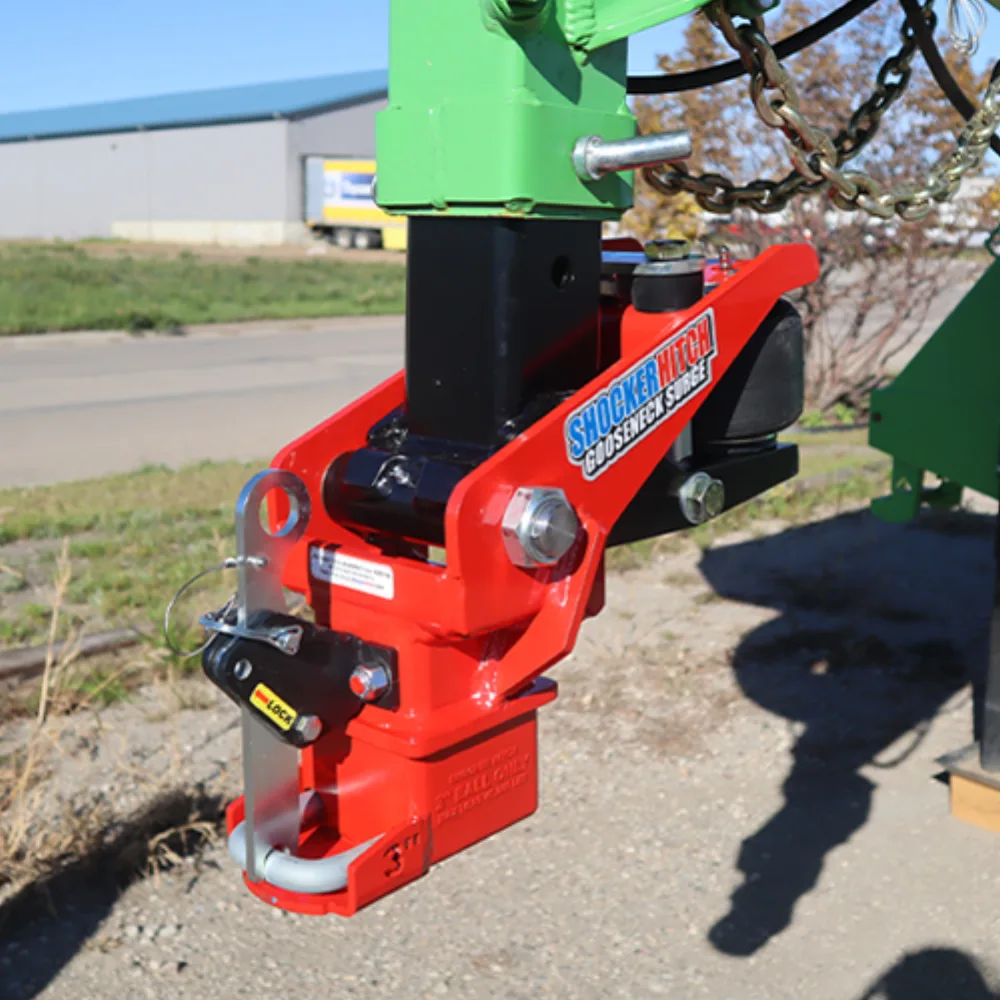

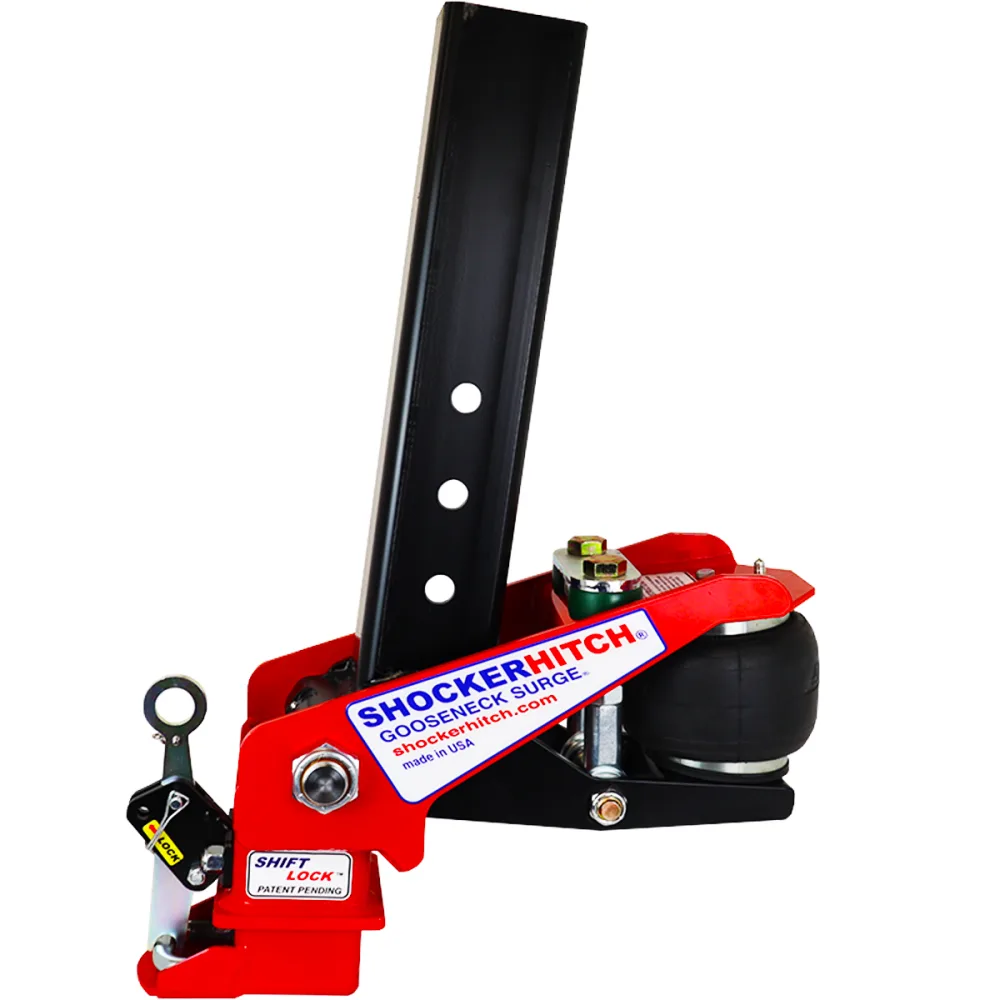

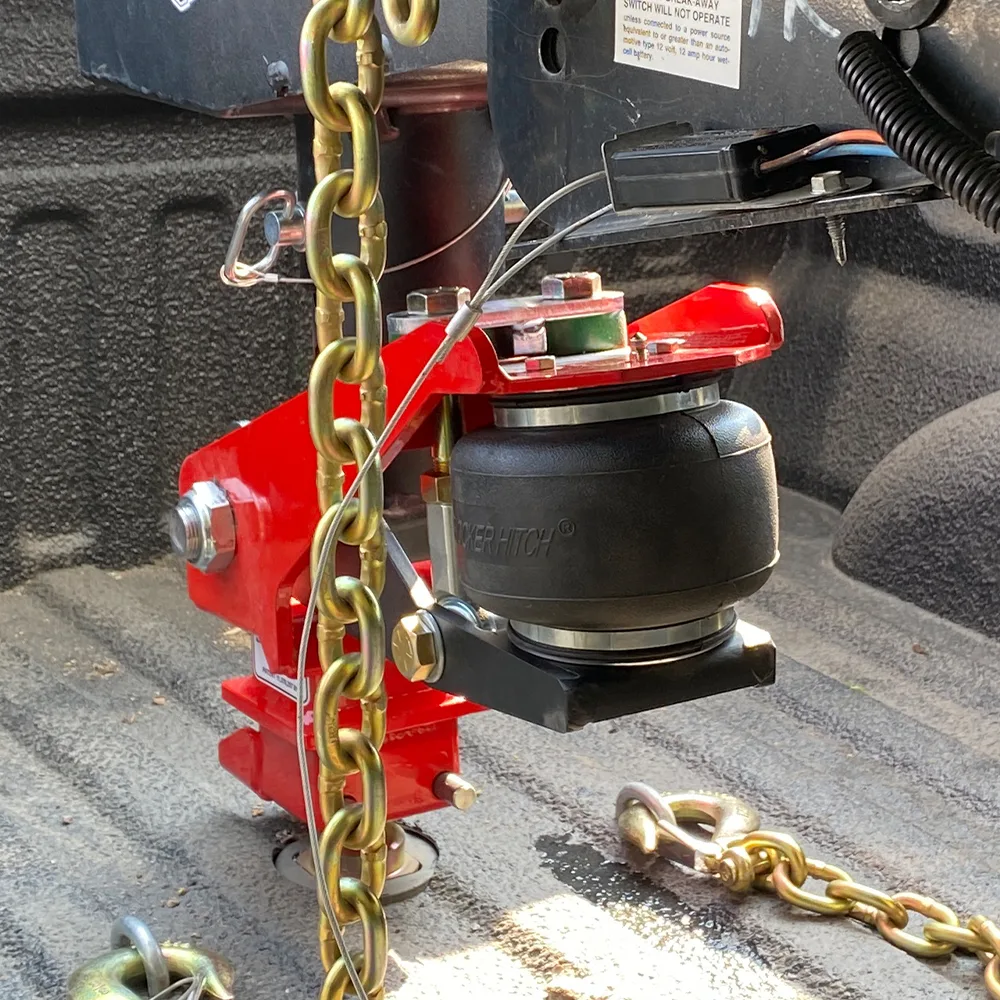

Shocker 40K Gooseneck Surge Air Hitch & Shift Lock Coupler for 3" Ball
Rated for your tow
40,000 lbs GTW · 8,000 lbs TW· 40,000 lbs GTW · 8,000 lbs TW
$2,183.98
$2,284.78 save $100.80
or as low as $182/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Easy Install
Completely replaces your factory gooseneck stem & coupler with Gooseneck Surge Air System & Coupler. Installs in Minutes.
Fits 3" gooseneck hitch balls
& has 3 height adjustment holes. (Standard coupler extends 3" forward from your factory coupler).
Custom Fit
Available for 100mm Square, 4" Square & Crank style gooseneck stems. - If you have a round stem, check out our Shocker Goose Air Hitch for 2-5/16" ball.
Shock Dampening & Absorbing Action
Effectively absorbs the jerking, tugging, bumps and damaging forces experienced when towing on rough roads & concrete highway with a typical hard connection.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Load a gooseneck heavy up front and every hard stop, frost heave, and rough railroad crossing slams forward and back between your truck bed and the trailer stem. That jerk beats on the bed, the trailer, and whatever you're hauling, and it wears on you over a full day behind the wheel. The Surge Air Gooseneck 40K Heavy Duty puts a patented air spring between the two so that motion gets soaked up instead of hammered straight through. It sits at the top of the Shocker lineup, rated for 40,000 lbs GTW and 8,000 lbs of tongue weight, the most capacity we build, so there's real breathing room when the load rides heavy. The heavy-wall multi-fit-square stem carries a patented Shift Lock coupler made for 3-inch gooseneck balls, which puts it right where a 30K hitch runs out of room: hotshot operators, equipment haulers, and commercial heavy-duty towing.
Key Highlights
- 40,000 lbs GTW and 8,000 lb tongue weight, the most capacity Shocker builds
- Shift Lock coupler matched to 3-inch gooseneck balls only
- Grips the ball from both sides, with a lock indicator you can read at a glance
- Real patents: #11,370,257 B1 and D898,628
- Patented air spring soaks up the forward-back jerk before it reaches you
- multi-fit-square swaps in for your factory inner stem in minutes
- Heavy-wall, thick-gauge steel built to take daily heavy hauling
- In stock in Canada and shipping direct, so you skip the border wait
What's Included
- Shocker 40K Gooseneck Surge Air Hitch with built-in heavy-duty airbag and dual bump cushions
- multi-fit-square heavy-wall replacement inner tube stem
- Shift Lock coupler rated for 40,000 lbs on 3-inch ball
- Schrader air valve
- Installation instructions
Not Included
- —3-inch gooseneck ball (must be installed in the truck bed; verify rating matches your load)
- —Air compressor or pressure gauge (sold separately)
- —Truck-bed reinforcement (verify your bed-mount rating supports 40K hauling)
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
When a 30K Hitch Runs Out of Room
Most gooseneck trailers top out around 25K to 30K GTW, and they ride fine on the Standard 30K hitch. Push past that and the margin disappears. If you're running skid steers on tilt-deck goosenecks, multi-axle commercial trailers, oilfield equipment, or hotshot loads sitting at the top of Class 5, a 30K-rated hitch leaves you nothing in reserve. The 40K HD gives you 10,000 lbs more GTW headroom and 2,000 lbs more tongue capacity, plus a 3-inch ball coupler matched to the larger balls used on 35K-class commercial gooseneck trailers. If you load heavy and tow every day, that reserve is the difference between comfortable and maxed out.
Surge Air, Heavy-Duty Engineered

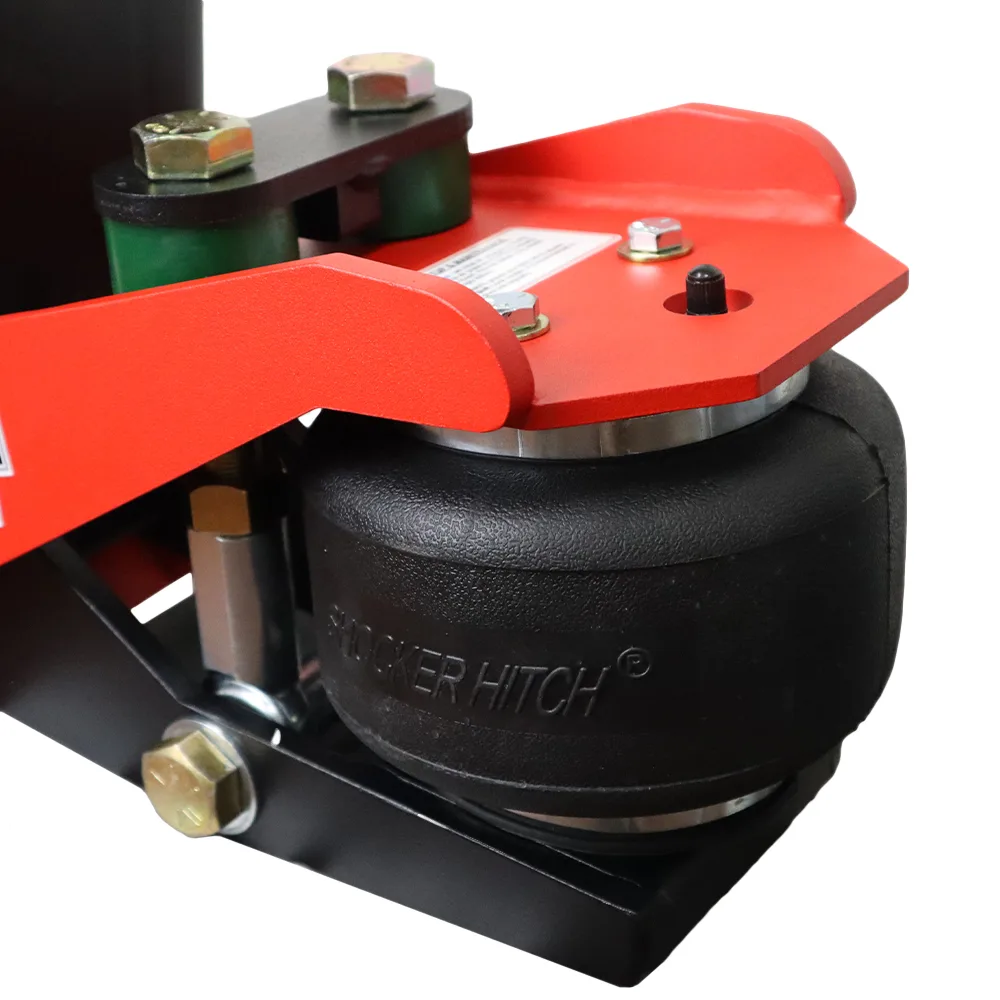

Forward-Back Motion Airbag
The same patented surge-air mechanism, scaled up for 40,000 lbs loads. A heavy-duty air spring soaks up the forward-back jerk between your truck bed and the trailer stem, which is the motion you feel most.

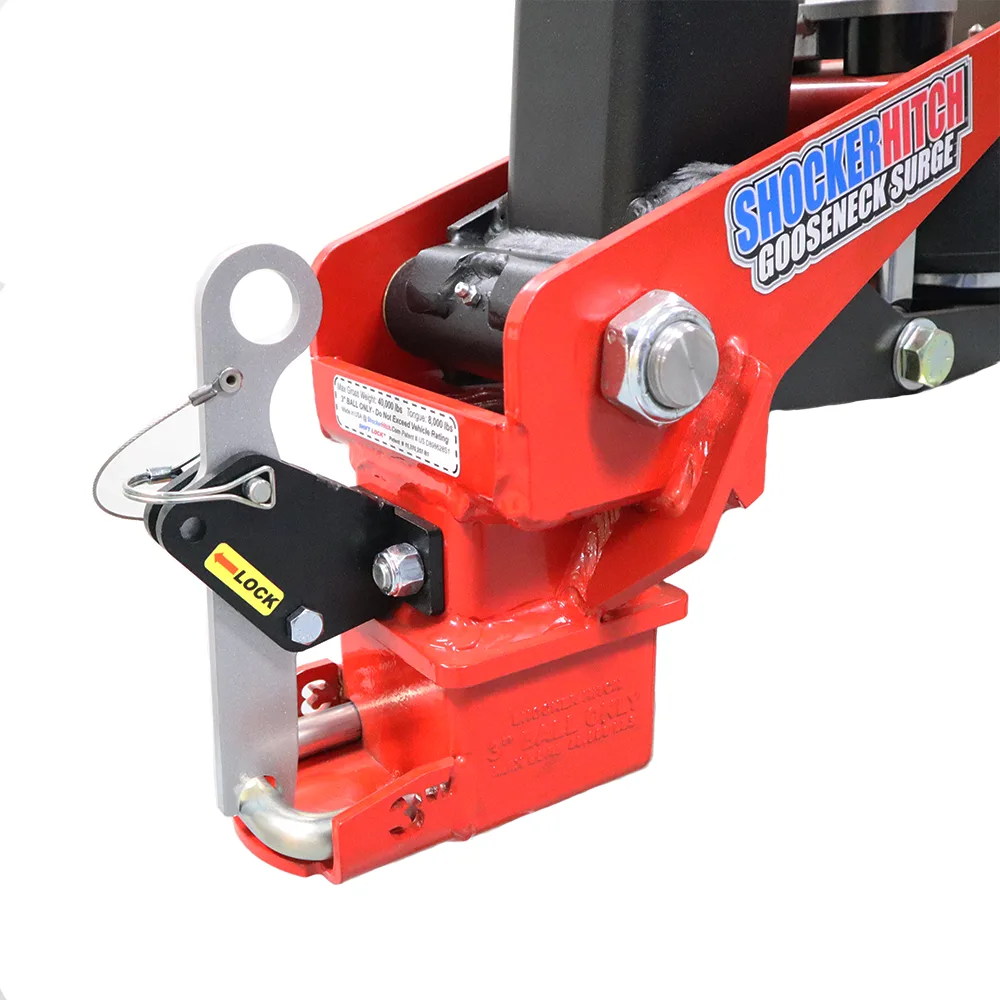

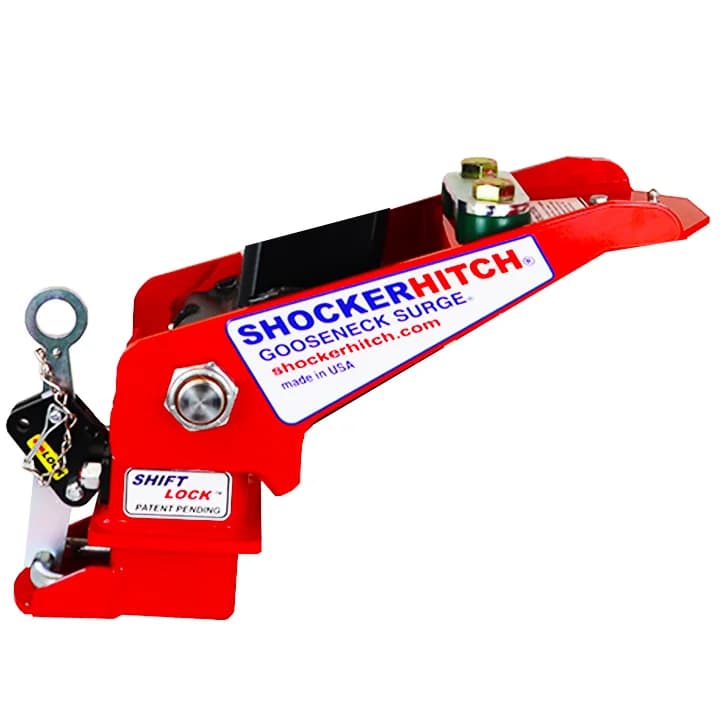

Shift Lock for 3-inch Balls
Patented dual-side capture grips the 3" gooseneck ball from both sides at once, so you get no sloppy single-jaw connection. A visual lock indicator shows engagement at a glance.
Heavy-Wall Stem Construction
A thicker-wall multi-fit-square built for the higher load and the harder tongue forces of heavy commercial hauling, so nothing flexes when you're loaded to the top.
Adjustable for Any Load
Add air when you're loaded heavy, bleed it off for empty deadhead returns. One hitch tunes from peak load to bobtail and keeps the ride right either way.
Built for Heavy Commercial Use
If your gooseneck tows past 30K, this is the hitch built for it.
- Hotshot truckers pulling 35K-class commercial gooseneck trailers
- Equipment haulers moving skid steers and excavators
- Commercial and industrial transporters
- Oilfield, drilling, and construction equipment fleets
- Operators whose trailers ride on a 3-inch ball (Class 5 and up)
- Any tow pushing the upper limits of Class 5 gooseneck capacity
3-inch Ball vs. 2-5/16-inch Ball
The 40K HD needs a 3-inch gooseneck ball, bigger and heavier than the standard 2-5/16-inch. Check your ball before ordering.
3-inch Gooseneck Ball (this line)
This is what the 40K HD runs on. The bigger ball gives more contact surface and higher capacity, and it's common on commercial heavy-duty goosenecks and Class 5 equipment trailers.
2-5/16-inch Gooseneck Ball (30K lines)
The standard ball on Class 4 and lower-end Class 5 trailers. It's what the surge-air-gooseneck-standard-30k, offset, and shift-lock lines use, and it will not work with this 40K hitch.
Engineered for Daily Heavy Hauling
Every part on the 40K HD is upsized from the 30K platform: thicker stem walls, larger pivot bushings, a higher-capacity airbag, and a coupler rated for 40,000 lbs of tow capacity and 8,000 lbs of tongue weight. You're not looking at a 30K hitch wearing a bigger rating sticker. It's a different chassis built for operators who hit the top of gooseneck towing every day. Backed by Shocker Hitch's 60-day satisfaction guarantee.
