Installation Guide
Most installs are done in under 10 minutes. Pick your product, watch the video, set the air. That's it.
Start here
First install? Four answers in 30 seconds.
Can I just watch?
Yes — manufacturer install videos for the four most common hitches, under 5 minutes each.
Watch installsHow long does it take?
Receiver: ~2 min. Tongue mount: ~10 min. Gooseneck or pin box: 30–60 min.
See the stepsWhat tools do I need?
A wrench, a tire-pressure gauge, and a pump that fits a Schrader valve.
Tools listWhere's my product's PDF?
Pick your model below — each opens the manufacturer's full setup page.

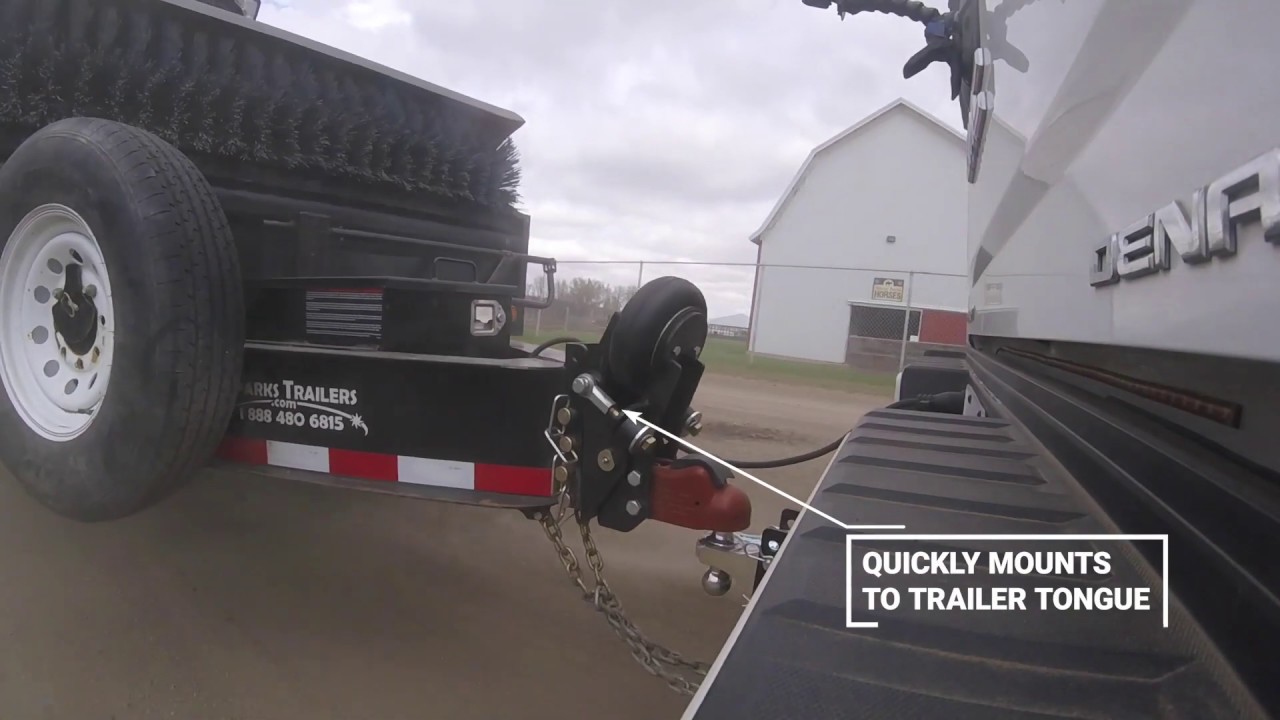

Find yoursWatch it install — under 5 minutes each
Manufacturer walkthroughs for the four most common installs. Tap to play in a modal.
The universal install — 5 steps
The mechanics are the same across the line. Your product-specific sheet has the exact torque and PSI.
- 1
Inspect the receiver / coupler
Clean rust and debris. Confirm receiver size or pin-box compatibility. Remove existing hardware.
- 2
Slide in or drop in
Receiver hitches drop into the tube. Goosenecks drop through the bed. Pin boxes bolt to the camper frame. Align pin holes / hardware.
- 3
Pin and torque
Install the included hitch pin + clip (receiver) or torque-bolt the frame hardware to manufacturer spec. Tug firmly to confirm seat.
- 4
Attach the ball / coupler
Mount your selected ball, pintle, or coupler. Anti-seize on threads. Torque to spec on the included ball-mount instruction.
- 5
Set air pressure
Hook up the loaded trailer. Add air until the bump cushion compresses ~1/8" (receiver/tongue) or to the PSI range listed on the air-pressure guide.
Find your product's setup guide
Tap your product. A modal opens with a large install video, beginner bullet-point steps, and the direct PDF download — all without leaving this page.
What's in the box & what you'll need
Most installs require only a wrench and a pump. Check your specific product sheet for exceptions.
In the box
- Hitch / stem / pin box (factory-charged air bag)
- Hitch pin and clip (receiver models)
- Schrader air valve
- Tire-pressure gauge
- Printed install sheet + warranty card
Tools you'll need
- Air compressor or bike pump (Schrader valve)
- Tire-pressure gauge, 0–100 PSI
- 3/4" wrench or socket (ball-mount torque)
- Anti-seize for ball threads
- Safety glasses
Step 5 in detail — set the air pressure
Air pressure depends on hitch model and trailer weight. The Air Pressure Guide has per-model PSI ranges and short setting videos for every air hitch.
Stuck on install?
Send your hitch model and a photo — we'll get back same day.
