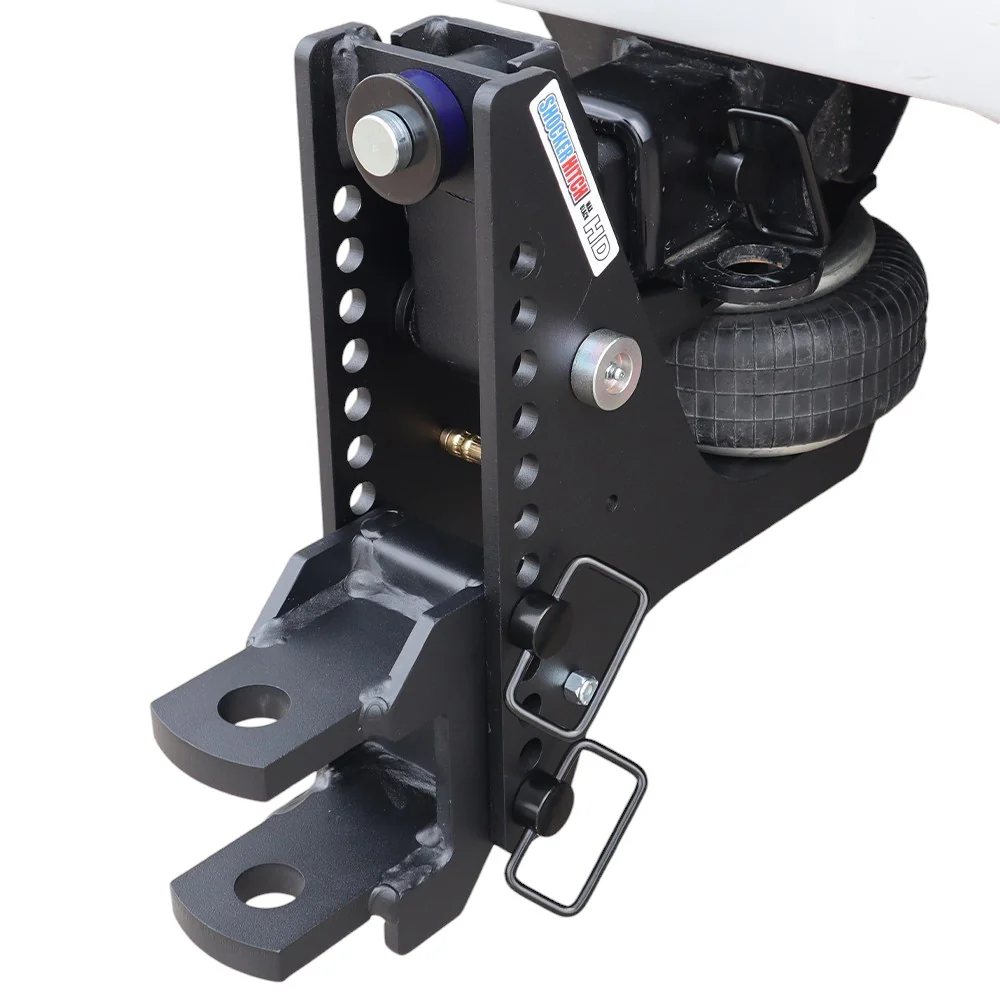

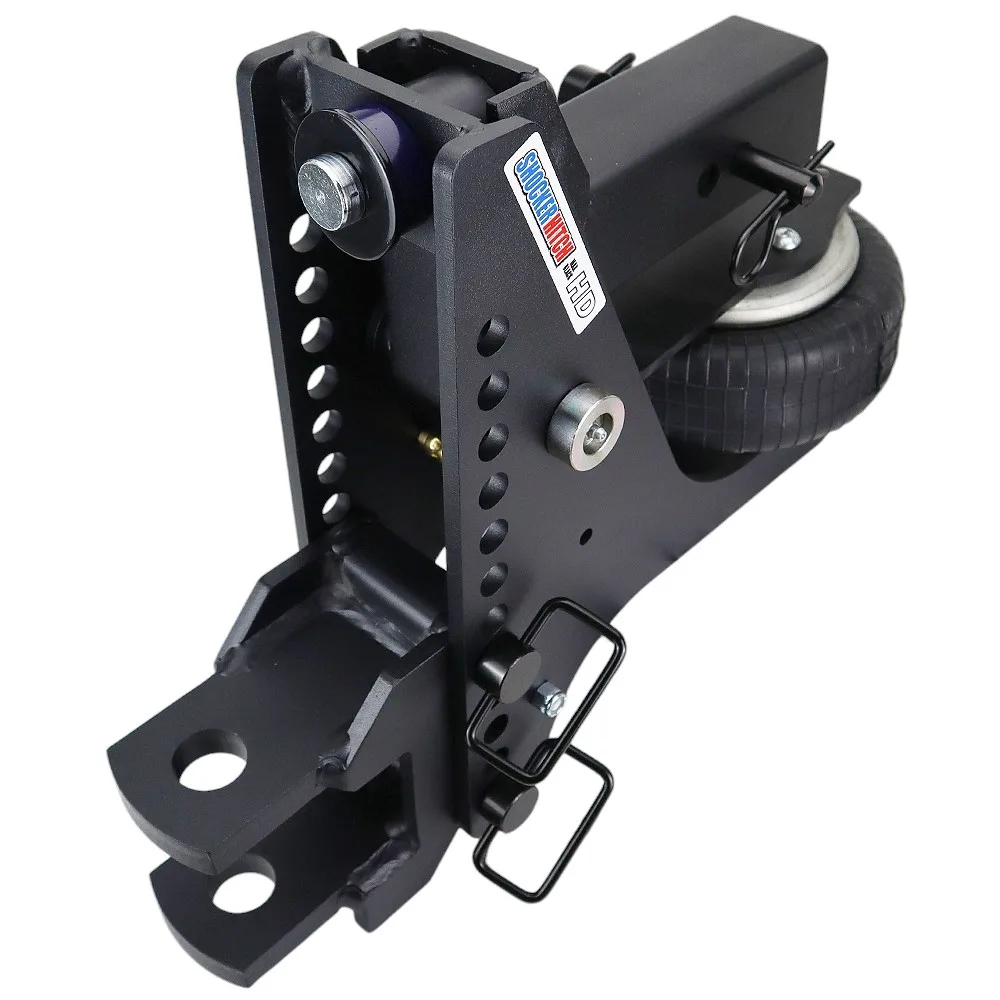

Shocker HD Max Black Super Drop Air Hitch & Clevis Mount
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,377.58
$1,444.78 save $67.20
or as low as $115/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Matte Black Finish
Impact resistant Max Black™ textured matte black Premium powder-coat finish on hitch.
Adjustable for Weight
Fine-tune for your towing weight. Just add air for heavier loads. Adjust the air pressure for the best ride and load control. Fine tune your towing by easily adding or reducing air as needed.
Built-in HD Air Ride System
Absorbs road shock and creates a smooth ride & reduces trailer sway. Dual rubber bump cushions offer additional HD performance.
10+ Mount Attachment Options
A huge selection of ball mount attachments is available. Combo, Drop, Raised, Sway Bar Tab Options, Pintle, Drawbar, Pintle with Ball, Shackle & More.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Lift a truck a few inches and a problem shows up fast. Your hitch now sits well above the trailer tongue, so the trailer rides nose-up, chucks over every bump, and gets squirrelly under hard braking. Most drop hitches run out of holes before they get you level, and the ones that drop that far are solid steel that beats up your truck and your back. The Shocker HD Max Black Super Drop solves both. Its 12-hole Super Drop frame gives up to 12-1/2 inches of drop (3-1/2" to 11-1/2") to level a lifted rig over a low-deck trailer, and it does it on the same 20,000-lb air ride suspension as the rest of the HD Max Black line, so the airbag soaks up frost heaves and hard stops instead of passing them straight through. Rated at 20,000 lbs GTW and built for 2-1/2-inch receivers, it hauls just about any bumper-pull trailer you will hang off a heavy truck and keeps it riding flat.
Key Highlights
- Up to 12-1/2 inches of drop, the deepest reach in the HD Max Black family, enough to level even a tall lifted truck
- Hauls up to 20,000 lbs GTW with the air ride working the whole time, so heavy loads still ride smooth
- 12-hole Super Drop frame lets you dial the trailer dead level instead of settling for close enough
- Textured matte black powder coat shrugs off rock chips, rust, and UV fade while hiding road grime
- 2-1/2-inch shank drops straight into F-250 / RAM 2500-class three-quarter-ton trucks (class V receivers)
- Reversible frame flips over for extra rise when a camper or tall tongue calls for it
- Same airbag and same chassis strength as the standard HD Max Black 20K, just with more drop
- Built for lifted trucks, low-tongue gooseneck-converted trailers, and low-deck haulers
What's Included
- Shocker HD Max Black Super Drop 12-hole base frame
- Pre-installed air bag with Schrader valve
- 1-1/4-inch clevis ball mount attachment (when configured with a ball)
- 2 D-handle hitch pins with clips
- Textured matte black powder coat finish
- Installation and air-pressure setup instructions
Not Included
- —Air compressor or inflator (available separately, or use any standard tire inflator)
- —Sway control kit (available separately if needed)
- —Receiver tube adapter (only needed if you are upgrading from a smaller factory receiver)
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
What Makes the Super Drop Frame Different
Four Extra Holes to Get You Level
You get four more adjustment holes than the standard 8-hole HD Max Black frame. Those extra holes are what open up 10 to 12 inches of drop, enough to bring a lifted truck back down to a low trailer tongue.
Air Ride at Every Drop Setting
Most extreme-drop hitches are solid steel, which means a hard, jarring ride. The Super Drop keeps the airbag working across the entire drop range, so you get the clearance you need and still ride smooth.
Flip It Over for Rise
Turn the frame over and you get up to 2 inches of rise, handy for a cab-over camper or a taller trailer tongue on a stock-height truck.
One Frame, Every Attachment
It takes every HD Max Black ball mount attachment, including combo balls, pintles, clevises, and drawbars. Buy the frame once and swap attachments as your trailers change.
Rigs This Frame Was Made For
If your factory hitch leaves your trailer sitting nose-up or nose-down, you need more drop range than it can give. This frame delivers it.
- Lifted half-ton, 3/4-ton, and 1-ton pickups (3 to 6 inch lifts)
- Trailers with low front tongues that drag behind a stock-height truck
- Low-deck equipment haulers, race trailers, and gooseneck-converted bumper-pull trailers
- Dual-rear-wheel trucks that already sit tall from the factory
- Any rig where the standard 6 to 7 inch drop can't get the trailer level
- F-250 / RAM 2500-class three-quarter-ton trucks (class V receivers) running aftermarket suspension
Super Drop or Standard HD Max Black 20K
Both run the same 20K air ride chassis. The only question is how much drop your truck and trailer combo actually needs.
Standard HD Max Black 20K (8-hole frame)
Gives you up to roughly 7 inches of drop. That is plenty for a stock-height truck pulling a typical bumper-pull trailer, and it costs less. It is the standard pick in the HD Max Black lineup.
HD Max Black Super Drop (12-hole frame)
Gives you up to 12-1/2 inches of drop. Go with this one when the standard frame just can't get your trailer level, like on a lifted truck, a low-tongue trailer, or an odd height mismatch. It runs about $50 to $80 more than the standard frame.
Why a Level Trailer Matters More Than You'd Think
Tow a trailer nose-high and weight comes off its front axle, which is what starts a trailer swaying behind you. Tow it nose-low and you overload that front axle and the trailer dives every time you hit the brakes. Either way you are burning through tires, riding rough, and stretching out your stopping distance. For most lifted-truck owners, getting the trailer sitting dead level is the single biggest safety upgrade they can make, and the Super Drop frame is what makes it possible without giving up air ride.
Built and Finished for the Long Haul
Under the finish is a heavy-duty steel chassis. Over it is a textured matte black powder coat that hides road grime, takes rock chips without flaking, and holds up to the sun better than a gloss finish. Inside is the same multi-ply commercial air bag that runs across the whole Shocker HD line. It is backed by Shocker's 60-day satisfaction guarantee, and it is in stock and shipping direct from Canada, so there is no border wait.
