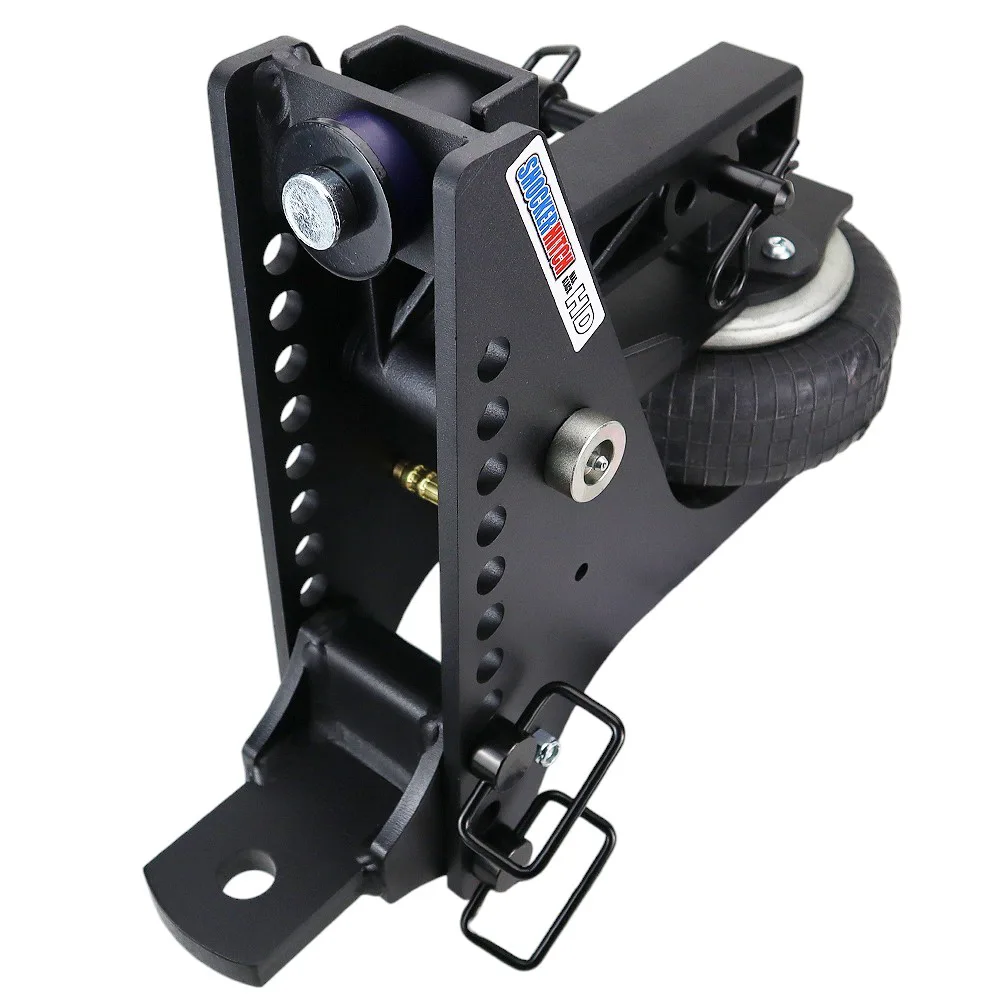

Shocker HD Max Black Super Drop Air Hitch & Drawbar Mount
Rated for your tow
20,000 lbs GTW · 2" receiver· 20,000 lbs GTW · 2" receiver
$1,343.98
$1,545.58 save $201.60
Adjustable Drawbar Hitch
Has 1" hole for quick hookup. (Drawbar is NOT for use with hitch ball). Great for the ranch and farm dirt, gravel or rough off-road terrain & concrete highways.
Matte Black Finish
Impact resistant Max Black™ textured matte black Premium powder-coat finish on hitch.
Adjustable for Weight
Fine-tune for your towing weight. Just add air for heavier loads. Adjust the air pressure for the best ride and load control. Fine tune your towing by easily adding or reducing air as needed.
Built-in HD Air Ride System
Absorbs road shock and creates a smooth ride & reduces trailer sway. Dual rubber bump cushions offer additional HD performance.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
The Shocker HD Max Black Super Drop is built for one job: bridging the gap when your truck sits high and your trailer tongue sits low. The 12-hole Super Drop frame delivers up to 12-1/2 inches of drop, paired with the same 20K air ride suspension that defines the HD Max Black line. This Shocker HD Max Black Super Drop Air Hitch & Drawbar Mount is rated at 20,000 lbs GTW, fits 2-inch receivers, and offers 1/2" to 8-1/2" Drop for dialing in level tow on lifted rigs and low-deck trailers.
Key Highlights
- Up to 12-1/2 inches of drop — the deepest in the HD Max Black family
- 20,000 lbs GTW rating with full air ride suspension
- 12-hole Super Drop frame for fine-tune height adjustment
- Textured matte black powder coat resists chips, rust, and UV fade
- 2-inch shank fits F-150-class half-ton trucks (and class III/IV receivers)
- Reversible frame — flip for additional rise when needed
- Same airbag, same chassis strength as the standard HD Max Black 20K
- Engineered for lifted trucks, low-tongue gooseneck-converted trailers, and low-deck haulers
Why the Super Drop Frame
12-Hole Drop Range
Four extra adjustment holes versus the standard 8-hole HD Max Black frame. That extra real estate is what unlocks 10–12 inches of drop for lifted trucks.
Air Ride at Any Drop Setting
Most extreme-drop hitches are solid steel — a hard, jarring ride. The Super Drop keeps the airbag active across the entire drop range so you never trade comfort for clearance.
Reversible for Rise
Flip the frame and you have up to 2 inches of rise. Useful for cab-over campers or higher trailer tongues on a stock-height truck.
Fits the HD Max Black Ecosystem
Uses every HD Max Black ball mount attachment — combo balls, pintles, clevises, drawbars. Buy the frame once, swap attachments as your trailers change.
Built For These Trucks and Trailers
If your factory hitch hangs your trailer nose-up or nose-down, you need more drop range. This frame solves it.
- Lifted half-ton, 3/4-ton, and 1-ton pickups (3–6 inch lifts)
- Trailers with low front tongues that drag on stock-height trucks
- Low-deck equipment haulers, race trailers, and gooseneck-converted bumper-pull trailers
- Dual-rear-wheel trucks with factory-tall ride heights
- Any rig where the standard 6–7 inch drop is not enough to level the trailer
- F-150-class half-ton trucks (and class III/IV receivers) running aftermarket suspension
Super Drop vs Standard HD Max Black 20K
Both share the same 20K air ride chassis. Choose based on how much drop your setup actually needs.
Standard HD Max Black 20K (8-hole frame)
Up to roughly 7 inches of drop. The right choice for stock-height trucks pulling typical bumper-pull trailers. Costs less and is the default in the HD Max Black configurator.
HD Max Black Super Drop (12-hole frame)
Up to 12-1/2 inches of drop. Choose this when the standard frame cannot get the trailer level — lifted trucks, low-tongue trailers, or unusual height mismatches. Adds $50–80 over the standard frame.
Why Level Tow Matters More Than Most Buyers Realize
A trailer that tows nose-high transfers weight off the trailer's front axle, which causes sway. A trailer that tows nose-low overloads the front axle and dives under braking. Either way, tire wear, ride quality, and braking distance all suffer. Getting the trailer level is the single biggest tow safety upgrade most lifted-truck owners can make — and the Super Drop frame is the tool that makes it possible without giving up air ride.
Built and Finished for the Long Haul
Heavy-duty steel chassis with a textured matte black powder coat that hides road grime, resists rock chips, and shrugs off UV exposure better than gloss finishes. The same multi-ply commercial air bag used across the Shocker HD line. Backed by the lifetime frame warranty and Shocker's 60-day satisfaction guarantee. Made in Jamestown, ND.
What's Included
- Shocker HD Max Black Super Drop Air Hitch & Drawbar Mount 12-hole Super Drop base frame
- Pre-installed air bag with Schrader valve
- 1-inch drawbar pin ball mount attachment (when configured with a ball)
- 2 D-handle hitch pins with clips
- Textured matte black powder coat finish
- Installation and air-pressure setup instructions
Not Included
- —Air compressor or inflator (available separately or use any standard tire inflator)
- —Sway control kit (available separately if needed)
- —Receiver tube adapter (only required if upgrading from a smaller factory receiver)
Installation
Slide the 2-inch shank into your truck's receiver, drop in the hitch pin, and lock the clip. Set drop height by selecting the correct hole on the 12-hole frame and pinning the ball mount attachment. Inflate the airbag to match your tongue weight (chart included). Hook up and tow.
Tools needed:
No tools required for receiver install · Tire inflator or compressor for initial air pressure setup
