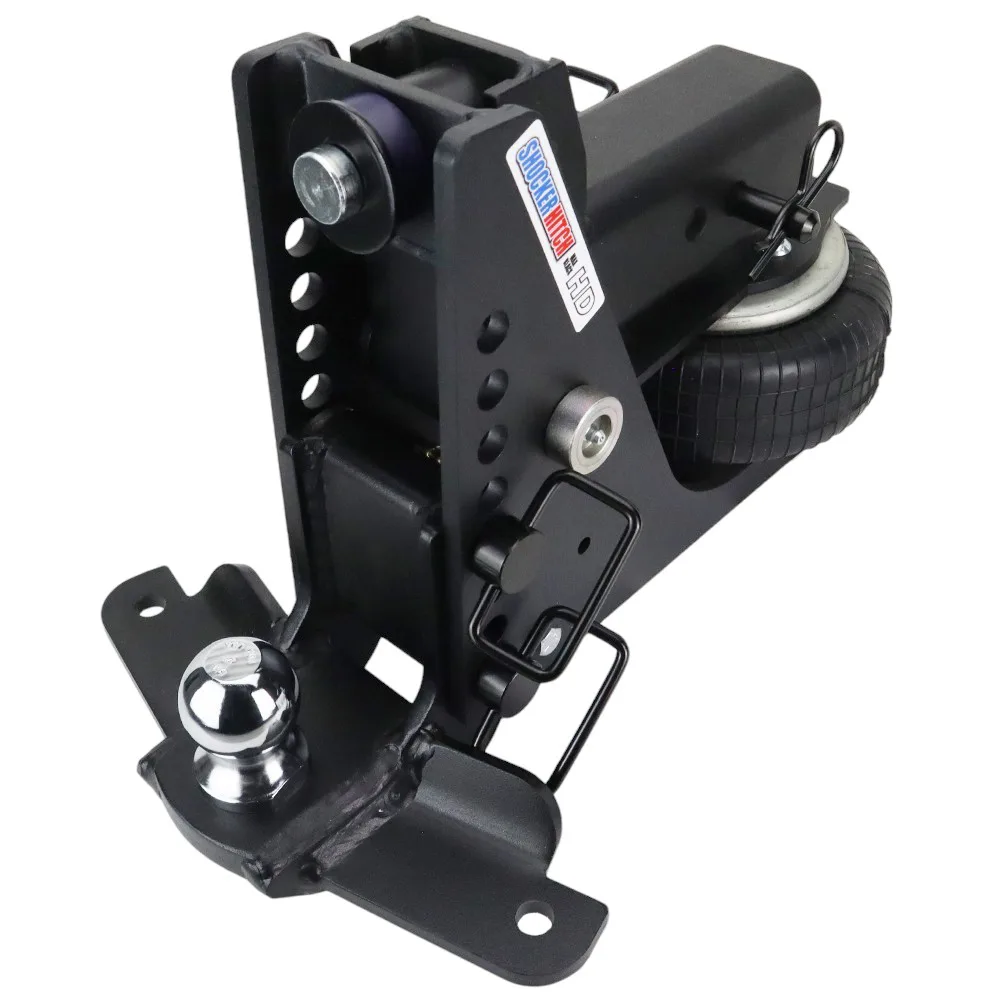

Shocker HD Max Black Air Hitch & Drop Ball Mount w/ 2" Ball & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 3" receiver· 20,000 lbs GTW · 2,000 lbs TW · 3" receiver
$1,394.38
$1,461.58 save $67.20
or as low as $117/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Sway control drop ball mount
with 2 sway control tabs for mounting the basic sway control arm bar(s) & mini balls (such as the Shocker 1001 or similar friction sway control kit)
Come with complete with shocker
HD Max Black air base frame assembly with built in 20K airbag, drop ball mount with hitch ball and 2 sway bar tabs along with 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, raise ball mounts and more.
Air ride technology
Built in air ride system, cushions the ride & absorbing the road shock
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Drag a fully loaded bumper-pull trailer down the highway and you feel every frost heave and expansion joint come straight up through the truck. The trailer chucks, the hitch clanks, and every hard stop drives the load into your back bumper and your cargo. The HD Max Black 20K puts an air spring between your truck and all of that. It sits at the top of Shocker's bumper-pull line: a heavy-duty 20,000 lb setup wrapped in a textured matte-black powder coat. Built for F-350, RAM 3500, and dual-rear-wheel one-ton trucks (class V/VI receivers) with a 3-inch receiver, this Shocker HD Max Black Air Hitch & Drop Ball Mount w/ 2" Ball & Sway Bar Tabs hauls up to 20,000 lbs GTW and carries up to 2,000 lbs of tongue weight on a beefier-wall HD frame. It is for the one-ton owner who refuses to give up capacity to get the finish, or the finish to get the capacity.
Key Highlights
- Hauls up to 20,000 lbs GTW and up to 2,000 lbs of tongue weight, the heaviest bumper-pull rating Shocker builds
- Textured matte-black powder coat hides scratches and matches a blacked-out truck
- 20K-rated HD airbag with reinforced multi-ply rubber soaks up the road
- Thicker-wall HD frame with reinforced welds where the stress piles up
- Fits a 3-inch receiver, the size dual-rear-wheel one-ton trucks run
- Add or release air to set ride height for a light run or a max-weight haul
- 4-1/2" to 8-1/2" of drop lets you level the trailer so both axles carry their share
- Backed by our 60-day satisfaction guarantee
What's Included
- HD Max Black 20K base frame (3-inch receiver shank, matte black)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU (matching black where offered)
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
A 20K Air Spring Between You and the Road
The HD multi-ply rubber air bag carries up to 20,000 lbs of trailer while it soaks up the road shock that would otherwise hammer your truck and your cargo. Same engineering as the HD Red, finished to match the matte-black frame.
Tune It to the Load You're Pulling
A heavy bumper-pull trailer can swing 1,000+ lbs between empty and loaded. Add air for the max-weight run, let some out for the deadhead home. The HD airbag gives you a wider usable pressure range than the 14K.
A Frame Built for 20K
It keeps the same external 8-hole geometry, so every Shocker ball mount still fits, but the wall steel is thicker and the welds are reinforced for 20K loads, all under a textured matte-black powder coat.
One Simple Pivot
Shocker's down-and-back motion runs on a single pivot, with no slides, rollers, or stacked airbags, even at HD loads. Fewer moving parts under heavy stress means it lasts longer.
Why One-Ton Owners Pick HD Max Black
The top of the core line, heavy-duty and premium-finish at once.
- Shocker's top bumper-pull capacity at 20,000 lbs GTW
- Textured matte black hides scratches better than glossy or red
- Matches blacked-out packages on Ford, RAM, Chevy, and GMC one-tons
- 3-inch receiver matches dual-rear-wheel truck factory hitches
- Fits the same 20+ Shocker ball-mount attachments, black-matched where offered
- No trade-off between capacity and looks
HD Max Black vs. Max Black 14K, What's Different
Same finish family, different capacity tier:
Heavier Airbag and Thicker Walls
The 20K-rated HD airbag and reinforced steel walls take you up to 20,000 lbs GTW with 2,000 lbs of tongue weight. When your loads climb past what the 14K handles, this is the step up.
A 3-Inch Receiver Option
HD Max Black comes in a 3-inch receiver for dual-rear-wheel one-ton trucks, a size the Max Black 14K does not offer.
Flip It for Drop or Rise
This Shocker HD Max Black Air Hitch & Drop Ball Mount w/ 2" Ball & Sway Bar Tabs ships set up with 4-1/2" to 8-1/2" of drop. Most Shocker ball mounts are reversible, so you can flip the mount to turn that drop into rise, or use the 8 adjustment holes to fine-tune coupler height. Heavy bumper-pull trailers are picky about sitting level. Get the drop wrong and you overload either the front or rear axle of the trailer, so take the time to dial it in.
Premium Finish on an HD Frame
Underneath, it is the same reinforced HD frame as the Shocker HD 20K Red. The textured matte-black powder coat is built to resist UV fade, hide the micro-scratches you get every time you slide the shank into the receiver, and outlast glossy finishes on salt-belt highways and gravel roads. Backed by Shocker Hitch's 60-day satisfaction guarantee.
