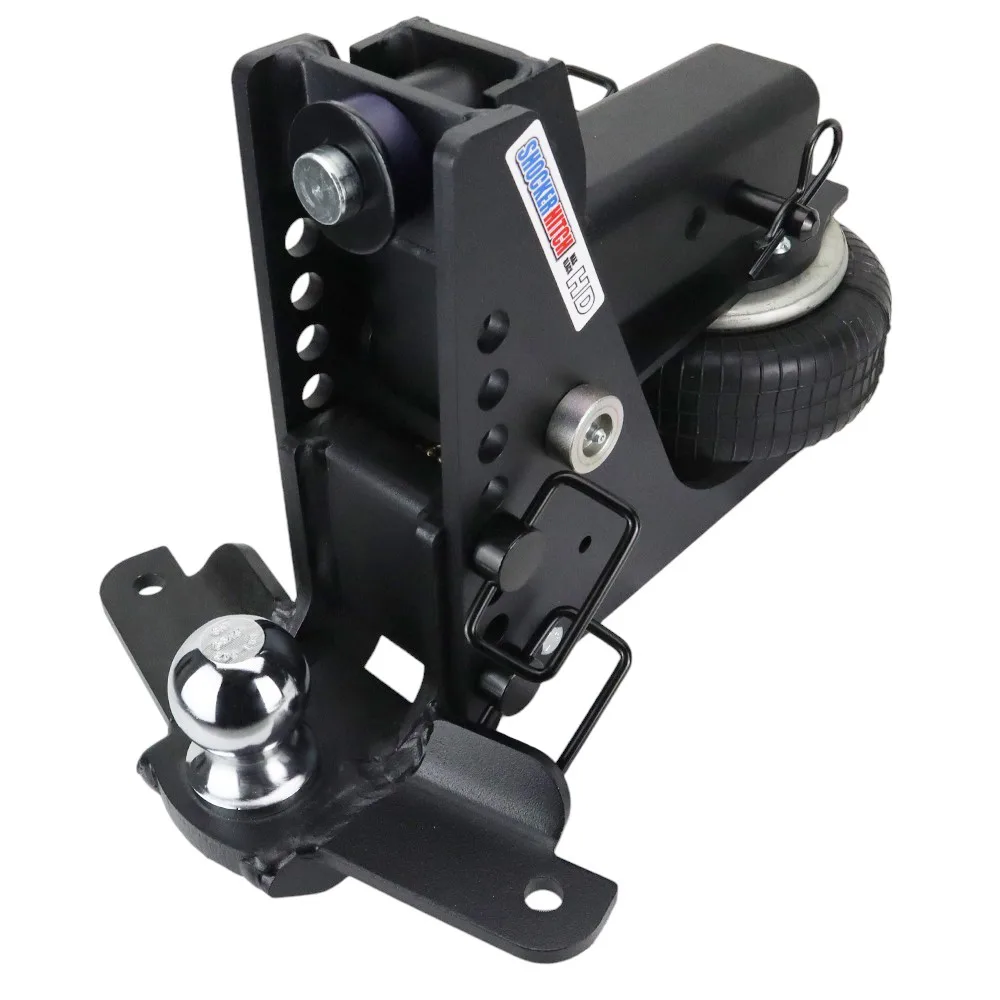

Shocker HD Max Black Air Hitch & Drop Ball Mount w/ 2-5/16" Ball & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 3" receiver· 20,000 lbs GTW · 2,000 lbs TW · 3" receiver
$1,394.38
$1,461.58 save $67.20
or as low as $117/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Sway control drop ball mount
with 2 sway control tabs for mounting the basic sway control arm bar(s) & mini balls (such as the Shocker 1001 or similar friction sway control kit)
Come with complete with shocker
HD Max Black air base frame assembly with built in 20K airbag, drop ball mount with hitch ball and 2 sway bar tabs along with 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, raise ball mounts and more.
Air ride technology
Built in air ride system, cushions the ride & absorbing the road shock
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Pull a loaded trailer behind a one-ton and every frost heave and hard stop slams up through the receiver into your truck, your trailer, and whatever you've packed. That constant chucking wears out the coupler, beats up the cargo, and makes a long haul miserable. The Shocker HD Max Black Air Hitch & Drop Ball Mount w/ 2-5/16" Ball & Sway Bar Tabs drops a heavy-duty air spring between truck and load, so those jolts get soaked up instead of hammered through. It hauls the heaviest legal bumper-pull trailer you'll put behind an F-350, RAM 3500, or dually one-ton (class V/VI receivers, 3-inch receiver), rated to 20,000 lbs GTW with up to 2,000 lbs on the ball, all on a thicker-wall HD frame finished in textured matte black that hides road scuffs and matches a blacked-out truck.
Key Highlights
- Hauls the heaviest bumper-pull trailer Shocker rates, 20,000 lbs GTW with up to 2,000 lbs on the ball
- Textured matte-black powder coat hides road scuffs and matches a blacked-out truck
- Heavy-duty 20K air spring with reinforced multi-ply construction soaks up the jolts
- Thicker-wall HD frame with reinforced welds where the stress piles up
- Drops into the 3-inch receiver on dual-rear-wheel one-ton trucks
- Add or release air to dial in ride height for a heavy load or an empty deadhead
- 4-1/2" to 8-1/2" of drop to level a heavy trailer so both axles carry their share
- Backed by our 60-day satisfaction guarantee
What's Included
- HD Max Black 20K base frame (3-inch receiver shank, matte black)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU (matching black where offered)
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
20K Air Spring Does the Cushioning
A heavy-duty multi-ply rubber air bag carries up to 20,000 lbs of trailer while soaking up the road shock that would otherwise pound your truck and cargo. Same air-ride guts as the HD Red, finished to match the matte-black frame.
Air It Up for the Load You've Got
A heavy trailer can swing 1,000+ lbs between empty and loaded. Add air for a max-weight run, let some out for the deadhead home. The HD air bag works across a wider pressure range than the 14K, so it keeps up with the bigger swings.
Thicker Frame Where It Counts
It keeps the same 8-hole outside geometry, so every Shocker ball mount still fits, but the steel is thicker-walled and the welds are reinforced for 20K loads. Finished in textured matte-black powder coat.
One Pivot, Nothing to Wear Out
The down-and-back cushioning rides on a single pivot, with no slides, rollers, or stacked air bags to fail, even under HD loads. Fewer parts taking the stress means it lasts longer out on the road.
Why One-Ton Owners Pick HD Max Black
The top of the core line, heavy-duty capacity and a premium finish in one hitch.
- The most bumper-pull capacity Shocker builds, 20,000 lbs GTW
- Textured matte black hides scuffs better than glossy or red
- Matches blacked-out factory packages on Ford, RAM, Chevy, and GMC one-tons
- 3-inch receiver matches the factory hitch on dual-rear-wheel trucks
- Takes the same 20+ Shocker ball-mount attachments, black-matched where offered
- You don't give up looks to get the capacity
HD Max Black vs. Max Black 14K, What Changes
Same finish family, a bigger capacity tier:
Heavier Air Bag and Thicker Walls
The 20K-rated HD air bag and reinforced steel walls take you up to 20,000 lbs GTW with 2,000 lbs on the ball. That's the one to grab when your loads climb past what the 14K handles.
3-Inch Receiver for Duallies
HD Max Black comes in a 3-inch receiver for dual-rear-wheel one-ton trucks, a fit the Max Black 14K doesn't offer.
Flip It for Drop or Rise
This Shocker HD Max Black Air Hitch & Drop Ball Mount w/ 2-5/16" Ball & Sway Bar Tabs comes set up as a 4-1/2" to 8-1/2" drop. Like most Shocker ball mounts, it's reversible, so you can flip it over to turn that drop into a rise, and use the 8 adjustment holes to fine-tune coupler height. A heavy trailer is fussy about sitting level. Get the drop wrong and you overload either the front or rear axle of the trailer, so take the time to dial it in.
Premium Finish on an HD Frame
It's built on the same reinforced HD frame as the Shocker HD 20K Red. The textured matte-black powder coat is made to fight UV fade, hide the micro-scratches you get every time you slide the shank into the receiver, and outlast glossy finishes on salt-belt roads and gravel. Backed by Shocker Hitch's 60-day satisfaction guarantee.
