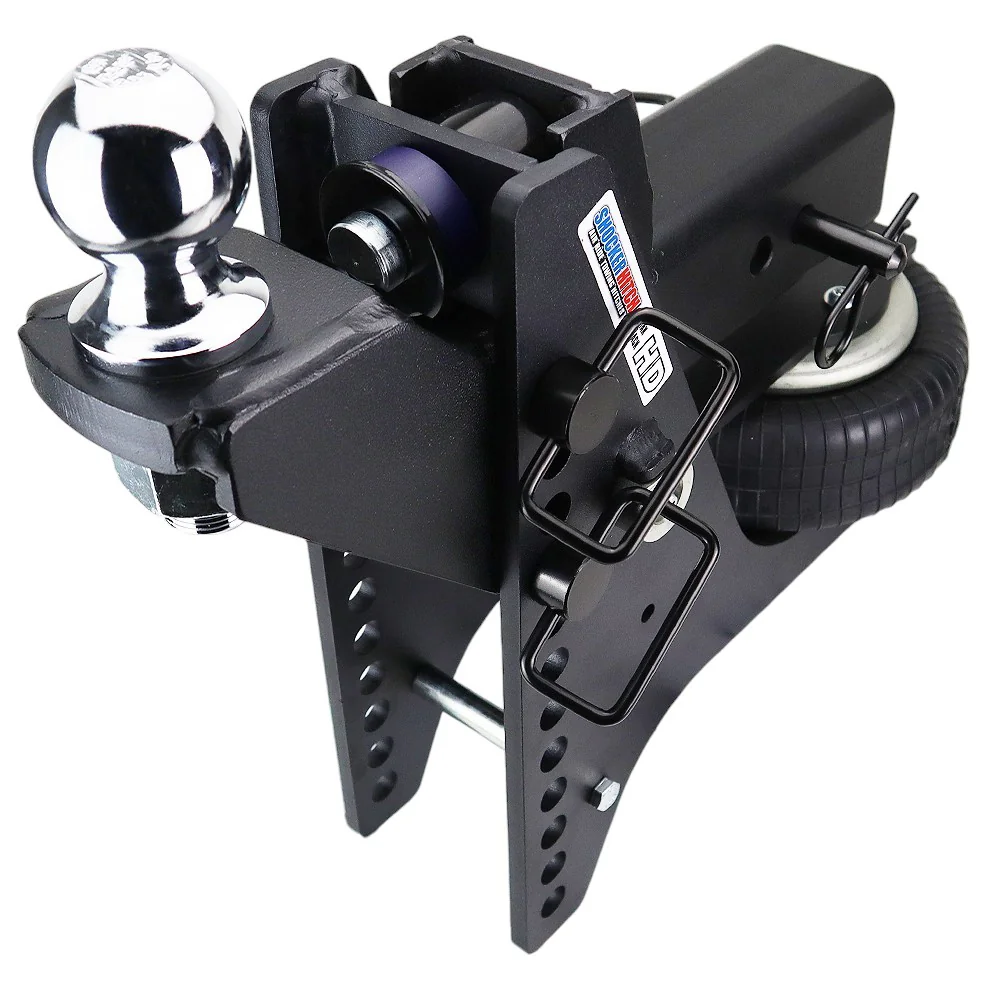

Shocker HD Max Black Super Drop Air Hitch & Raised Ball Mount w/ 2-5/16" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 3" receiver· 20,000 lbs GTW · 2,000 lbs TW · 3" receiver
$1,394.38
$1,461.58 save $67.20
or as low as $117/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Matte Black Finish
Impact resistant Max Black™ textured matte black Premium powder-coat finish on hitch.
Built-in HD Air Ride System
Absorbs road shock and creates a smooth ride & reduces trailer sway. Dual rubber bump cushions offer additional HD performance.
Improves Safety
By giving you improved control of your tow vehicle and trailer. The air bag receiver hitch system allows for better control of your pickup and the trailer it is towing.
2 Hole Receiver Shank
Available for 2", 2-1/2" & 3" receiver hitch tubes with 2 hitch pin holes for length adjustability.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Your truck sits high and your trailer tongue sits low, so every trip the trailer rides nose-up, chucking, swaying, and chewing through tires. A standard drop hitch closes that gap, but most of them are solid steel that slams every frost heave and hard stop straight into your back and your cargo. The Shocker HD Max Black Super Drop solves both. The 12-hole Super Drop frame gives you up to 12-1/2 inches of drop to level a lifted rig over a low trailer, and it keeps the same 20K air ride airbag working the whole way so the ride stays smooth. Rated at 20,000 lbs GTW, it fits 3-inch receivers and adjusts across 2" Rise to 6" Drop, with a 2-5/16" ball ready to hook up and tow.
Key Highlights
- Up to 12-1/2 inches of drop levels even a lifted rig over a low trailer, the deepest reach in the HD Max Black family
- Hauls up to 20,000 lbs GTW on full air ride, so the load rides smooth instead of jarring
- 12-hole Super Drop frame lets you dial in the exact height to tow dead level
- Textured matte black powder coat shrugs off rock chips, rust, and UV fade
- 3-inch shank fits F-350, RAM 3500, and dual-rear-wheel one-ton trucks (class V/VI receivers)
- Reversible frame flips over for extra rise when your setup calls for it
- Same airbag and same chassis strength as the standard HD Max Black 20K
- Built for lifted trucks, low-tongue gooseneck-converted trailers, and low-deck haulers
What's Included
- Shocker HD Max Black Super Drop 12-hole base frame
- Pre-installed air bag with Schrader valve
- 2-5/16-inch ball mount attachment (when configured with a ball)
- 2 D-handle hitch pins with clips
- Textured matte black powder coat finish
- Installation and air-pressure setup instructions
Not Included
- —Air compressor or inflator (available separately or use any standard tire inflator)
- —Sway control kit (available separately if needed)
- —Receiver tube adapter (only required if upgrading from a smaller factory receiver)
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
What the Super Drop Frame Gives You
Four Extra Holes, More Drop
Four more adjustment holes than the standard 8-hole HD Max Black frame. Those extra positions are what let you reach 10 to 12 inches of drop and get a lifted truck sitting level.
Air Ride at Every Drop Setting
Most extreme-drop hitches are solid steel, so every bump comes through hard and jarring. The Super Drop keeps the airbag working across the entire drop range, so you get the clearance without giving up a smooth ride.
Flip It for Rise
Turn the frame over and you get up to 2 inches of rise. Handy for a cab-over camper or a taller trailer tongue on a stock-height truck.
Works With Every HD Max Black Attachment
Takes every HD Max Black ball mount attachment, including combo balls, pintles, clevises, and drawbars. Buy the frame once and swap attachments as your trailers change.
Built For These Trucks and Trailers
If your factory hitch leaves the trailer sitting nose-up or nose-down, you need more drop range. This frame gives it to you.
- Lifted half-ton, 3/4-ton, and 1-ton pickups (3 to 6 inch lifts)
- Trailers with low front tongues that ride nose-up behind a stock-height truck
- Low-deck equipment haulers, race trailers, and gooseneck-converted bumper-pull trailers
- Dual-rear-wheel trucks with factory-tall ride heights
- Any rig where the standard 6 to 7 inch drop is not enough to level the trailer
- F-350, RAM 3500, and dual-rear-wheel one-ton trucks (class V/VI receivers) on aftermarket suspension
Super Drop vs Standard HD Max Black 20K
Both use the same 20K air ride chassis. Pick based on how much drop your setup actually needs.
Standard HD Max Black 20K (8-hole frame)
Gives you up to about 7 inches of drop. It is the right pick for a stock-height truck pulling a typical bumper-pull trailer, and it costs less. This is the one most buyers reach for.
HD Max Black Super Drop (12-hole frame)
Gives you up to 12-1/2 inches of drop. Reach for this one when the standard frame cannot get the trailer level, whether that is a lifted truck, a low-tongue trailer, or an odd height mismatch. It runs $50 to $80 more than the standard frame.
Why Level Tow Matters More Than Most Buyers Realize
When a trailer tows nose-high, weight comes off its front axle and the trailer starts to sway behind you. When it tows nose-low, the front axle is overloaded and the whole rig dives every time you hit the brakes. Either way you pay for it in tire wear, a rougher ride, and longer stopping distances. Getting the trailer to sit level is the single biggest safety upgrade most lifted-truck owners can make, and the Super Drop frame is what makes it possible without giving up air ride.
Built and Finished for the Long Haul
The chassis is heavy-duty steel wearing a textured matte black powder coat that hides road grime, takes rock chips without showing them, and holds up to UV better than a gloss finish. Inside is the same multi-ply commercial air bag used across the Shocker HD line. It is backed by Shocker's 60-day satisfaction guarantee, in stock and shipping direct from Canada with no border wait.
