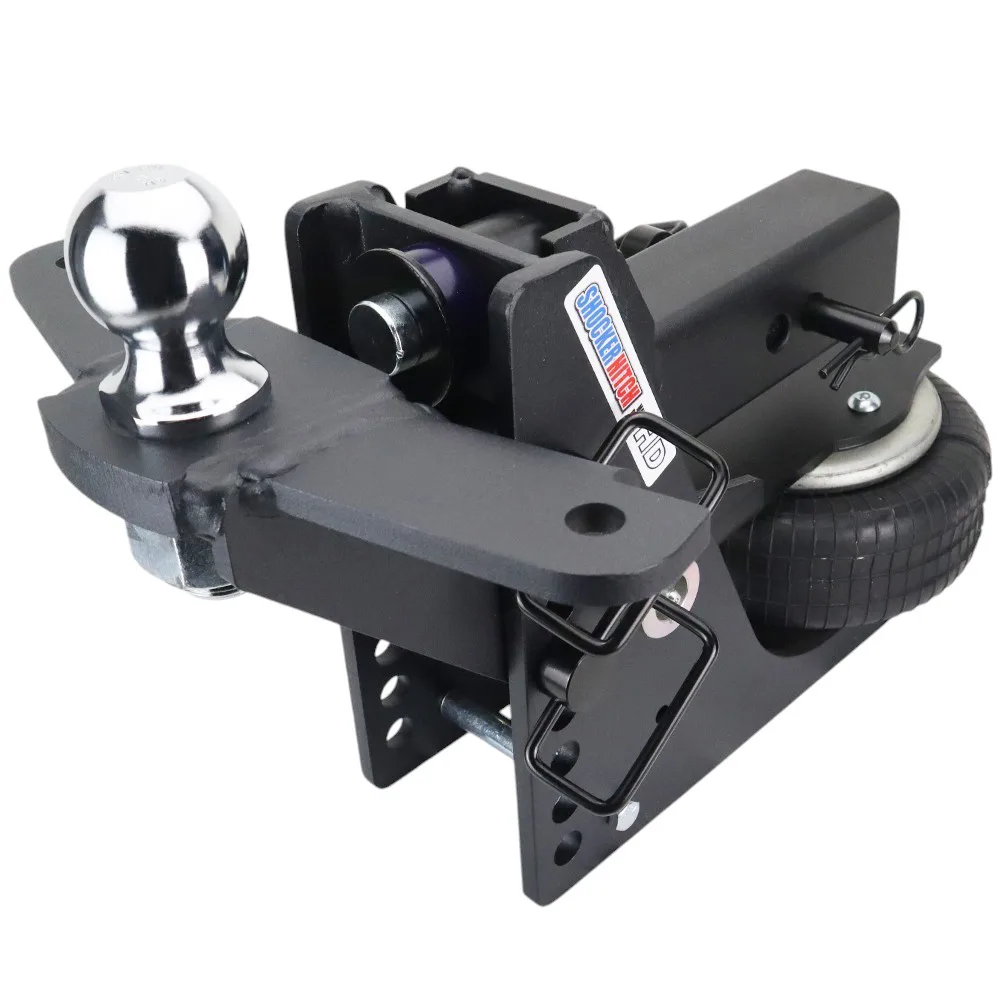

Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,343.98
$1,411.18 save $67.20
or as low as $112/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Matte Black Finish
Max Black™ Textured Matte Black Premium Powder-Coat Finish on Base Frame.
Built in HD Airbag
Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
Great for Pickups to Motorhomes
Fits Great for Full-Size Pickup Trucks & Vans, Midsize Pickups & Select SUVS & Motorhomes with a receiver under the bumper.
Built-in Sway Tabs
Comes with an Adjustable sway bar tab raised ball mount. (+2″ of Rise to 2″ of Drop) Choose 2″ or 2 5/16″ hitch ball
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Pull a heavy trailer down a rough highway and every frost heave, pothole, and hard stop punches straight up through the receiver into your truck, your spine, and whatever you're hauling. The Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs puts an air spring between you and that beating. It's the top of the Shocker bumper-pull line, a heavy-duty 20K hitch wrapped in a textured matte-black powder coat that looks the part on a blacked-out truck. Rated for 20,000 lbs of trailer (GTW) and up to 2,000 lbs on the tongue, it hauls the heaviest legal bumper-pull load you'll put behind an F-250 or RAM 2500-class three-quarter-ton truck with a 2-1/2-inch (class V) receiver. Built on a beefier-wall HD chassis, it's for the owner who won't give up capacity to get the finish, or the finish to get the capacity.
Key Highlights
- Hauls up to 20,000 lbs of trailer (GTW) with 2,000 lbs on the tongue, the heaviest bumper-pull rating Shocker makes
- Textured matte-black powder coat shrugs off scratches and matches a blacked-out truck
- A 20K-rated HD air spring with reinforced multi-ply rubber does the cushioning
- Thicker-wall HD chassis with reinforced welds where the stress piles up
- Fits a 2-1/2-inch receiver, with a 3-inch option for one-ton trucks
- Add or bleed air to set ride height for a full load or an empty deadhead
- 2" Rise to 2" Drop ball mount so you can level the trailer right
- Backed by our 60-day satisfaction guarantee
What's Included
- HD Max Black 20K base frame (2-1/2-inch receiver shank, matte black)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU (matching black where offered)
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
20K-Rated Air Spring
A tough multi-ply rubber air bag carries up to 20,000 lbs of trailer and soaks up the road shock before it reaches your truck and your cargo. It's the same air spring as the HD Red, just finished to match the matte-black chassis.
Adjustable for Heavy Loads
A heavy bumper-pull trailer can swing 1,000-plus lbs between empty and loaded. Add air for the max-weight run, bleed it off for the empty trip home. The HD air bag works across a wider pressure range than the 14K, so it keeps up with bigger loads.
Reinforced HD Chassis
Same 8-hole outer pattern, so every Shocker ball mount still bolts on. Underneath it's thicker-wall steel with welds reinforced for 20K loads, all wrapped in textured matte-black powder coat.
Rocker-Arm Pivot
Shocker's down-and-back motion runs on one simple pivot. No slides, no rollers, no stacked air bags, even at HD loads. Fewer parts moving under all that stress means less to wear out and a longer service life.
Why Buyers Choose HD Max Black
The top of the core line, heavy-duty capacity and a premium finish in one hitch.
- Maxes out bumper-pull capacity at 20,000 lbs GTW
- Textured matte black hides scratches better than glossy or red does
- Matches blacked-out factory packages on Ford, RAM, Chevy, and GMC one-tons
- 3-inch receiver option matches dual-rear-wheel truck factory hitches
- Works with the same 20-plus Shocker ball mounts, black-matched where offered
- No trade-off between capacity and looks
HD Max Black vs. Max Black 14K: What's Different
Same finish, one big step up in capacity:
Heavier Air Bag and Walls
The 20K-rated HD air bag and reinforced steel walls take you from the 14K's 14,000 lbs up to 20,000 lbs GTW with 2,000 lbs on the tongue. This is the one to grab when your loads run past 14,000 lbs.
Three-Inch Receiver Option
The HD Max Black comes in a 3-inch receiver built for dual-rear-wheel one-ton trucks, something the Max Black 14K doesn't offer.
Flip It for the Drop or Rise You Need
This Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs ships set up as a 2" Rise to 2" Drop ball mount. Most Shocker ball mounts flip over, so you can turn drop into rise, and the 8 adjustment holes let you fine-tune coupler height on top of that. A heavy bumper-pull trailer is fussy about sitting level. Get the drop wrong and you pile weight onto the trailer's front or rear axle instead of spreading it, so take a minute to dial it in.
Premium Finish on an HD Frame
It rides on the same reinforced HD chassis as the Shocker HD 20K Red. The textured matte-black powder coat is built to fight UV fade and hide the micro-scratches you get every time you slide the shank in and out. On salt-belt roads and gravel back roads it holds up where a glossy finish would chip and dull. Backed by Shocker Hitch's 60-day satisfaction guarantee.
