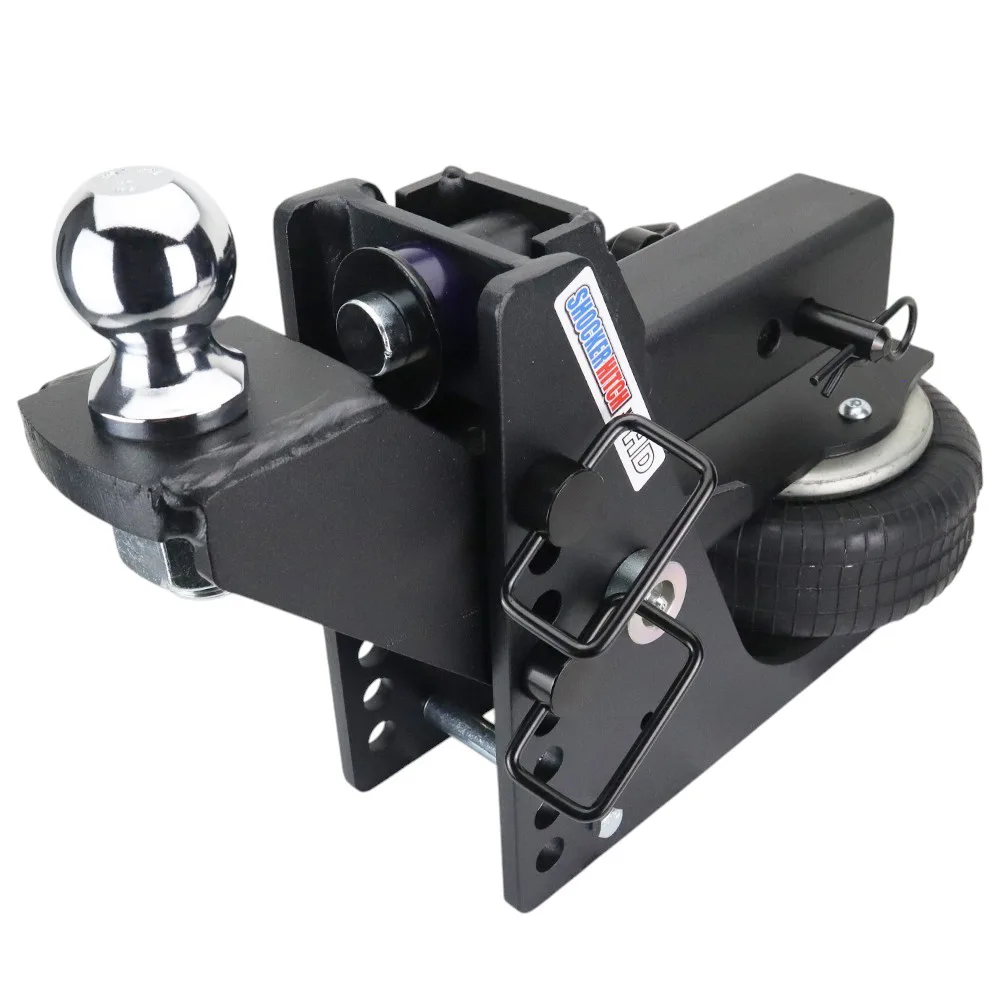

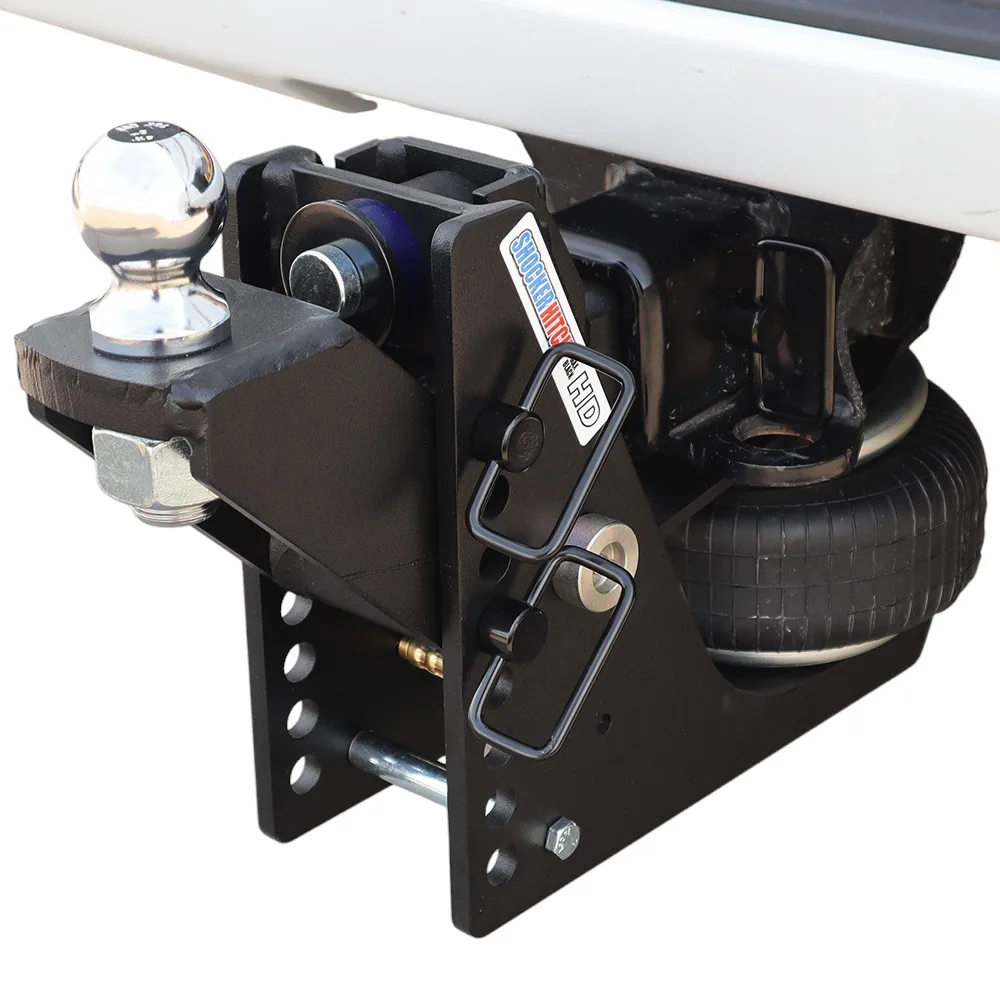

Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,259.98
$1,327.18 save $67.20
or as low as $105/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Comes complete with Shocker HD
Max Black Air Hitch base frame assembly with built in 20K airbag, raised ball mount & hitch ball & 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, combo ball mounts and more.
Comes with Adjustable raised ball
mount with chrome 2" or 2 5/16" bolted on hitch ball
Great for pickup trucks, vans
and select SUV's where the receiver hitch tube is under the bumper.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Hook a heavy trailer to a rigid receiver and every frost heave, expansion joint, and hard stop slams straight through the ball into your truck, your trailer, and your cargo. On a loaded run that pounding wears out gear and turns a long haul into a white-knuckle grind. The Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball drops an air spring between truck and trailer so that shock gets soaked up instead of passed on. It's the top-tier core hitch in the Shocker bumper-pull lineup: heavy-duty 20K guts in a textured matte-black premium powder coat. Sized for F-250 and RAM 2500-class three-quarter-ton trucks (class V receivers) with a 2-1/2-inch receiver, it carries 20,000 lbs of trailer (GTW) and up to 2,000 lbs of tongue weight on a beefier-wall HD chassis. For the one-ton owner who won't trade capacity or looks for a smoother ride.
Key Highlights
- Hauls 20,000 lbs of trailer (GTW) with up to 2,000 lbs on the tongue, the heaviest bumper-pull rating Shocker makes
- Textured matte-black powder coat shrugs off scratches and matches a blacked-out truck
- 20K-rated HD air spring built up in reinforced multi-ply rubber to take the load
- Thicker-wall HD chassis with reinforced welds where the stress piles up
- Comes in a 2-1/2-inch receiver, with a 3-inch option for one-ton trucks
- Add or bleed air to set ride height for whatever you're towing that day
- 2" Rise to 2" Drop ball mount so you can sit the trailer dead level
- Backed by our 60-day satisfaction guarantee
What's Included
- HD Max Black 20K base frame (2-1/2-inch receiver shank, matte black)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU (matching black where offered)
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (sold separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How the HD Air Ride Takes the Hit
An Air Spring Rated for 20K
A heavy-duty multi-ply rubber air bag carries up to 20,000 lbs of trailer and still soaks up the road shock that would otherwise hammer your truck and your cargo. Same guts as the HD Red, finished to match the matte-black chassis.
Tune the Air to the Load
A heavy bumper-pull trailer can swing 1,000+ lbs between empty and loaded. Pump in air for a max-weight run, bleed it back off for the deadhead home. The HD air bag works across a wider pressure range than the 14K, so it stays comfortable at both ends.
Reinforced HD Chassis
The outside keeps the same 8-hole geometry, so every Shocker ball mount still bolts right on. Underneath it runs thicker-wall steel and reinforced welds rated for 20K loads, all wrapped in textured matte-black powder coat.
One Simple Pivot
Shocker's down-and-back motion rides on a single pivot, with no slides, rollers, or stacked airbags to wear out, even at HD loads. Fewer moving parts under that kind of stress means it lasts longer.
Why Owners Reach for the HD Max Black
The top of the core line, heavy-duty and premium-finished at the same time.
- Tops out the bumper-pull range at 20,000 lbs GTW
- Textured matte black hides scratches better than a glossy or red finish
- Matches the blacked-out packages on Ford, RAM, Chevy, and GMC one-tons
- A 3-inch receiver option matches the factory hitch on dual-rear-wheel trucks
- Takes the same 20+ Shocker ball-mount attachments, black-matched where offered
- No trade-off between capacity and looks
HD Max Black vs. Max Black 14K: What Actually Changes
Same finish family, one step up in capacity:
Heavier Air Bag, Thicker Walls
A 20K-rated HD air bag and reinforced steel walls take capacity up to 20,000 lbs GTW with 2,000 lbs of tongue weight, well past what the 14K is built for. This is the hitch to grab when your loads run past 14K.
The 3-Inch Receiver Option
The HD Max Black comes in a 3-inch receiver for dual-rear-wheel one-ton trucks, something the Max Black 14K doesn't offer at all.
Flip It for Drop or Rise
This Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball ships set up as a 2" Rise to 2" Drop ball mount. Most Shocker ball mounts flip over, so you can turn that drop into rise, and the 8 adjustment holes let you fine-tune coupler height on top of that. A heavy bumper-pull trailer is fussy about sitting level. Get the drop wrong and you overload either the front or rear axle of the trailer, so take a minute to dial it in.
Premium Finish on an HD Frame
It's built on the same reinforced HD chassis as the Shocker HD 20K Red. The textured matte-black powder coat is made to fight UV fade, hide the micro-scratches you get sliding it in and out of the receiver, and outlast a glossy finish on salt-belt highways and gravel roads. Backed by Shocker Hitch's 60-day satisfaction guarantee.
