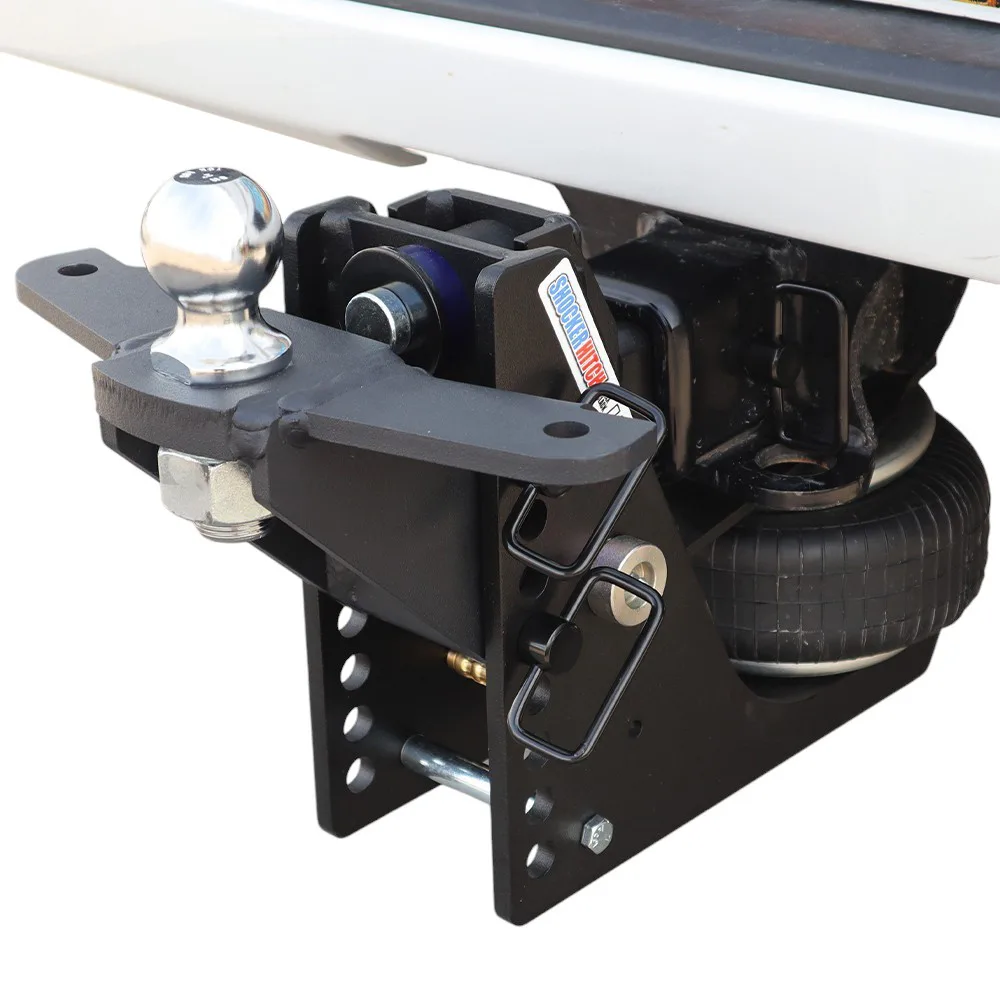

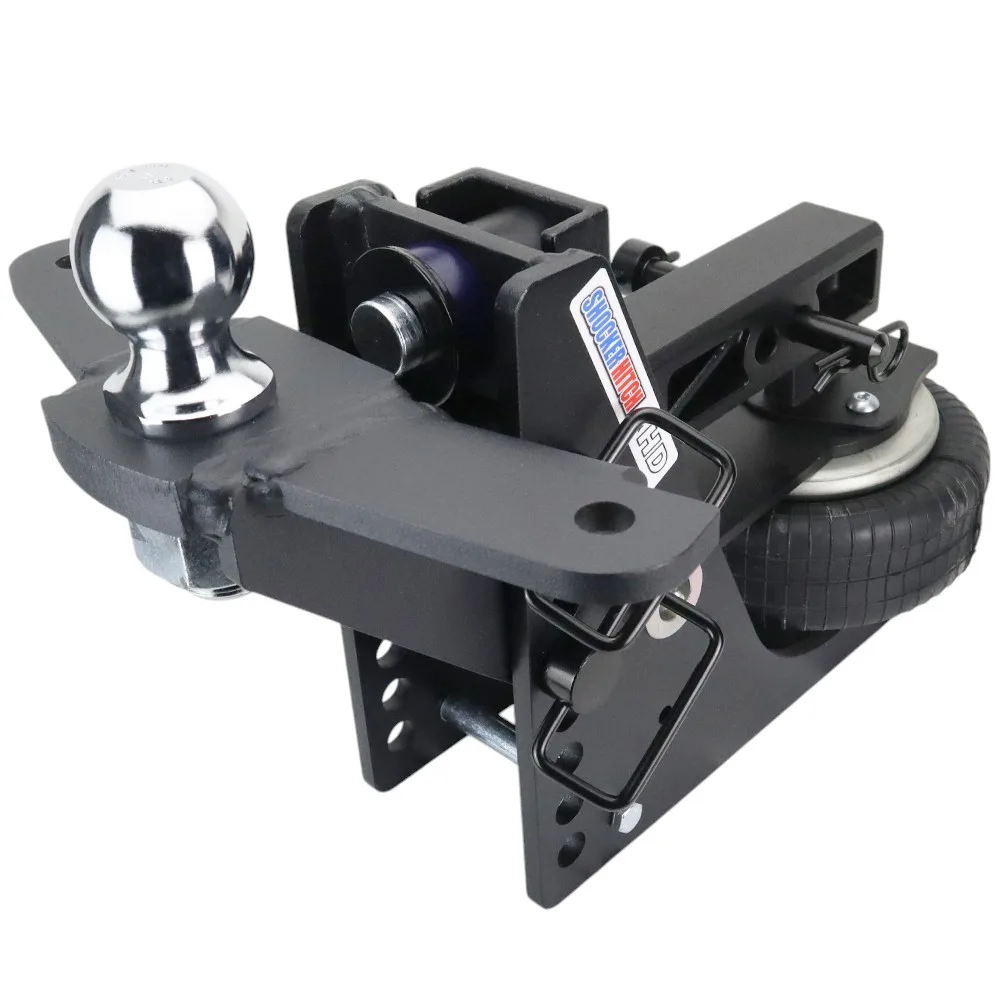

Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2" receiver
$1,310.38
$1,377.58 save $67.20
or as low as $110/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Matte Black Finish
Max Black™ Textured Matte Black Premium Powder-Coat Finish on Base Frame.
Built in HD Airbag
Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
Great for Pickups to Motorhomes
Fits Great for Full-Size Pickup Trucks & Vans, Midsize Pickups & Select SUVS & Motorhomes with a receiver under the bumper.
Built-in Sway Tabs
Comes with an Adjustable sway bar tab raised ball mount. (+2″ of Rise to 2″ of Drop) Choose 2″ or 2 5/16″ hitch ball
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Hitch a heavy trailer to a rigid ball mount and every frost heave and hard stop slams straight through the coupler into your truck and your cargo. The Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs drops an air spring between trailer and truck so that jarring gets soaked up instead of passed along. It sits at the top of Shocker's bumper-pull lineup: a heavy-duty 20,000 lbs GTW hitch good for up to 2,000 lbs of tongue weight on a beefier-wall HD chassis, finished in textured matte-black premium powder coat. It slides into a 2-inch receiver on F-150-class half-ton trucks (class III and IV) and ships direct from our Canadian stock, no border wait. The pick for owners who refuse to trade capacity for looks.
Key Highlights
- Pulls the heaviest legal bumper-pull load you can hang off the ball, 20,000 lbs GTW with up to 2,000 lbs of tongue weight, Shocker's top bumper-pull rating
- Textured matte-black powder coat shrugs off receiver scuffs and matches a blacked-out truck instead of clashing with it
- 20K-rated HD airbag built from reinforced multi-ply rubber, so it cushions the ride while carrying the full load
- Thicker-wall HD chassis with reinforced welds where the stress piles up, made to live under heavy weight
- Fits a 2-inch receiver, with a 3-inch option for one-ton trucks running a bigger factory hitch
- Add or bleed air to set ride height for whatever you are towing that day, loaded or empty
- 2" Rise to 2" Drop ball-mount geometry so you can get the trailer sitting dead level
- Backed by our 60-day satisfaction guarantee
What's Included
- HD Max Black 20K base frame (2-inch receiver shank, matte black)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU (matching black where offered)
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
20K Air Spring Soaks Up the Road
The heavy multi-ply rubber air bag carries up to 20,000 lbs of trailer load and still cushions the road shock before it reaches your truck and your cargo. Same air-ride guts as the HD Red, just finished to match the matte-black chassis.
Tune It Empty or Loaded
A heavy bumper-pull trailer can swing 1,000+ lbs between empty and full, and a fixed mount can't tell the difference. Add air for the max-weight haul, bleed it back off for the deadhead run home. The HD airbag has a wider usable pressure range than the 14K, so it keeps up with bigger swings.
Built Heavier Where It Counts
Same external 8-hole pattern, so every Shocker ball mount still bolts on, but the steel is thicker-walled and the welds are reinforced for 20K loadings. All of it wears the same textured matte-black powder coat.
One Pivot, Fewer Things to Wear Out
The down-and-back motion rides on a single rocker-arm pivot, with no slides, rollers, or stacked airbags to fail, even under HD loads. Fewer parts taking the strain means it lasts longer out on the road.
Why Owners Reach for the HD Max Black
The top of the core line, heavy-duty and premium-finished at the same time.
- Maxes out bumper-pull capacity at 20,000 lbs GTW
- Matte black hides scuffs better than glossy or red
- Matches blacked-out Ford, RAM, Chevy, and GMC one-ton packages
- 3-inch receiver option lines up with dual-rear-wheel factory hitches
- Works with the same 20+ Shocker ball mounts, black-matched where offered
- You keep the capacity and the looks
HD Max Black vs. Max Black 14K: What's Different
Same finish family, a step up in capacity.
Heavier Airbag and Thicker Walls
The 14K tops out at 14,000 lbs. The 20K-rated HD airbag and reinforced steel walls here take you up to a full 20,000 lbs GTW with 2,000 lbs of tongue weight. Grab this one when your loads climb past what the 14K can carry.
Three-Inch Receiver on the Table
HD Max Black can be had with a 3-inch receiver for dual-rear-wheel one-ton trucks, which is something the Max Black 14K simply doesn't offer.
Flip It for Drop or Rise
This Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs ships in a 2" Rise to 2" Drop ball-mount setup. Most Shocker ball mounts flip over, so you can turn that drop into a rise, and the 8 adjustment holes let you fine-tune coupler height on top of that. A heavy bumper-pull trailer is fussy about sitting level. Get the drop wrong and you pile weight onto the trailer's front or rear axle, chewing tires and stressing the frame, so take the time to dial it in right.
HD Frame, Finish That Holds Up
Underneath, it's the same reinforced HD chassis as the Shocker HD 20K Red. The textured matte-black powder coat is built to fight UV fade, hide the micro-scratches that show up every time you slide a mount into the receiver, and outlast glossy finishes on salt-belt highways and gravel roads. Backed by Shocker Hitch's 60-day satisfaction guarantee.
