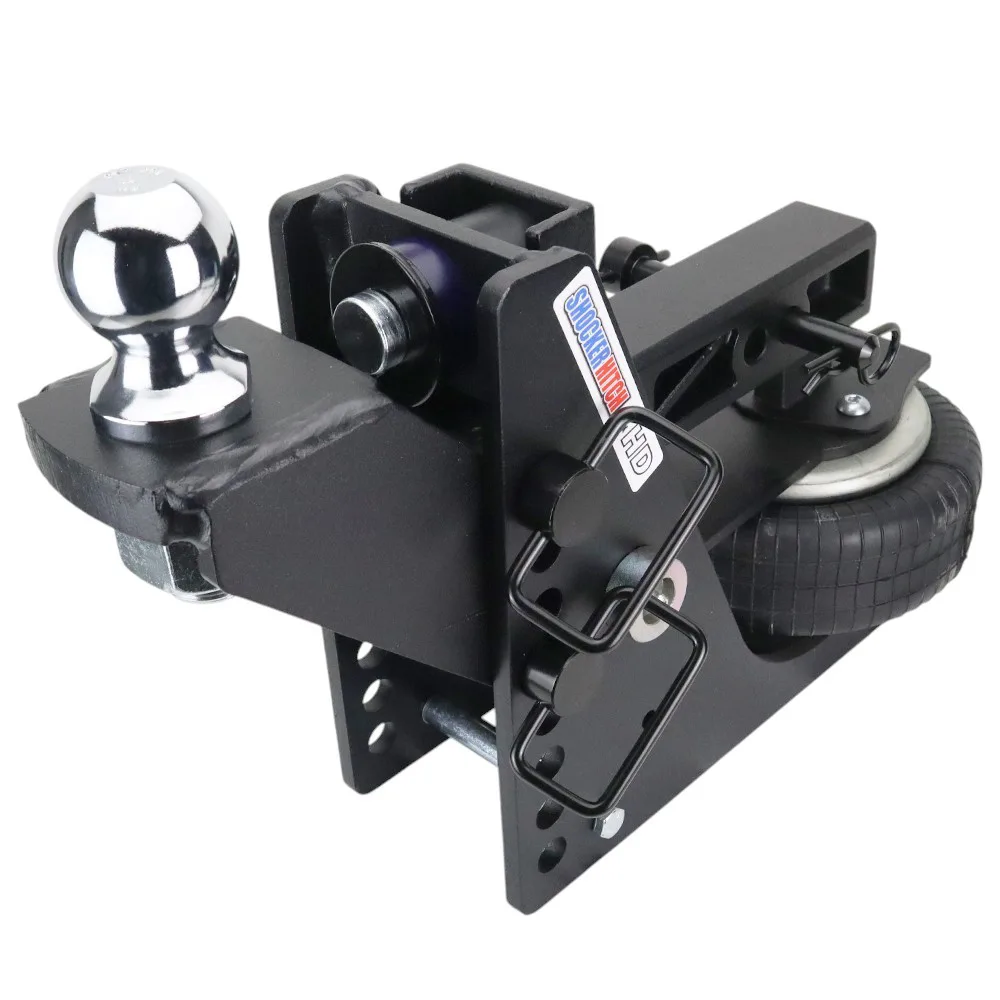

Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2" receiver
$1,226.38
$1,293.58 save $67.20
or as low as $103/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Comes complete with Shocker HD
Max Black Air Hitch base frame assembly with built in 20K airbag, raised ball mount & hitch ball & 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, combo ball mounts and more.
Comes with Adjustable raised ball
mount with chrome 2" or 2 5/16" bolted on hitch ball
Great for pickup trucks, vans
and select SUV's where the receiver hitch tube is under the bumper.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
You feel every frost heave and hard stop through a heavy bumper-pull trailer. The chucking that yanks the truck around, the jarring that beats up your cargo and your back, the white-knuckle braking when the load shoves you from behind. The Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball drops an adjustable air spring between your trailer and your truck, so that shock gets soaked up instead of slamming through the whole rig. It sits at the top of the Shocker bumper-pull lineup, a heavy-duty 20K chassis wrapped in a textured matte-black premium powder coat. Sized for F-150-class half-ton trucks (and class III/IV receivers) with a 2-inch receiver, it's rated for 20,000 lbs GTW and up to 2,000 lbs of tongue weight on a beefier-wall HD frame. This is the one for the one-ton owner who refuses to choose between how much he can haul and how his truck looks doing it.
Key Highlights
- Hauls up to 20,000 lbs GTW with 2,000 lbs of tongue weight, the heaviest trailer Shocker rates for bumper-pull towing
- Textured matte-black premium powder coat shrugs off scratches and matches your blacked-out truck
- 20K-rated HD airbag with reinforced multi-ply rubber takes the beating so your truck and cargo don't
- Beefier-wall HD chassis with reinforced welds holds up where the load stress runs highest
- Ships with a 2-inch receiver, with a 3-inch option available for one-ton trucks
- Add or release air to set ride height for a loaded run or an empty deadhead
- 2" Rise to 2" Drop ball-mount geometry lets you sit the trailer dead level
- Backed by our 60-day satisfaction guarantee
What's Included
- HD Max Black 20K base frame (2-inch receiver shank, matte black)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU (matching black where offered)
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
20K-Rated Air Spring
The HD multi-ply rubber air bag carries up to 20,000 lbs of trailer load and soaks up road shock before it ever reaches your truck and cargo. Same air-ride engineering as the HD Red, just finished to match the matte-black chassis.
Adjustable for Heavy Loads
A heavy bumper-pull load can swing 1,000+ lbs between empty and full. Pump air in for the max-weight run, bleed it off for the deadhead home, and the ride stays settled either way. The HD airbag has a wider usable pressure range than the 14K.
Reinforced HD Chassis
Same external 8-hole geometry means every Shocker ball mount still bolts right on, but the steel is thicker-walled and the welds are reinforced for 20K loads. All of it wears the textured matte-black powder coat.
Rocker-Arm Pivot
Shocker's down-and-back motion runs on a single pivot, with no slides, rollers, or stacked airbags even at HD loads. Fewer moving parts under that kind of stress means a longer service life.
Why Buyers Choose HD Max Black
The top of the core line, heavy-duty and premium-finish in one.
- Shocker's top bumper-pull capacity at 20,000 lbs GTW
- Textured matte black hides scratches better than glossy or red finishes
- Matches blacked-out OEM packages on Ford, RAM, Chevy, and GMC one-tons
- 3-inch receiver option matches dual-rear-wheel factory hitches
- Works with the same 20+ Shocker ball-mount attachments, black-matched where offered
- You don't trade capacity for looks, or looks for capacity
HD Max Black vs. Max Black 14K, What's Different
Same finish family, different capacity tier:
Heavier Airbag and Walls
The 14K does its job right up to where its airbag maxes out. Step up to the HD's 20K-rated airbag and reinforced steel walls and you're rated for 20,000 lbs GTW with 2,000 lbs of tongue weight. This is the one to grab when your loads climb past what the 14K handles.
Three-Inch Receiver Option
HD Max Black comes in a 3-inch receiver for dual-rear-wheel one-ton trucks, a size the Max Black 14K doesn't offer.
Flip the Mount for Drop or Rise
This Shocker HD Max Black Air Hitch & Raised Ball Mount w/ 2" Ball ships in a 2" Rise to 2" Drop ball-mount setup. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or work the 8 adjustment holes to fine-tune your coupler height. Getting a heavy bumper-pull trailer to sit level really matters. If the drop is off, you overload either the front or the rear axle of the trailer, so take the time to dial it in.
Premium Finish, HD Frame
Underneath, this is the same reinforced HD chassis as the Shocker HD 20K Red. The textured matte-black powder coat is built to fight UV fade, hide the micro-scratches you get every time the shank slides into the receiver, and hold up longer than glossy finishes on salt-belt roads and gravel. Backed by Shocker Hitch's 60-day satisfaction guarantee.
