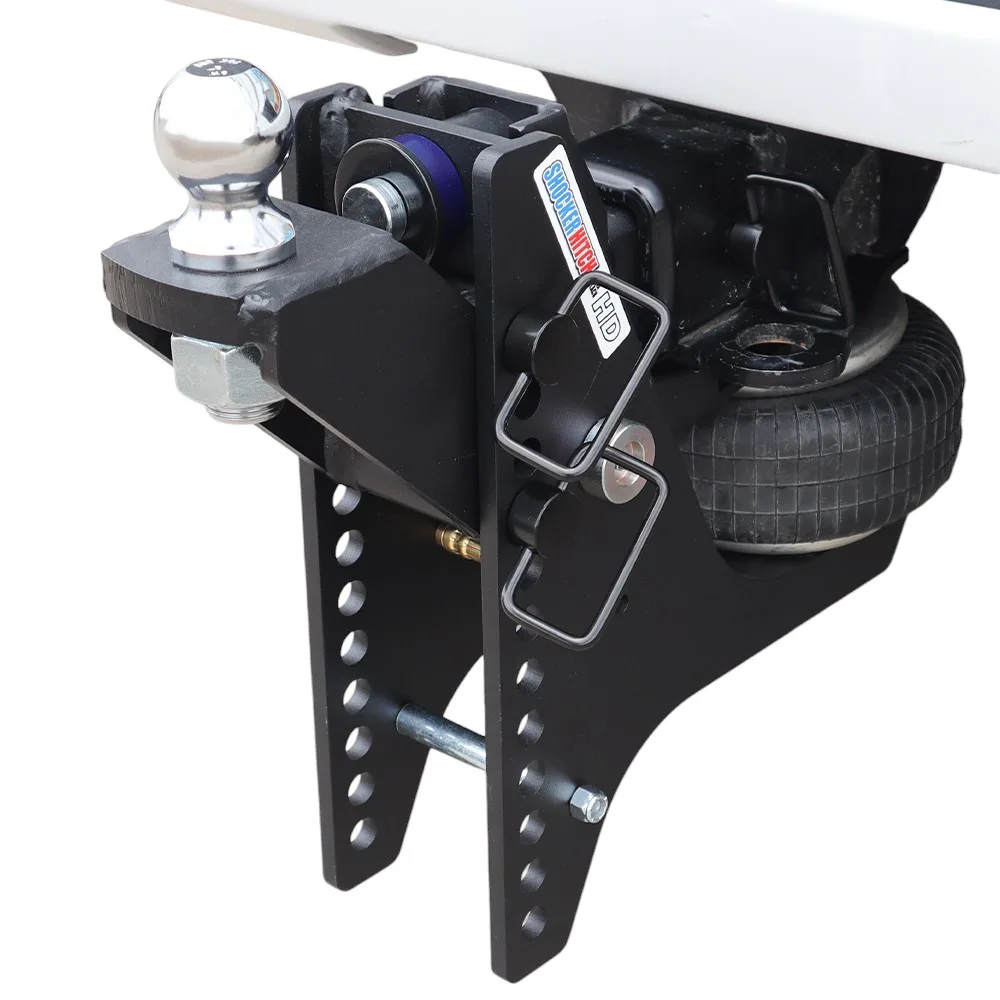

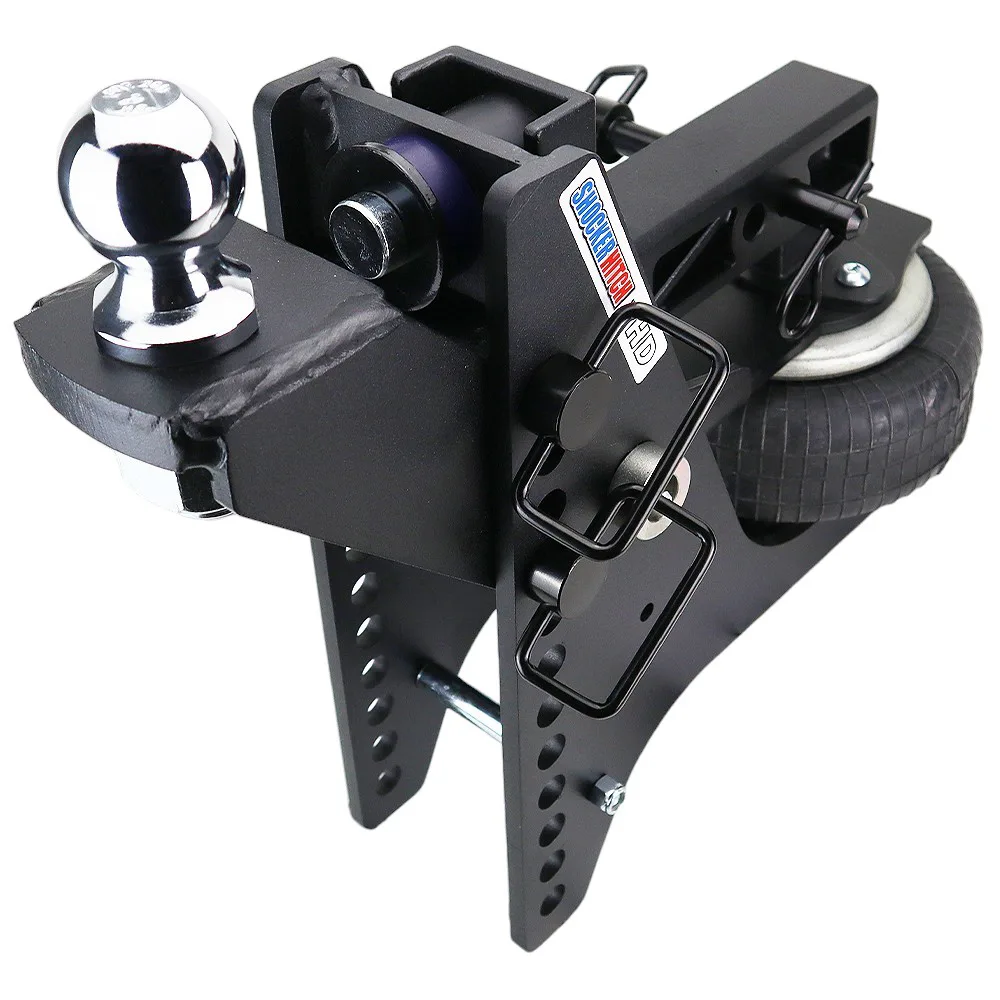

Shocker HD Max Black Super Drop Air Hitch & Raised Ball Mount w/ 2" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2" receiver
$1,310.38
$1,377.58 save $67.20
or as low as $110/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Matte Black Finish
Impact resistant Max Black™ textured matte black Premium powder-coat finish on hitch.
Built-in HD Air Ride System
Absorbs road shock and creates a smooth ride & reduces trailer sway. Dual rubber bump cushions offer additional HD performance.
Improves Safety
By giving you improved control of your tow vehicle and trailer. The air bag receiver hitch system allows for better control of your pickup and the trailer it is towing.
2 Hole Receiver Shank
Available for 2", 2-1/2" & 3" receiver hitch tubes with 2 hitch pin holes for length adjustability.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
You lifted the truck, and now every trailer you hook up rides nose-high, chucking over bumps and wandering behind you at highway speed. When your receiver sits that far above a low trailer tongue, an ordinary drop hitch just cannot bring the nose back down. The Shocker HD Max Black Super Drop closes that gap. Its 12-hole Super Drop frame drops up to 12-1/2 inches, so you can finally pull the trailer level, and it does it on the same 20K air ride suspension that runs the whole HD Max Black line, so the ride stays smooth instead of hammering your truck and your load. Rated at 20,000 lbs GTW, fitting 2-inch receivers, with 2" Rise to 6" Drop of adjustment, it dials in a level tow on lifted rigs and low-deck trailers.
Key Highlights
- Up to 12-1/2 inches of drop, the deepest in the HD Max Black family, to level a tall truck over a low trailer
- Rated to tow 20,000 lbs GTW on full air ride suspension for a smooth pull under heavy loads
- 12-hole Super Drop frame lets you fine-tune the height until the trailer sits dead level
- Textured matte black powder coat shrugs off chips, rust, and UV fade and hides road grime
- 2-inch shank drops into F-150-class half-tons and any class III/IV receiver
- Reversible frame flips over for added rise when a taller tongue calls for it
- Same airbag and same chassis strength as the standard HD Max Black 20K, just with more drop
- Built for lifted trucks, low-tongue gooseneck-converted trailers, and low-deck haulers
What's Included
- Shocker HD Max Black Super Drop 12-hole base frame
- Pre-installed air bag with Schrader valve
- 2-inch ball mount attachment with 2" ball (when configured with a ball)
- Two D-handle hitch pins with clips
- Textured matte black powder coat finish
- Installation and air-pressure setup instructions
Not Included
- —Air compressor or inflator (use any standard tire inflator, or buy one separately)
- —Sway control kit (available separately if you need it)
- —Receiver tube adapter (only needed if you are stepping up from a smaller factory receiver)
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
What the Super Drop Frame Buys You
Four Extra Holes, A Lot More Drop
This frame carries four more adjustment holes than the standard 8-hole HD Max Black. Those extra holes are what let you dial in 10 to 12 inches of drop and match a tall lifted truck to a low trailer tongue.
Smooth Ride at Every Drop Setting
Most deep-drop hitches are solid steel, so every frost heave and pothole slams straight through the truck. The Super Drop keeps its airbag working across the entire drop range, so you get the clearance without beating up your truck, trailer, and cargo.
Flip It for Rise
Turn the frame over and you get up to 2 inches of rise instead, handy for a cab-over camper or a taller trailer tongue behind a stock-height truck. One frame covers both directions.
Works With Every HD Max Black Attachment
It takes every HD Max Black ball mount attachment, from combo balls and pintles to clevises and drawbars. Buy the frame once and swap the attachment as your trailers change, instead of buying a whole new hitch.
Who This Frame Is Built For
If your current hitch leaves the trailer nose-up or nose-down, you simply need more drop range to work with. This frame gives it to you.
- Lifted half-ton, 3/4-ton, and 1-ton pickups running 3 to 6 inch lifts
- Low-tongue trailers that already ride nose-high behind a stock truck
- Low-deck equipment haulers, race trailers, and gooseneck-converted bumper-pulls
- Dually trucks that sit tall straight from the factory
- Any setup where a standard 6 to 7 inch drop still leaves the trailer off-level
- F-150-class half-tons (and class III/IV receivers) on aftermarket suspension
Super Drop vs Standard HD Max Black 20K
Both hitches use the same 20K air ride chassis, so this comes down to one thing: how much drop your truck and trailer actually need.
Standard HD Max Black 20K (8-hole frame)
Gives you up to roughly 7 inches of drop and costs less. That is plenty for a stock-height truck pulling most bumper-pull trailers, and it is the standard pick in the HD Max Black line.
HD Max Black Super Drop (12-hole frame)
Gives you up to 12-1/2 inches of drop. Reach for it when the standard frame just cannot get the trailer level, like a lifted truck, a low-tongue trailer, or an odd height mismatch. It runs about $50 to $80 more than the standard frame.
Why Getting the Trailer Level Matters So Much
Tow nose-high and weight comes off the trailer's front axle, which is what starts a trailer swaying behind you. Tow nose-low and you overload that front axle and the trailer dives every time you hit the brakes. Either way you pay for it in faster tire wear, a rougher ride, and longer stopping distances. For most lifted-truck owners, pulling the trailer level is the single biggest safety upgrade they can make, and this Super Drop frame is what makes it possible without giving up air ride.
Built and Finished to Take a Beating
Heavy-duty steel chassis under a textured matte black powder coat that hides road grime, takes rock chips without flaking, and holds up to the sun better than a gloss finish. It runs the same multi-ply commercial air bag found across the Shocker HD line. Covered by Shocker's 60-day satisfaction guarantee, and it is in stock and ships direct from Canada, so there is no border wait.
