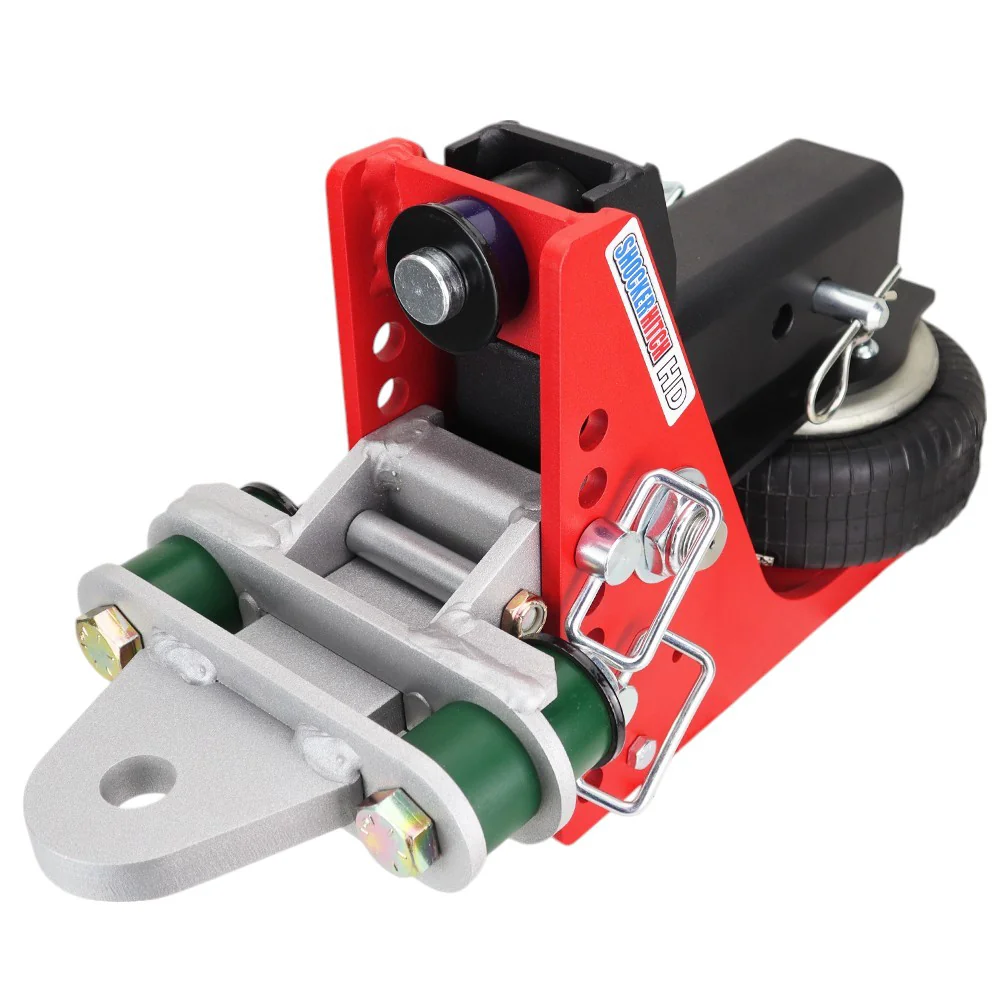

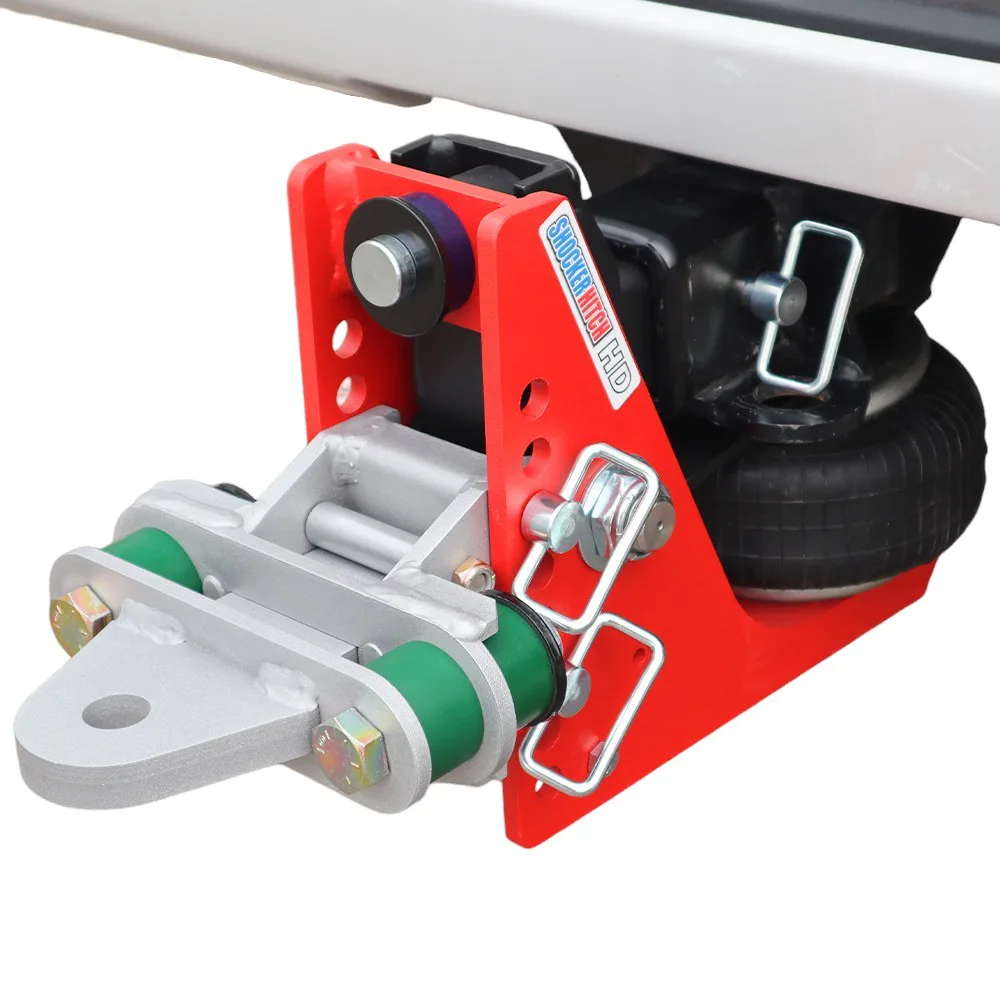

Shocker HD Air Hitch & Cushion Drawbar Mount
Rated for your tow
20,000 lbs GTW · 3" receiver· 20,000 lbs GTW · 3" receiver
$1,411.18
$1,478.38 save $67.20
or as low as $118/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Adjustable air draw bar hitch
mount with 4 bump cushions & a 1″ hole for farm applications. (This is NOT for use with hitch ball)
Comes complete with Shocker air
base frame assemble with built in airbag, adjustable quad cushioned drawbar mount and two d-handle ball mount pins
Air ride technology
Instant air ride towing for your pickup & trailer. Built in airbag cushions ride & absorbs road shock
Huge selection of ball mount
attachments available from Pintle hooks, draw bars, drop ball mounts, raise ball mounts and more.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Hook a 20,000-lb trailer to a rigid steel ball mount and every frost heave, expansion joint, and hard stop slams straight through your truck, your trailer welds, and whatever you're hauling. The chucking wears you down, and heavy tongue weight bottoms a lighter hitch right out. The Shocker HD Air Hitch & Cushion Drawbar Mount fixes that. It carries the full 20,000 lbs GTW on a heavier-wall version of Shocker's 8-hole chassis with an upgraded HD-rated airbag, sized for F-350, RAM 3500, and dual-rear-wheel one-ton trucks (class V/VI receivers) running a 3-inch receiver. It's built to pull the heaviest legal bumper-pull loads without beating up the driver or the rig.
Key Highlights
- Pulls the full 20,000 lbs GTW, the heaviest bumper-pull rating Shocker makes
- HD-rated airbag with reinforced multi-ply construction soaks up the shock a 20K load throws at you
- More steel in the chassis walls than the Original 14K, in the same footprint, so it takes the heavier loads
- Fits a 3-inch receiver, the size dual-rear-wheel one-ton trucks run
- Add or release air pressure to set ride height and load support for any trailer, empty or loaded
- 1/2" to 4-1/2" Drop ball-mount geometry gets your trailer sitting level
- Safety-red impact-resistant powder coat that shrugs off chips and stays looking sharp
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (3-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
The Air Spring Takes the Hit
The HD multi-ply rubber air bag runs a heavier ply count than the 14K version, so it holds up to 20,000 lbs of trailer behind you and still soaks up the road shock before it reaches your truck and your cargo.
Dial It In for the Load
A heavy trailer can swing 1,000+ lbs between empty and full. Air up for the loaded run, bleed it off on the deadhead home. The HD airbag has a wider usable pressure range than the 14K, so you've got room to tune it either way.
Same Fit, Heavier Bones
It keeps the same outside shape as the Original line, so every Shocker ball mount still bolts right on, but the wall steel is thicker and the welds are reinforced to carry the 20K loadings.
One Simple Pivot
Shocker's down-and-back motion rides on a single pivot, with no slides, rollers, or stacked airbags to wear out, even under HD loads. Fewer moving parts taking the strain means it lasts longer.
Who the HD 20K Is For
Made for one-ton trucks hauling the heaviest legal bumper-pull loads you can put behind them.
- F-350, RAM 3500, and Silverado 3500 owners towing near their max trailer rating
- Livestock haulers pulling 30+ ft bumper-pull stock trailers
- Equipment and skid-steer haulers on 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
HD vs. Original, What Changed
Same chassis silhouette and the same attachment lineup as the Original. Three upgrades make it a 20K hitch:
A Tougher Airbag
The multi-ply rubber bag is rated for the full 20K GTW and has a wider usable pressure range, so it takes heavier tongue weight without bottoming out.
More Steel Where It Counts
Thicker steel and a reinforced weld pattern at the high-stress points let it carry heavier tongue weight than the 1,400 lbs the Original 14K is rated for.
Flip It for Drop or Rise
This hitch ships set up with a 1/2" to 4-1/2" Drop ball-mount. Most Shocker ball mounts are reversible, so you can flip the mount to turn that drop into a rise, or use the 8 adjustment holes to fine-tune coupler height. A heavy bumper-pull trailer really cares about sitting level. Get the drop wrong and you overload either the front or rear axle of the trailer, so take the time to set it right.
Built to Take the Heaviest Loads
It's reinforced heavy-wall steel under Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. If the HD air bag ever needs replacing, it swaps out in minutes using the same simple Schrader-style fitting as the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.
