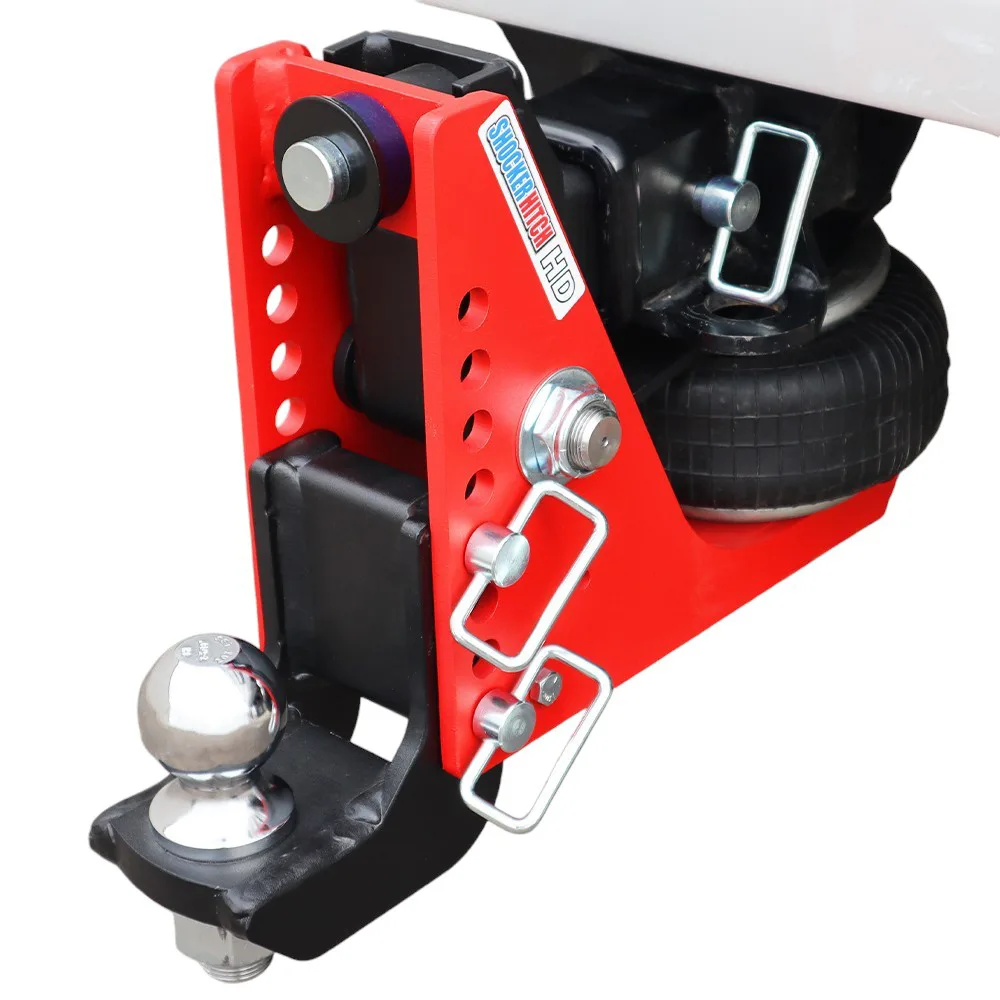

Shocker HD Air Hitch & Drop Ball Mount w/ 2-5/16" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 3" receiver· 20,000 lbs GTW · 2,000 lbs TW · 3" receiver
$1,310.38
$1,377.58 save $67.20
or as low as $110/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
20,000 lbs Heavy Duty Capacity
20,000 lbs towing capacity and a 2,000 lbs tongue weight. (can vary by mount)
Adjustable Drop Hitch Ball Mount
8 Adjustment holes for 4-1/2" to 8-1/2" of Drop. Comes with 2-5/16" Ball.
Kit includes complete Shocker HD
air receiver hitch with built in 20K air ride & dual bump cushions, adjustable drop ball mount with 2-5/16" ball and three d-handle ball mount hitch pins.
2 Hole Receiver Shank
Designed for 3" receiver hitch tubes with Two hitch pin holes for length adjustability
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Load a heavy bumper-pull trailer behind a one-ton truck and every frost heave, expansion joint, and hard stop slams straight up through a rigid hitch into your truck, your trailer welds, and whatever you're hauling. That constant pounding is what wears out drivelines, cracks trailer frames, and turns a long day behind the wheel into white knuckles. The Shocker HD Air Hitch puts an air spring between the truck and the trailer so that shock gets soaked up instead of passed along. This is the heavy-duty 20K red-finish heavyweight of the Shocker bumper-pull line, sized for F-350 / RAM 3500 / dual-rear-wheel one-ton trucks (class V/VI receivers) with a 3-inch receiver. It hauls up to 20,000 lbs GTW and carries up to 2,000 lbs of tongue weight on a beefier-wall version of Shocker's signature 8-hole chassis with an upgraded HD-rated airbag. Built for one-ton trucks pulling the heaviest legal bumper-pull loads.
Key Highlights
- Hauls the heaviest legal bumper-pull load, up to 20,000 lbs GTW with up to 2,000 lbs of tongue weight, the biggest rating Shocker offers
- A heavy-duty 20K airbag with reinforced multi-ply construction soaks up the road so your truck and trailer don't
- Thicker chassis walls than the Original 14K in the same footprint, more steel where it takes the load
- Drops into a 3-inch receiver, the size dual-rear-wheel one-ton trucks run
- Add or release air to dial in ride height and load support for whatever you're towing that day
- 4-1/2" to 8-1/2" Drop ball-mount geometry so you can get the trailer sitting level
- Iconic safety-red impact-resistant powder coat that shrugs off chips and rust
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (3-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
An Air Spring Rated to 20K
The HD air bag uses more plies of rubber than the 14K version, so it carries up to 20,000 lbs of trailer load and still cushions the road shock that would otherwise beat on your truck and cargo.
Dial It In for Heavy Loads
A heavy bumper-pull trailer can swing 1,000 lbs or more between empty and full. Add air for the max-weight run, let some out on the deadhead home. The HD airbag has a wider usable pressure range than the 14K, so it covers that whole spread.
A Reinforced 8-Hole Chassis
Same external geometry as the Original line, so every Shocker ball mount still fits, but built with thicker-wall steel and reinforced welds rated for the 20K loadings.
A Single Rocker-Arm Pivot
Shocker's down-and-back motion runs on one pivot, with no slides, rollers, or stacked airbags, even at HD loadings. Fewer moving parts under that kind of stress means it lasts longer.
Who Buys the HD 20K
Built for one-ton trucks and the heaviest legal bumper-pull combinations.
- F-350 / RAM 3500 / Silverado 3500 owners towing near their max trailer ratings
- Heavy livestock haulers pulling 30+ ft gooseneck-equivalent bumper-pull stock trailers
- Equipment and skid-steer haulers running 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
HD vs. Original: What's Different
Same chassis silhouette and the same attachment ecosystem, with three meaningful upgrades:
A Heavier Airbag
The multi-ply rubber bag is rated for the full 20K GTW with a wider usable pressure range, so it carries heavier tongue weight without bottoming out.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern where the stress concentrates. That takes the tongue-weight rating to 2,000 lbs, up from 1,400 lbs on the Original 14K.
Flip It for Drop or Rise
This Shocker HD Air Hitch & Drop Ball Mount w/ 2-5/16" Ball ships in a 4-1/2" to 8-1/2" Drop ball-mount configuration. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune coupler height. Getting this right matters even more on heavy loads. A mismatched drop leaves the trailer riding nose-up or nose-down and overloads either the front or rear axle, so take the time to dial it in.
Built for Maximum Bumper-Pull Loads
This hitch is built from reinforced heavy-wall steel and finished in Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. If the HD-rated air bag ever needs replacing, it swaps out in minutes using the same simple Schrader-style fitting the 14K uses. Backed by Shocker Hitch's 60-day satisfaction guarantee.
