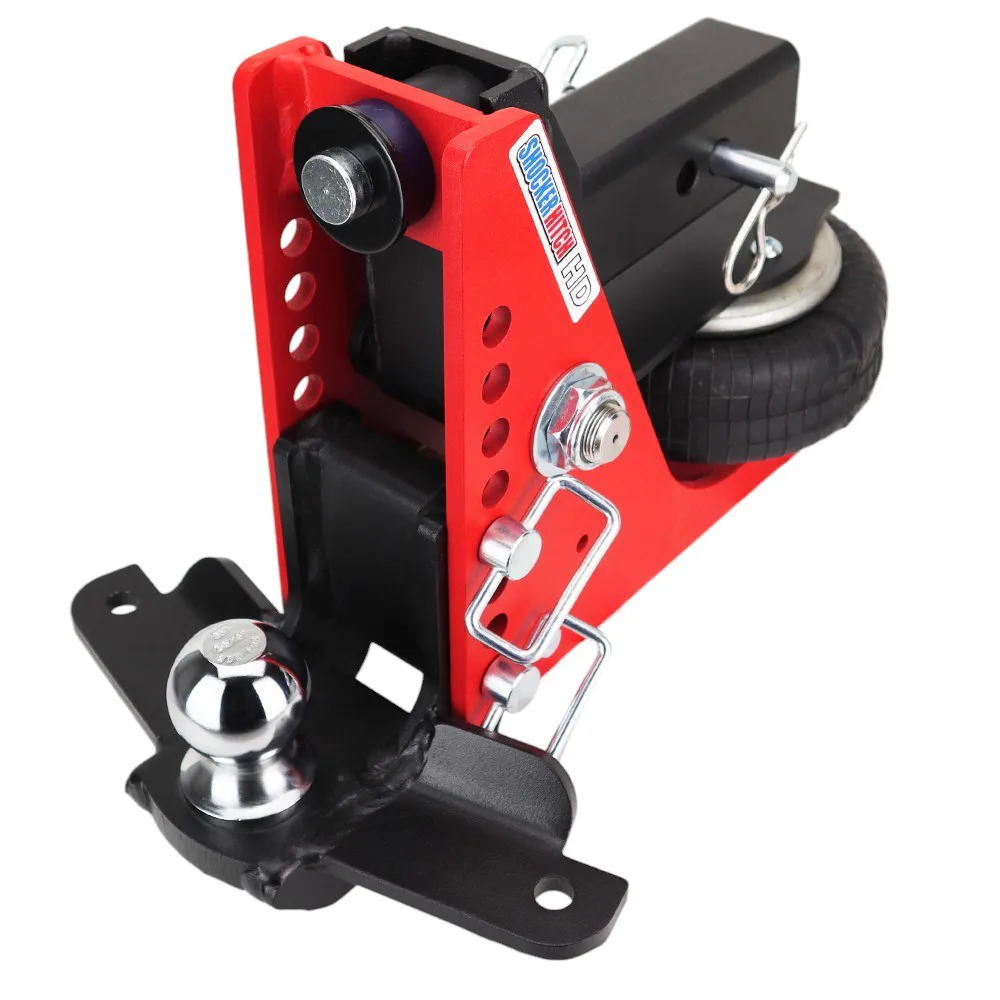

Shocker HD Air Hitch & Drop Ball Mount w/ 2-5/16" Ball & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,343.98
$1,411.18 save $67.20
or as low as $112/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Sway control drop ball mount
with 2 sway control tabs for mounting the basic sway control arm bar(s) & mini balls (such as the Reese 83660 or Curt 17200 friction sway control kit)
Come with complete with shocker
HD air base frame assembly with built in 20K airbag, drop ball mount with hitch ball and 2 sway bar tabs along with 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, raise ball mounts and more.
Air ride technology
Built in air ride system, cushions the ride & absorbing the road shock
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Hook up the heaviest legal trailer you own and every frost heave and hard stop drives straight up through the ball into your truck, your trailer welds, and your cargo. A rigid steel hitch leaves nothing in that gap to take the hit. The Shocker HD Air Hitch, the heavy-duty 20K red-finish flagship of the Shocker bumper-pull lineup, puts an HD-rated air spring right there so the jarring gets soaked up instead of passed straight on. It hauls up to 20,000 lbs GTW with up to 2,000 lbs of tongue weight, the heaviest bumper-pull load a one-ton truck will legally pull. This kit ships with a drop ball mount, a 2-5/16-inch ball, and sway bar tabs, all on a beefier-wall version of Shocker's proven 8-hole chassis. It fits F-250 and RAM 2500-class three-quarter-ton trucks (class V receivers) running a 2-1/2-inch receiver.
Key Highlights
- Hauls 20,000 lbs GTW with up to 2,000 lbs of tongue weight, the heaviest bumper-pull load Shocker will rate for
- An HD-rated, reinforced multi-ply airbag built to carry the full 20K without bottoming out
- Beefier chassis walls than the Original 14K, so you get more steel in the same footprint
- Fits 2-1/2-inch receivers, with a 3-inch option available for one-ton trucks
- Add or release air to dial in ride height and load support for whatever trailer is back there
- A 4-1/2" to 8-1/2" drop ball mount to get a heavy trailer sitting level
- Impact-resistant safety-red powder coat that shrugs off chips and stone strikes
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (2-1/2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions, pre-installed
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment where applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (sold separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
The 20K Air Spring
The heart of it is an HD multi-ply rubber air bag with a heavier ply count than the 14K version. It carries up to 20,000 lbs of trailer load and still soaks up road shock before it reaches your truck and cargo.
Air Up Loaded, Air Down Empty
A heavy bumper-pull trailer can swing 1,000 lbs or more between empty and full. Add air for the max-weight run and bleed it back off for the deadhead home. The HD airbag has a wider usable pressure range than the 14K, so it covers that whole spread.
Same Bolt Pattern, More Steel
It keeps the exact outside geometry of the Original line, so every Shocker ball mount still fits. Underneath it runs thicker-wall steel and reinforced welds rated for the full 20K loadings.
One Pivot, Nothing to Wear Out
The down-and-back motion runs on a single rocker-arm pivot, with no slides, rollers, or stacked airbags even at HD loadings. Fewer moving parts under that kind of stress means a longer service life.
Who Buys the HD 20K
Built for one-ton trucks hauling the heaviest legal bumper-pull loads.
- F-350, RAM 3500, and Silverado 3500 owners towing near their max trailer ratings
- Livestock haulers pulling 30-plus-foot bumper-pull stock trailers
- Equipment and skid-steer guys running 16k-plus tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone bottoming out an Original 14K under heavy tongue weight
HD vs. Original: What's Different
Same chassis silhouette and the same attachment ecosystem, with three upgrades that matter when the loads get heavy.
Heavier Airbag
A multi-ply rubber bag rated for the full 20K GTW with a wider usable pressure range. It carries heavier tongue weight without bottoming out on the big hits.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern at the high-stress points. That is what takes it to 2,000 lbs of tongue weight versus 1,400 lbs on the Original 14K.
Flip It for Drop or Rise
This kit ships set up as a 4-1/2" to 8-1/2" drop ball mount. Most Shocker ball mounts are reversible, so you can flip the mount to turn that drop into rise, or work the 8 adjustment holes to fine-tune coupler height. Heavy bumper-pull trailers care a lot about sitting level. Get the drop wrong and you overload either the front or the rear axle of the trailer, so take the time to dial it in.
Built for Maximum Bumper-Pull Loads
This is reinforced heavy-wall steel under Shocker's impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. When the HD air bag eventually needs replacing, you swap it in minutes using the same simple Schrader-style fitting as the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.
