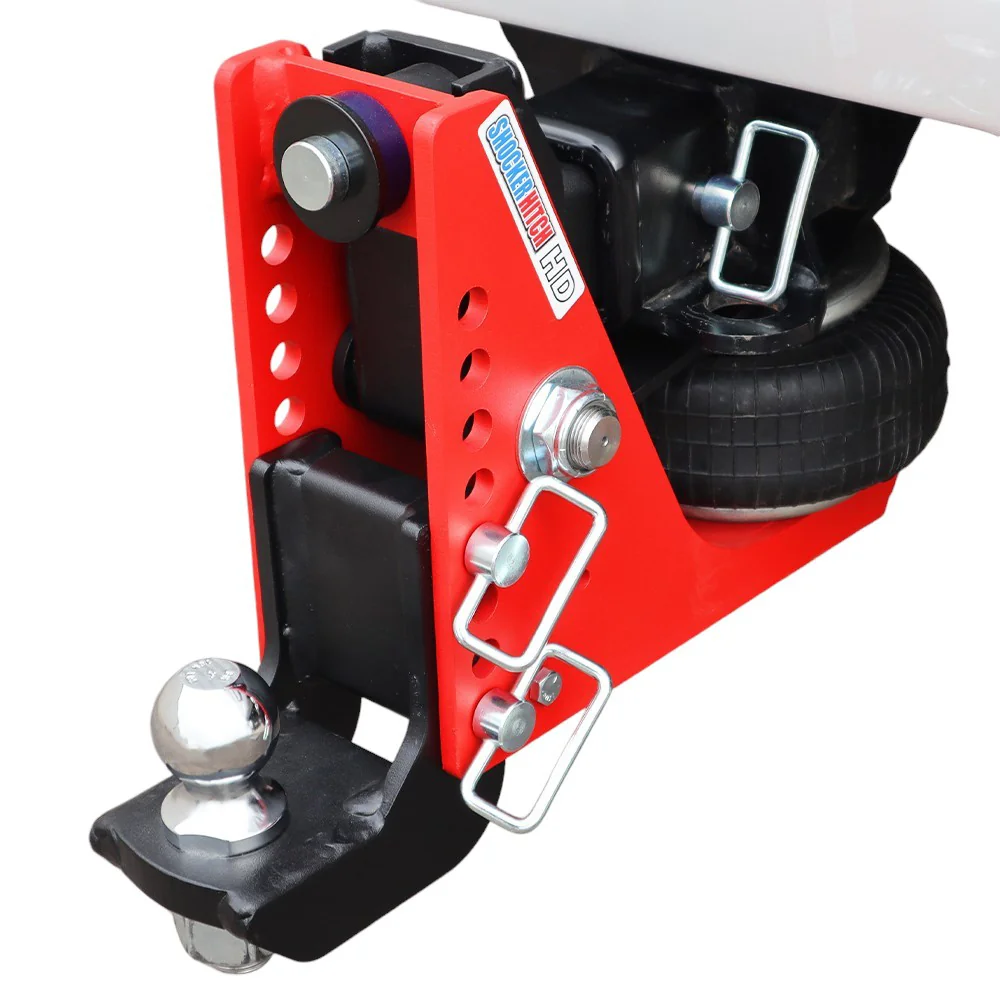

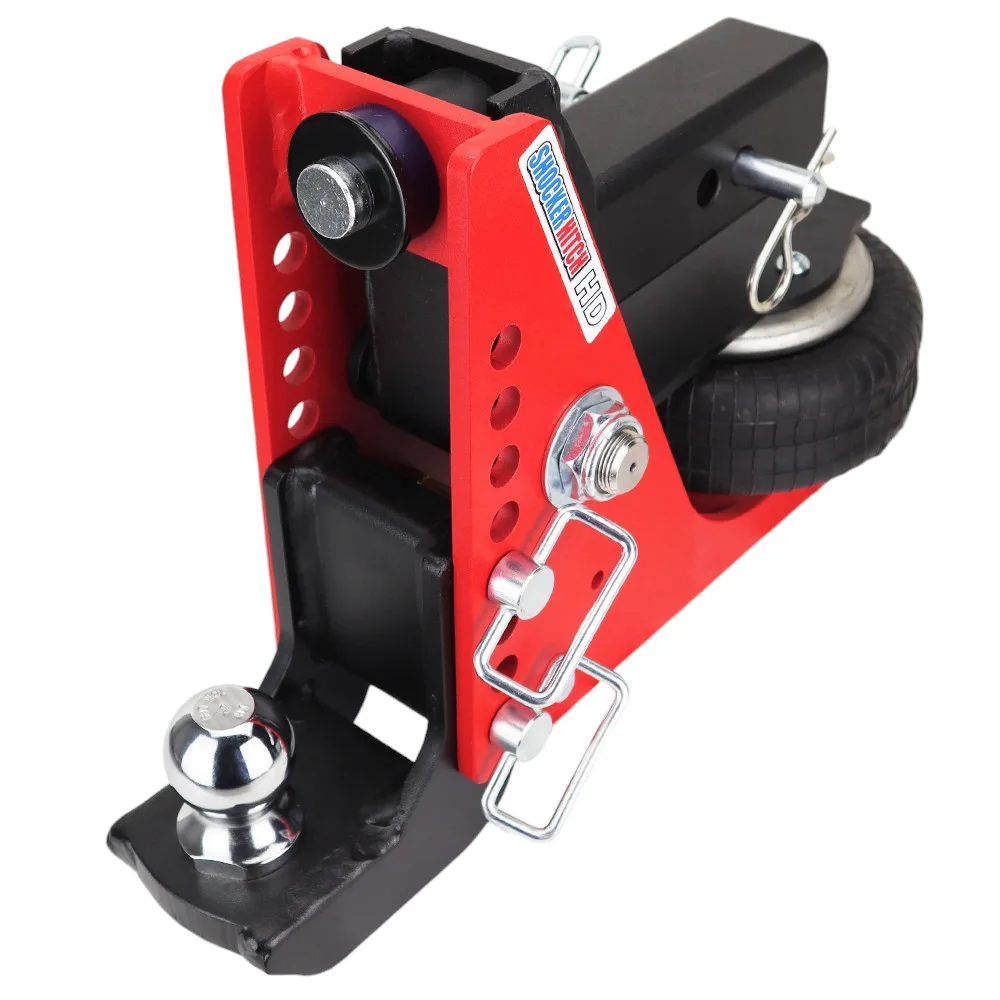

Shocker HD Air Hitch & Drop Ball Mount w/ 2" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,259.98
$1,327.18 save $67.20
or as low as $105/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
20,000 lbs Heavy Duty Capacity
20,000 lbs towing capacity and a 2,000 lbs tongue weight. (can vary by mount)
Kit includes complete Shocker HD
air receiver hitch with built in 20K air ride & dual bump cushions, adjustable drop ball mount with 2" ball and three d-handle ball mount hitch pins.
2 Hole Receiver Shank
Designed for 2-1/2" receiver hitch tubes with Two hitch pin holes for length adjustability
Built in Air Ride System
Instant air ride towing for your pickup & trailer. Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Load a heavy trailer behind your truck and you feel every frost heave and hard stop come up through the ball and into the cab. On a big load that pounding wears out your driveline, your trailer welds, and whatever you are hauling. The Shocker HD Air Hitch puts an air spring between truck and trailer so that shock gets soaked up instead of passed on. It is the heavy-duty red 20K flagship of the Shocker bumper-pull lineup, sized for F-250 / RAM 2500-class three-quarter-ton trucks (class V receivers) with a 2-1/2-inch receiver. This one ships with a drop ball mount and a 2-inch ball, and it hauls 20,000 lbs GTW with up to 2,000 lbs on the tongue, all on a beefier-wall version of Shocker's proven 8-hole chassis with an upgraded HD-rated airbag. Built for one-ton trucks pulling the heaviest legal bumper-pull loads.
Key Highlights
- Hauls 20,000 lbs GTW with up to 2,000 lbs on the tongue, the heaviest bumper-pull rating Shocker makes
- 20K-rated HD airbag with reinforced multi-ply rubber that soaks up road shock under the heaviest loads
- Thicker chassis walls than the Original 14K for the same footprint and more steel where it counts
- Comes in 2-1/2-inch receivers, with a 3-inch option available for one-ton trucks
- Adjustable air pressure lets you dial in ride height and load support for any trailer
- 4-1/2" to 8-1/2" drop ball-mount geometry so you can level the trailer right
- Impact-resistant safety-red powder coat that holds up to gravel and weather
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (2-1/2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
20K-Rated Air Spring
The HD air bag uses more plies of rubber than the 14K version, so it carries up to 20,000 lbs of trailer and still cushions the jolts before they reach your truck and your cargo.
Adjustable for Heavy Loads
A heavy trailer can swing more than 1,000 lbs between empty and loaded. Pump in air for a max-weight run, let some out for the deadhead home. The HD airbag has a wider usable pressure range than the 14K, so it keeps up either way.
Reinforced 8-Hole Chassis
It keeps the same outside shape as the Original line, so every Shocker ball mount still fits, but the wall steel is thicker and the welds are reinforced to carry the 20K loads.
Rocker-Arm Pivot
Shocker's down-and-back motion runs on one simple pivot, with no slides, rollers, or stacked airbags, even at HD weights. Fewer moving parts under that kind of stress means it lasts longer.
Who Buys the HD 20K
Made for one-ton trucks and the heaviest legal bumper-pull setups.
- F-350 / RAM 3500 / Silverado 3500 owners towing near their max rating
- Livestock haulers pulling 30+ ft bumper-pull stock trailers
- Equipment and skid-steer haulers running 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Three-inch-receiver dually trucks that need a matched HD hitch
- Anyone whose Original 14K bottoms out under heavy tongue weight
What Makes the HD Different from the Original
Same chassis shape and the same attachments, with three real upgrades that matter under a heavy load:
Heavier Airbag
The multi-ply rubber bag is rated for the full 20K GTW and has a wider usable pressure range, so it carries heavier tongue weight without bottoming out.
Beefier Walls + Welds
Thicker steel and a reinforced weld pattern at the high-stress points push the tongue-weight rating to 2,000 lbs, up from 1,400 lbs on the Original 14K.
Flip It for Drop or Rise
This kit ships set up as a 4-1/2" to 8-1/2" drop ball mount. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune coupler height. A heavy bumper-pull trailer rides best dead level. If the drop is off, one trailer axle carries more than its share, so take the time to get it right.
Built for Maximum Bumper-Pull Loads
Heavy-wall reinforced steel wears Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. If the HD air bag ever needs swapping, you can do it yourself in minutes using the same simple Schrader-style fitting as the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.
