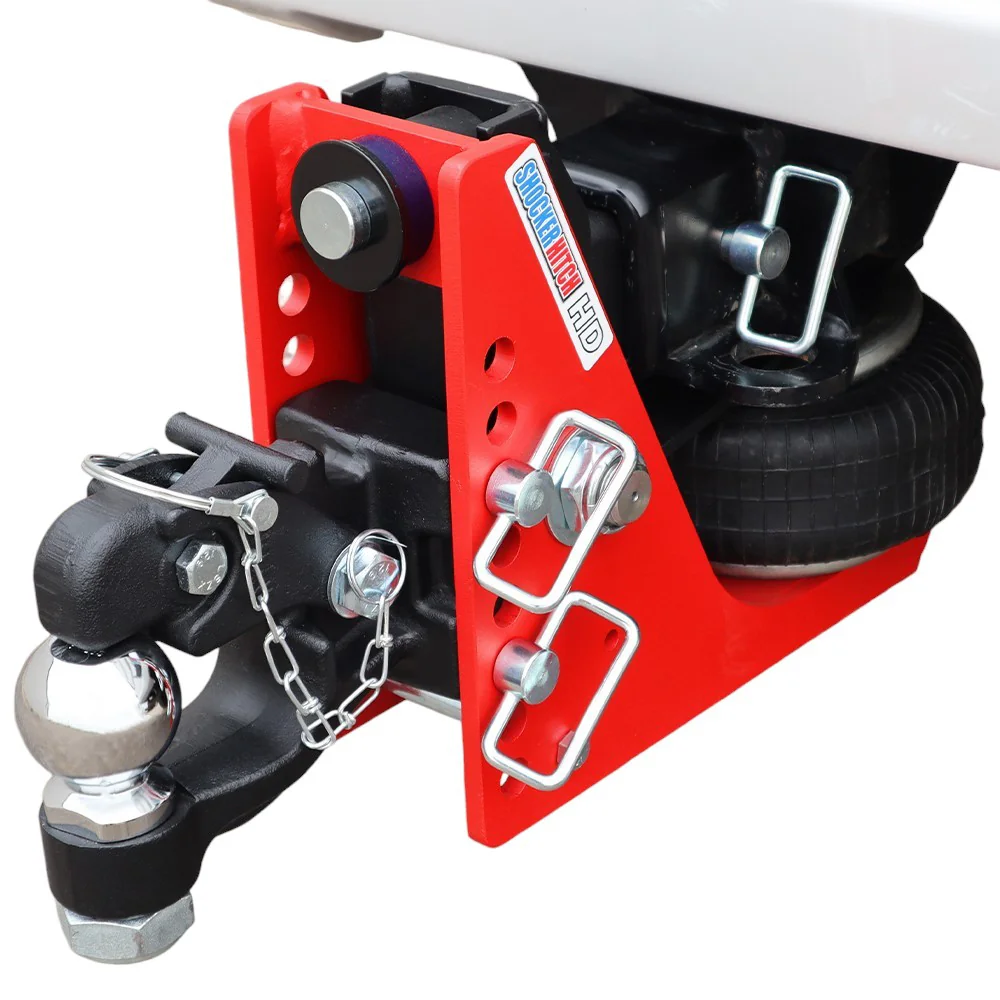

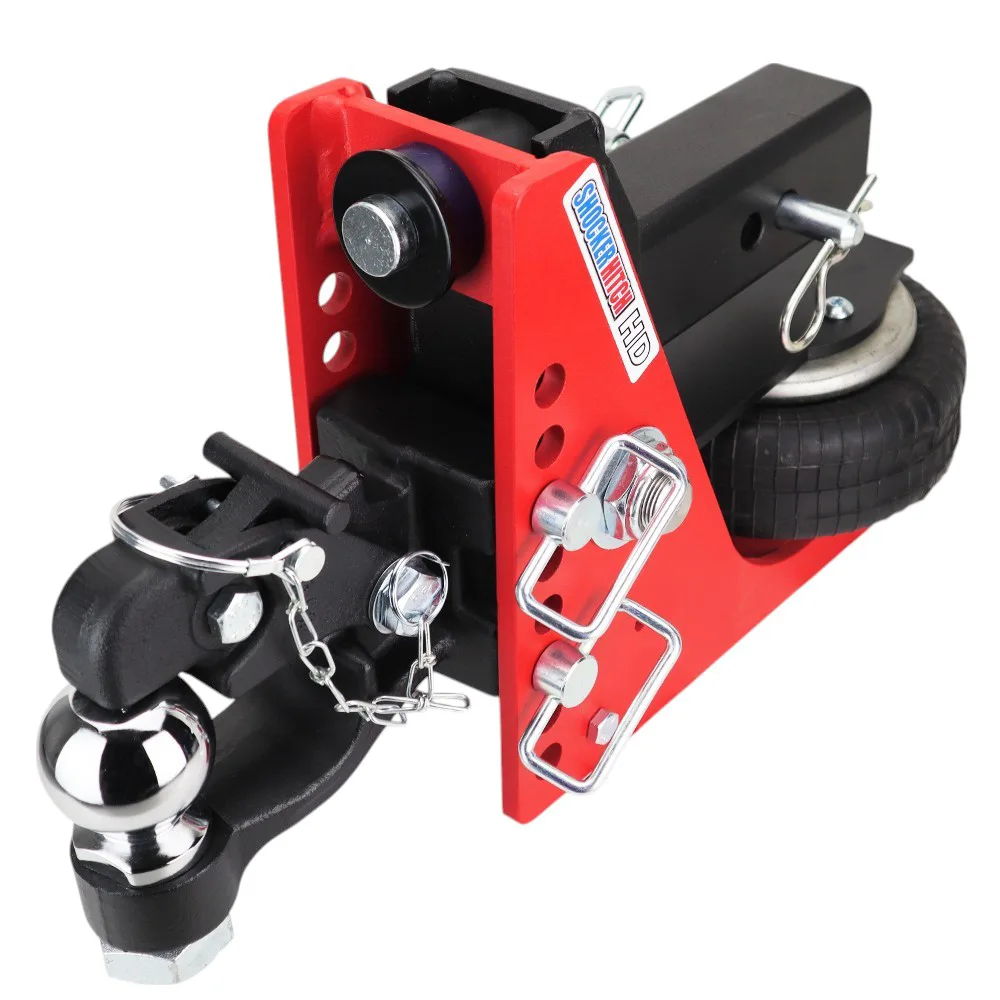

Shocker HD Air Channel Style Pintle & Ball w/Mount Hitch
Rated for your tow
16,000 lbs GTW · 1,600 lbs TW · 2-1/2" receiver· 16,000 lbs GTW · 1,600 lbs TW · 2-1/2" receiver
$1,293.58
$1,360.78 save $67.20
or as low as $108/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Smoother Safer Towing
Air ride towing technology with a heavy duty built in air spring to cushion the ride & absorb the bumps, bangs, jerks & tugs.
Adjustable for Weight
Fine-tune for your towing weight. Just add air for heavier loads. Just add or ride air depending on the weight of your trailer and it's contents.

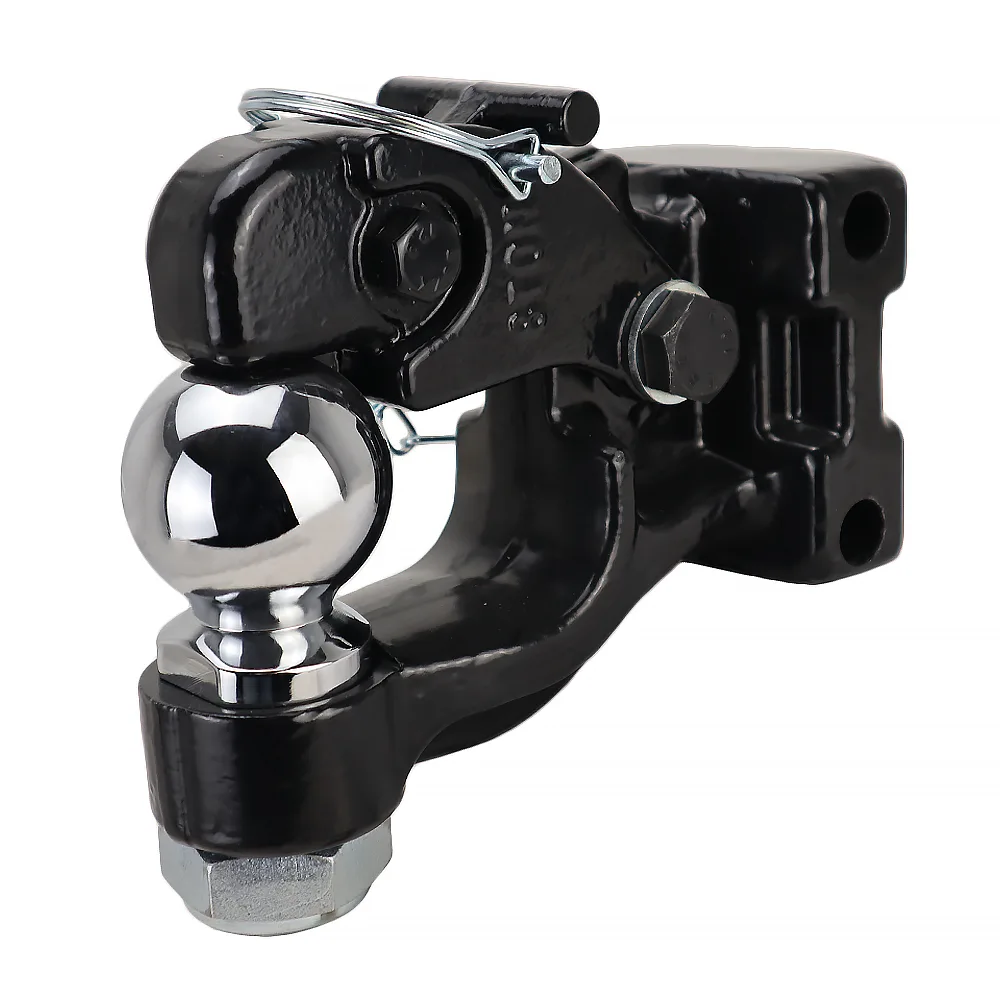

Adjustable Ball & 8-Ton Channel Pintle Hook Combo
3" Drop to 7" Drop. Adjustable combination 8-ton pintle hook & ball mount. Fits 6" OD x 3" ID pintle rings. 8-Ton 16,000 lbs Capacity. Choose 2" or 2-5/16" hitch ball.
Built in HD Air Ride System
Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Drag a fully loaded 16,000-lb trailer behind a solid steel receiver and you feel it in your spine. Every frost heave, expansion joint, and hard stop slams straight up through the truck, into your trailer welds, and through whatever you packed in the back. The Shocker HD Air Hitch drops a heavy-duty air spring between truck and trailer so that pounding turns into a smooth, controlled ride. It is the red-finish flagship of the Shocker bumper-pull lineup, sized for F-250 and RAM 2500-class three-quarter-ton trucks (class V receivers) with a 2-1/2-inch receiver. You get 16,000 lbs GTW and up to 1,600 lbs of tongue weight on a beefier-wall version of Shocker's signature 8-hole chassis, running an upgraded HD-rated airbag. If your one-ton truck pulls the heaviest legal bumper-pull loads, this is the hitch built for it.
Key Highlights
- Hauls up to 16,000 lbs GTW and carries up to 1,600 lbs of tongue weight, the heaviest bumper-pull rating Shocker makes.
- A 20K-rated heavy-duty airbag with reinforced multi-ply rubber soaks up the shock a rigid hitch sends straight to you.
- Thicker chassis walls than the Original 14K in the same footprint, so it takes the extra load without flexing.
- Comes in 2-1/2-inch receiver sizing, with a 3-inch option available for one-ton trucks.
- Add or release air to dial in ride height and load support for whatever trailer you hook to.
- 3″ Drop to 7″ Drop ball-mount geometry so you can level the trailer and load its axles evenly.
- Finished in Shocker's signature safety-red, impact-resistant powder coat.
- Backed by our 60-day satisfaction guarantee, in stock and shipping from Canada.
What's Included
- Shocker HD Air Hitch base frame (2-1/2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (sold separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How the HD Air Ride Works
A 20K-Rated Air Spring Does the Work
The HD air bag uses more plies of rubber than the 14K version, so it carries up to 16,000 lbs of trailer while still soaking up the road shock that would otherwise hammer your truck and cargo.
Tune It to the Load You're Pulling
A heavy trailer can swing 1,000+ lbs between empty and full. Air it up for the loaded run, bleed it down on the deadhead home. The HD airbag has a wider usable pressure range than the 14K, so it handles both ends without complaint.
A Reinforced 8-Hole Chassis
It keeps the same outside shape as the Original line, so every Shocker ball mount still fits, but the steel is thicker and the welds are reinforced to carry the full 20K loadings.
One Simple Rocker-Arm Pivot
Shocker's down-and-back motion rides on a single pivot even at HD loadings, with no slides, rollers, or stacked airbags to wear out. Fewer moving parts under this kind of stress means it lasts longer.
Who This Hitch Is Built For
Built for one-ton trucks and the heaviest legal bumper-pull combinations you can hook up.
- F-350, RAM 3500, and Silverado 3500 owners towing near their max trailer rating
- Livestock haulers running 30+ ft bumper-pull stock trailers
- Equipment and skid-steer haulers on 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 16,000 lbs
- Dual-rear-wheel trucks with a three-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
HD vs. Original: What Actually Changes
Same chassis silhouette, same attachment lineup, with three upgrades that matter once the load gets heavy:
A Heavier Airbag
The multi-ply rubber bag is rated for the full 20K GTW and has a wider usable pressure range, so it carries heavier tongue weight without bottoming out.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern at the high-stress points push the tongue weight rating to 1,600 lbs, up from 1,400 lbs on the Original 14K.
Flip the Mount to Level Your Trailer
This hitch ships with a 3″ Drop to 7″ Drop ball-mount setup. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune coupler height. A heavy bumper-pull trailer is fussy about sitting level. Run it nose-high or nose-low and you overload either the front or rear trailer axle, so take the time to dial it in.
Built to Take the Heaviest Bumper-Pull Loads
It is built from reinforced heavy-wall steel and wears Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. The HD-rated air bag swaps out in minutes using the same simple Schrader-style fitting as the 14K, so you can service it yourself in the driveway. Backed by Shocker Hitch's 60-day satisfaction guarantee.
