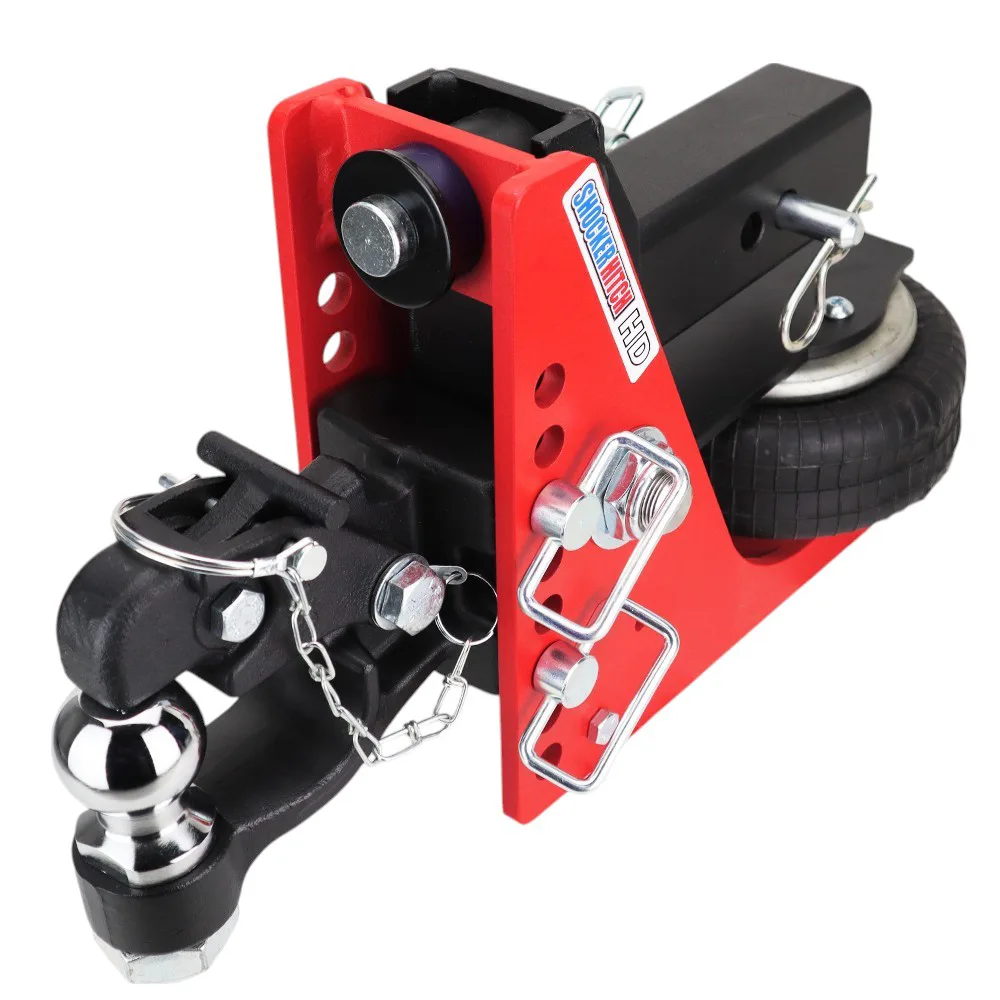

Shocker HD Air Channel Style Pintle & Ball w/Mount Hitch
Rated for your tow
16,000 lbs GTW · 1,600 lbs TW · 2-1/2" receiver· 16,000 lbs GTW · 1,600 lbs TW · 2-1/2" receiver
$1,293.58
$1,360.78 save $67.20
or as low as $108/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Smoother Safer Towing
Air ride towing technology with a heavy duty built in air spring to cushion the ride & absorb the bumps, bangs, jerks & tugs.
Adjustable for Weight
Fine-tune for your towing weight. Just add air for heavier loads. Just add or ride air depending on the weight of your trailer and it's contents.
Adjustable Ball & 8-Ton Channel Pintle Hook Combo
3" Drop to 7" Drop. Adjustable combination 8-ton pintle hook & ball mount. Fits 6" OD x 3" ID pintle rings. 8-Ton 16,000 lbs Capacity. Choose 2" or 2-5/16" hitch ball.
Built in HD Air Ride System
Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Hitch a heavy trailer to a solid steel ball and every frost heave, expansion joint, and hard stop slams straight through the coupler into your truck, your load, and your spine. The heavier the trailer, the harder it hits. The Shocker HD Air Hitch is the heavy-duty 20K red-finish flagship of the Shocker bumper-pull lineup, and it puts a cushion of air between your rig and the road so those jolts get soaked up instead of passed along. It fits F-250 / RAM 2500-class three-quarter-ton trucks (class V receivers) with a 2-1/2-inch receiver, and this Pintle & Ball w/Mount version pulls 16,000 lbs GTW with up to 1,600 lbs of tongue weight. It runs a beefier-wall version of Shocker's signature 8-hole chassis with an upgraded HD-rated airbag, built for one-ton trucks hauling the heaviest legal bumper-pull loads.
Key Highlights
- Pulls 16,000 lbs GTW with up to 1,600 lbs of tongue weight, the heaviest bumper-pull rating Shocker makes
- 20K-rated heavy-duty airbag with reinforced multi-ply construction that keeps a loaded trailer from chucking
- Beefier chassis walls than the Original 14K (same footprint, more steel) to stand up to heavy tongue weight
- Available in 2-1/2-inch receivers, including the 3-inch option for one-ton trucks
- Adjustable air pressure dials in ride height and load support to match any trailer
- 3″ Drop to 7″ Drop ball-mount geometry so you can level the trailer and spread the load right
- Wrapped in Shocker's iconic safety-red, impact-resistant powder coat
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (2-1/2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
20K-Rated Air Spring
The HD air bag is built from multi-ply rubber with a heavier ply count than the 14K, so it carries up to 16,000 lbs of trailer and still soaks up the road shock that would otherwise pound your truck and cargo.
Adjustable for Heavy Loads
A heavy trailer can swing 1,000-plus lbs between empty and loaded. Air up before a max-weight run, then bleed it back down for the deadhead home. The HD airbag gives you a wider usable pressure range than the 14K, so you can tune the ride to the load.
Reinforced 8-Hole Chassis
The outside geometry matches the Original line, so every Shocker ball mount still fits, but the walls are thicker steel and the welds are reinforced and rated for the 20K loadings.
Rocker-Arm Pivot
Shocker's down-and-back motion rides on a single pivot, with no slides, rollers, or stacked airbags even at HD loadings. Fewer moving parts under heavy stress means less to wear out and a longer service life.
Who Buys the HD 20K
Designed for one-ton trucks and the heaviest legal bumper-pull combinations.
- F-350 / RAM 3500 / Silverado 3500 owners towing near their max trailer rating
- Livestock haulers pulling 30+ ft gooseneck-equivalent bumper-pull stock trailers
- Equipment and skid-steer haulers on 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 16,000 lbs
- Dual-rear-wheel trucks with a three-inch receiver that need a matched HD hitch
- Anyone whose Original 14K keeps bottoming out under heavy tongue weight
HD vs. Original, What Changed
Same chassis silhouette, same attachment ecosystem, with three meaningful upgrades:
Heavier Airbag
A multi-ply rubber bag rated for the full 20K GTW with a wider usable pressure range, so it carries more tongue weight without bottoming out under you.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern where the stress lives. Rated for 1,600 lbs of tongue weight against 1,400 lbs on the Original 14K.
Flip It for Drop or Rise
A trailer that rides nose-high or nose-low throws its weight onto one axle and chews through tires and bearings. This Shocker HD Air Channel Style Pintle & Ball w/Mount Hitch ships in a 3″ Drop to 7″ Drop ball-mount configuration. Most Shocker ball mounts flip over, so you can turn drop into rise, and the 8 adjustment holes let you fine-tune coupler height. Heavy bumper-pull trailers are picky about sitting level, so take the time to dial it in and keep the load off any single axle.
Built for Maximum Bumper-Pull Loads
This hitch is reinforced heavy-wall steel under Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. If the HD-rated air bag ever needs attention, you can swap it in minutes using the same simple Schrader-style fitting found on the 14K. It is backed by Shocker Hitch's 60-day satisfaction guarantee.
