Shocker 20K HD Air Pintle Hitch - Fits 3" Hitch, 2-1/2" Rise 6-1/2" Drop

Hook onto a 20,000-pound trailer and the road makes you pay for it. Every frost heave and hard stop slams straight through a rigid hitch into your truck's driveline, your trailer welds, and whatever you loaded in the back.

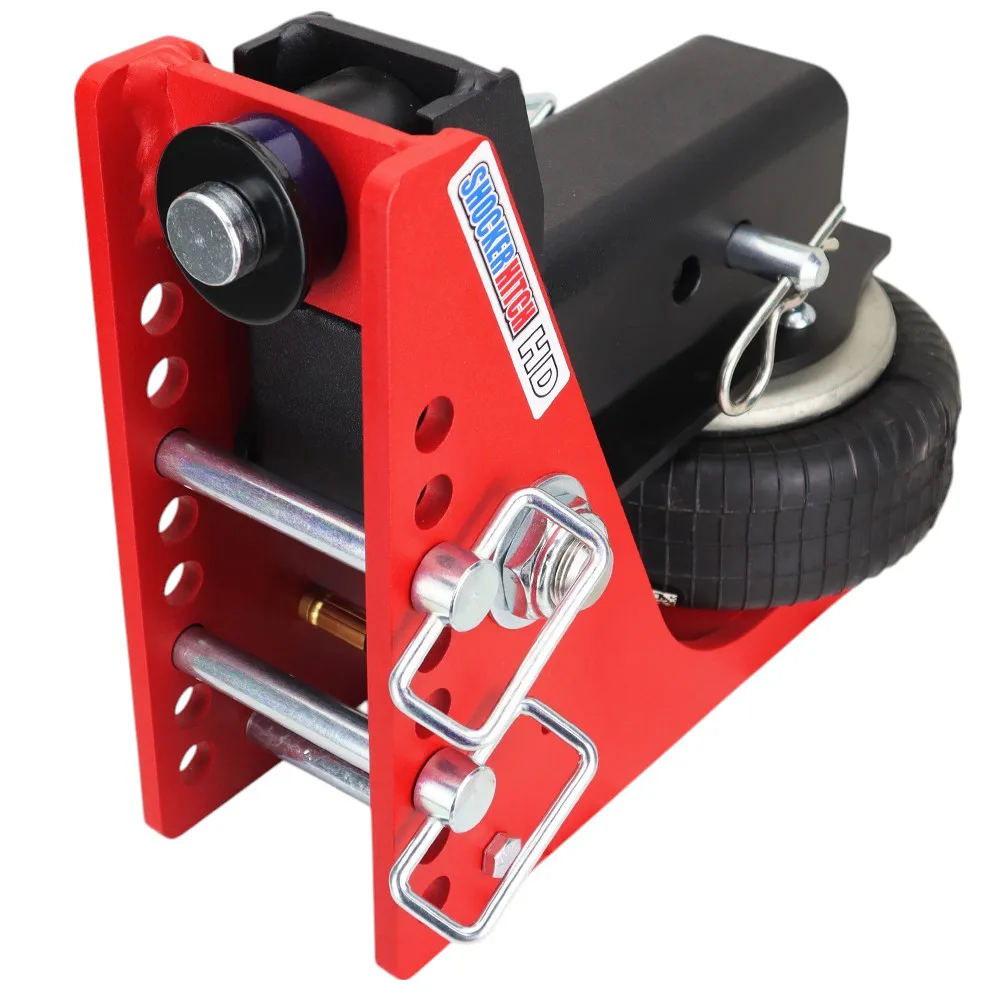

The Shocker HD Air Hitch drops a heavy-duty air spring between your truck and that load so the jarring gets soaked up instead of passed along. It's the red-finish flagship of Shocker's bumper-pull lineup, built for F-350, RAM 3500, and dual-rear-wheel one-ton trucks running class V/VI 3-inch receivers.

You get 20,000 lbs of towing and up to 2,000 lbs of tongue weight on a heavier-wall version of Shocker's 8-hole chassis with an upgraded HD air bag, so a one-ton can pull the heaviest legal bumper-pull load and still ride easy.

20K-Rated Air Spring: An HD air bag built with more rubber plies than the 14K version. It carries up to 20,000 lbs of trailer while cushioning the road shock that would otherwise hammer your truck and your cargo.

Adjustable for Heavy Loads: A heavy bumper-pull trailer can swing more than 1,000 lbs between empty and loaded. Pump in air for a full run, bleed it off for the deadhead home. The HD bag works across a wider pressure range than the 14K, so it keeps up with big weight swings.

Reinforced 8-Hole Chassis: Same outside geometry as the Original line, so every Shocker ball mount still fits, but with thicker-wall steel and reinforced welds rated to handle the full 20K load.

Rocker-Arm Pivot: Shocker's down-and-back motion runs on a single pivot with no slides, rollers, or stacked air bags, even at HD loads. Fewer parts working under that much stress means it lasts longer.

Built for one-ton trucks pulling the heaviest legal bumper-pull loads.

F-350, RAM 3500, or Silverado 3500 owners towing near the top of their rating

Livestock haulers pulling 30+ ft bumper-pull stock trailers

Equipment and skid-steer haulers on 16k+ tilt-deck trailers

Big enclosed cargo trailers and car haulers up to 20,000 lbs

Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch

Anyone whose Original 14K is bottoming out under heavy tongue weight

Same chassis silhouette, same attachment lineup, with the upgrades that matter once you go past 14k:

Heavier Airbag: A multi-ply rubber bag rated for the full 20K GTW with a wider usable pressure range. It carries heavier tongue weight without bottoming out over the bumps.

Beefier Walls + Welds: Thicker steel and a reinforced weld pattern where the stress concentrates. Rated for 2,000 lbs of tongue weight, up from 1,400 lbs on the Original 14K.

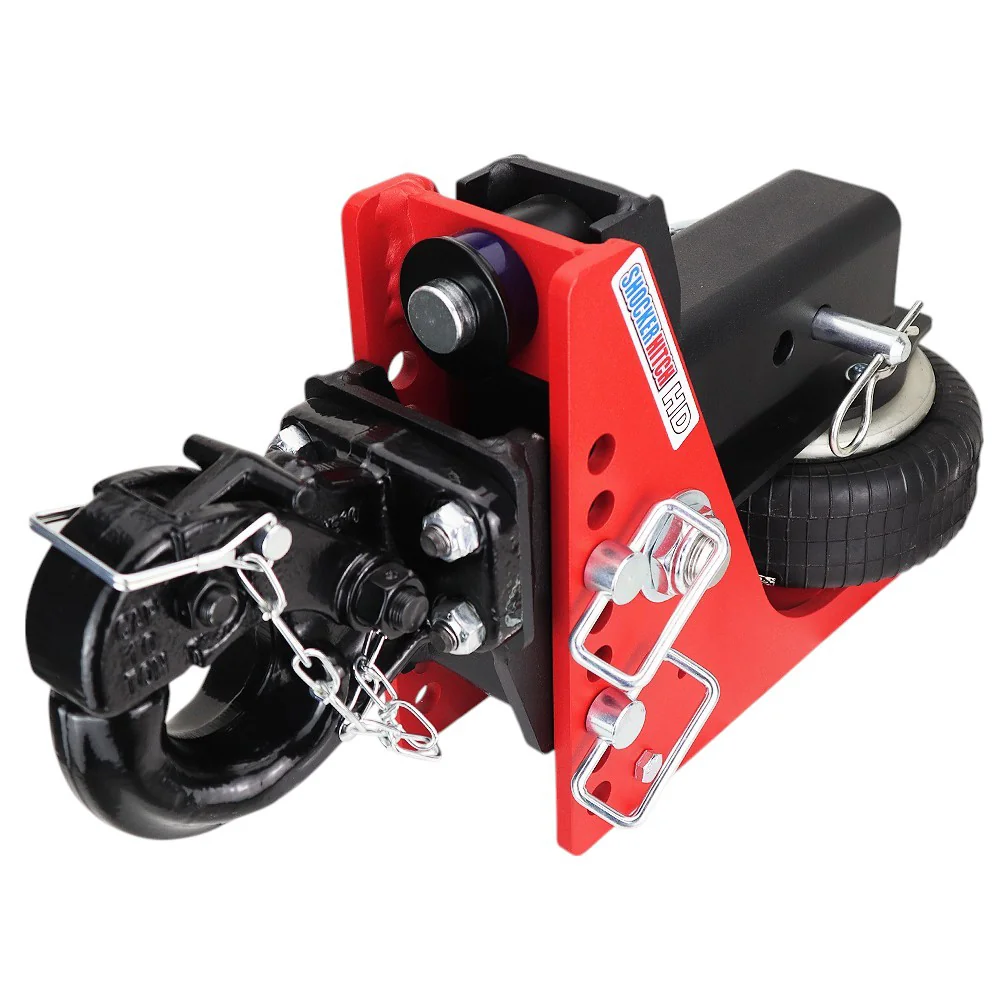

This Shocker HD Air Hitch & Pintle Hook w/Mount ships set up in a 2.5" Rise to 6.5″ Drop ball-mount configuration. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune your coupler height. Heavy bumper-pull trailers care a lot about sitting level.

Get the drop wrong and you overload the front or rear axle of the trailer, so take the time to dial it in.

Reinforced heavy-wall steel with Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. When the HD air bag eventually wears, you swap it in minutes using the same simple Schrader-style fitting as the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.

Smoother safer towing. Improves your ride, reduces wear & tear on pickup & trailer

Built in airbag cushions towing on tow vehicle and trailer

Includes heavy duty Pintle Hook ball mount. Works with 6" OD x 3" ID pintle rings.

This adjustable pintle has a nice fix because of the design reducing slop and the built in airbag smooths out your towing

Adjustable height (Choose 2-1/2" to 6-1/2" Drop)

Fine tune for your towing weight. Just add air for heavier loads.

Available for 2", 2 1/2", or 3" receiver hitch tubes

20,000 lb rated tow capacity & 2,000 lb tongue wt

Fits standard 2″ receiver tube, 2 1/2″ and 3″ receivers. Often used on farm applications, contractor trailers and off-road trailers and works great on pickups, vans and select SUV's with the receiver tube under the bumper.

Comes complete with Shocker HD air hitch with built in 20K airbag, adjustable pintle hitch and two d-handle ball mount pins with clips

Huge selection of ball mount adapters available from combo multi-ball mounts, draw bars, drop ball mounts, raise ball mounts and more.
