Shocker HD Air Hitch & Pintle Hook w/Mount
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2" receiver
$1,310.37
$1,377.57 save $67.20
or as low as $110/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
This adjustable pintle has a
nice fix because of the design reducing slop and the built in airbag smooths out your towing
Fits standard 2″ receiver tube,
2 1/2″ and 3″ receivers. Often used on farm applications, contractor trailers and off-road trailers and works great on pickups, vans and select SUV's with the receiver tube under the bumper.
Huge selection of ball mount
adapters available from combo multi-ball mounts, draw bars, drop ball mounts, raise ball mounts and more.

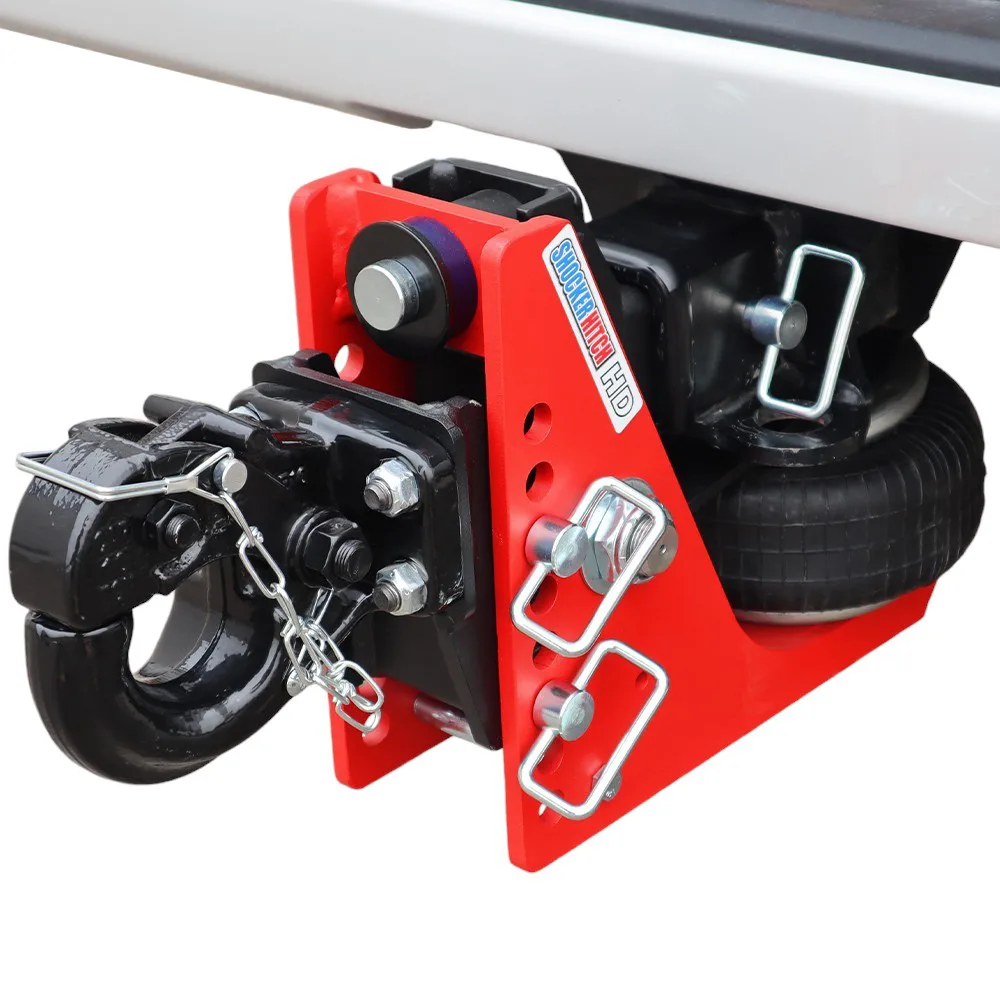

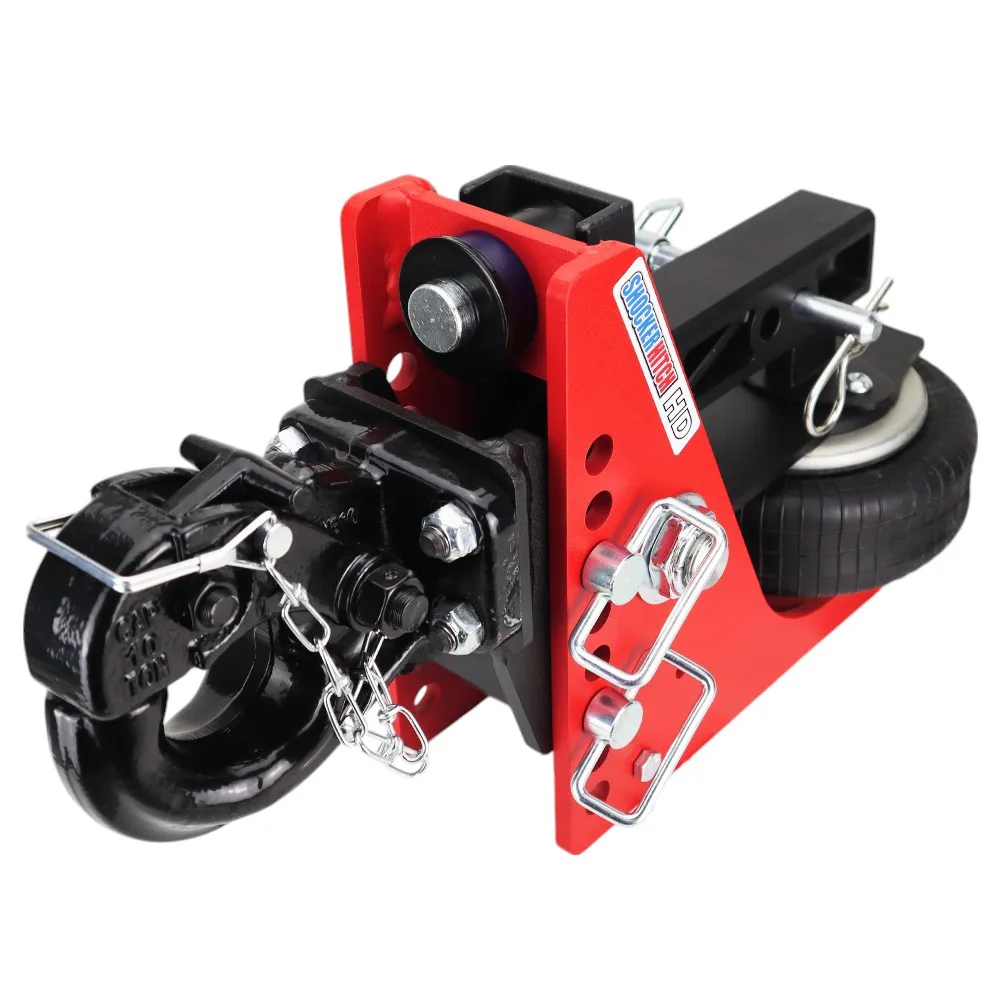

Comes complete with Shocker HD
air hitch with built in 20K airbag, adjustable pintle hitch and two d-handle ball mount pins with clips
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Pull a fully loaded trailer down a rough highway and you feel every mile of it in your spine. Frost heaves, expansion joints, and hard stops drive straight up a solid steel hitch into your truck, your trailer welds, and whatever is strapped down in back. The Shocker HD Air Hitch is the heavy-duty flagship of the Shocker bumper-pull lineup, finished in safety red, and it puts a real air spring between the truck and the load so that shock gets soaked up instead of passed along. It fits a 2-inch receiver on F-150-class half-ton trucks (and class III/IV receivers), hauls 20,000 lbs of trailer (GTW) with up to 2,000 lbs of tongue weight, and rides on a beefier-wall version of Shocker's signature 8-hole chassis with an upgraded HD-rated airbag. This is the hitch for one-ton trucks pulling the heaviest legal bumper-pull loads.

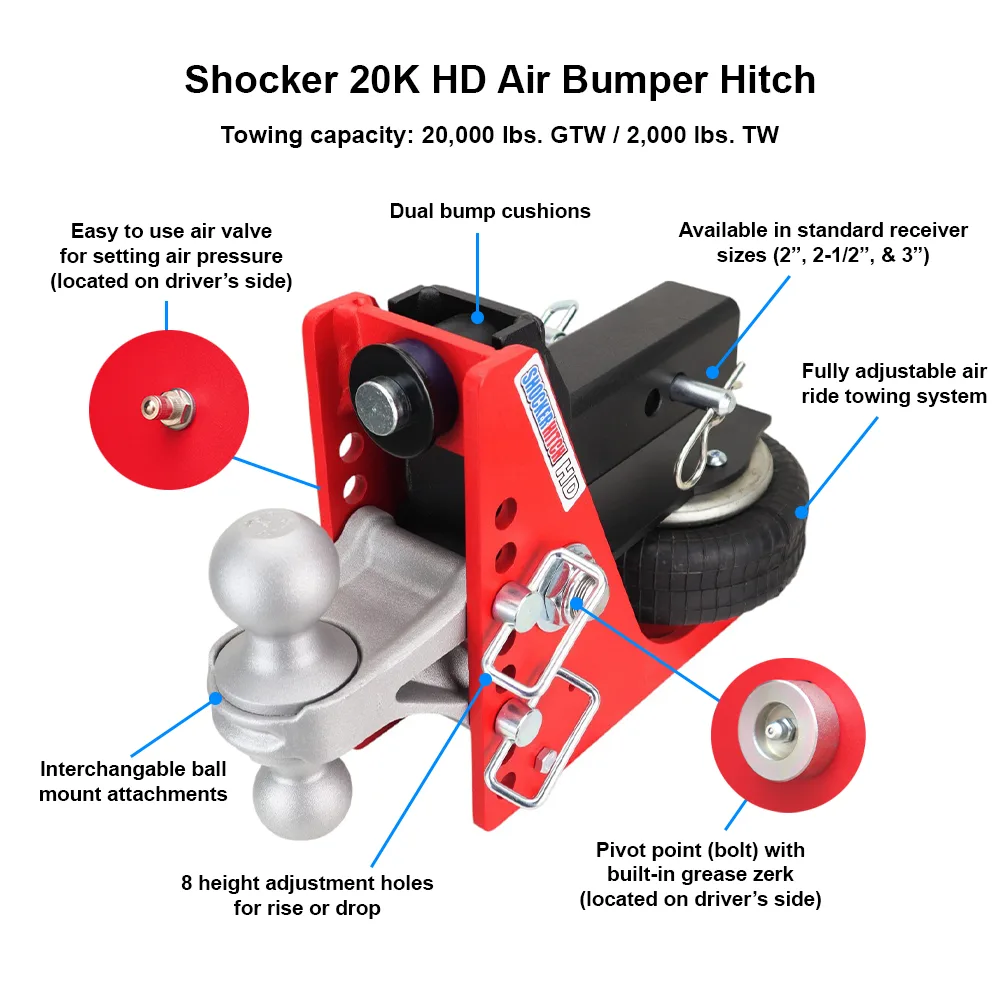

Key Highlights
- Hauls 20,000 lbs of trailer (GTW) and carries up to 2,000 lbs of tongue weight, the heaviest bumper-pull rating Shocker makes
- A 20K-rated heavy-duty airbag with reinforced multi-ply rubber soaks up road shock at full load
- Beefier chassis walls than the Original 14K, so you get more steel in the same footprint
- Comes in a 2-inch receiver, with a 3-inch option for one-ton trucks that need it
- Add or release air to dial in ride height and load support for whatever trailer you hook to
- 2.5" Rise to 6.5″ Drop ball-mount geometry to get your trailer sitting level
- Iconic safety-red powder coat that shrugs off chips and impacts
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (2-inch receiver shank, red)

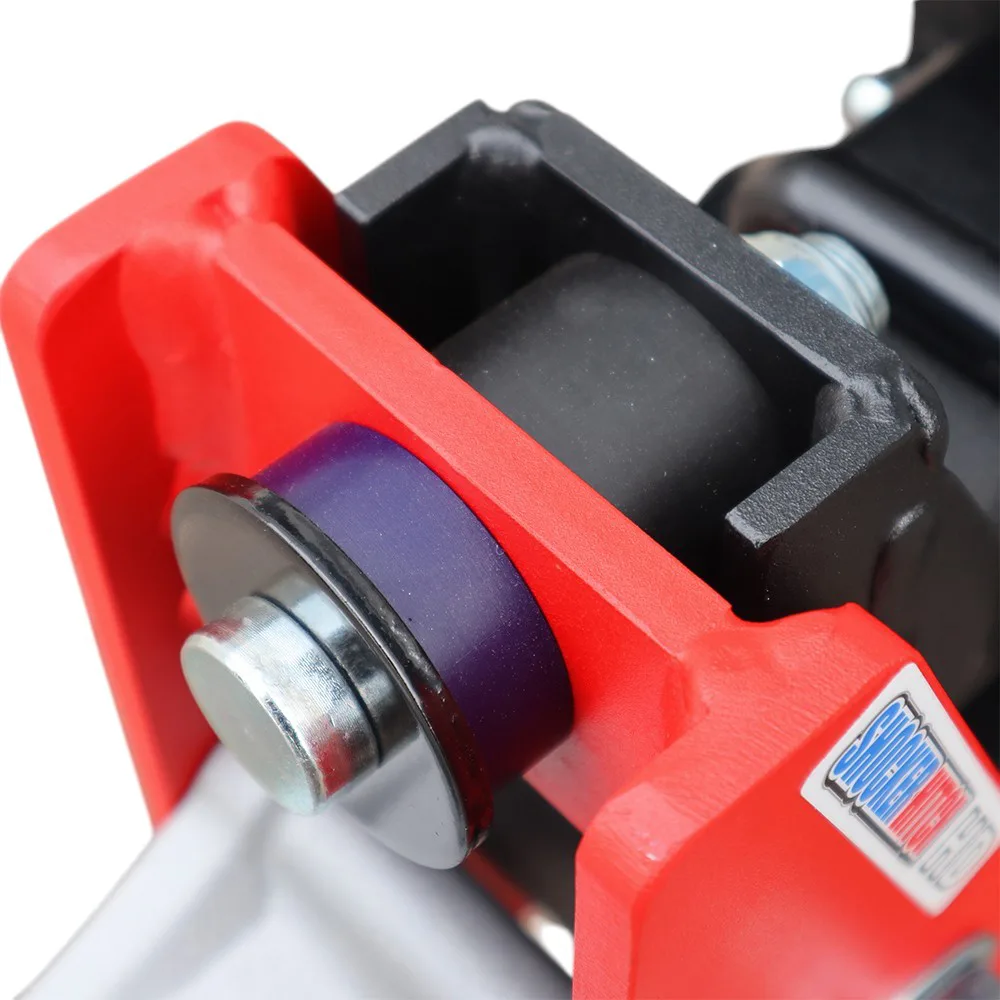

- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)

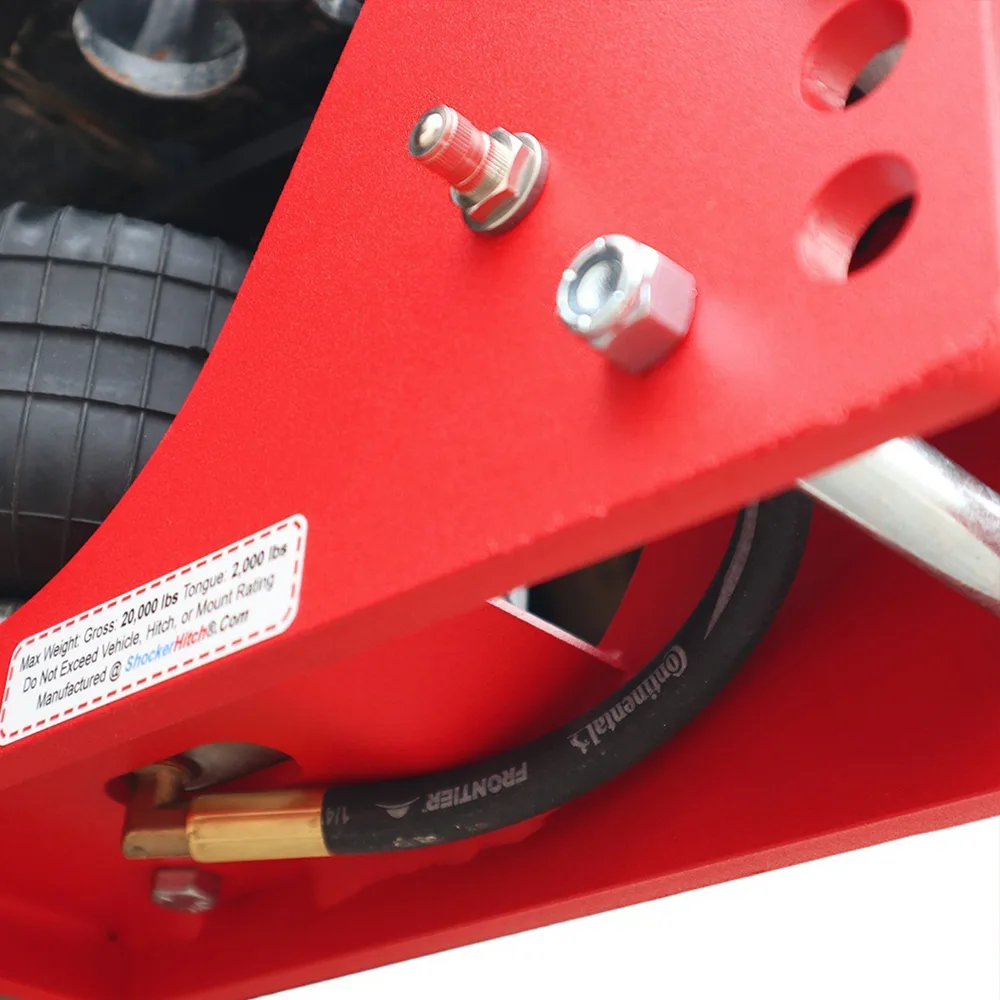

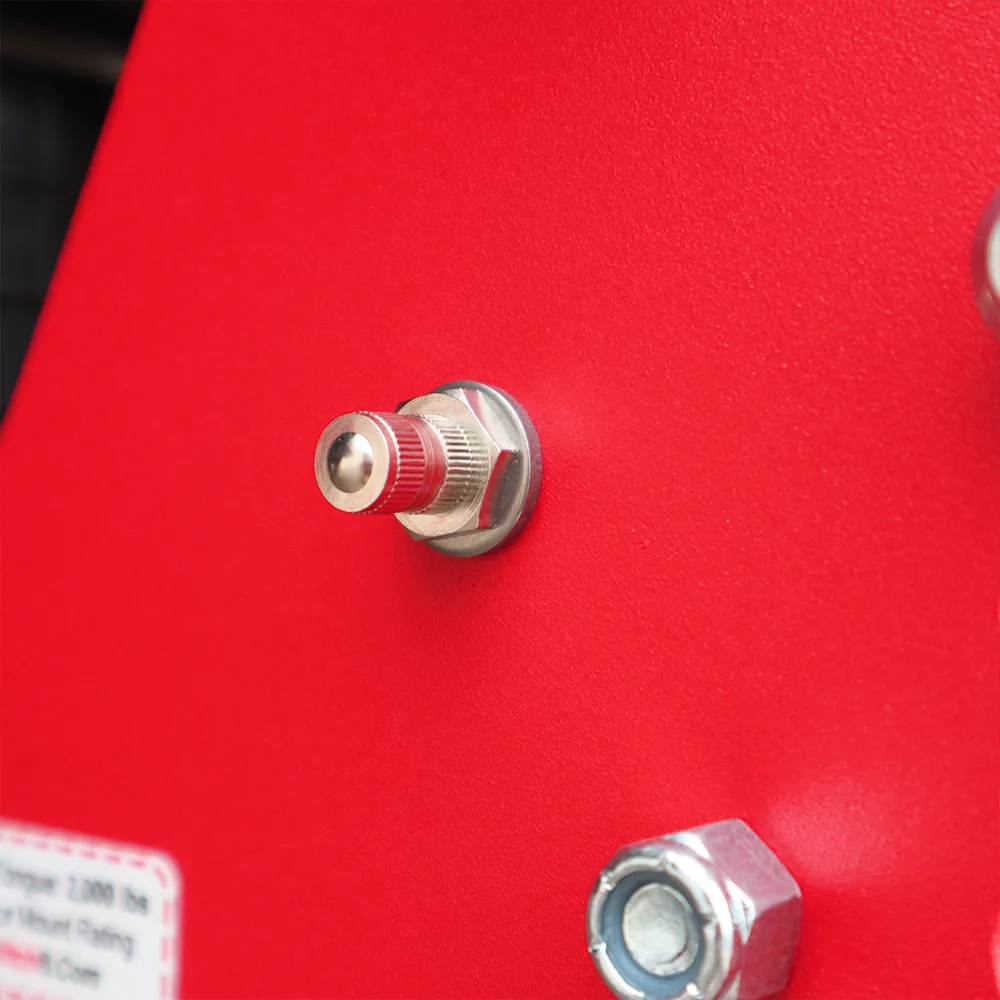

- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works

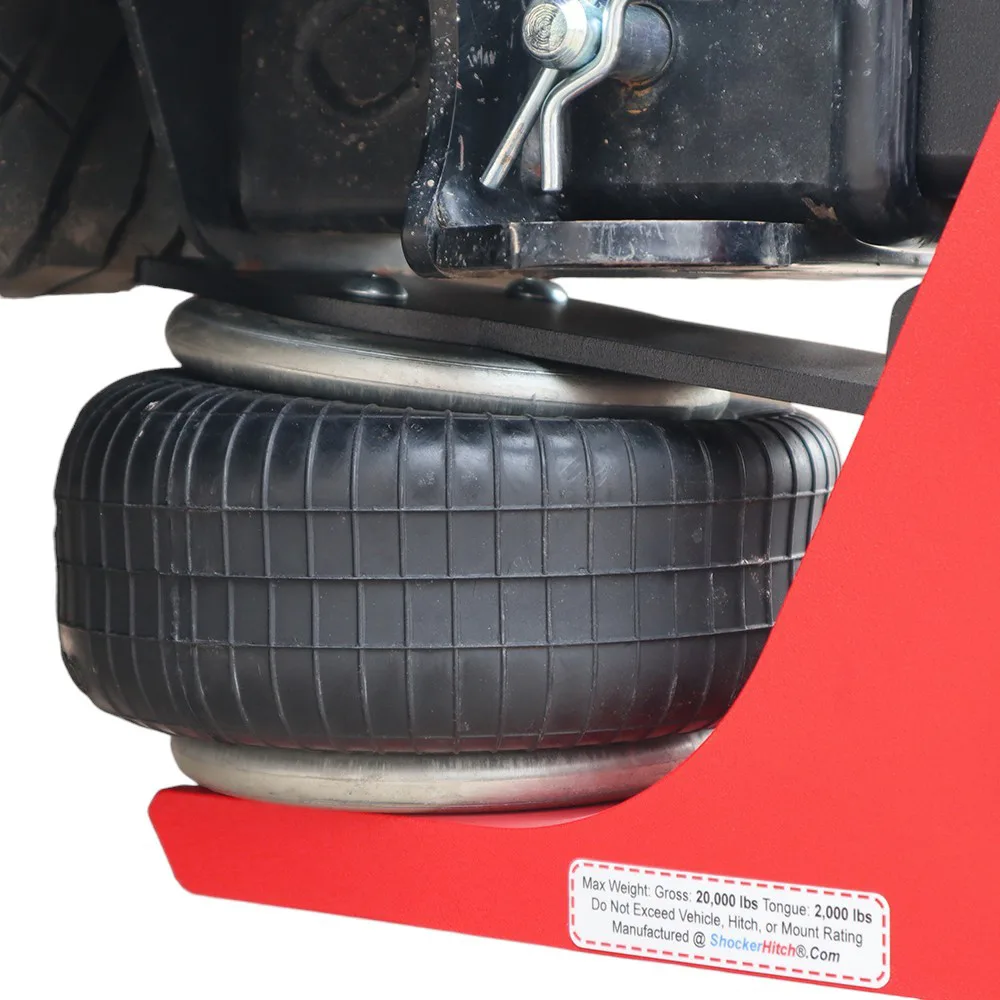

20K-Rated Air Spring
The HD air bag runs more plies of rubber than the 14K version, so it carries up to 20,000 lbs of trailer while still soaking up the road shock that would otherwise beat on your truck and your cargo.
Adjust It for the Load
A heavy bumper-pull trailer can swing more than 1,000 lbs between empty and full. Air it up for a max-weight run and let air back out for the deadhead home. The HD airbag has a wider usable pressure range than the 14K.

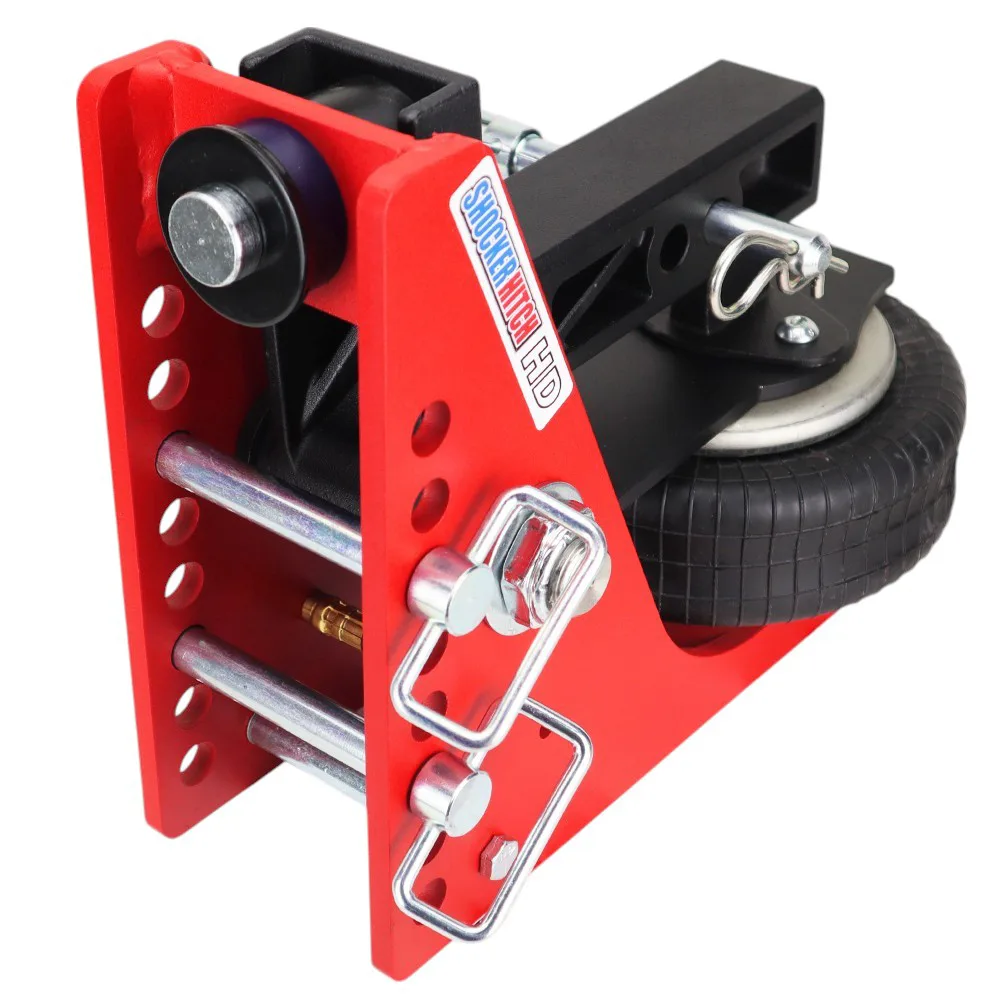

Reinforced 8-Hole Chassis
It keeps the same outside geometry as the Original line, so every Shocker ball mount still fits, but the walls are thicker steel and the welds are reinforced for 20K loadings.
Rocker-Arm Pivot
Shocker's down-and-back motion runs on a single pivot even at HD loadings. There are no slides, rollers, or stacked airbags to wear out, and fewer moving parts under this kind of stress means it lasts longer.
Who Buys the HD 20K
Built for one-ton trucks and the heaviest legal bumper-pull combinations.
- F-350, RAM 3500, and Silverado 3500 owners running near their max trailer rating
- Livestock haulers with 30+ ft gooseneck-equivalent bumper-pull stock trailers
- Equipment and skid-steer haulers on 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a three-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
What the HD Adds Over the Original
It keeps the same chassis silhouette and the same attachment lineup, with three meaningful upgrades:
Heavier Airbag
A multi-ply rubber bag rated for the full 20K GTW with a wider usable pressure range, so it carries heavier tongue weight without bottoming out.
Beefier Walls + Welds
Thicker steel and a reinforced weld pattern at the high-stress points, rated for 2,000 lbs of tongue weight against 1,400 lbs on the Original 14K.
Flip the Mount to Get Level
A trailer that rides nose-high or nose-low throws its weight onto one axle and chews through tires and bearings. This Shocker HD Air Hitch & Pintle Hook w/Mount ships in a 2.5" Rise to 6.5″ Drop ball-mount configuration. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune coupler height. Heavy bumper-pull trailers are especially fussy about sitting level, and a mismatched drop overloads either the front or rear axle of the trailer, so take the time to dial it in.
Built for Maximum Bumper-Pull Loads
Reinforced heavy-wall steel construction with Shocker's signature impact-resistant safety-red powder coat, in stock and shipping from Canada with no border wait. If the HD-rated air bag ever needs replacing, it swaps out in minutes using the same simple Schrader-style fitting as the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.
