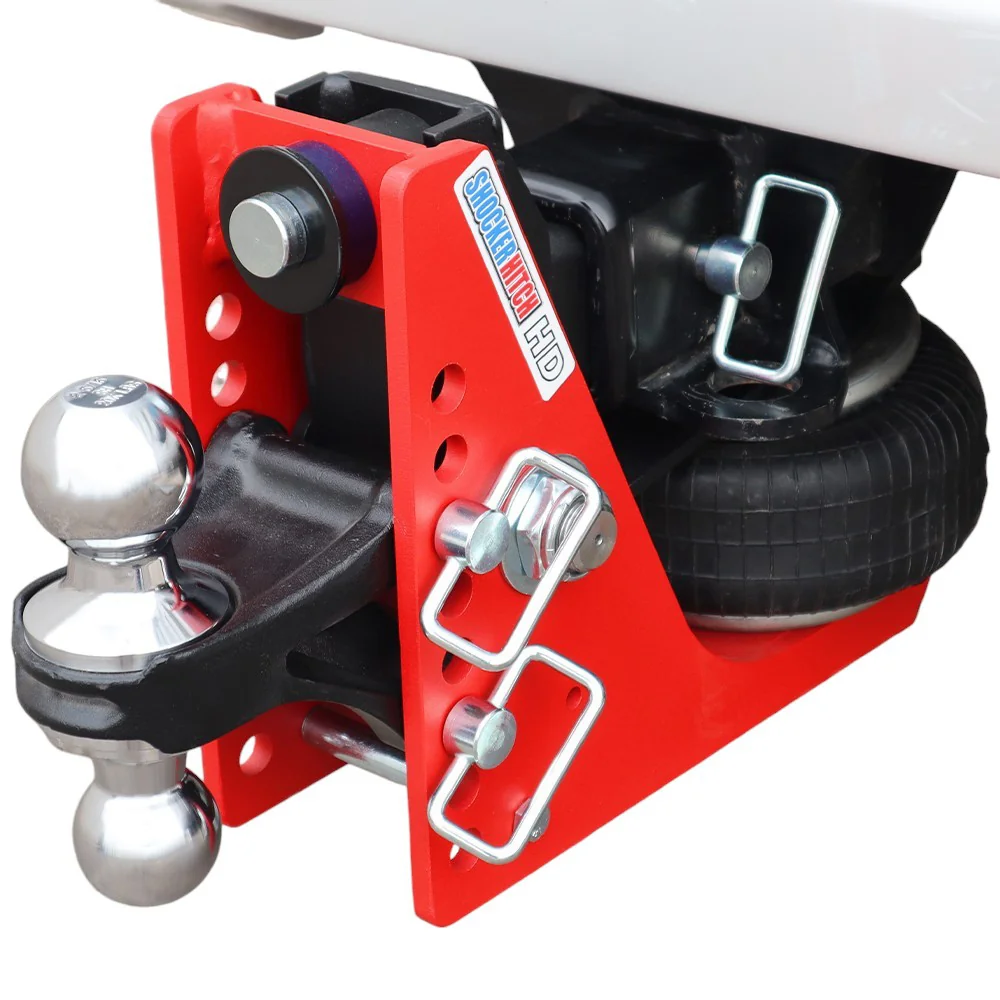

Shocker HD Air Hitch & Chrome Combo Ball Mount
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,259.98
$1,327.18 save $67.20
or as low as $105/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Smoother Safer Towing
Air ride towing technology with a heavy duty built in air ride suspension system to cushion the ride & absorb the road shock.
Adjustable Combo Ball
Chrome Combo adjustable multi-ball mount has with 2" hitch ball & 2 5/16" hitch ball. Choose black, silver or red. 2-5/16" ball rated at 20,000 lbs & 2" ball rated at 10,000 lbs.
20,000 lbs Heavy Duty Capacity
20,000 lbs towing capacity and a 2,000 lbs tongue weight. (can vary by mount)
2 Hole Receiver Shank
Designed for 2-1/2” receiver hitch tubes with Two hitch pin holes for length adjustability.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Haul a heavy trailer over rough road and you feel every frost heave and hard stop slam up through the receiver into your truck, jarring the cargo and hammering the trailer welds. The Shocker HD Air Hitch is the 20K red-finish heavyweight of the Shocker bumper-pull lineup, built to soak that up. It fits F-250 and RAM 2500-class three-quarter-ton trucks (class V receivers) with a 2-1/2-inch receiver, and hauls up to 20,000 lbs of trailer with as much as 2,000 lbs on the tongue, on a beefier-wall version of Shocker's signature 8-hole chassis with an upgraded HD-rated airbag. Run a one-ton truck at the heaviest legal bumper-pull loads and this is the hitch that keeps the ride smooth and your gear intact.
Key Highlights
- Hauls up to 20,000 lbs of trailer with 2,000 lbs on the tongue, the heaviest bumper-pull rating Shocker makes
- A 20K-rated heavy-duty airbag with reinforced multi-ply construction cushions the road under full load
- Beefier chassis walls than the Original 14K put more steel in the same footprint
- Fits 2-1/2-inch receivers, with a 3-inch option available for one-ton trucks
- Add or release air to dial in ride height and load support for whatever you're pulling
- Ships with 1/2" to 4-1/2" of drop so you can level your trailer right
- Finished in Shocker's iconic safety-red impact-resistant powder coat
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (2-1/2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
Air Spring Rated to 20,000 lbs
The HD air bag packs a heavier ply count than the 14K version, so it carries up to 20,000 lbs of trailer and still soaks up the road shock that would otherwise beat on your truck and cargo.
Adjustable for Heavy Loads
A heavy bumper-pull trailer can swing more than 1,000 lbs between empty and full. Air up for the loaded run, bleed it off for the deadhead home. The HD airbag has a wider usable pressure range than the 14K, so it covers that whole swing.
Reinforced 8-Hole Chassis
It keeps the same outside shape as the Original line, so every Shocker ball mount still fits, but the walls are thicker steel and the welds are reinforced to take the 20K loads.
Rocker-Arm Pivot
Shocker's down-and-back motion runs on a single pivot, with no slides, rollers, or stacked airbags, even at these HD loads. Fewer moving parts under high stress means it lasts longer.
Who Buys the HD 20K
Built for one-ton trucks and the heaviest legal bumper-pull combinations on the road.
- F-350, RAM 3500, and Silverado 3500 owners towing near their max trailer ratings
- Livestock haulers running 30+ ft gooseneck-equivalent bumper-pull stock trailers
- Equipment and skid-steer haulers running 16k+ tilt-deck trailers
- Enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
HD vs. Original: What Changes
Same chassis silhouette, same attachment lineup, three real upgrades:
Heavier Airbag
A multi-ply rubber bag rated for the full 20K GTW, with a wider usable pressure range. It carries heavier tongue weight without bottoming out on you.
Beefier Walls + Welds
Thicker steel and a reinforced weld pattern where the stress concentrates. That's what takes it to 2,000 lbs of tongue weight, up from 1,400 lbs on the Original 14K.
Flip It From Drop to Rise
This Shocker HD Air Hitch & Chrome Combo Ball Mount ships in a 1/2" to 4-1/2" Drop ball-mount setup. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune your coupler height. Heavy bumper-pull trailers care a lot about sitting level. A drop that's off overloads either the front or rear axle of the trailer, so take the time to dial it in.
Built for Maximum Bumper-Pull Loads
This hitch is built from reinforced heavy-wall steel and finished in Shocker's signature impact-resistant safety-red powder coat. It's in stock and ships direct from Canada, so there's no border wait. When the HD-rated air bag eventually wears, you can swap it in minutes using the same simple Schrader-style fitting found on the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.
