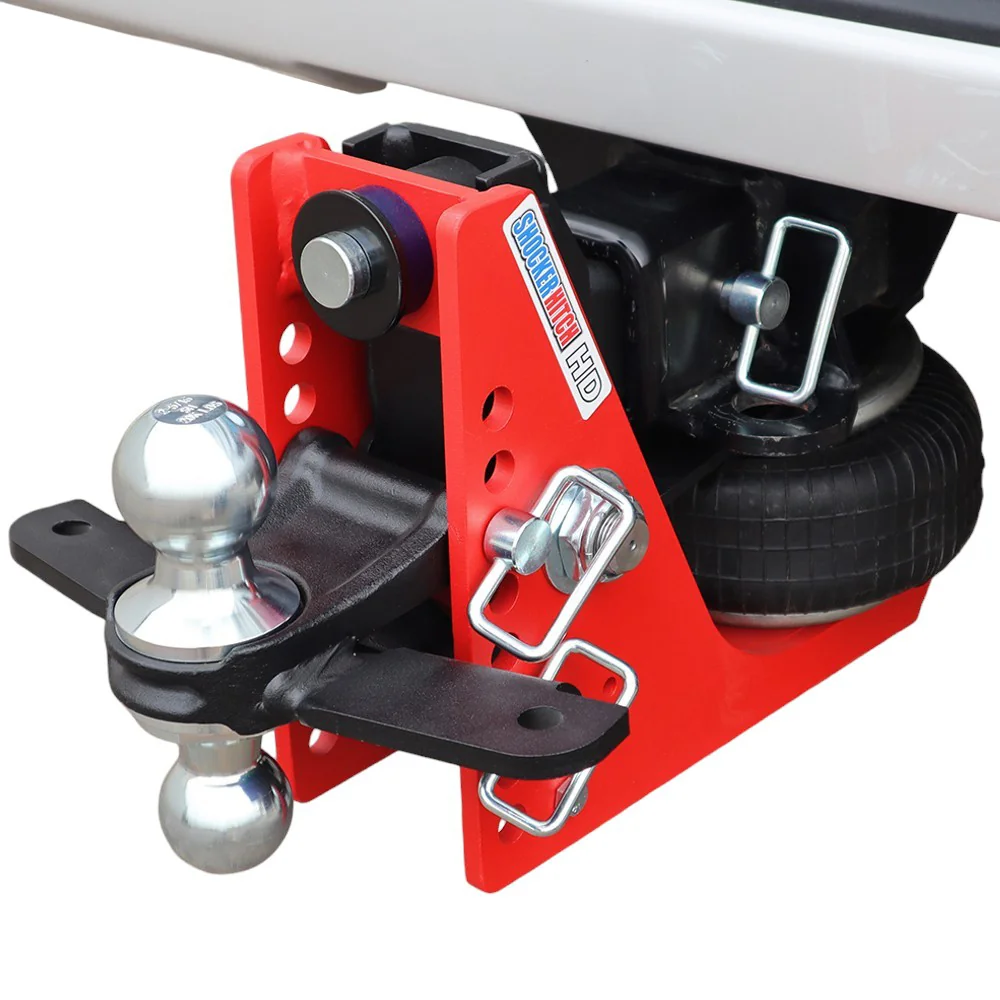

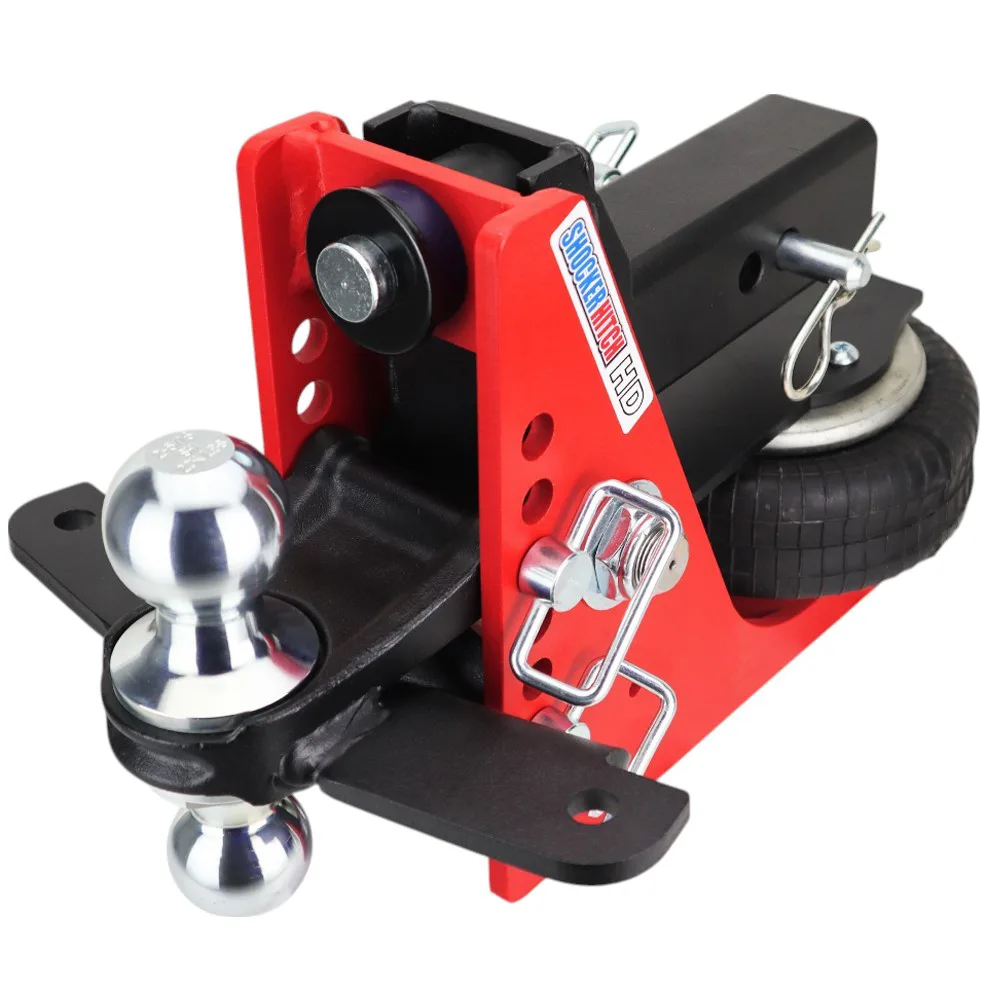

Shocker HD Air Hitch & Chrome Combo Ball Mount & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,343.98
$1,411.18 save $67.20
or as low as $112/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Smoother Safer Towing
Air ride towing technology with a heavy duty built in air spring to cushion the ride & absorb the road shock.
Built in HD Airbag
Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
Air Ride Sway Control Towing
The air ride system sits under receiver tube with the air valve on the side. Easily adjust the air pressure for the best ride and load control.
What Size Receiver Hitch Do
I Need? Not sure if you have a 2", 2-1/2" or 3" receiver tube? Measure inside to inside. Check out our guide on How to measure receiver hitch tube size.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Load a trailer up near your truck's limit and you feel every mile in your back. Frost heaves and expansion joints slam straight up through the ball, jar the cargo, and pound the welds on the truck and the trailer, and hard stops go white-knuckle fast. The Shocker HD Air Hitch is built to take that beating out of the heaviest loads you can legally pull. It fits F-250 / RAM 2500-class three-quarter-ton trucks (class V receivers) with a 2-1/2-inch receiver, and it handles 20,000 lbs of trailer (GTW) with up to 2,000 lbs riding on the tongue. You get a beefier-wall version of Shocker's proven red 8-hole chassis with an upgraded HD-rated airbag doing the work, sized for one-ton trucks hauling the heaviest legal bumper-pull loads. This combo ships with a chrome combo ball mount and sway bar tabs.
Key Highlights
- Pulls the heaviest legal bumper-pull load you can hang off a truck: 20,000 lbs of trailer (GTW) with up to 2,000 lbs on the tongue, the biggest rating Shocker makes
- A 20K-rated heavy-duty airbag with reinforced multi-ply rubber soaks up road shock instead of passing it to your truck and cargo
- Thicker chassis walls than the Original 14K for the high loads, with the same footprint so the fit does not change
- Fits a 2-1/2-inch receiver, with a 3-inch option for the one-ton trucks that need it
- Add or release air to match any trailer, so ride height and load support stay right whether you are loaded heavy or running empty
- Ships with 1/2" to 4-1/2" of drop so you can sit the trailer level and load both axles evenly
- Finished in Shocker's iconic safety-red powder coat, built to shrug off impact and chips
- Backed by our 60-day satisfaction guarantee, so you can try it on your own rig
What's Included
- Shocker HD Air Hitch base frame (2-1/2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (sold separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How the HD Air Ride Works
A 20K Air Spring Between You and the Bumps
An HD rubber air bag with more plies than the 14K version carries up to 20,000 lbs of trailer and still cushions the jolts before they reach your truck and cargo.
Dial It In for Loaded or Empty
A heavy bumper-pull trailer can swing 1,000+ lbs between empty and full. Air up for the max-weight run, then bleed some off on the deadhead home. The HD airbag works across a wider pressure range than the 14K.
More Steel Where It Counts
Same outside shape as the Original line, so every Shocker ball mount still fits, but with thicker-wall steel and reinforced welds rated for the 20K loads.
One Simple Pivot, Nothing to Wear Out
Shocker's down-and-back motion runs on a single pivot, with no slides, rollers, or stacked airbags, even at HD loads. Fewer parts under stress means it holds up longer.
Who the HD 20K Is Built For
Made for one-ton trucks and the heaviest legal bumper-pull combos.
- F-350 / RAM 3500 / Silverado 3500 owners hauling near their truck's max rating
- Livestock haulers pulling 30+ ft bumper-pull stock trailers
- Equipment and skid-steer guys running 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
HD vs. Original, What Actually Changed
Same chassis silhouette, same attachment lineup, with the upgrades that matter when the loads get heavy:
A Heavier Airbag
A multi-ply rubber bag rated for the full 20,000 lbs GTW with a wider usable pressure range, so it carries more tongue weight without bottoming out.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern right where the stress lives. Rated for 2,000 lbs of tongue weight versus 1,400 lbs on the Original 14K.
Flip It for Drop or Rise
This combo ships set up with 1/2" to 4-1/2" of drop. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune your coupler height. Heavy bumper-pull trailers care a lot about sitting level. If the drop is off, you end up overloading either the front or the rear axle of the trailer, so take a minute and dial it in right.
Built to Take the Heaviest Bumper-Pull Loads
Heavy-wall steel and Shocker's impact-resistant safety-red powder coat mean this hitch is built to live under maximum loads, and it is in stock and ships direct from Canada with no border wait. When the HD air bag eventually needs replacing, you swap it in minutes using the same simple Schrader-style fitting as the 14K. It is backed by Shocker Hitch's 60-day satisfaction guarantee.
