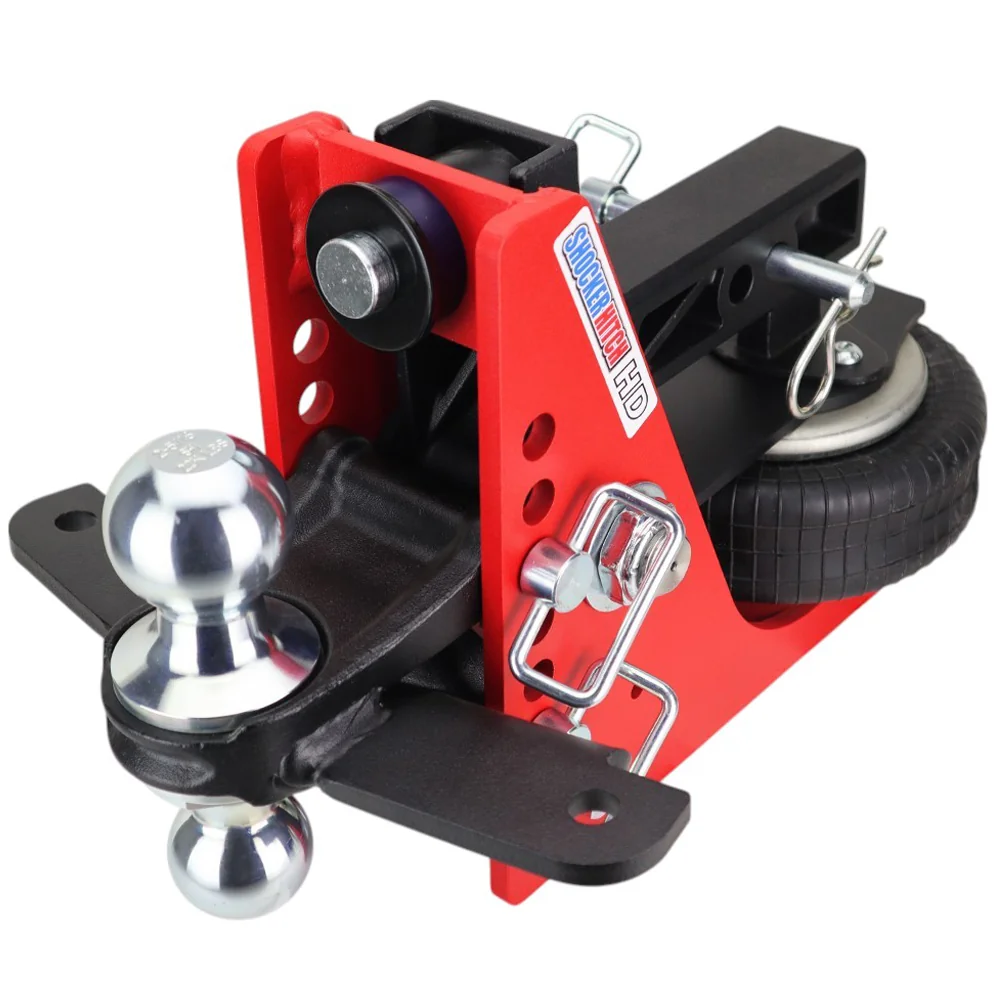

Shocker HD Air Hitch & Chrome Combo Ball Mount & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2" receiver
$1,310.38
$1,377.58 save $67.20
or as low as $110/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Smoother Safer Towing
Air ride towing technology with a heavy duty built in air spring to cushion the ride & absorb the road shock.
Built in HD Airbag
Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
Air Ride Sway Control Towing
The air ride system sits under receiver tube with the air valve on the side. Easily adjust the air pressure for the best ride and load control.
What Size Receiver Hitch Do
I Need? Not sure if you have a 2", 2-1/2" or 3" receiver tube? Measure inside to inside. Check out our guide on How to measure receiver hitch tube size.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Hook the biggest legal trailer to your truck and you feel every frost heave and hard stop come straight up through the ball, into your driveline and back through the trailer welds. At max weight a rigid hitch chucks and jars until something gives, whether that's the truck, the load, or your nerves on a long haul. The Shocker HD Air Hitch is the heavy-duty 20K flagship of the Shocker bumper-pull lineup, built to soak up that punishment. It carries 20,000 lbs GTW and up to 2,000 lbs of tongue weight on a beefier-wall version of Shocker's signature 8-hole chassis, with an upgraded HD-rated airbag doing the cushioning. It fits F-150-class half-ton trucks (and class III/IV receivers) with a 2-inch receiver, and it's made for one-ton trucks pulling the heaviest legal bumper-pull loads, in that iconic safety-red finish.
Key Highlights
- Hauls 20,000 lbs GTW with up to 2,000 lbs of tongue weight, the heaviest bumper-pull load Shocker will let you tow
- A 20K-rated heavy-duty airbag with reinforced multi-ply construction takes the hit so your truck and trailer don't
- Thicker chassis walls than the Original 14K, so it's the same footprint with more steel where the stress lives
- Fits 2-inch receivers, with a 3-inch option for one-ton trucks that need it
- Add or release air to dial in ride height and load support for whatever trailer's on the back
- 1/2" to 4-1/2" drop ball-mount geometry so you can sit the trailer dead level
- Iconic safety-red powder coat that shrugs off chips and impacts
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
20K-Rated Air Spring
The HD air bag runs a heavier ply count than the 14K version, so it carries up to 20,000 lbs of trailer behind you and still soaks up the road shock before it reaches the truck and your cargo.
Adjustable for Heavy Loads
A heavy trailer can swing 1,000+ lbs between empty and loaded. Pump in air for the max-weight run, bleed it off on the deadhead home, and the ride stays right. The HD airbag has a wider usable pressure range than the 14K.
Reinforced 8-Hole Chassis
Same outside geometry as the Original line, so every Shocker ball mount still bolts right on, but built from thicker-wall steel with reinforced welds rated for the full 20K load.
Rocker-Arm Pivot
Shocker's down-and-back motion rides on a single pivot, with no slides, rollers, or stacked airbags to wear out, even at HD weights. Fewer moving parts under heavy stress means it lasts longer.
Who Buys the HD 20K
Built for one-ton trucks and the heaviest legal bumper-pull combinations.
- F-350, RAM 3500, and Silverado 3500 owners towing near their max ratings
- Livestock haulers pulling 30+ ft gooseneck-equivalent bumper-pull stock trailers
- Equipment and skid-steer guys running 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks that need a matched HD hitch on a 3-inch receiver
- Anyone whose Original 14K is bottoming out under heavy tongue weight
What the HD Adds Over the Original 14K
Same chassis silhouette, same attachment ecosystem, with three meaningful upgrades where it counts:
Heavier Airbag
A multi-ply rubber bag rated for the full 20K GTW, with a wider usable pressure range so it carries heavier tongue weight without bottoming out.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern at the high-stress points, rated for 2,000 lbs of tongue weight versus 1,400 lbs on the Original 14K.
Flippable Drop / Rise Geometry
This Shocker HD Air Hitch & Chrome Combo Ball Mount & Sway Bar Tabs ships set up for 1/2" to 4-1/2" of drop. Most Shocker ball mounts flip over to turn that drop into rise, and the 8 adjustment holes let you fine-tune coupler height from there. A heavy bumper-pull trailer is fussy about sitting level. Get the drop wrong and you dump the weight onto either the front or rear axle of the trailer, so take the time to dial it in.
Built for Maximum Bumper-Pull Loads
Reinforced heavy-wall steel under Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. When the HD-rated air bag eventually needs replacing, it swaps out in minutes using the same simple Schrader-style fitting as the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.
