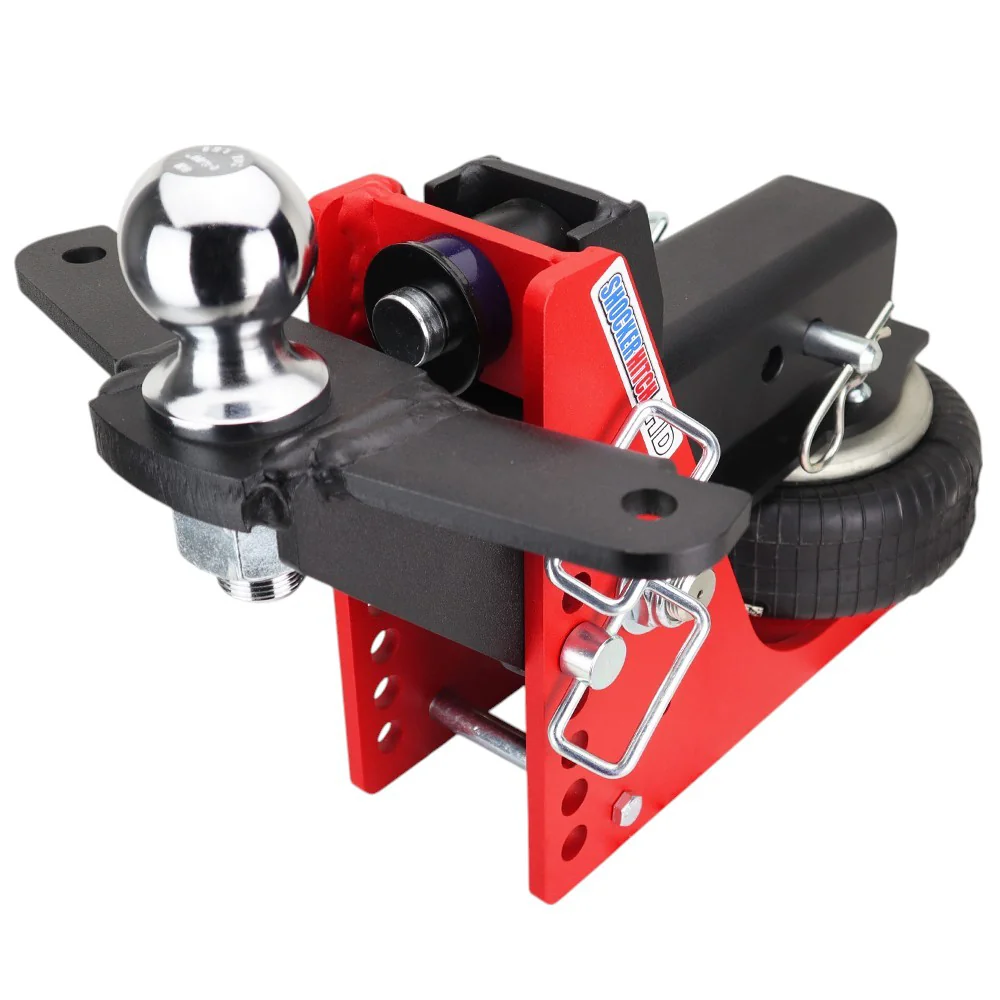

Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 3" receiver· 20,000 lbs GTW · 2,000 lbs TW · 3" receiver
$1,411.18
$1,478.38 save $67.20
or as low as $118/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Sway control raised ball mount
with 2 sway control tabs for mounting the basic sway control arm bar(s) & mini balls (such as the Reese 83660 or Shocker 17200 friction sway control kit)
Come with complete with shocker
HD air base frame assembly with built in 20K airbag, raised ball mount with hitch ball and 2 sway bar tabs along with 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, raise ball mounts and more.
Great for low ridign pickup
trucks including GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier and Honda Ridgeline.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Haul the heaviest load a one-ton truck can legally pull and you feel every frost heave and every hard stop come straight up through the receiver into the truck, the trailer, and whatever's riding behind you. The Shocker HD Air Hitch is the 20K red-finish flagship of the Shocker bumper-pull line, built to soak up that punishment. Sized for F-350, RAM 3500, and dual-rear-wheel one-ton trucks (class V/VI receivers) with a 3-inch receiver, this HD Air Hitch and Raised Ball Mount with a 2-5/16-inch ball and sway bar tabs hauls up to 20,000 lbs GTW and up to 2,000 lbs of tongue weight on a heavier-wall version of Shocker's signature 8-hole chassis with an upgraded HD-rated airbag. Built for a one-ton truck pulling the heaviest legal bumper-pull loads.
Key Highlights
- Pulls up to 20,000 lbs GTW and carries up to 2,000 lbs of tongue weight, the heaviest bumper-pull rating Shocker makes
- A 20K-rated heavy-duty airbag with reinforced multi-ply rubber that keeps cushioning the ride at full load
- Thicker chassis walls than the Original 14K, same footprint, more steel where the load hits hardest
- Fits a 3-inch receiver, the size dual-rear-wheel one-ton trucks run
- Adjustable air pressure lets you dial in ride height and support to match whatever you're towing
- Ships in a 2-inch rise to 2-inch drop ball-mount setup so you can level the trailer right
- The iconic safety-red impact-resistant powder coat that holds up to years of road abuse
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (3-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (sold separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Smooths the Ride
Air Spring Rated to 20K
An HD multi-ply rubber air bag with a heavier ply count than the 14K version carries up to 20,000 lbs of trailer load and still soaks up the road shock before it reaches your truck and cargo.
Adjusts With the Load
A heavy bumper-pull trailer can swing 1,000+ lbs between empty and full. Add air for the loaded run, bleed it off for the deadhead home. The HD airbag gives you a wider usable pressure range than the 14K to work with.
Reinforced 8-Hole Chassis
It keeps the same outside shape as the Original line, so every Shocker ball mount still fits, but the wall steel is thicker and the welds are reinforced to handle 20K loads.
Single Rocker-Arm Pivot
Shocker's down-and-back motion runs on one pivot, with no slides, rollers, or stacked airbags, even at HD loads. Fewer moving parts under that much stress means it lasts longer.
Who the HD 20K Is Built For
Built for one-ton trucks and the heaviest bumper-pull combinations you can legally run.
- F-350, RAM 3500, and Silverado 3500 owners towing near their max trailer rating
- Livestock haulers pulling 30+ ft bumper-pull stock trailers
- Equipment and skid-steer haulers running 16k+ tilt-deck trailers
- Big enclosed cargo and car haulers loaded up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone whose Original 14K bottoms out under heavy tongue weight
What Makes the HD Different
Same chassis silhouette and the same attachment ecosystem, with a few upgrades that matter when the loads get heavy:
A Heavier Airbag
A multi-ply rubber bag rated for the full 20K GTW with a wider usable pressure range, so it carries heavier tongue weight without bottoming out on you.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern where the stress concentrates, rated for 2,000 lbs of tongue weight against 1,400 lbs on the Original 14K.
Flip It for Drop or Rise
This HD Air Hitch and Raised Ball Mount with a 2-5/16-inch ball and sway bar tabs ships in a 2-inch rise to 2-inch drop ball-mount setup. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune coupler height. A heavy bumper-pull trailer really cares about sitting level. Get the drop wrong and you overload either the front or rear axle of the trailer, so take the time to dial it in.
Built for the Heaviest Bumper-Pull Loads
This one is built to take a beating. Reinforced heavy-wall steel under Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. If the HD-rated air bag ever needs replacing, it swaps out in minutes using the same simple Schrader-style fitting as the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.
