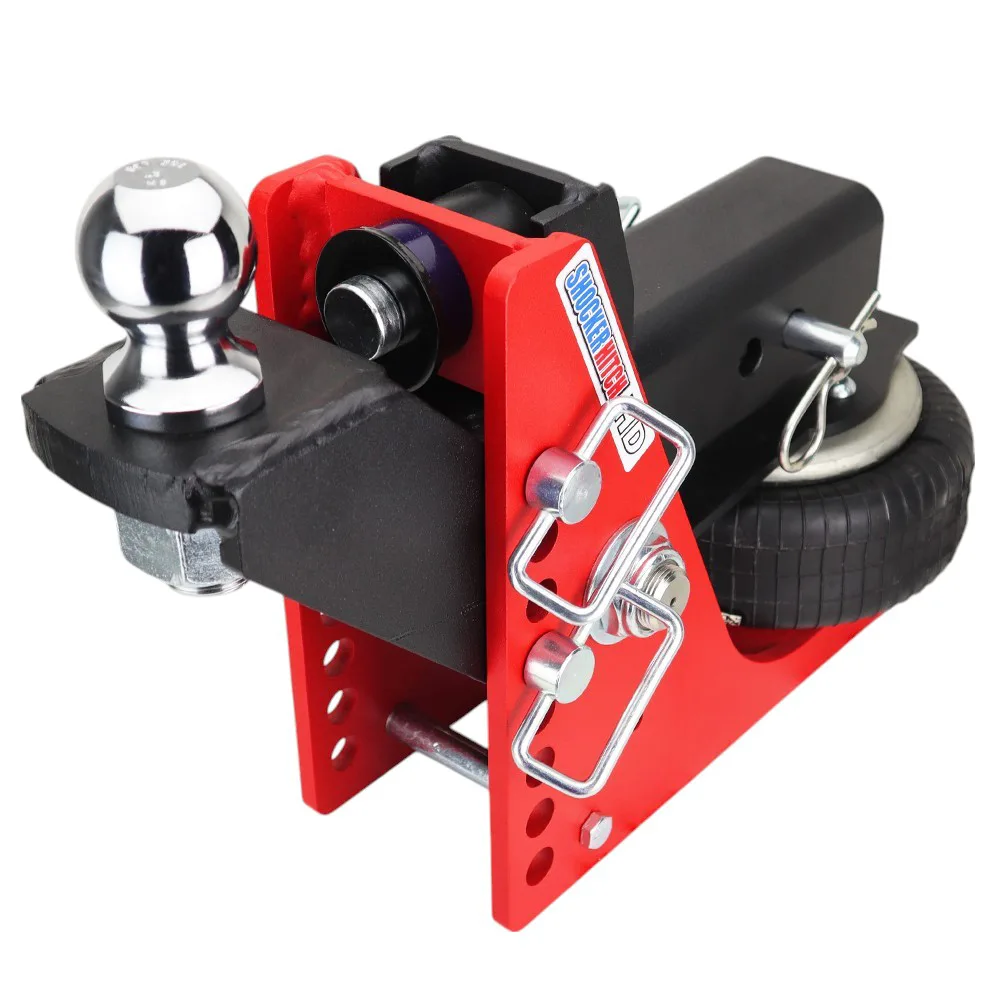

Shocker HD Air Hitch & Raised Ball Mount w/ 2" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 3" receiver· 20,000 lbs GTW · 2,000 lbs TW · 3" receiver
$1,310.38
$1,377.58 save $67.20
or as low as $110/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Comes complete with Shocker HD
Air Hitch base frame assembly with built in 20K airbag, raised ball mount & hitch ball & 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, combo ball mounts and more.
Comes with Adjustable raised ball
mount with chrome 2" or 2 5/16" bolted on hitch ball
Great for pickup trucks, vans
and select SUV's where the receiver hitch tube is under the bumper.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Hook a maxed-out trailer to a solid steel ball mount and every frost heave and hard stop slams straight through the truck and into whatever you're hauling. Your teeth rattle, the coupler pounds, and the wear stacks up on both rigs. The Shocker HD Air Hitch puts an air spring between truck and trailer so that pounding gets soaked up instead of passed along. It's the heavy-duty 20K red-finish flagship of the Shocker bumper-pull lineup, sized for F-350 / RAM 3500 / dual-rear-wheel one-ton trucks (class V/VI receivers) with a 3-inch receiver. This Shocker HD Air Hitch & Raised Ball Mount w/ 2" Ball is rated for 20,000 lbs GTW and up to 2,000 lbs of tongue weight, on a beefier-wall version of Shocker's signature 8-hole chassis with an upgraded HD-rated airbag. Built for the one-ton hauling the heaviest legal bumper-pull loads.
Key Highlights
- Pulls up to 20,000 lbs with 2,000 lbs on the tongue, the heaviest bumper-pull rating Shocker makes
- A 20K-rated HD airbag with reinforced multi-ply rubber soaks up the road so your truck doesn't
- Thicker chassis walls than the Original 14K, same footprint with more steel where the stress lives
- Sized for a 3-inch receiver, made for one-ton dual-rear-wheel trucks
- Add or release air to dial in ride height and load support for any trailer, empty or loaded
- 2" Rise to 2" Drop ball-mount geometry so you can get the trailer sitting level
- Wears the iconic safety-red impact-resistant powder coat that shrugs off chips and weather
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (3-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How the HD Air Ride Does the Work
20K-Rated Air Spring
An HD air bag with more rubber plies than the 14K version carries up to 20,000 lbs of trailer and still cushions the jolts before they reach your truck and cargo.
Adjustable for Heavy Loads
A heavy trailer can swing 1,000+ lbs between empty and full. Pump air in for a max-weight haul, bleed it off on the empty run home. The HD airbag has a wider usable pressure range than the 14K, so it keeps up either way.
Reinforced 8-Hole Chassis
Same outside shape as the Original line, so every Shocker ball mount still fits, but built with thicker-wall steel and reinforced welds rated for the 20K loads.
Rocker-Arm Pivot
Shocker's down-and-back motion runs on one simple pivot, with no slides, rollers, or stacked airbags, even at HD loads. Fewer moving parts under that kind of stress means it lasts longer.
Who This One Is Built For
Built for one-ton trucks pulling the heaviest legal bumper-pull loads.
- F-350, RAM 3500, or Silverado 3500 owners towing near their max trailer rating
- Livestock haulers pulling 30+ ft bumper-pull stock trailers
- Equipment and skid-steer haulers running 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
What Makes the HD Different
Same chassis shape and the same attachments that fit it, with three upgrades that matter:
Heavier Airbag
A multi-ply rubber bag rated for the full 20K GTW with a wider usable pressure range, so it takes heavier tongue weight without bottoming out.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern where the stress concentrates. Rated for 2,000 lbs of tongue weight versus 1,400 lbs on the Original 14K.
Flippable Drop / Rise Geometry
This Shocker HD Air Hitch & Raised Ball Mount w/ 2" Ball ships set up as 2" Rise to 2" Drop. Most Shocker ball mounts flip over, so you can turn drop into rise, and the 8 adjustment holes let you fine-tune coupler height. A heavy bumper-pull trailer is fussy about sitting level. Get the drop wrong and you overload either the trailer's front or rear axle, so take the time to dial it in right.
Built to Take the Heaviest Loads
Reinforced heavy-wall steel with Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. When the HD air bag eventually wears out you swap it in minutes using the same simple Schrader-style fitting as the 14K, no press or shop visit. Backed by Shocker Hitch's 60-day satisfaction guarantee.
