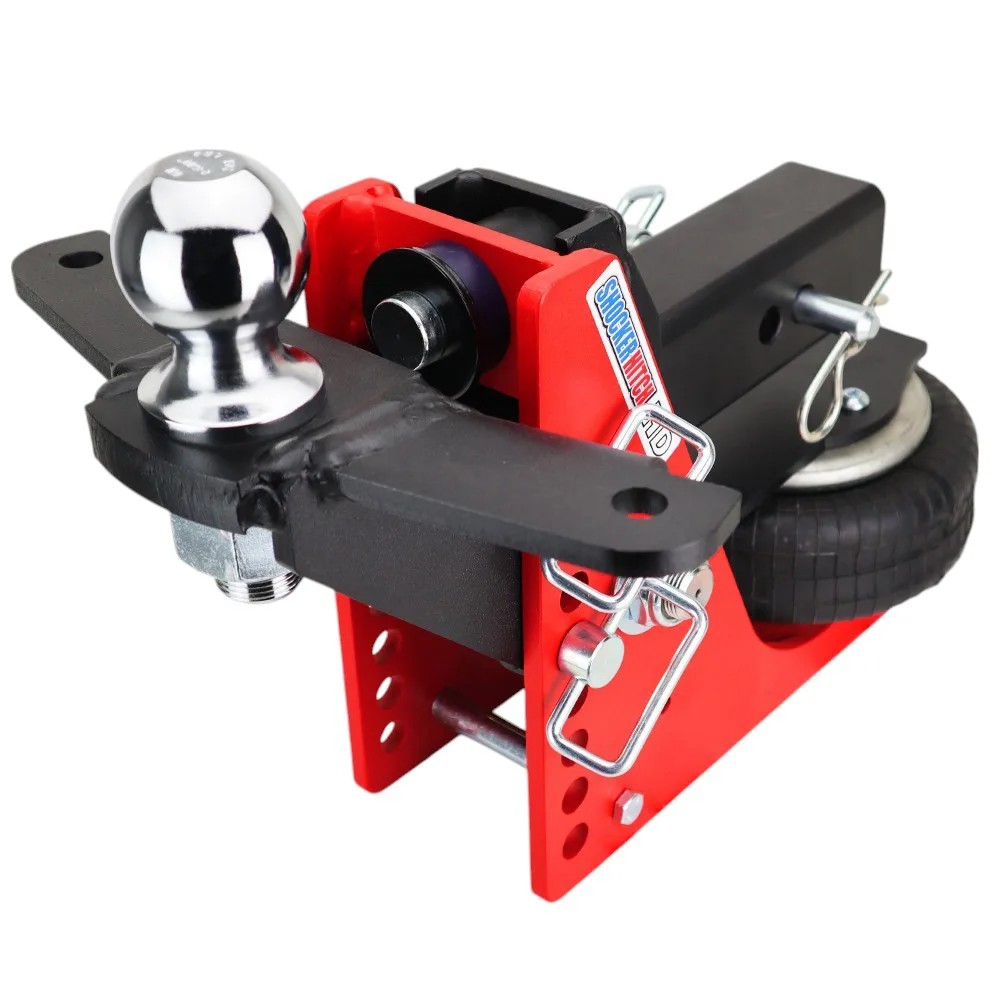

Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,360.78
$1,427.98 save $67.20
or as low as $114/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Sway control raised ball mount
with 2 sway control tabs for mounting the basic sway control arm bar(s) & mini balls (such as the Reese 83660 or Shocker 17200 friction sway control kit)
Come with complete with shocker
HD air base frame assembly with built in 20K airbag, raised ball mount with hitch ball and 2 sway bar tabs along with 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, raise ball mounts and more.
Great for low ridign pickup
trucks including GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier and Honda Ridgeline.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
You feel it every time the trailer's loaded heavy: the jolt through the truck on frost heaves, the chucking back and forth on rough highway, the hard shove into your hitch on a panic stop. All that pounding grinds on your driveline, your trailer welds, and whatever you've got strapped down back there. The Shocker HD Air Hitch is the heavy-duty answer, the 20K red-finish flagship of Shocker's bumper-pull lineup. It's sized for F-250 / RAM 2500-class three-quarter-ton trucks (class V receivers) with a 2-1/2-inch receiver, and this Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball & Sway Bar Tabs pulls up to 20,000 lbs GTW with as much as 2,000 lbs of tongue weight. It does it on a beefier-wall version of Shocker's signature 8-hole chassis with an upgraded HD-rated airbag, built for one-ton trucks hauling the heaviest legal bumper-pull loads.
Key Highlights
- Pulls up to 20,000 lbs GTW with as much as 2,000 lbs of tongue weight, the heaviest bumper-pull rating Shocker makes
- A 20K-rated heavy-duty airbag with reinforced multi-ply construction soaks up the shock a full load throws at you
- Beefier chassis walls than the Original 14K, same footprint but more steel where the stress lives
- Fits 2-1/2-inch receivers, with a 3-inch option so one-ton trucks get a matched hitch
- Adjustable air pressure lets you dial in ride height and load support for whatever you're towing that day
- Ships in a 2" Rise to 2" Drop ball-mount geometry so you can get the trailer sitting level
- Finished in Shocker's iconic safety-red impact-resistant powder coat that takes road abuse and stays looking sharp
- Backed by our 60-day satisfaction guarantee, so you can put it to work with nothing to lose
What's Included
- Shocker HD Air Hitch base frame (2-1/2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
The Air Spring Does the Cushioning
An HD multi-ply rubber air bag, with a heavier ply count than the 14K version, carries up to 20,000 lbs of trailer load and still soaks up the road shock that would otherwise hammer your truck and cargo.
Tune It to the Load
Heavy bumper-pull loads swing 1,000+ lbs between empty and full. Add air for the max-weight run, bleed it off for the deadhead home. The HD airbag gives you a wider usable pressure range than the 14K to work with.
A Chassis Built to Take It
Same outside geometry as the Original line, so every Shocker ball mount still fits, but with thicker wall steel and reinforced welds rated for the 20K loadings.
One Simple Pivot
Shocker's down-and-back motion runs on a single pivot, with no slides, no rollers, and no stacked airbags, even at HD loadings. Fewer moving parts under heavy stress means it lasts longer.
Who Buys the HD 20K
Built for one-ton trucks and the heaviest legal bumper-pull combinations.
- F-350 / RAM 3500 / Silverado 3500 owners towing near their max trailer ratings
- Heavy livestock haulers running 30+ ft gooseneck-equivalent bumper-pull stock trailers
- Equipment and skid-steer guys pulling 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a three-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
HD vs. Original: What's Different
Same chassis silhouette and the same attachment ecosystem, with three meaningful upgrades:
Heavier Airbag
A multi-ply rubber bag rated for the full 20K GTW with a wider usable pressure range, so it carries heavier tongue weight without bottoming out on you.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern where the stress concentrates. That's what takes it to 2,000 lbs of tongue weight versus 1,400 lbs on the Original 14K.
Flippable Drop and Rise Geometry
This Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball & Sway Bar Tabs ships in a 2" Rise to 2" Drop ball-mount configuration. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune coupler height. Heavy bumper-pull trailers care a lot about sitting level. Get the drop wrong and you overload either the front or rear axle of the trailer, so take the time to dial it in.
Built for Maximum Bumper-Pull Loads
Reinforced heavy-wall steel under Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. If the HD-rated air bag ever needs it, you can swap it out in the field in minutes using the same simple Schrader-style fitting the 14K uses. Backed by Shocker Hitch's 60-day satisfaction guarantee.
