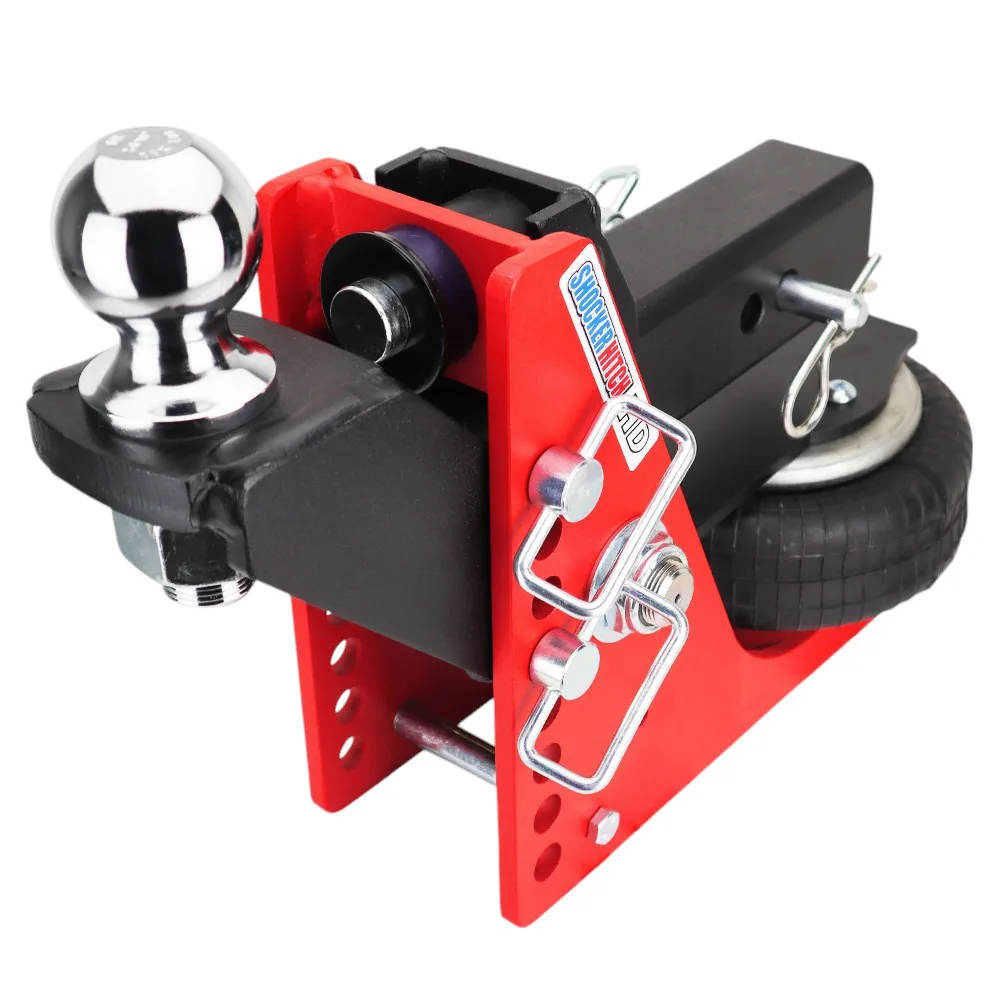

Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$1,259.98
$1,327.18 save $67.20
or as low as $105/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Comes complete with Shocker HD
Air Hitch base frame assembly with built in 20K airbag, raised ball mount & hitch ball & 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, combo ball mounts and more.
Comes with Adjustable raised ball
mount with chrome 2" or 2 5/16" bolted on hitch ball
Great for pickup trucks, vans
and select SUV's where the receiver hitch tube is under the bumper.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Hitch a 20,000-lb trailer to a rigid steel ball mount and every frost heave, expansion joint, and hard stop slams straight into your truck, your trailer welds, and whatever's riding in back. The Shocker HD Air Hitch puts a heavy-duty air spring between you and that punishment. It's the 20K red-finish flagship of the Shocker bumper-pull line, built for F-250 / RAM 2500-class three-quarter-ton trucks (class V receivers) with a 2-1/2-inch receiver. This Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball is rated at 20,000 lbs GTW and up to 2,000 lbs of tongue weight, all on a beefier-wall version of Shocker's proven 8-hole chassis with an upgraded HD air bag. If you run a one-ton truck at the heaviest legal bumper-pull loads, this is the hitch that soaks up the road so your rig doesn't have to.
Key Highlights
- Hauls up to 20,000 lbs GTW with 2,000 lbs of tongue weight, the heaviest bumper-pull rating Shocker offers
- HD air bag rated to the full 20K, built with reinforced multi-ply rubber
- Thicker chassis walls than the Original 14K, same footprint with more steel behind it
- Available in 2-1/2-inch receivers, with a 3-inch option for one-ton trucks
- Adjustable air pressure dials in ride height and support for whatever you're towing
- 2" Rise to 2" Drop ball-mount setup to get your trailer sitting level
- Signature safety-red powder coat, impact-resistant and built to take abuse
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (2-1/2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (sold separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
20K-Rated Air Spring
Where a solid ball mount passes every jolt straight through, this air bag absorbs it. The HD multi-ply rubber bag runs a heavier ply count than the 14K version, so it carries up to 20,000 lbs of trailer and still cushions the road shock that hammers your truck and cargo.
Adjustable for Heavy Loads
A stock or equipment trailer can swing more than 1,000 lbs between empty and loaded, and a fixed hitch can't tell the difference. Add air for the heavy hauls, bleed it off for the empty run home. The HD air bag gives you a wider usable pressure range than the 14K to work with.
Reinforced 8-Hole Chassis
It keeps the same outside shape as the Original line, so every Shocker ball mount still bolts right on. Underneath it runs thicker-wall steel and reinforced welds rated to handle the full 20K loads.
Rocker-Arm Pivot
Shocker's down-and-back motion rides on a single pivot, with no slides, rollers, or stacked airbags to wear out, even at HD loads. Fewer moving parts under all that stress means the hitch lasts longer before anything needs attention.
Who Buys the HD 20K
Built for one-ton trucks pulling the heaviest legal bumper-pull loads.
- F-350 / RAM 3500 / Silverado 3500 owners towing near the top of their rating
- Livestock haulers running 30+ ft stock trailers behind the bumper
- Equipment and skid-steer haulers on 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
How the HD Steps Up From the Original
Same chassis shape and the same ball-mount attachments, with the upgrades that matter under heavy loads:
Heavier Air Bag
The multi-ply rubber bag is rated for the full 20K GTW and gives you a wider usable pressure range, so it carries heavier tongue weight without bottoming out on the bumps.
Beefier Walls + Welds
Thicker steel and a reinforced weld pattern at the high-stress points. That takes the tongue-weight rating up to 2,000 lbs, versus 1,400 lbs on the Original 14K.
Flippable Drop / Rise Geometry
This Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball ships set up for 2" Rise to 2" Drop. Most Shocker ball mounts flip over, so you can turn that drop into rise, and the 8 adjustment holes let you fine-tune coupler height on top of that. Heavy trailers are picky about sitting level. Run one nose-high or nose-low and you overload the trailer's front or rear axle, so take the time to dial it in.
Built for Maximum Bumper-Pull Loads
This is heavy-wall reinforced steel finished in Shocker's impact-resistant safety-red powder coat, in stock in Canada and shipping direct with no border wait. When the HD air bag eventually wears, you swap it in minutes using the same simple Schrader-style fitting as the 14K, no trip to a shop. Every hitch is backed by Shocker Hitch's 60-day satisfaction guarantee.
