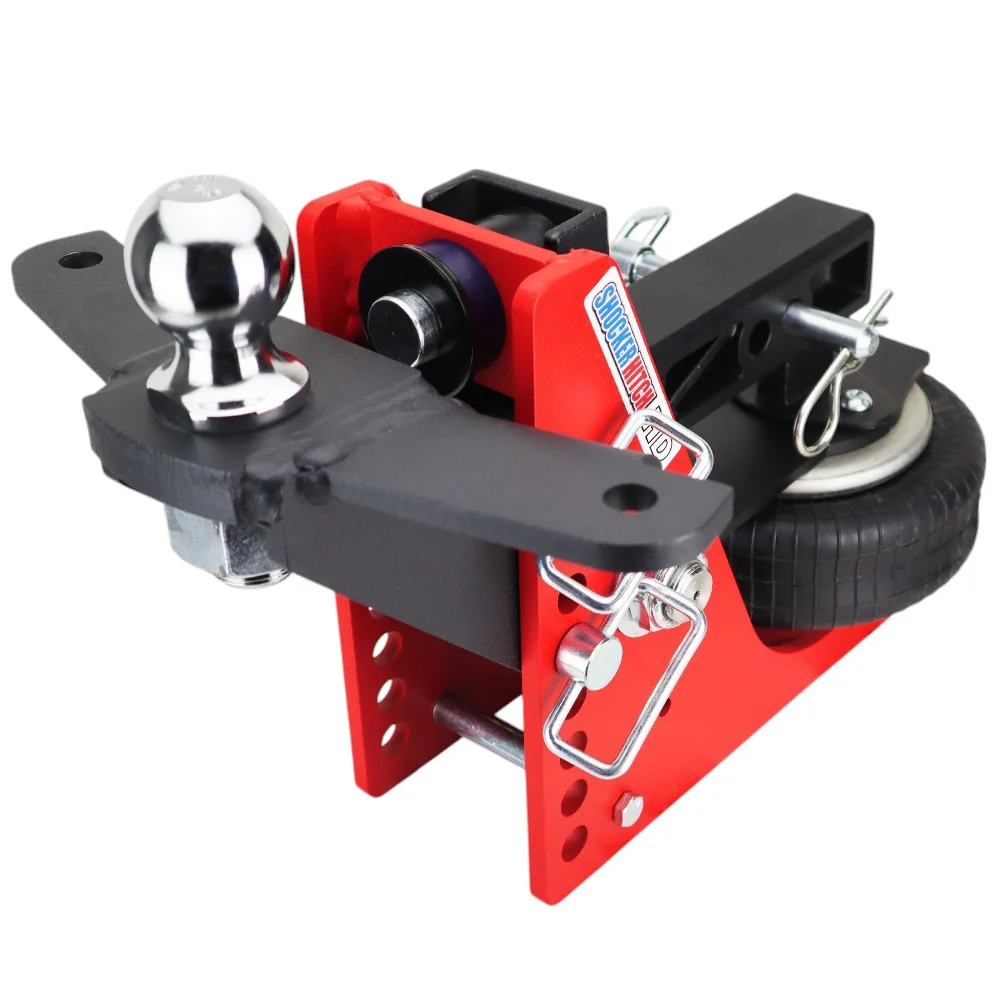

Shocker HD Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2" receiver
$1,310.38
$1,377.58 save $67.20
or as low as $110/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Sway control raised ball mount
with 2 sway control tabs for mounting the basic sway control arm bar(s) & mini balls (such as the Reese 83660 or Shocker 17200 friction sway control kit)
Come with complete with shocker
HD air base frame assembly with built in 20K airbag, raised ball mount with hitch ball and 2 sway bar tabs along with 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, raise ball mounts and more.
Great for low ridign pickup
trucks including GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier and Honda Ridgeline.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
You feel it every time the road gets rough with a heavy trailer behind you. The chucking, the jarring that comes up through the seat, the hard hits that beat on your truck's driveline, your trailer welds, and whatever you loaded up. The Shocker HD Air Hitch puts an air spring between the truck and the load so those hits get soaked up instead of passed straight through to you. This Shocker HD Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs pulls up to 20,000 lbs of trailer and carries up to 2,000 lbs of tongue weight, the heaviest legal bumper-pull loads you'll put behind a one-ton truck. It slides into a 2-inch receiver on F-150-class half-ton trucks and class III/IV receivers, and it runs on a beefier-wall version of Shocker's proven 8-hole chassis with an upgraded HD-rated airbag.
Key Highlights
- Pulls up to 20,000 lbs of trailer and carries up to 2,000 lbs of tongue weight, the heaviest bumper-pull rating Shocker makes
- A 20K-rated heavy-duty airbag in reinforced multi-ply rubber soaks up the road so your truck and trailer don't take the hits
- Thicker chassis walls than the Original 14K in the same footprint, which means more steel between you and a heavy load
- Comes in 2-inch receivers, with a 3-inch option for one-ton trucks
- Add or release air to dial in ride height and load support for whatever you're towing that day
- Ships with 2" Rise to 2" Drop ball-mount geometry so you can get your trailer sitting level
- Finished in Shocker's signature safety-red impact-resistant powder coat that takes road abuse without chipping
- Backed by our 60-day satisfaction guarantee
What's Included
- Shocker HD Air Hitch base frame (2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How the Shocker HD Air Ride Works
An Air Spring Rated to 20K
The HD air bag is built from multi-ply rubber with a heavier ply count than the 14K version. It holds up to 20,000 lbs of trailer and still cushions the road shock that would otherwise pound your truck and cargo.
Tune It to the Load You're Pulling
A heavy bumper-pull trailer can swing more than 1,000 lbs between empty and full. Air it up for the max-weight run, then bleed it down on the deadhead home. The HD airbag has a wider usable pressure range than the 14K, so you get more room to set the ride right.
A Reinforced 8-Hole Chassis
It keeps the same outside shape as the Original line, so every Shocker ball mount still fits. But the steel is thicker and the welds are reinforced to carry the 20K loadings.
One Pivot, Nothing to Wear Out
The down-and-back motion rides on a single rocker-arm pivot, with no slides, no rollers, and no stacked airbags, even at HD loadings. Fewer moving parts under heavy stress means it lasts longer.
Who the HD 20K Is Built For
Made for one-ton trucks and the heaviest legal bumper-pull loads on the road.
- F-350, RAM 3500, and Silverado 3500 owners towing near their max ratings
- Heavy livestock haulers with 30+ ft gooseneck-equivalent bumper-pull stock trailers
- Equipment and skid-steer haulers on 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with three-inch receivers that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
What Makes the HD Different From the Original
Same chassis shape and the same attachment lineup, with three meaningful upgrades:
A Heavier Airbag
A multi-ply rubber bag rated for the full 20,000 lbs GTW with a wider usable pressure range. It carries heavier tongue weight without bottoming out.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern at the high-stress points. That is what takes it to 2,000 lbs of tongue weight versus 1,400 lbs on the Original 14K.
Flip It From Drop to Rise
This Shocker HD Air Hitch & Raised Ball Mount w/ 2" Ball & Sway Bar Tabs ships in a 2" Rise to 2" Drop ball-mount configuration. Most Shocker ball mounts are reversible, so you can flip the mount to turn drop into rise, or use the 8 adjustment holes to fine-tune your coupler height. Getting a heavy trailer sitting level really matters. Run it nose-high or nose-low and you overload either the front or rear axle of the trailer, so take the time to dial it in.
Built for Maximum Bumper-Pull Loads
This hitch is built to take a beating. Reinforced heavy-wall steel carries the load, and Shocker's signature impact-resistant safety-red powder coat stands up to weather and road grit. It's in stock and ships direct from Canada, so there's no border wait. When the HD air bag eventually wears, you can swap it out in minutes using the same simple Schrader-style fitting as the 14K, no shop trip needed. Backed by Shocker Hitch's 60-day satisfaction guarantee.
