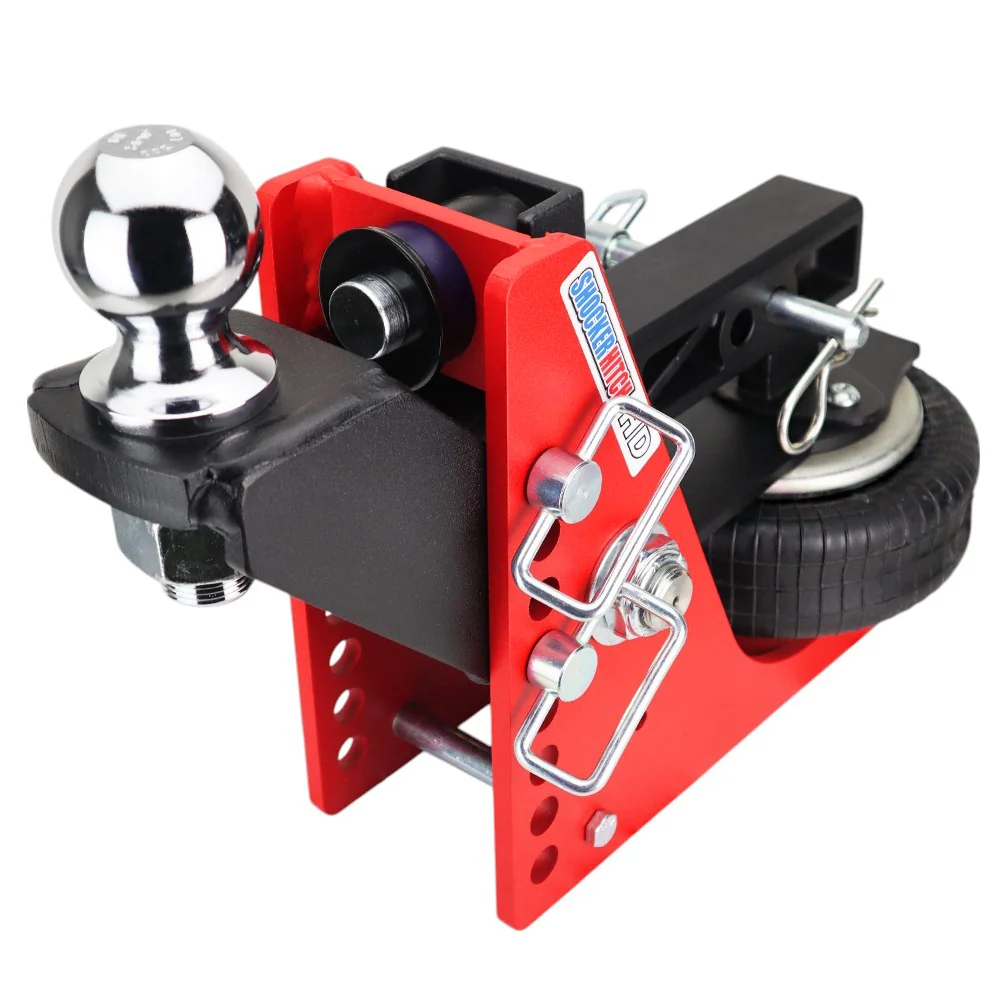

Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2" receiver
$1,226.38
$1,293.58 save $67.20
or as low as $103/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Comes complete with Shocker HD
Air Hitch base frame assembly with built in 20K airbag, raised ball mount & hitch ball & 2 d-handle ball mount pins with clips.
Huge selection of ball mount
adapters available from Pintle hooks, draw bars, drop ball mounts, combo ball mounts and more.
Comes with Adjustable raised ball
mount with chrome 2" or 2 5/16" bolted on hitch ball
Great for pickup trucks, vans
and select SUV's where the receiver hitch tube is under the bumper.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Load a trailer right up to the top of what your truck can legally pull, and you feel every frost heave and hard stop come straight up through the ball. It jars the truck, works the trailer welds, and rattles whatever you paid to haul. The Shocker HD Air Hitch is the heavy-duty 20K red-finish flagship of the Shocker bumper-pull lineup, built to take that beating so you don't have to. It slides into a 2-inch receiver on F-150-class half-ton trucks (and class III/IV receivers) and delivers 20,000 lbs GTW with up to 2,000 lbs of tongue weight, all on a beefier-wall version of Shocker's signature 8-hole chassis with an upgraded HD-rated airbag. That's enough hitch for a one-ton truck pulling the heaviest legal bumper-pull loads you can hook to.
Key Highlights
- Hauls up to 20,000 lbs GTW and 2,000 lbs of tongue weight, the heaviest bumper-pull rating Shocker offers
- A 20K-rated heavy-duty airbag with reinforced multi-ply construction soaks up the road so your truck doesn't
- Beefier chassis walls than the Original 14K carry the extra load on the same footprint, just more steel
- Fits 2-inch receivers, with a 3-inch option available for the one-ton trucks that need it
- Add or release air to dial in ride height and load support for whatever you're towing that day
- 2" Rise to 2" Drop ball-mount geometry gets heavy trailers sitting level so the axles share the load
- Iconic safety-red powder coat that shrugs off chips and rock strikes
- Backed by our 60-day satisfaction guarantee, so you can put it to work risk-free
What's Included
- Shocker HD Air Hitch base frame (2-inch receiver shank, red)
- 20K-rated HD air spring and dual rubber bump cushions (pre-installed)
- Schrader air valve with cap
- (3) D-handle ball-mount attachment pins with clips
- Selected ball-mount attachment if applicable to this SKU
- HD installation and air-pressure setup instructions
Not Included
- —Air compressor or pressure gauge (available separately, recommended for HD use)
- —Friction sway-bar kit (sold separately)
- —Add-on ball-mount attachments beyond the one shipped with this SKU
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How Shocker HD Air Ride Works
A Bigger Air Spring, Rated to 20K
This HD air bag runs a heavier ply count than the 14K version, so it carries up to 20,000 lbs of trailer load and still cushions the jolts before they reach your truck and cargo.
Tune It to the Load
A heavy bumper-pull trailer can swing 1,000+ lbs between empty and full. Air up for the max-weight run, then bleed it back down on the deadhead home. The HD airbag has a wider usable pressure range than the 14K, so it covers both ends.
Reinforced 8-Hole Chassis
It keeps the same outside shape as the Original line, so every Shocker ball mount still fits, but the wall steel is thicker and the welds are reinforced to handle the 20K loads.
One Simple Pivot
Shocker's down-and-back motion works off a single rocker-arm pivot, with no slides, rollers, or stacked airbags to wear out, even at HD loads. Fewer moving parts under high stress means it lasts longer.
Who the HD 20K Is For
Built for one-ton trucks and the heaviest legal bumper-pull combinations on the road.
- F-350, RAM 3500, and Silverado 3500 owners towing near their max ratings
- Livestock haulers pulling 30+ ft bumper-pull stock trailers
- Equipment and skid-steer guys running 16k+ tilt-deck trailers
- Big enclosed cargo trailers and car haulers up to 20,000 lbs
- Dual-rear-wheel trucks with a 3-inch receiver that need a matched HD hitch
- Anyone whose Original 14K is bottoming out under heavy tongue weight
HD vs. Original: What's Actually Different
Same chassis silhouette, same attachment lineup. The HD brings three real upgrades, and the two that change how it tows are right here:
Heavier Airbag
A multi-ply rubber bag rated for the full 20,000 lbs GTW with a wider usable pressure range, so it carries more tongue weight without bottoming out on you.
Beefier Walls and Welds
Thicker steel and a reinforced weld pattern where the stress lives. That's what takes it to 2,000 lbs of tongue weight, up from 1,400 lbs on the Original 14K.
Flip It for Drop or Rise
This Shocker HD Air Hitch & Raised Ball Mount w/ 2-5/16" Ball ships set up for 2" Rise to 2" Drop. Most Shocker ball mounts flip over, so you can turn drop into rise, and the 8 adjustment holes let you fine-tune coupler height on top of that. Heavy bumper-pull trailers care about sitting level. Get the drop wrong and you overload either the front or rear axle of the trailer, so take the minute to dial it in.
Built for Maximum Bumper-Pull Loads
Reinforced heavy-wall steel under Shocker's signature impact-resistant safety-red powder coat, in stock and shipping direct from Canada with no border wait. When the HD-rated air bag eventually wears, you swap it yourself in minutes using the same simple Schrader-style fitting as the 14K. Backed by Shocker Hitch's 60-day satisfaction guarantee.
