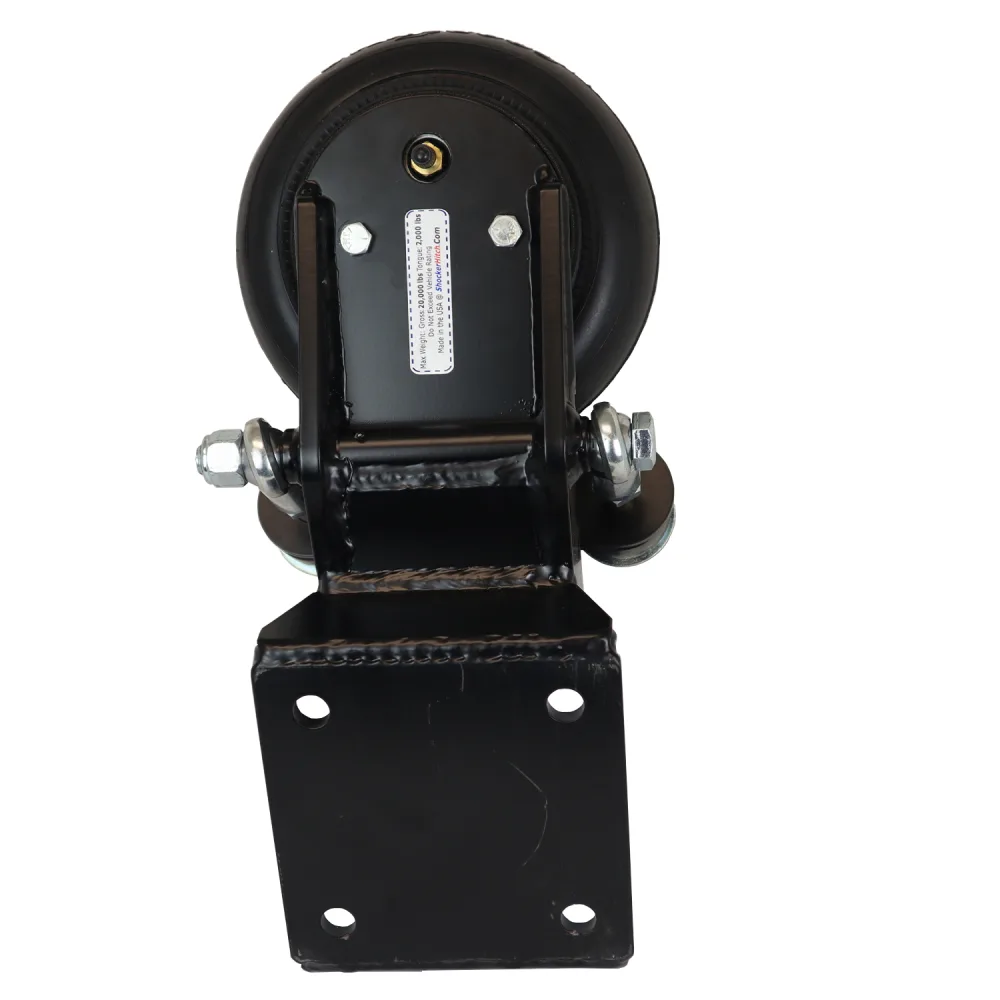

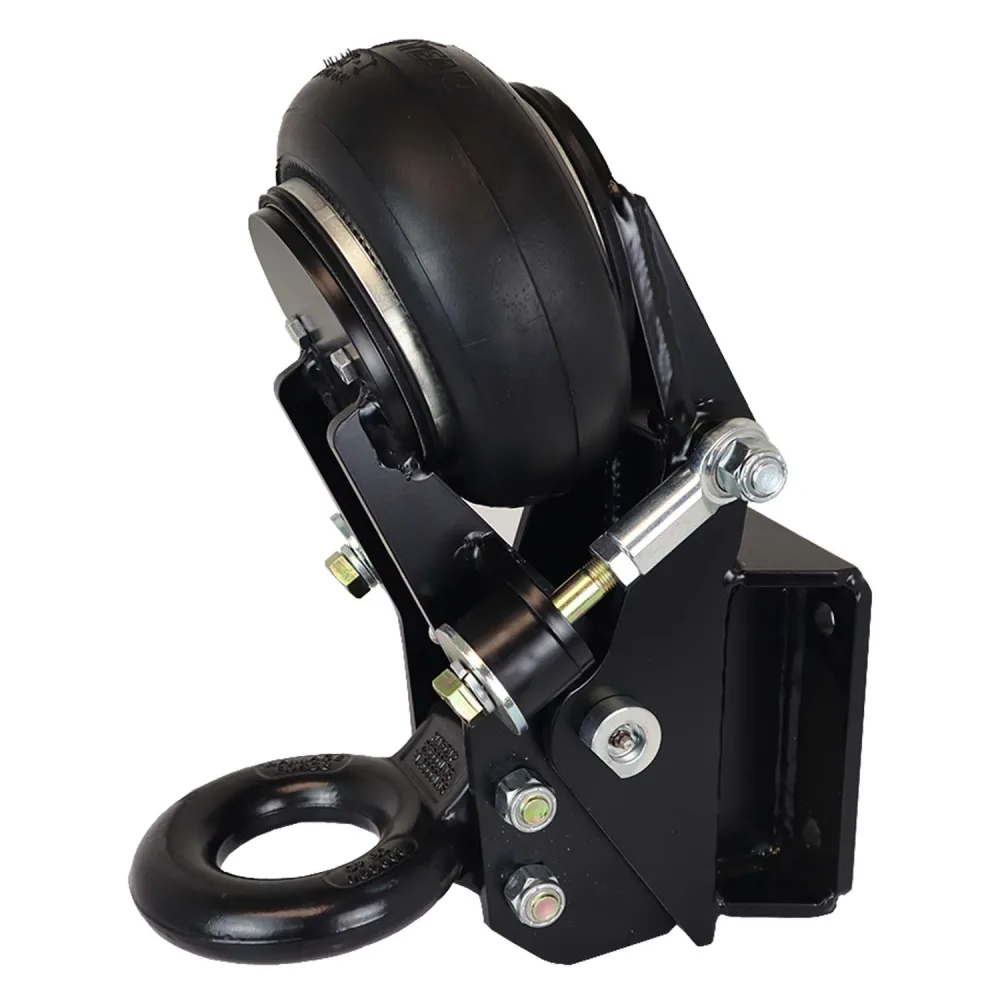

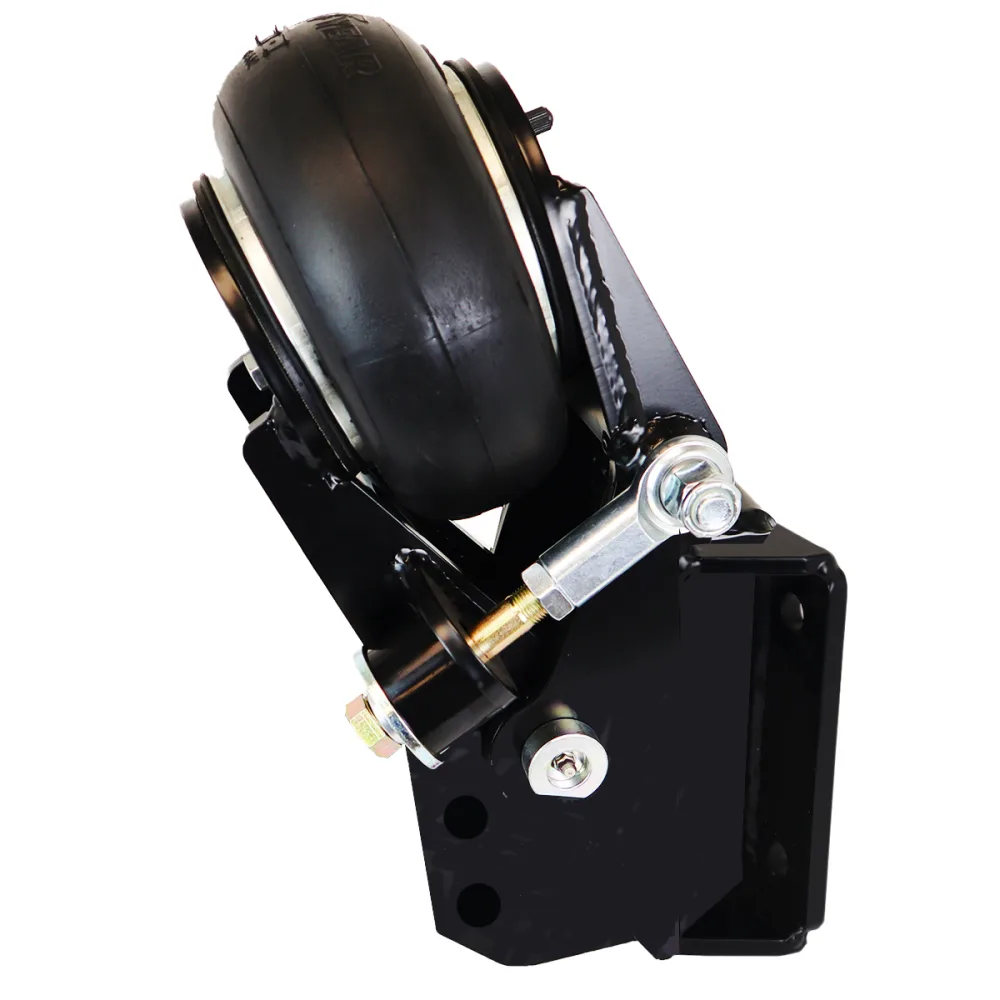

HD Air Pintle Ring Trailer Tongue Mount 20,000lbs - w/HD Pintle Ring
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW· 20,000 lbs GTW · 2,000 lbs TW
$1,335.58
$1,453.18 save $117.60
or as low as $112/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
20,000 lb rated towing capacity
with heavy duty pintle ring for using with pintle hook. 2,000 lbs tongue weight rating
Air Ride Towing
Built-in air ride system for a smoother towing experience with built in height adjustment plus weight adjustable.
Quickly mounts to trailer tongue.
Choose from vertical channel mount (fits 3-1/2″ wide channel with 2″ on center bolt pattern & secure with 5/8" pins or 5/8" x 4-1/2" long bolts) or square plate 4 bolt mount (4-1/2" square bolt…
Smoother safer towing. Improves your
ride, reduces wear & tear on pickup & trailer
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Haul something heavy behind a stiff-sprung truck and a rigid pintle setup, and every frost heave and hard stop slams straight through the coupling. The trailer chucks, the load takes a beating, and so does your pickup. This Shocker Air pintle ring trailer tongue mount puts an air ride cushion right at the hookup. It bolts to the vertical channel or the flat front plate on an A-frame style trailer, so it fits equipment haulers, end dumps, and flat beds. It is rated to tow 20,000 lb with 2,000 lb of tongue weight, and the HD pintle ring measures 6" OD x 3" ID for a standard pintle hook. Set the air pressure to the load you are running that day, and the built-in cushion soaks up the bumps, thumps, and bangs that used to hammer your rig and wear it out early. In stock in Canada and ships direct, no border wait.
Key Highlights
- Air ride at the coupling gives you a smoother, safer tow and less wear on both your truck and your trailer.
- Rated to pull 20,000 lb with a 2,000 lb tongue weight, and the heavy duty pintle ring runs with a standard pintle hook.
- Heavy duty pintle ring measures 6" OD x 3" ID.
- Built for heavy duty and farm work, from end dumps to flat beds.
- Bolts on fast, either a vertical channel mount (fits 3-1/2″ wide channel with 2″ on center bolt pattern, secured with 5/8" pins or 5/8" x 4-1/2" long bolts) or a square plate 4 bolt mount (4-1/2" square bolt pattern).
- Built-in air ride smooths the tow, with height adjustment and weight tuning built right in.
- Great for when you don't know which pickup will be hauling the trailer next.
- Fine tune to your load. Just add air for heavier loads.
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How It Bolts On

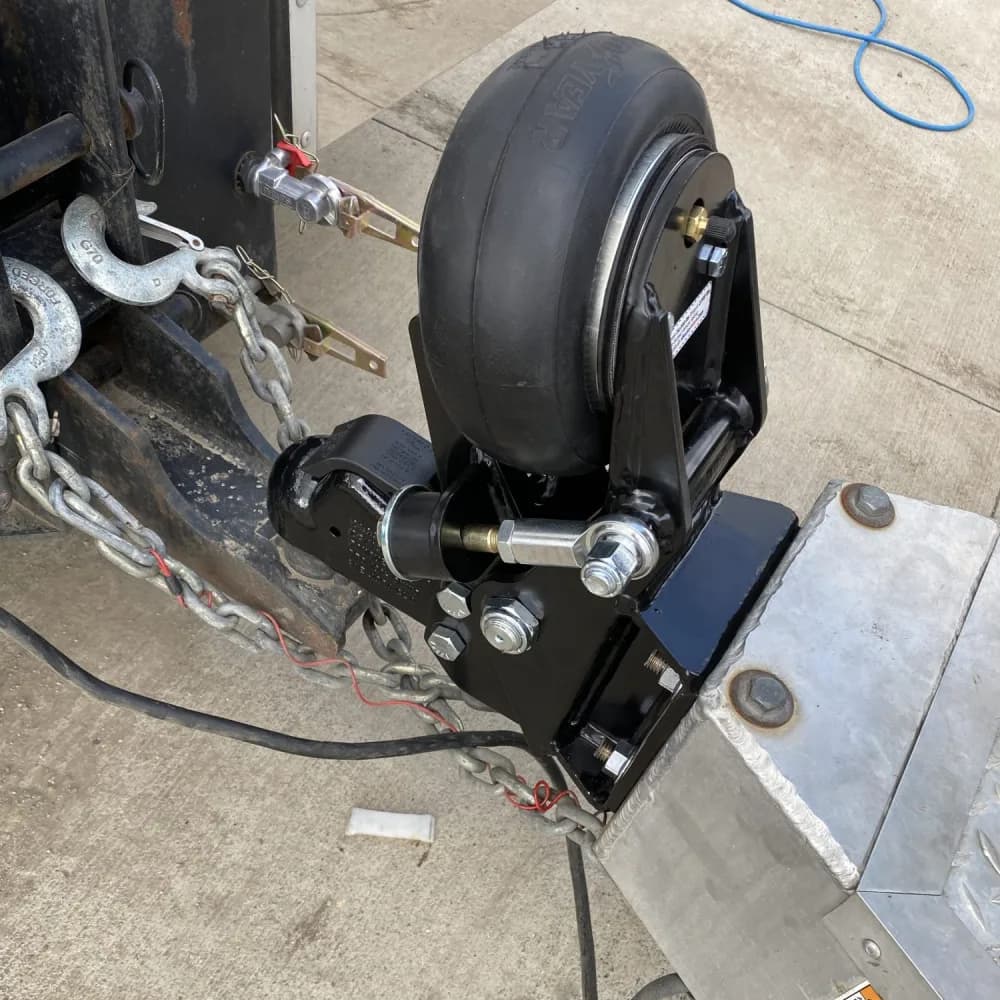

- Bolts to your trailer tongue two ways. Run the vertical channel mount (fits a 3-1/2″ wide channel with a 2″ on center bolt pattern, secured with 5/8" pins or 5/8" x 4-1/2" long bolts), or the square plate 4 bolt mount (4-1/2" square bolt pattern). Pick whichever matches your tongue.
Specs and What They Do
- Air ride at the hookup means a smoother, safer tow and less wear on your pickup and your trailer.
- Rated for 20,000 lb of towing with a 2,000 lb tongue weight, and a heavy duty pintle ring for use with a pintle hook.
- HD pintle ring measures 6" OD x 3" ID.
- At home on heavy duty and farm trailers, from end dumps to flat beds.
- Air Ride Towing: the built-in air system smooths the tow, with height adjustment and weight tuning built right in.
- Great for when you don't know which pickup will be hauling the trailer.
- Fine tune to your towing weight. Just add air for heavier loads.
- Soaks up the road bumps, thumps, and bangs on whatever road you travel.
- Optional weld-on vertical tongue adapter available.
When a Pintle Setup Makes Sense
Pintle hook and ring couplings are the heavy duty standard for ag and commercial work. They self-align as you back under load and shrug off flex better than a ball coupler, which is why they win on work trailers running rough ground.
