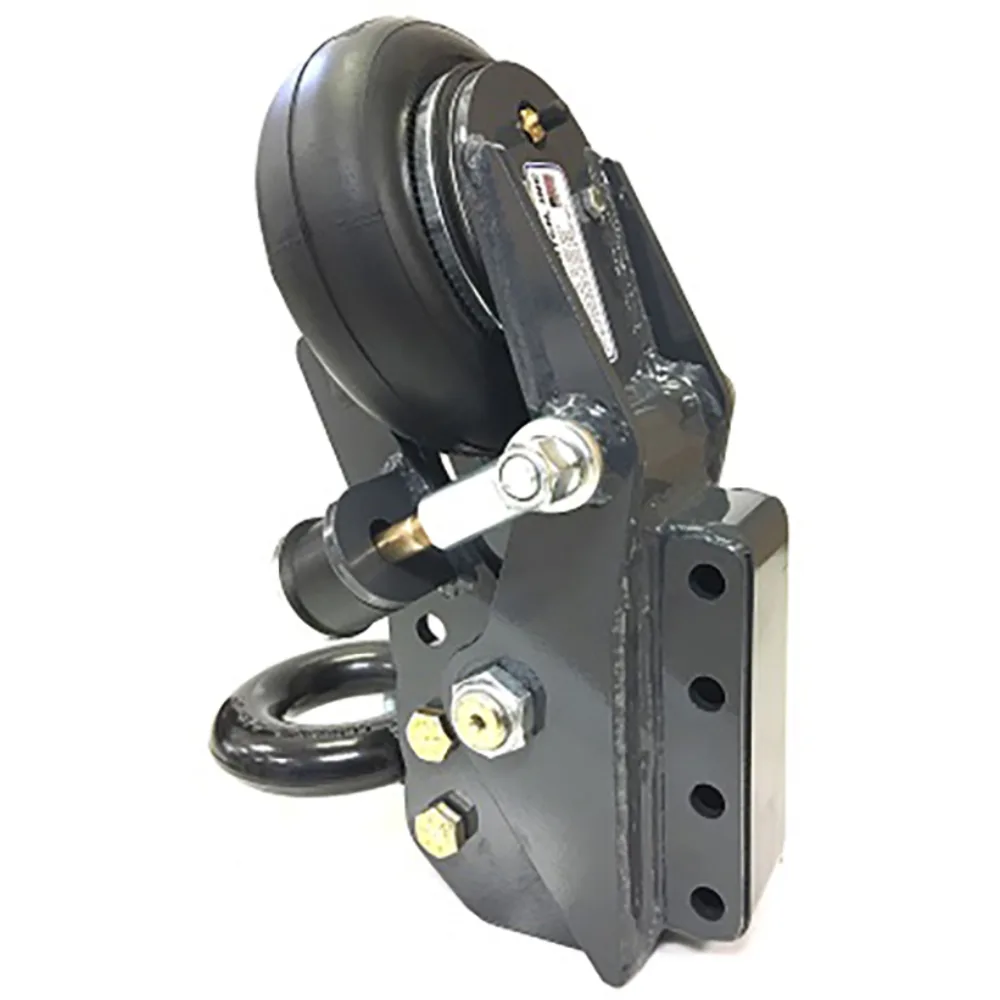

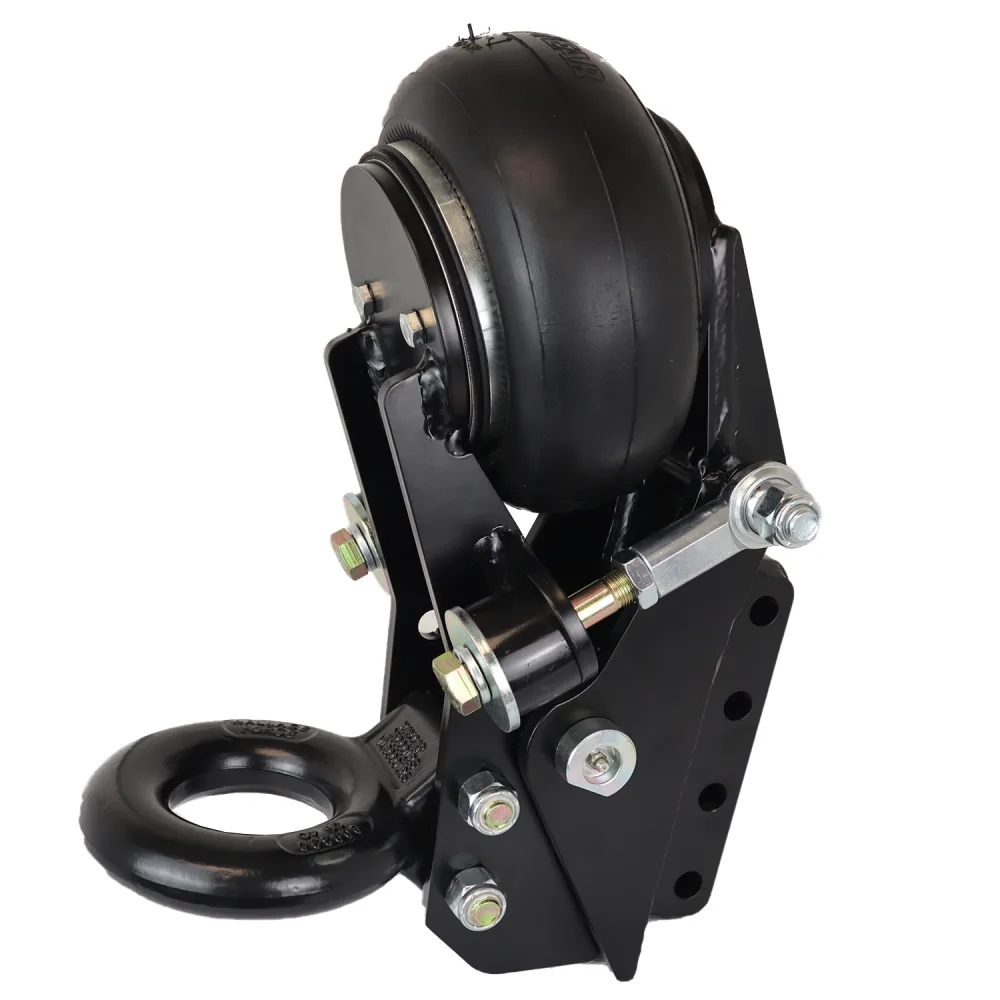

HD Air Pintle Ring Trailer Tongue Mount 20,000lbs - w/ HD Pintle Ring
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW· 20,000 lbs GTW · 2,000 lbs TW
$1,301.98
$1,419.58 save $117.60
or as low as $109/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
20,000 lb rated towing capacity
with heavy duty pintle ring for using with pintle hook. 2,000 lbs tongue weight rating
Air Ride Towing
Built-in air ride system for a smoother towing experience with built in height adjustment plus weight adjustable.
Quickly mounts to trailer tongue.
Choose from vertical channel mount (fits 3-1/2″ wide channel with 2″ on center bolt pattern & secure with 5/8" pins or 5/8" x 4-1/2" long bolts) or square plate 4 bolt mount (4-1/2" square bolt…
Smoother safer towing. Improves your
ride, reduces wear & tear on pickup & trailer
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Haul a loaded equipment or end dump trailer down a rough road and you feel every hit come back through the truck. The jerk when you stop, the chucking over frost heaves, the pounding on stiff suspension that wears out your pickup, your trailer, and whatever you're carrying. This HD Air pintle ring trailer tongue mount puts an air ride cushion in the middle of all that. It bolts to the vertical channel or flat plate on the front of an a-frame style trailer and carries up to 20,000 lb, with a heavy duty pintle ring (6" OD x 3" ID) built to couple to a pintle hook. Air it up for the weight you're running and it soaks up the bumps, thumps, and bangs before they reach the cab. Made for heavy duty trailers and stiff-riding pickups that need the ride smoothed out. Often runs on equipment and end dump trailers.
Key Highlights
- Air ride takes the harshness out of every mile, so your truck and trailer take less abuse.
- Rated to pull 20,000 lb with 2,000 lb on the tongue, using a heavy duty pintle ring that couples to a pintle hook.

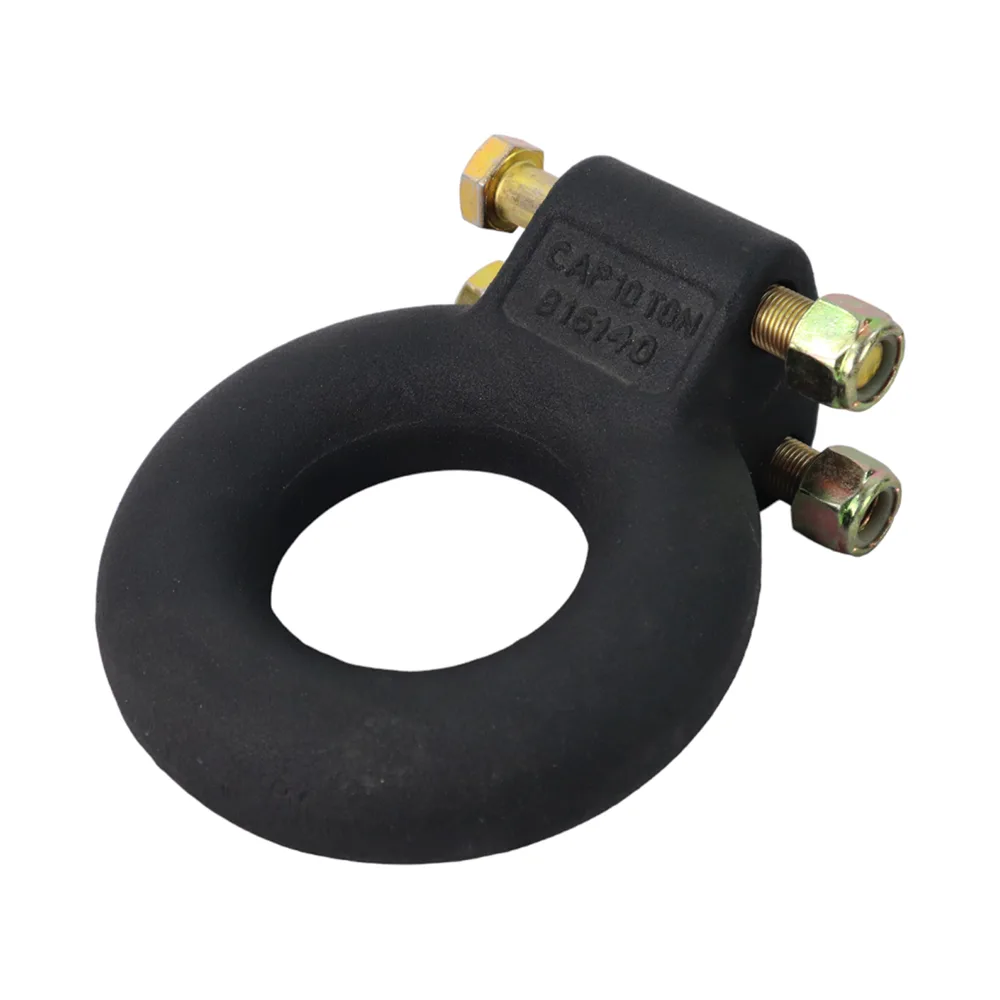

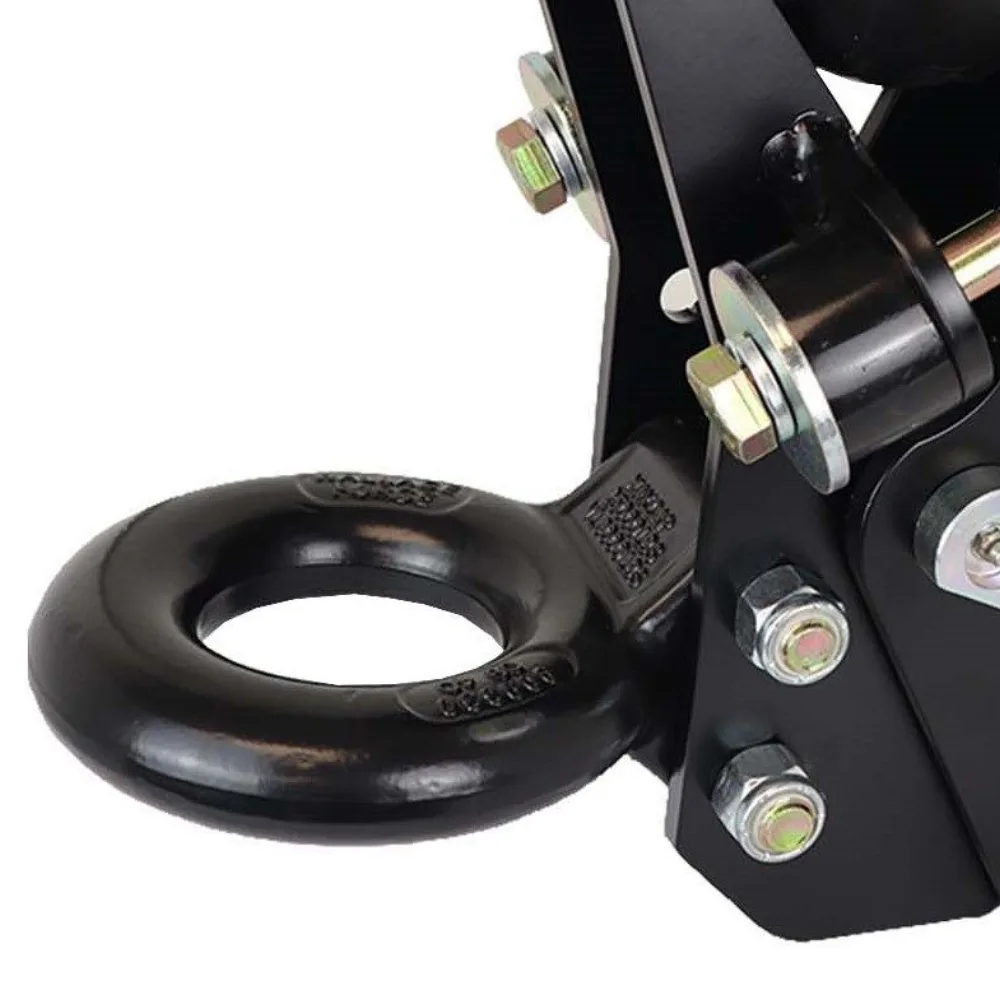

- Heavy duty pintle ring measures 6" OD x 3" ID for a solid grip on the hook.
- At home on heavy duty trailers, farm rigs, and everything from end dumps to flat beds.

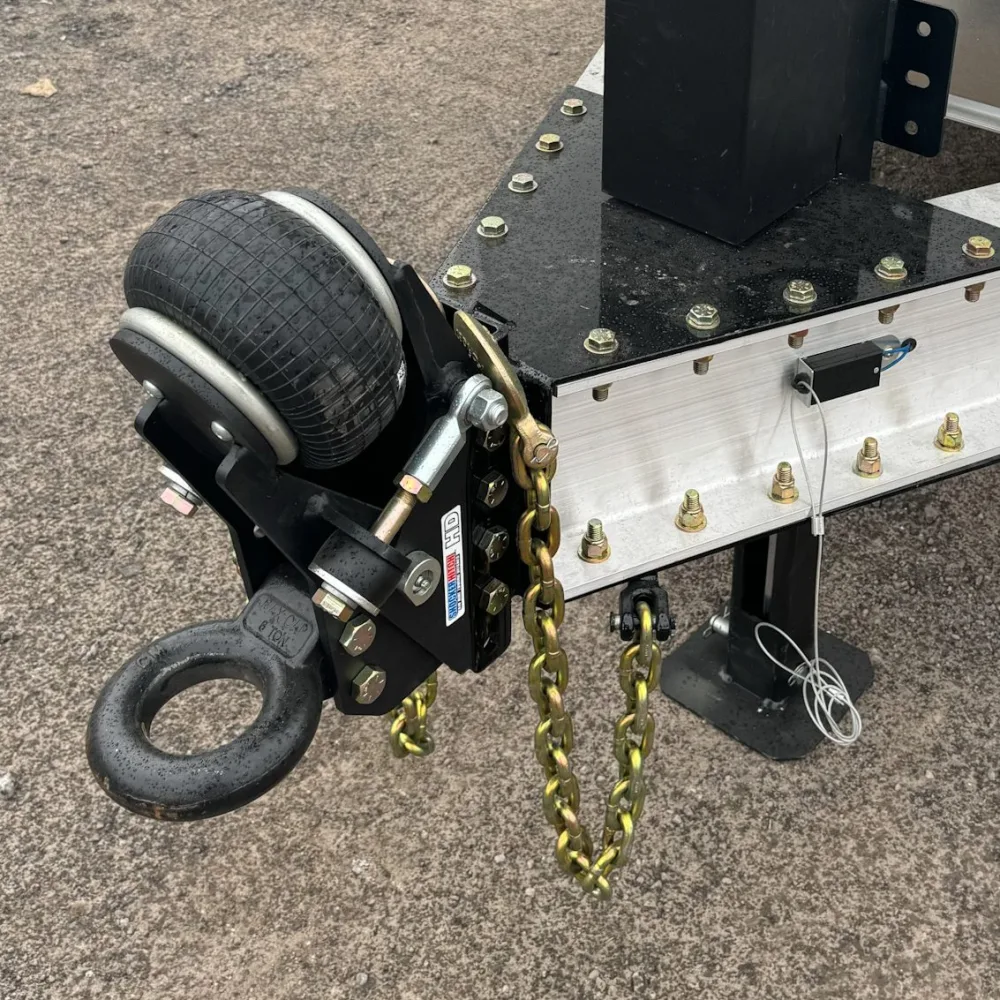

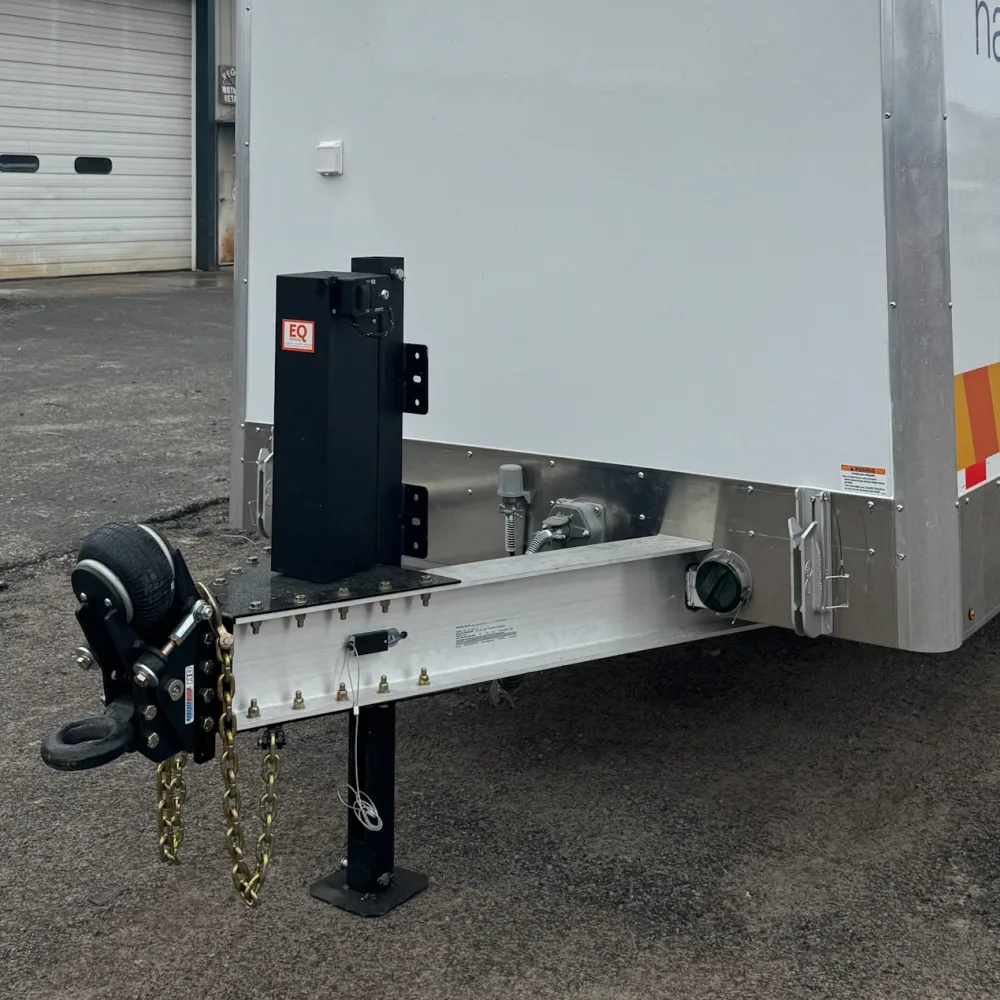

- Bolts to your trailer tongue two ways: vertical channel mount (fits 3-1/2″ wide channel, 2″ on center bolt pattern, secured with 5/8" pins or 5/8" x 4-1/2" long bolts) or square plate 4 bolt mount (4-1/2" square bolt pattern).
- Built-in air ride with height adjustment, so you set the right coupling height and firm it up for the load.
- Great when you never know which pickup is hooking up, because the air adjusts to whatever's pulling.
- Fine tune it to your load. Just add air when you're running heavier.
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
How It Mounts
- Bolts right to your trailer tongue two ways. Vertical channel mount fits a 3-1/2″ wide channel with a 2″ on center bolt pattern, secured with 5/8" pins or 5/8" x 4-1/2" long bolts. Or use the square plate 4 bolt mount with a 4-1/2" square bolt pattern.
Specs and Features
- Air ride smooths the ride and cuts the wear and tear on both pickup and trailer.
- Rated to 20,000 lb towing and 2,000 lb tongue weight, with a heavy duty pintle ring that couples to a pintle hook.
- Heavy duty pintle ring is 6" OD x 3" ID.
- Built for heavy duty trailers and farm work, from end dumps to flat beds.
- Air Ride Towing: the built-in air system smooths the ride, sets your coupling height, and firms up as the load gets heavier.
- Handy when the tow vehicle keeps changing, since the air adjusts to whatever pickup hooks up.
- Fine tune to your towing weight. Just add air for heavier loads.
- Soaks up the road bumps, thumps, and bangs on whatever road you travel.
- Optional weld-on vertical tongue adapter available.
When a Pintle Setup Makes Sense
Pintle hook and ring couplings are the standard for heavy agricultural and commercial towing. They self-align as you hook up under load and handle trailer flex better than a ball coupler, which is why they're the go-to for work trailers on rough ground.
