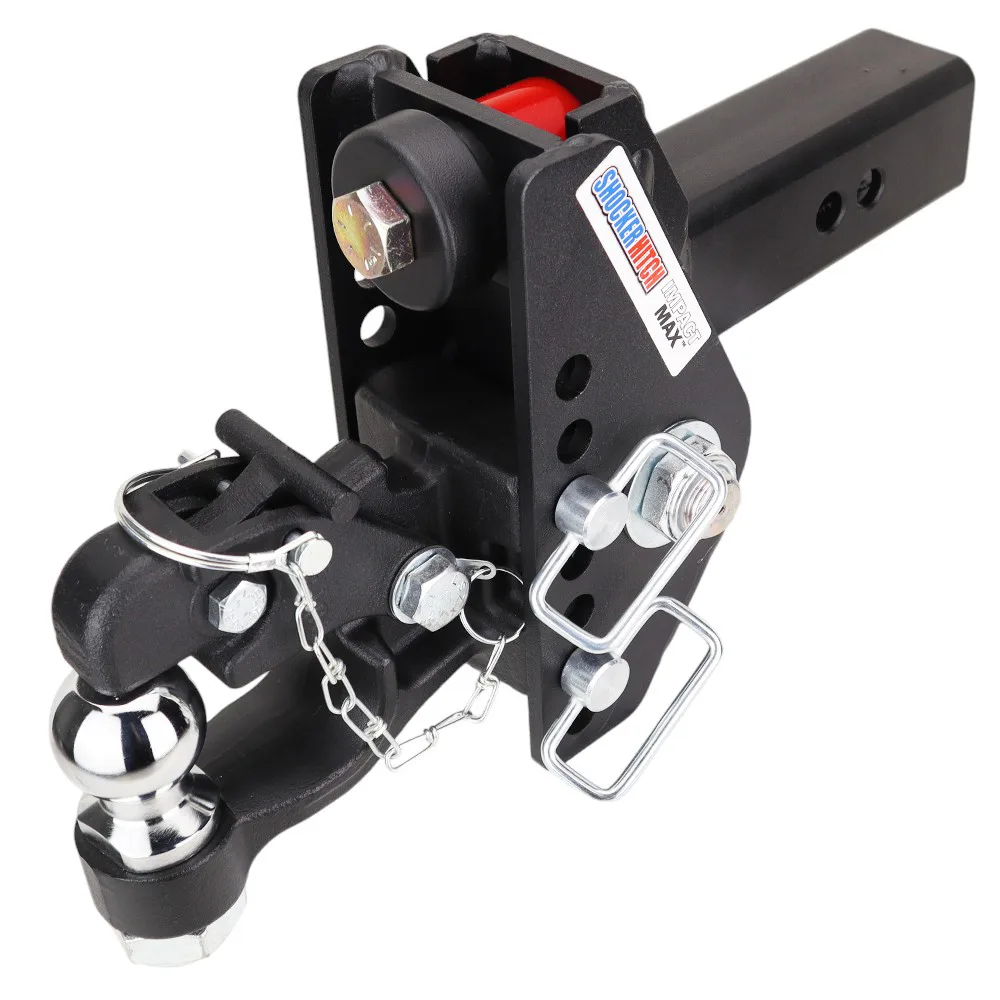

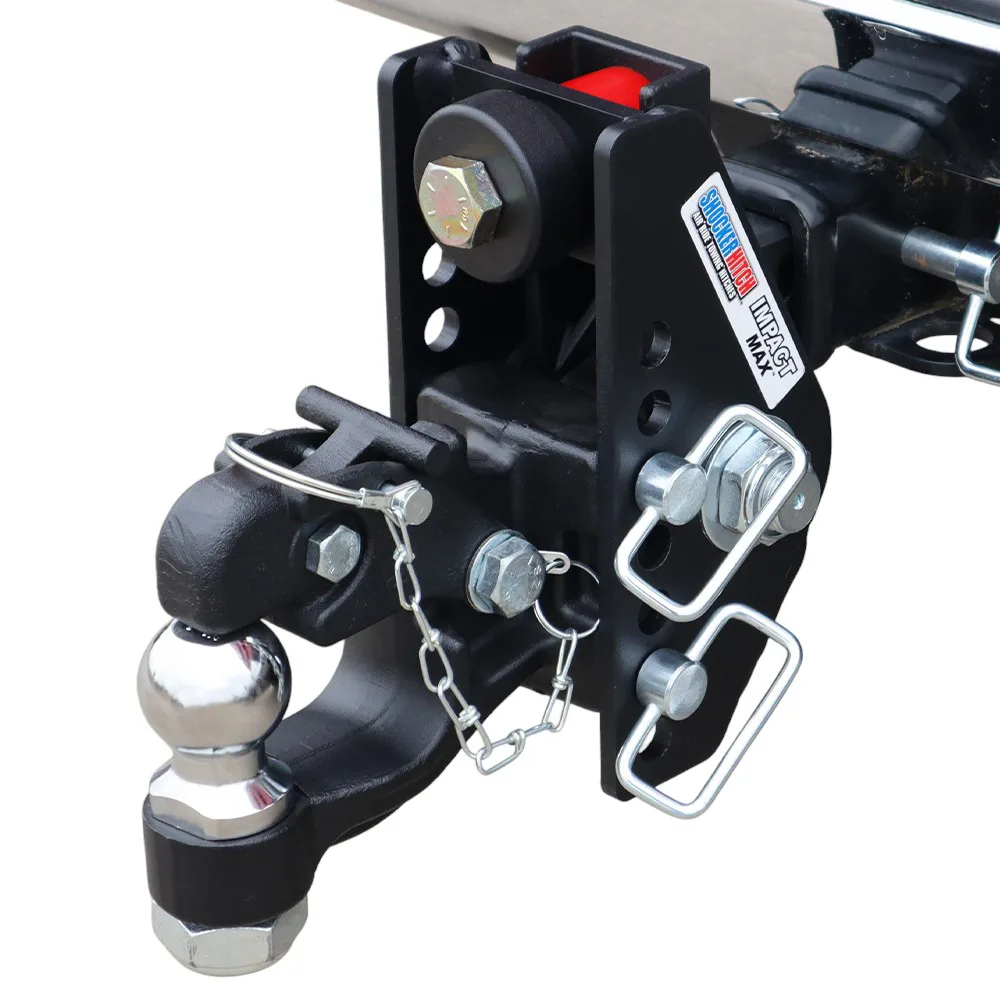

Impact Max Cushion Hitch & 8-Ton Channel Style Pintle Hook with 2" Ball
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$839.98
or as low as $70/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Adjustable Pintle Hook & Ball Mount
Fits 6" OD x 3" ID pintle rings, with an adjustable design offering a 1" rise to 6-1/2" drop and 7 adjustment holes for flexibility in height.
HD Pivoting Design
Filters the rock shock through the urethane cushions with the greaseable 1" diameter 1045 carbon steel pivot bolt.
Unique Flip Around Design
Hitch can be flipped around more drop or rise. The only cushion hitch on the market that can be flipped around.
Dual Cushion Bump System
Absorbs road shock, bumps, and jerks, reducing sway and providing a smoother towing experience. Cushions forward & backwards plus up & down for maximum cushioning.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Pull a loaded equipment trailer behind a 1-ton and you feel every frost heave and hard stop come straight up through the truck. That jarring beats up your bed, your cargo, and your back, and it makes stopping a heavy rig feel like a fight. The Shocker Impact Max 20K takes that hit for you. Two sealed rubber bump cushions soak up the shock so the load rides smooth instead of slamming, and there is zero air pressure to manage and no ongoing maintenance. It runs the same proven dual rubber cushion design as the Impact Cushion 14K, built on a beefed-up 20K chassis and finished in matte black powder coat. This Impact Max Cushion Hitch & 8-Ton Channel Style Pintle Hook with 2" Ball hauls up to 20,000 lbs GTW with up to 2,000 lb tongue weight, fits 2-1/2-inch receivers, and adjusts from 1" Rise to 6-1/2" Drop so you can pull dead level.
Key Highlights
- Hauls up to 20,000 lbs GTW with up to 2,000 lb of tongue weight, enough for the heaviest gear trailers
- Sealed dual rubber cushions soak up the shock, with no air pressure to set and no maintenance to keep up
- Matte black powder coat that resists chips and shrugs off road grime
- 2-1/2-inch shank drops into F-250 and RAM 2500-class three-quarter-ton trucks with class V receivers
- 7-hole adjustable frame flips over for more drop or more rise, so you can pull level
- Takes the same ball mount attachments as the HD Max Black, so one set covers your fleet
- Runs roughly 30 to 40 percent less than the HD Max Black 20K air-ride version
- Built for 1-ton pickups and dual-rear-wheel trucks pulling right at the 20K limit
What's Included
- Impact Max Cushion Hitch & 8-Ton Channel Style Pintle Hook with 2" Ball cushioned base frame assembly
- Sealed dual rubber bump cushions (pre-installed)
- 2-inch ball with pintle hook combo ball mount attachment (when configured with a ball)
- 2 D-handle hitch pins with clips
- Textured matte black powder coat finish
- Installation instructions
Not Included
- —Sway control kit (available separately if towing close to GTW limit)
- —Receiver tube adapter (only required when stepping between receiver sizes)
- —Additional ball mount attachments (pintle, clevis, drawbar, drop, combo, raised) sold separately
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
Why a 20K Cushion Hitch
Enough Muscle for a 1-Ton
The 14K Impact Cushion handles half-tons and plenty of 3/4-tons just fine. Once you hook onto skid steers, dump trailers, or heavy equipment haulers behind a 1-ton, that lighter frame is working too hard. This 20K chassis gives you the same cushion technology on heavier-duty steel, so the hitch is never the weak link at full load.
Two Cushions Doing the Work
A solid ball mount passes every bump straight through to the truck. Two sealed rubber cushions absorb that shock by squeezing and springing back, and the pivoting ball mount geometry lets the load move with the road instead of against it. You get a smoother pull than a solid mount, even at the full 20,000 lb GTW.
Matte Black That Hides the Grime
Road salt and gravel chew up a bare hitch fast. The textured matte black powder coat shrugs off road grime and resists chipping, keeps its look next to a blacked-out truck, and comes from the same finish family as the HD Max Black air-ride line.
Nothing to Air Up
Air-ride hitches at this capacity want a compressor and a pressure gauge before every tow. The Impact Max 20K is sealed shut, so there is nothing to inflate or check. On a remote job site or a ranch where dragging out a compressor is a hassle, you just hook up and go.
Which Trucks and Trailers This Fits
Twenty thousand pounds is real weight. The Impact Max is built for the trucks and loads that pull it every day, with none of the air-ride routine.
- 1-ton pickups like the F-350, RAM 3500, and GMC 3500HD
- Dual-rear-wheel trucks towing at full GTW
- Skid steer trailers, dump trailers, and equipment haulers
- Contractor and ranch trailers pulling at or near 20,000 lbs
- Fleet trucks where simple and tough beats tunable
- Owners stepping up from the Impact Cushion 14K who need more capacity
Impact Max 20K vs HD Max Black 20K
Same 20K chassis, same matte black finish. The only real question is how you want the ride handled.
Impact Max 20K (this product)
Sealed rubber cushions that never need maintenance. No compressor, no pressure gauge, nothing to check before a tow. It runs about 30 to 40 percent cheaper than the air-ride version and still gives you a clear ride upgrade over a solid mount. Pick this if you want it simple, tough, and ready to work.
HD Max Black 20K (air-ride sibling)
An adjustable airbag you tune to each load, with more travel and an even smoother ride at any tongue weight. It needs an inflator, and the airbag is a wear item over many years, though you can replace it in the field. Pick this if you tow daily or haul heavy and want to dial in the ride.
Made for Working Days
On a working ranch, a remote job site, or a busy fleet yard, you rarely have time to fuss over airbag pressure before a tow. The Impact Max 20K takes that step off your list. Hook up, pull, unhook, and do it again for years with no maintenance routine to keep. If you want Shocker capacity and ride quality but want to treat the hitch like any other piece of fleet gear, this is the line built for you.
Shares Attachments With the HD Max Black
The Impact Max 20K takes the same ball mount attachments as the HD Max Black, including combo balls, pintle hooks, clevises, drawbars, raised mounts, and drop mounts. Run more than one truck across the Shocker lineup and your attachments swap right across the 20K family, so you buy one set and share it around. The textured matte black powder coat holds up to UV, road salt, and rock chips, and it ships direct from stock in Canada with no border wait.
$839.98
