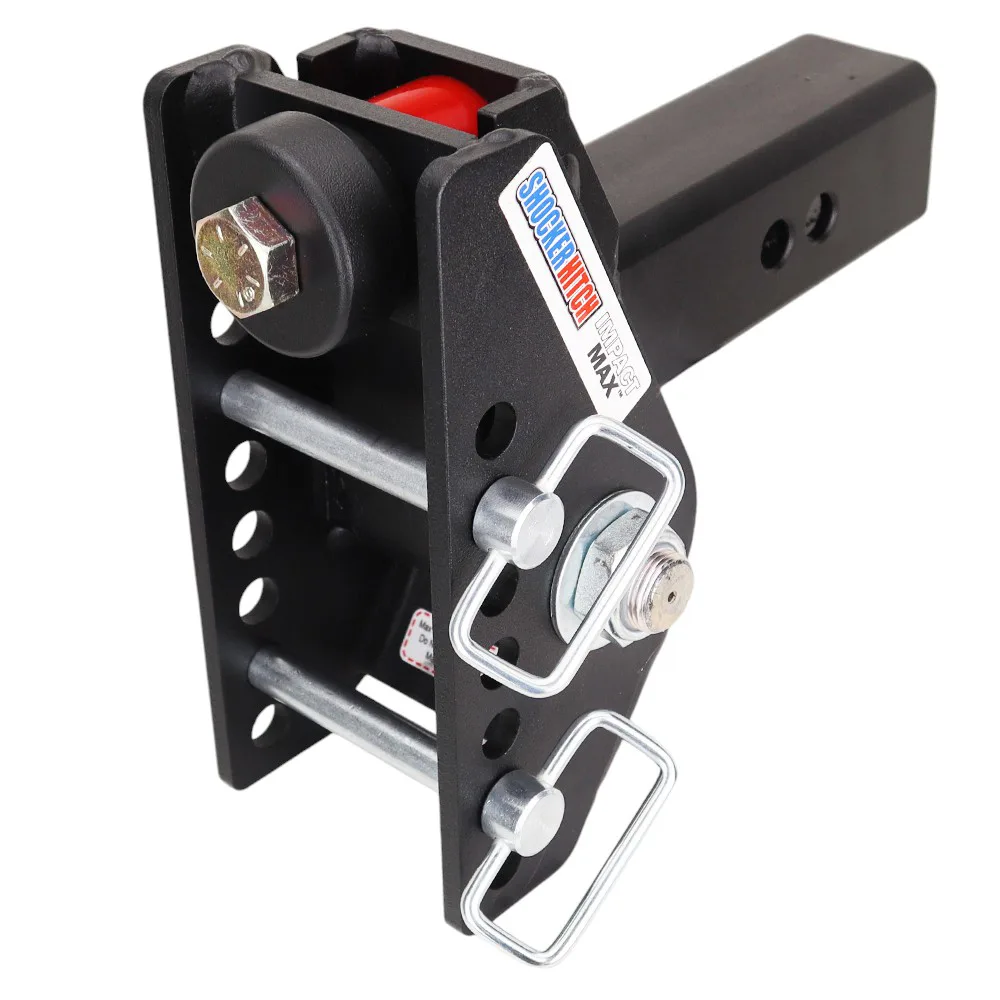

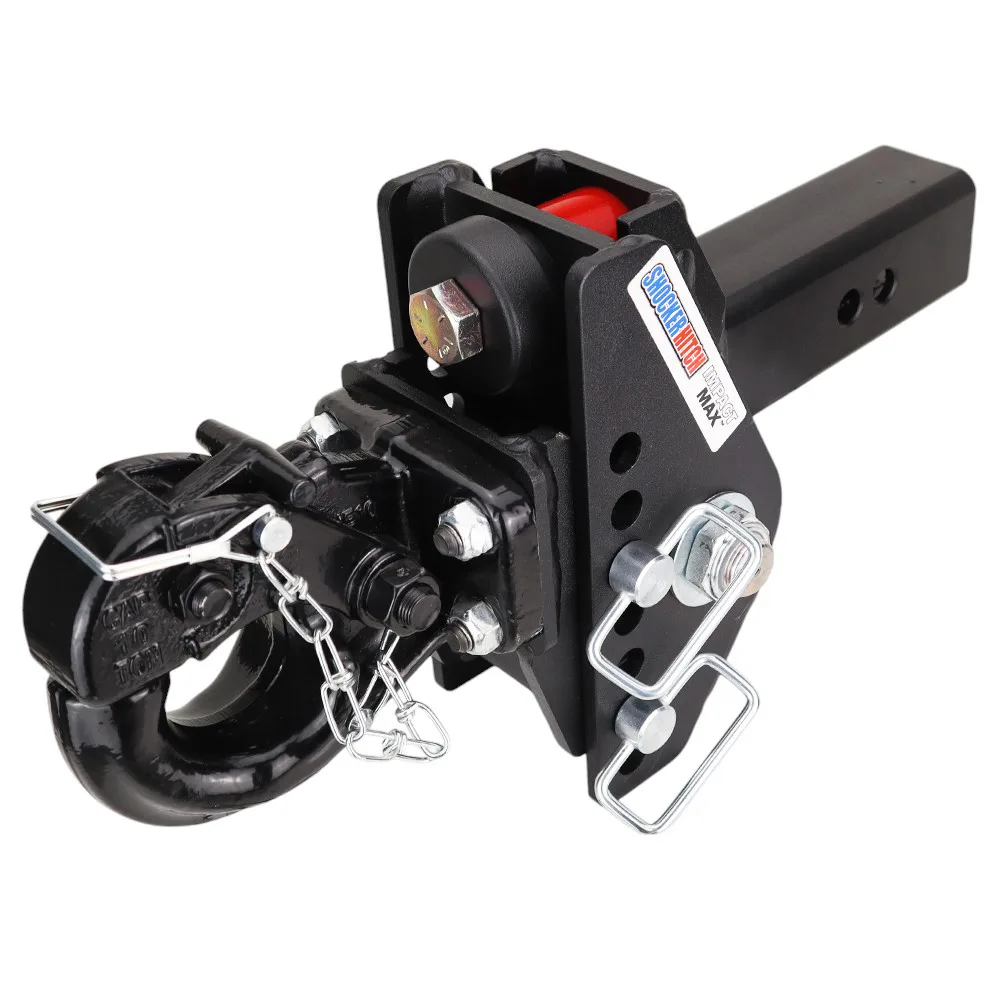

Impact Max Cushion Hitch & Pintle Hook w/Mount
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2-1/2" receiver
$890.37
or as low as $75/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
HD Cushion Hitch
Cushioning pintle hitch design for farm, contractor & heavy-duty trailer towing applications
Shocker Absorbing Design
Pivoting design with dual bump cushions absorbs the road shock & reduces tendency to sway
20,000 lbs Capacity
Up to 20,000 lbs towing capacity and a 2,000 lbs tongue weight on hitch and pintle ring
Max Black Textured Finish
Impact resistant super durable textured matte black powder coated finish of base frame
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Pull a loaded equipment trailer behind a 1-ton on a rough highway and you feel it. Every frost heave and hard stop jolts straight through the truck, the trailer chucks back and forth at the ball, and it wears on your back, your gear, and the rig. The Shocker Impact Max 20K is a heavy-duty cushion hitch that takes the hit for you. It runs the same proven dual rubber bump cushion design as the Impact Cushion 14K, built on the beefed-up 20K chassis with a matte black powder coat. This Impact Max Cushion Hitch & Pintle Hook w/Mount hauls 20,000 lbs GTW with up to 2,000 lb of tongue weight, drops into 2-1/2-inch receivers, and gives you 4" Rise to 6-1/2" Drop to sit your trailer level. And it does all of it with zero air pressure to manage and no ongoing maintenance.
Key Highlights
- Hauls 20,000 lbs GTW with up to 2,000 lb of tongue weight, enough for the heaviest trailer you will put behind a 1-ton
- Sealed dual rubber cushions soak up the road jolts with no air pressure to set and no maintenance to keep up
- Matte black powder coat that shrugs off chips and hides road grime on a blacked-out truck
- 2-1/2-inch shank drops into F-250 / RAM 2500-class three-quarter-ton trucks (class V receivers)
- 7-hole adjustable frame flips over so you can dial in more drop or more rise to sit level
- Takes the same ball mount attachments as the HD Max Black, so one set works across your trucks
- Runs roughly 30 to 40% less than the HD Max Black 20K air-ride version
- Built for 1-ton pickups and dual-rear-wheel trucks pulling right at the 20K limit
What's Included
- Impact Max Cushion Hitch & Pintle Hook w/Mount cushioned base frame assembly
- Sealed dual rubber bump cushions (pre-installed)
- Pintle hook ball mount attachment (when configured with a ball)
- 2 D-handle hitch pins with clips
- Textured matte black powder coat finish
- Installation instructions
Not Included
- —Sway control kit (available separately if towing close to GTW limit)
- —Receiver tube adapter (only required when stepping between receiver sizes)
- —Additional ball mount attachments (pintle, clevis, drawbar, drop, combo, raised), sold separately
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
Why a 20K Cushion Hitch
Real Capacity for 1-Ton Trucks
The 14K Impact Cushion handles half-tons and plenty of 3/4-tons just fine. Once you are dragging skid steers, dump trailers, and heavy equipment haulers behind a 1-ton, that is when you need the 20K chassis. You get the same cushion technology sitting on heavier-duty steel.
Dual Rubber Bump Cushions
Two sealed rubber cushions eat the tow shock by compressing and rebounding as the road throws it at you. The ball mount pivots as it works, and that is what lets a cushion hitch ride smoother than a solid steel mount, even loaded to full GTW.
Matte Black Stealth Finish
The textured matte black powder coat hides road grime, fights off chips, and looks right behind a modern blacked-out truck. It is the same finish family as the HD Max Black air-ride line.
No Compressor Required
Air-ride hitches at this capacity want a compressor and a pressure gauge. The Impact Max 20K is sealed, so it needs neither. That is a real difference on a remote job site or out on the ranch, where dragging a compressor around is not always practical.
Built For These Trucks and Trailers
Twenty thousand pounds is serious weight. The Impact Max is built for the trucks and loads that demand it, without the air-ride workflow.
- 1-ton pickups (F-350, RAM 3500, GMC 3500HD)
- Dually trucks pulling at full GTW
- Skid steer trailers, dump trailers, and equipment haulers
- Contractor and ranch trailers pulling at or near 20,000 lbs
- Fleet trucks where simple and tough beats tunable
- Owners who outgrew the Impact Cushion 14K and need more capacity
Impact Max 20K vs HD Max Black 20K
Same 20K chassis family, same matte black finish. The choice comes down to how the hitch soaks up the road.
Impact Max 20K (this product)
Rubber cushions, sealed and maintenance-free. About 30 to 40% cheaper, with no compressor or pressure gauge to deal with. Best if you want a simple, tough setup and a clear ride upgrade over a solid mount, without taking on the air-ride workflow.
HD Max Black 20K (air-ride sibling)
An adjustable airbag you tune to the load you are pulling. More travel and a smoother ride at any tongue weight. It needs an inflator, and the airbag is field-replaceable but does wear over many years. Best for daily towers and heavy-haul operators who want that adjustability.
Built for the Job Site
On a working ranch, a remote job site, or a busy fleet yard, you do not always have a minute to check airbag pressure before you roll out. The Impact Max 20K takes that step off your list. Hook up, pull, unhook, and do it again for years with no maintenance routine to keep. If you want Shocker capacity and ride quality but treat the hitch like every other piece of gear on the truck, this is the line built for you.
Same Attachments as the HD Max Black
The Impact Max 20K takes the same ball mount attachments as the HD Max Black, including combo balls, pintle hooks, clevises, drawbars, raised mounts, and drop mounts. Run more than one truck across the Shocker lineup and your attachments carry over across the 20K product family, so you buy one set instead of several. The textured matte black powder coat holds up to UV, road salt, and rock chips, and it is stocked in Canada, so it ships direct with no border wait.
