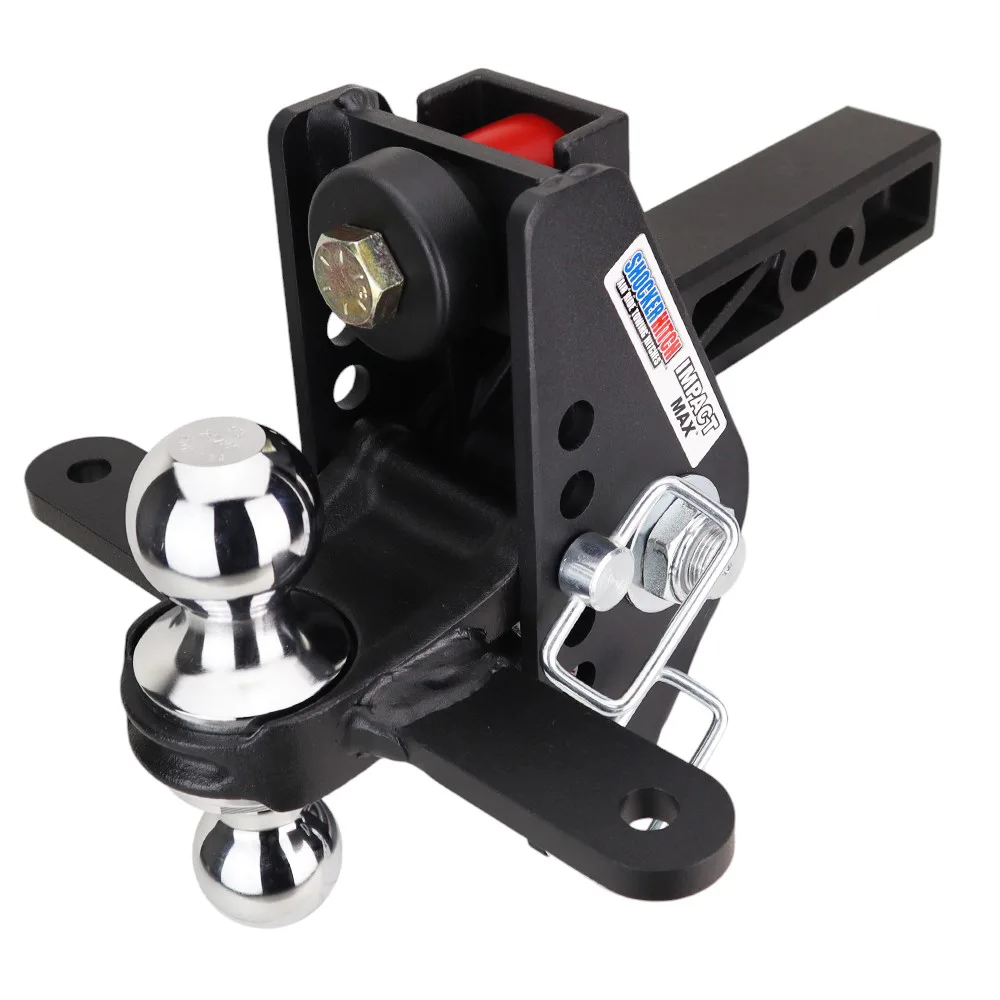

Impact Max Cushion Hitch & Chrome Sway Bar Tab Combo Ball Mount w/2" & 2-5/16" Balls
Rated for your tow
20,000 lbs GTW · 2,000 lbs TW · 2" receiver· 20,000 lbs GTW · 2,000 lbs TW · 2" receiver
$873.58
or as low as $73/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
Shocker Absorbing Design
Pivoting design with dual bump cushions absorbs bumps, jerks, tugs & road shock. Plus naturally reduces the tendency to sway.
HD Pivoting Design
Filters the rock shock through the urethane cushions with the greaseable 1" diameter 1045 carbon steel pivot bolt.
Unique Flip Around Design
Hitch can be flipped around more drop or rise. The only cushion hitch on the market that can be flipped around.
Max Black Textured Finish
Hitch has Impact resistant super durable textured matte black powder coated finish.
Stop destroying your trailer and cargo.
Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.
Pull a loaded equipment trailer on a solid ball mount and you feel every frost heave and hard stop slam straight through the truck, the trailer, and the load riding behind you. The Impact Max Cushion Hitch fixes that. Two sealed rubber cushions sit between your truck and the ball, compressing and rebounding so those jolts never reach you. It is built on the heavy 20K chassis for 1-ton trucks, so it hauls 20,000 lbs of trailer with up to 2,000 lbs on the tongue, drops into any 2-inch receiver, and gives you 4 inches of drop to 4 inches of rise to sit dead level. The combo ball mount carries both a 2-inch and a 2-5/16-inch ball with a chrome sway bar tab, all wrapped in matte black powder coat. No air pressure, no compressor, no maintenance. Hook up and go.
Key Highlights
- Hauls 20,000 lbs of trailer with up to 2,000 lbs on the tongue, the heaviest you will put behind a 1-ton
- Two sealed rubber cushions soak up the road shock, with zero air to check and nothing to maintain
- Matte black powder coat that hides grime, shrugs off rock chips, and matches a blacked-out truck
- 2-inch shank drops into F-150-class half-ton receivers and any class III or IV hitch
- 7-hole adjustable frame flips over to give you more drop or more rise for a level tow
- Takes the same ball mount attachments as the HD Max Black line, so one set fits your whole fleet
- Costs roughly 30 to 40 percent less than the HD Max Black 20K air-ride version
- Made for 1-ton pickups and dual-rear-wheel trucks running right at the 20,000 lb limit
What's Included
- Cushioned base frame assembly for the Impact Max Cushion Hitch & Chrome Sway Bar Tab Combo Ball Mount w/2" & 2-5/16" Balls
- Sealed dual rubber bump cushions, pre-installed
- Combo ball mount with both a 2-inch and a 2-5/16-inch ball (when configured with a ball)
- Two D-handle hitch pins with clips
- Textured matte black powder coat finish
- Installation instructions
Not Included
- —Sway control kit, sold separately if you tow close to the GTW limit
- —Receiver tube adapter, only needed when you step between receiver sizes
- —Extra ball mount attachments (pintle, clevis, drawbar, drop, combo, raised), sold separately
Installation
Watch the official install walkthrough for this hitch — the exact steps and tools, straight from the manufacturer.
Why a 20K Cushion Hitch
Enough Muscle for a 1-Ton
A half-ton or three-quarter-ton is happy on the lighter 14K Impact Cushion. Start pulling skid steers, dump trailers, and heavy equipment behind a 1-ton and you need this 20K chassis. Same cushion setup, heavier steel underneath it.
Two Cushions Doing the Work
Two sealed rubber cushions take the hit for you, squeezing down and springing back to eat the shock of the road. The ball mount pivots as they flex, so the ride stays smoother than a solid mount even with the full 20,000 lbs behind you.
Finish That Hides the Miles
The textured matte black powder coat hides road grime, fights off chips, and looks right at home under a modern blacked-out truck. It is the same finish family as the HD Max Black air-ride line.
Nothing to Pump Up
Air-ride hitches at this capacity want a compressor and a pressure gauge. The Impact Max 20K is sealed, so it wants neither. That is a real advantage on a remote job site or ranch where dragging out a compressor is not always an option.
Trucks and Trailers This Was Built For
Twenty thousand pounds is serious weight. The Impact Max is built for the trucks and loads that demand it, without adding an air-ride routine to your day.
- 1-ton pickups like the F-350, RAM 3500, and GMC 3500HD
- Dual-rear-wheel trucks working at full GTW
- Skid steer trailers, dump trailers, and equipment haulers
- Contractor and ranch trailers running at or near 20,000 lbs
- Fleet trucks where simple and tough beats adjustable
- Owners who outgrew the Impact Cushion 14K and need more capacity
Impact Max 20K vs HD Max Black 20K
Same 20K chassis, same matte black finish. The only real question is how you want the suspension to work.
Impact Max 20K (this product)
Rubber cushions that stay sealed and never need service. Runs about 30 to 40 percent cheaper, with no compressor or gauge to deal with. Best if you want a big step up in ride over a solid mount and would rather keep things simple and tough.
HD Max Black 20K (air-ride sibling)
An adjustable airbag you dial in for any load, giving more travel and a smoother ride at any tongue weight. It needs an inflator, and the airbag is a wear item over many years (you can replace it in the field). Best for daily towers and heavy-haul operators who want that adjustability.
Built for the Job Site
On a working ranch, a remote job site, or a busy fleet yard, you do not always have a minute to check airbag pressure before you roll out. The Impact Max 20K takes that step off your list. Hook up, pull, unhook, and do it again for years with nothing to maintain. If you want Shocker capacity and ride quality but would rather treat the hitch like any other piece of fleet gear, this is the line for you.
Shares Attachments with the HD Max Black
The Impact Max 20K takes the same ball mount attachments as the HD Max Black, from combo balls and pintle hooks to clevises, drawbars, raised mounts, and drop mounts. Run several trucks across the Shocker lineup and your attachments swap freely across the 20K family, so you buy one set instead of one per hitch. The textured matte black powder coat stands up to UV, road salt, and rock chips, and every hitch ships from stock in Canada, so there is no border wait.
