Shocker Vertical Channel Complete Weld On Tongue Adapter for Trailer A-Frames - Completely Welded
$119.99 CAD
or as low as $10/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
SKU: SH-410-Welded
Checking availability…
The details that matter
Product overview

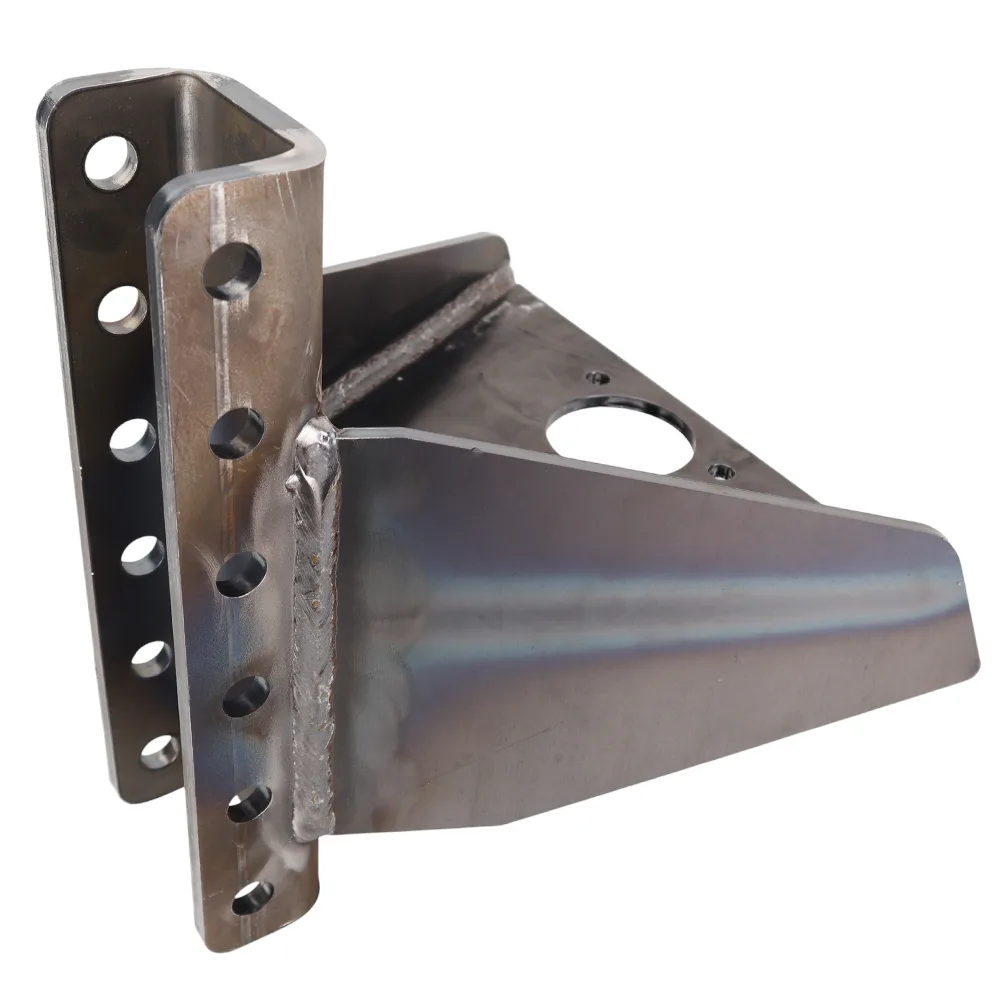

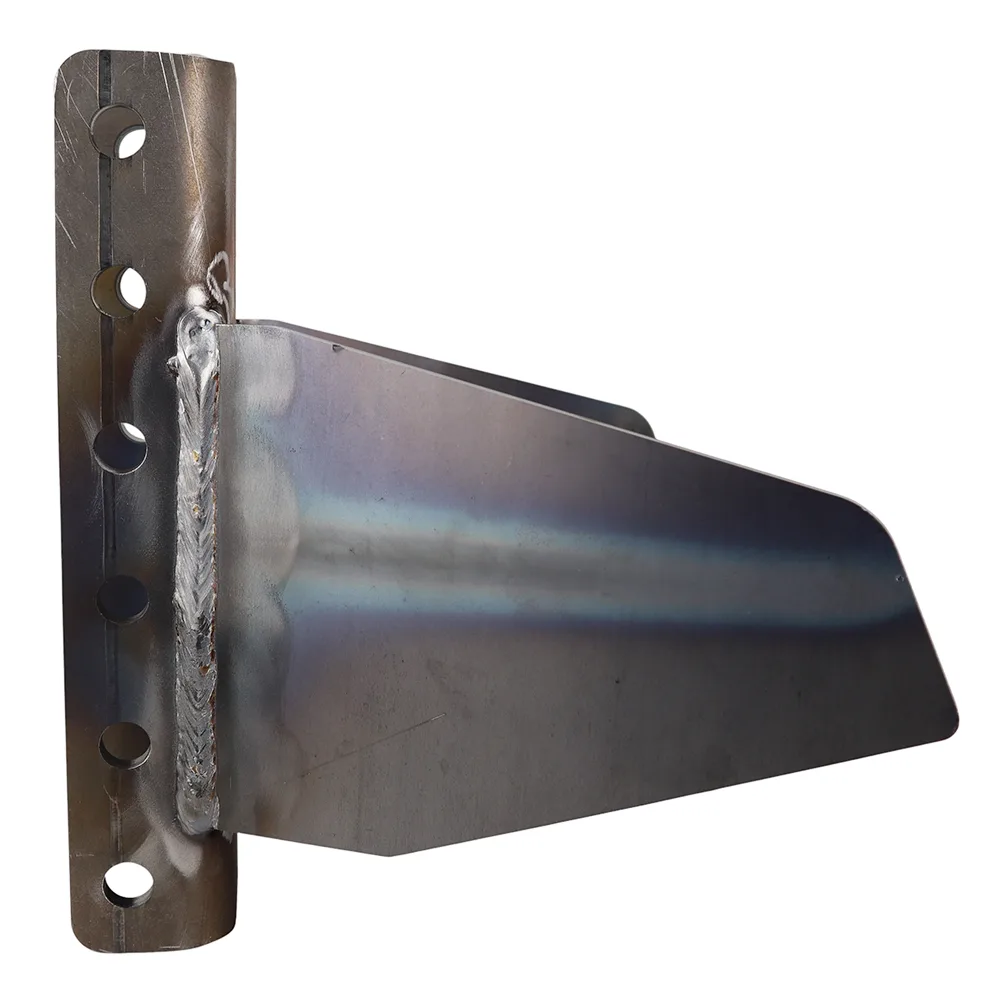

This fully welded Trailer Tongue Vertical Channel mount adapter for your trailer a-frame is a weld on adapter that converts a typical horizontal trailer tongue to accept a vertical channel bolt on coupler or pintle ring. This allows you to adjust the height of the coupler on the front of your trailer.
What’s included

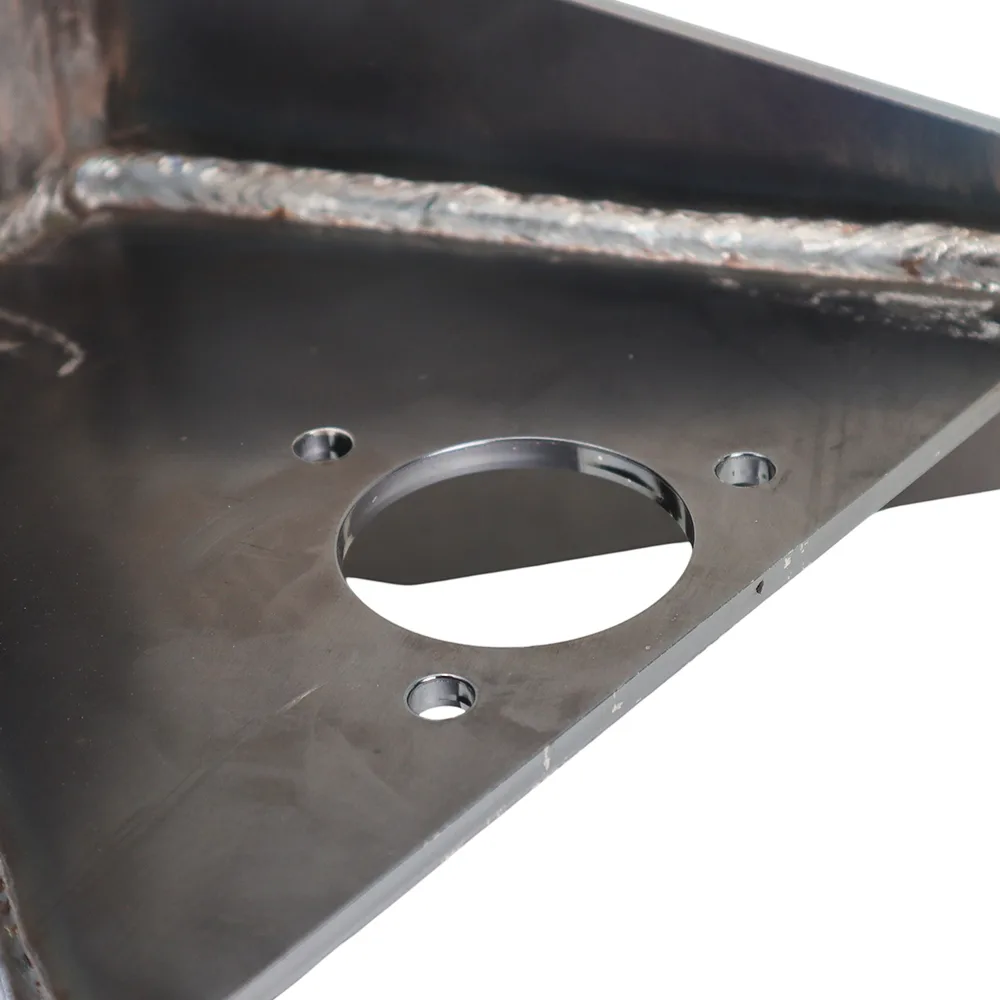

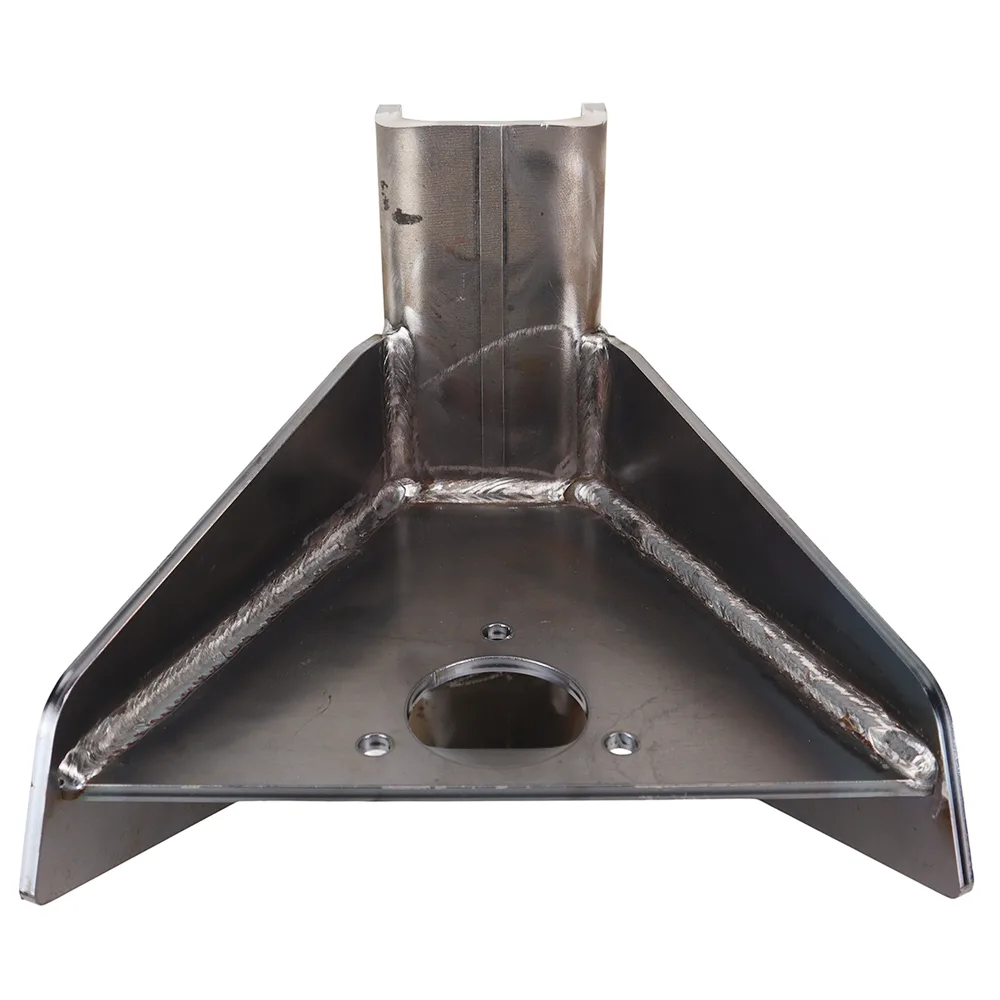

- 6 hole vertical channel, top plate with jack hole and two side plates welded together. It is designed to professionally welded onto front of trailer frame.
Check your fit before ordering
- It also requires professional welding onto the trailer for the weight rating to be applicable.
Full product description
This fully welded Trailer Tongue Vertical Channel mount adapter for your trailer a-frame is a weld on adapter that converts a typical horizontal trailer tongue to accept a vertical channel bolt on coupler or pintle ring. This allows you to adjust the height of the coupler on the front of your trailer.
This weld on vertical channel mount has 6 adjustment holes. The six bolt hole pattern works great with typical vertical channel trailer couplers. Perfect for modifying a trailer or when building a custom trailer. The outer front is 4" wide, the outer rear is 11.75" wide. From front to back it measures 7-1/2".

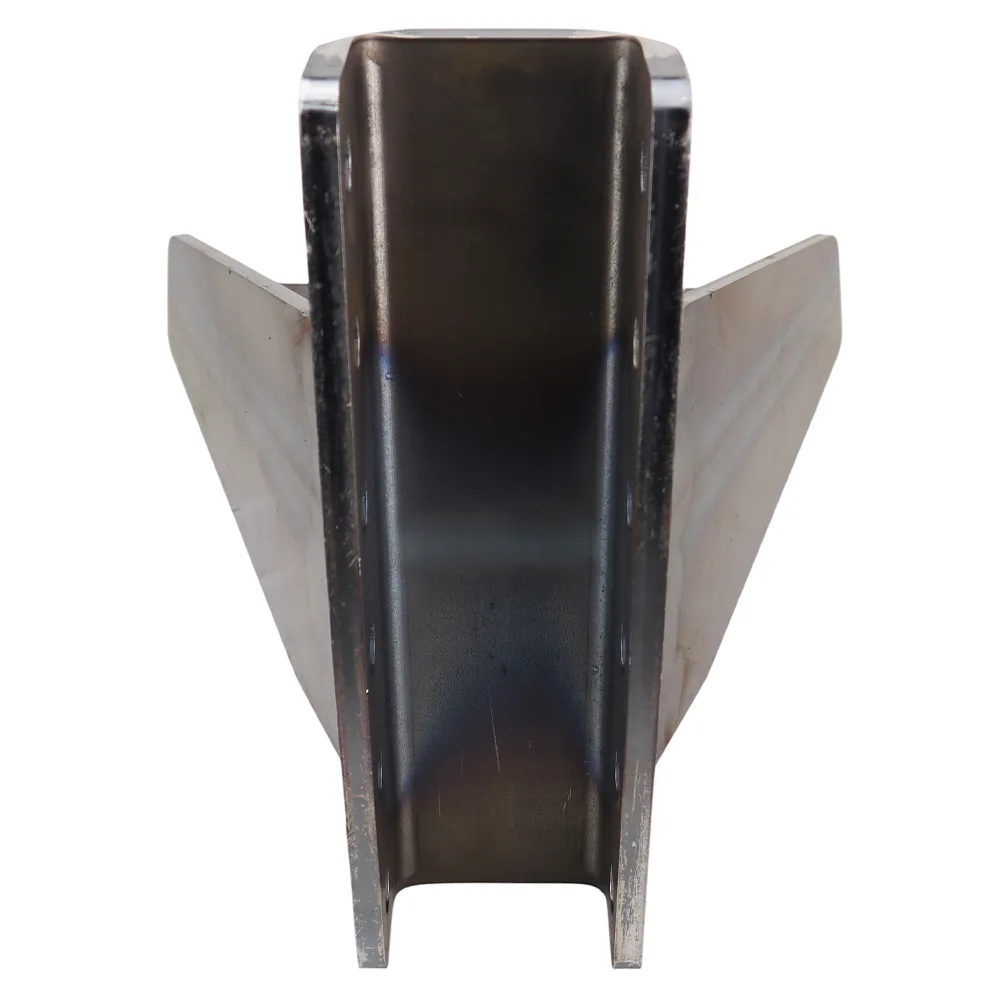

Actual vertical channel is 3.7" OD x 2.9" ID x 12" Tall w/ 2" on center bolt pattern. This is welded 50° a-frame 6 hole vertical channel tongue adapter kit is designed to be professionally welded onto a trailer a-frame.
All features & technical notes
Features
Welded Trailer Tongue 50° A-frame Vertical Channel Style Adapter: Designed to convert your a trailer a-frame to one that accepts vertical channel bolt on ball couplers or pintle rings. Vertical channel, top plate and side plates are fully welded. Adapter needed to be professionally welded onto front on trailer.
Completed Welded Vertical Channel Adapter Kit Includes: 6 hole vertical channel, top plate with jack hole and two side plates welded together. It is designed to professionally welded onto front of trailer frame.

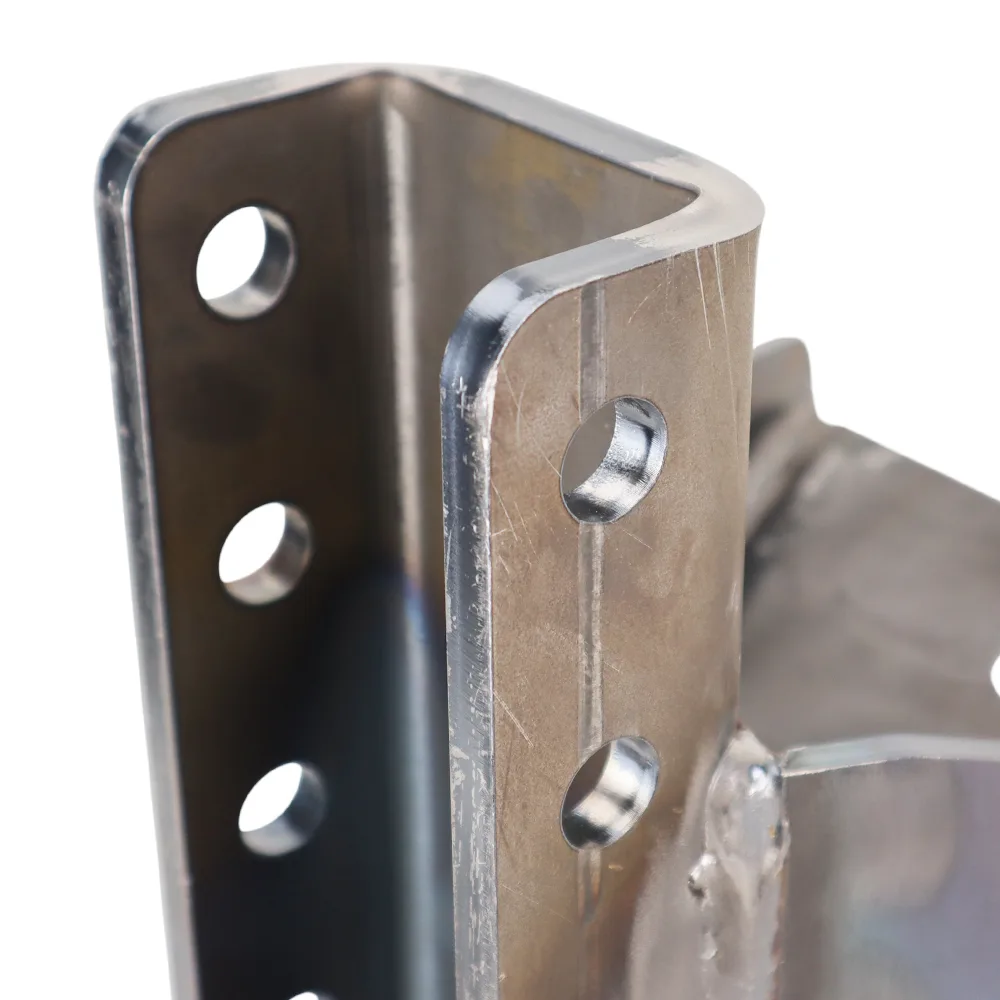

Vertical Channel Has 6 Adjustment Holes that are 5/8" in Diameter: Actual vertical channel is 3.7" OD / 2.9" ID x 12" Tall w/ 2" on center bolt pattern. Channel is HD 3/8" thick steel.
Converts a Typical 50-degree Trailer Tongue Into a Vertical Channel: The six bolt hole pattern works great with typical vertical channel bolt on trailer couplers or pintle rings. The outer front is 4" wide, the outer rear is 11" wide. From front to back it measures 7-1/2".
High Strength ASTM A572 Grade 50 Steel: Made in the USA with Premium ASTM A572 Grade 50 Steel.
Weight Rating Guide: If you are using 2 bolts to attach coupler then its 14,000 lbs GTW if using 4 bolts then 20,000 lbs GTW that also assumes this kit is properly professionally welded onto the front of a trailer and the coupler or pintle ring you are using can handle those respective capacities.
Commonly Used with Bolt-On Channel Mount Trailer Ball Couplers: Including Channel Mount Demco EZ Latch Couplers, Channel Wallace Couplers, Channel Mount Pintle Rings & Shocker Air Tongue Tongue Mount Hitches & more.
Can Be Bolted on to Aluminum Trailer A-Frames: The completed welded vertical channel assembly can also be bolted onto trailers with aluminum a-frames. Drilling required. We also offer an Bolt on HD Vertical Channel Tongue Adaptor for Aluminum Trailers.
Works with Shocker Trailer Tongue Mounts with Vertical Channels: Shocker Air Coupler Trailer Tongue Mount & Shocker Pintle Ring Trailer Tongue Mount Towing capacity is limited by lowest rated component. It also requires professional welding onto the trailer for the weight rating to be applicable.
