Shocker Hitch — Air Ride Towing Hitches
Shocker Metric Drop Hitch Ball Mount Attachments (Australia / Europe Only) 22mm / 7/8" Hole — Shocker bumper-pull receiver hitch (SKU SH-320875)

Shocker Metric Drop Hitch Ball Mount - Drop Ball Mount 22mm - 7/8" hole

4.9 · 844 verified reviews

Rated for your tow

· 16,000 lbs GTW · 1,600 lbs TW

$189.99 CAD

$218.38 save $28.39

or as low as $16/mo with flexible financing — 4, 6, or 12 months. Options at checkout.

Free shipping over $150Ships from Canada1-year warranty60-day returns
16KGTW
1.6KTW
Standard

SKU: SH-320875

Checking availability…

1

The details that matter

Product overview

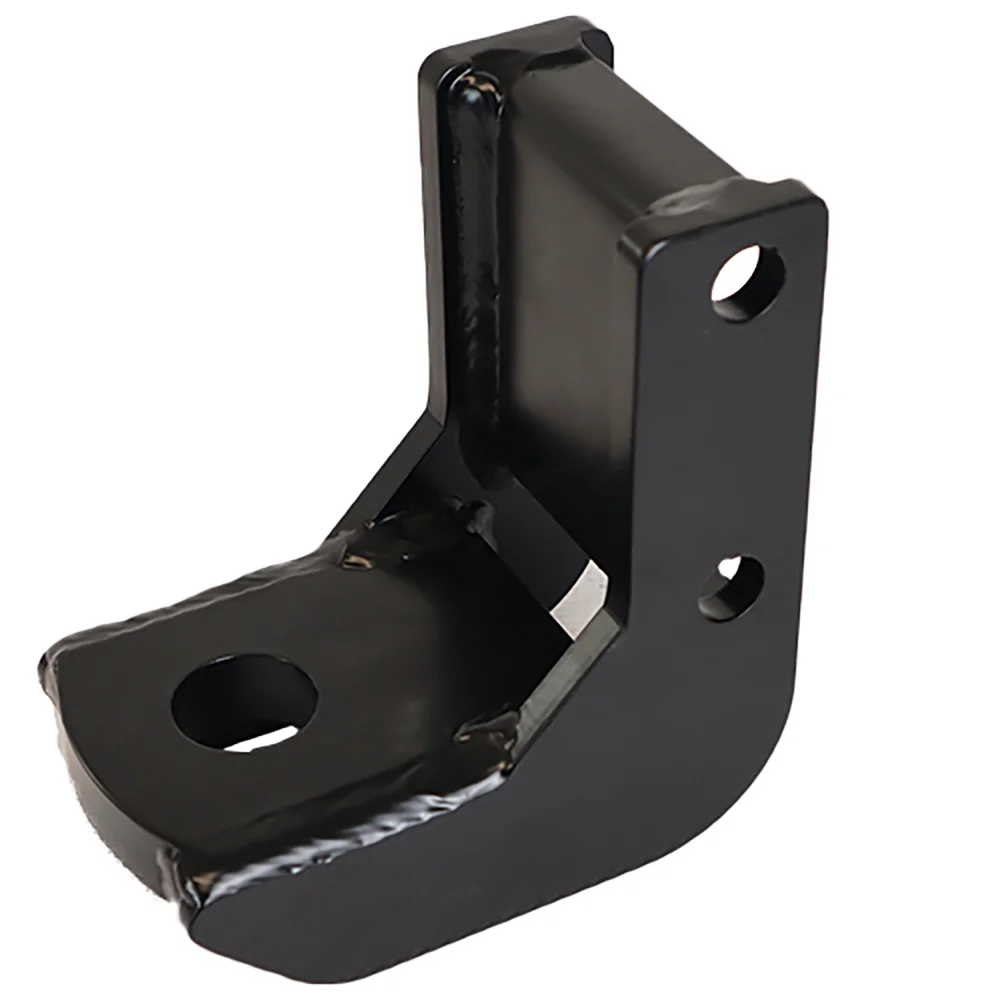

This Shocker drop ball mount attachment comes without a hitch ball. Often used in Australia & Europe for bumper pull trailer towing.

What’s included

  • Mount attachment has a 22mm (7/8 Inch) center hole to mount a trailer hitch ball with a 22mm (7/8 Inch) diameter shank. 50mm or 70mm bolt-on hitch ball sold separately.

Check your fit before ordering

  • Towing capacity limited by lowest rated component.
Full product description

This Shocker drop ball mount attachment comes without a hitch ball. Often used in Australia & Europe for bumper pull trailer towing. The center inner diameter hole size is 22 mm or 7/8". Common with taller than stock trucks or when pulling trailer with a lower to the ground tongue.

Often used for a 50mm or 70mm hitch ball with a 7/8" or 22 mm shaft, which is then bolted onto the mount. Compatible with Shocker Receiver Hitches. Works with Shocker Air, Streamline, Trail Force, Sport, Super Drop & HD series air receiver hitches & Shocker XR series receiver hitches, & Impact series cushion receiver hitches.

Fits a 3-3/4" ID wide Shocker receiver hitch channel. The drop and rise range varies by the Shocker Receiver Hitch the ball mount attachment is used with. Made by Shocker Hitch® USA in Jamestown, ND.

All features & technical notes

Features

Drop Ball Mount Design: Drop ball mount attachment is often used when towing bumper pull trailers with a lower tongue & ball coupler or with taller than stock or lifted pickup trucks. Does Not Include Hitch Ball: Mount attachment has a 22mm (7/8 Inch) center hole to mount a trailer hitch ball with a 22mm (7/8 Inch) diameter shank.

50mm or 70mm bolt-on hitch ball sold separately. Fits Shocker Receiver Hitches: Works with Shocker Air, HD, Streamline, Super Drop, Trail Force, Sport, Impact & XR series hitches. Fits a 3-3/4" ID wide Shocker bumper hitch channel. Rise & Drop Range Depending on Shocker Receiver Hitch Used With: 8 hole Air Receiver Hitches are 2" of rise to 2" of drop.

Super Drop is 2" of rise to 6" of drop. Trail Force is 2" of rise to 4-1/2" of drop. Impact series hitch is 5" of rise to 3" drop. 8 hole XR hitch is 5" of rise to to 3" of drop. 10 hole XR hitch is 7" of rise to 5" of drop. Ball Shank Hole Diameter: Has a 22mm (7/8 Inch) center hole to mount a trailer hitch ball.

3-5/8" Wide Mount Width: is 3-5/8" wide OD to fit a 3-3/4" hitch ID channel with a 3" on center hole pattern for 5/8" pin. Raised Mount Attachment Features a 2 Pin Design: Shocker ball mounts are designed with a 2 pin hole design for adjustability, maximum strength & durability. Safety Notice: Towing capacity limited by lowest rated component.

Manufactured by Shocker Hitch® USA in Jamestown, ND.
