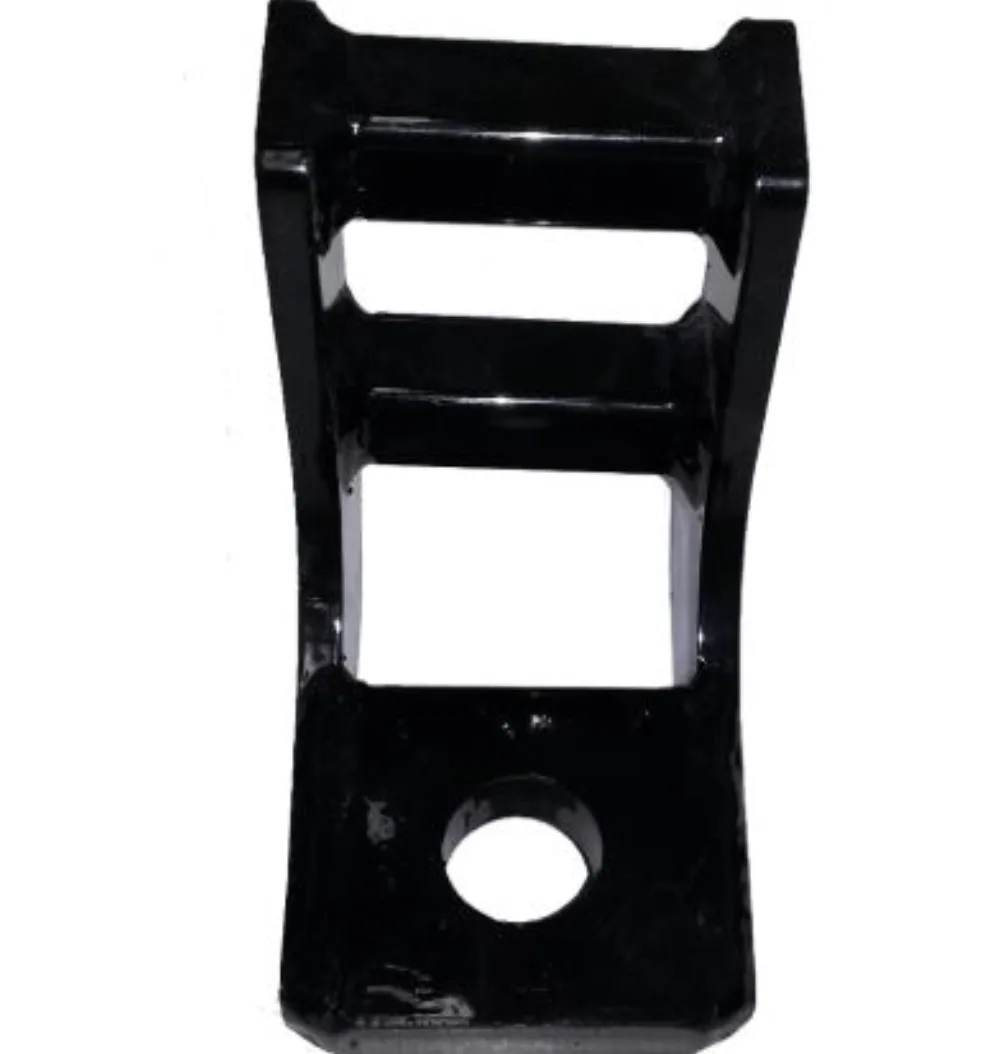

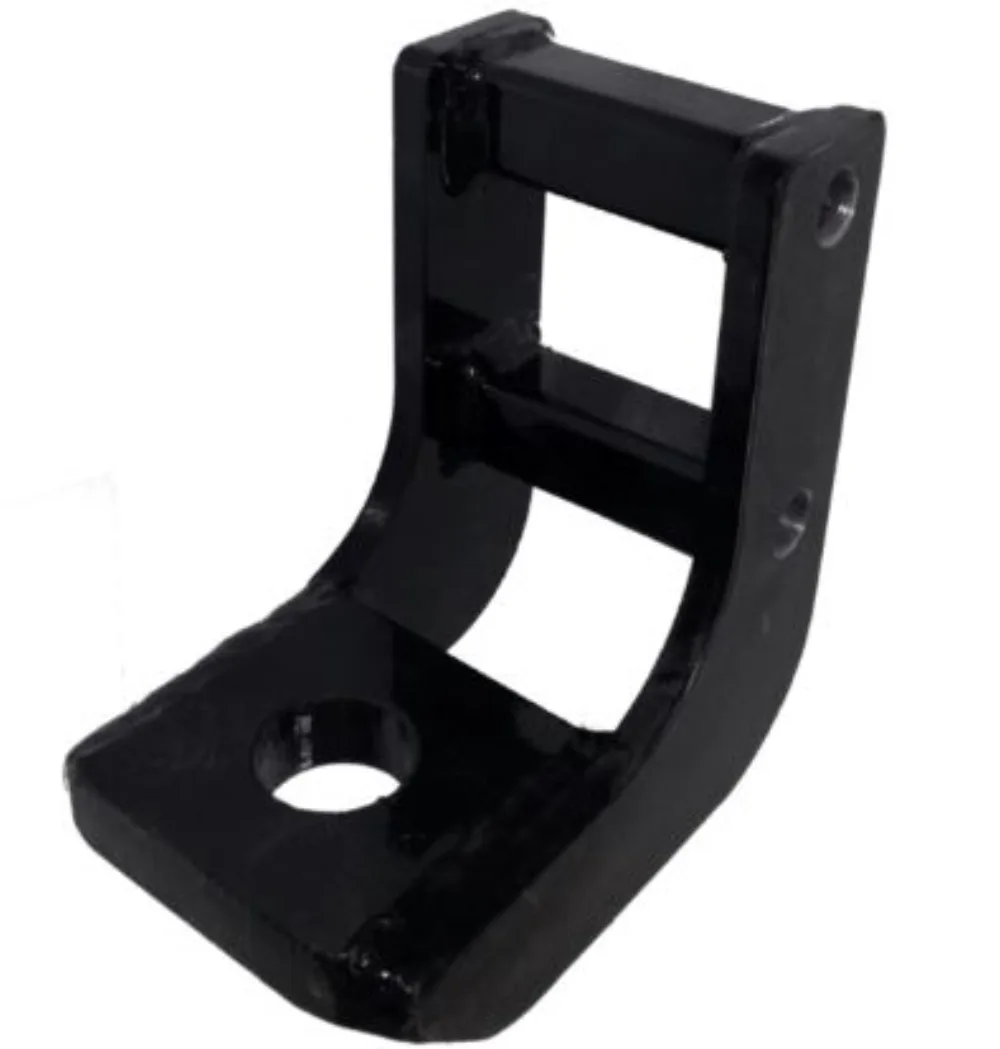

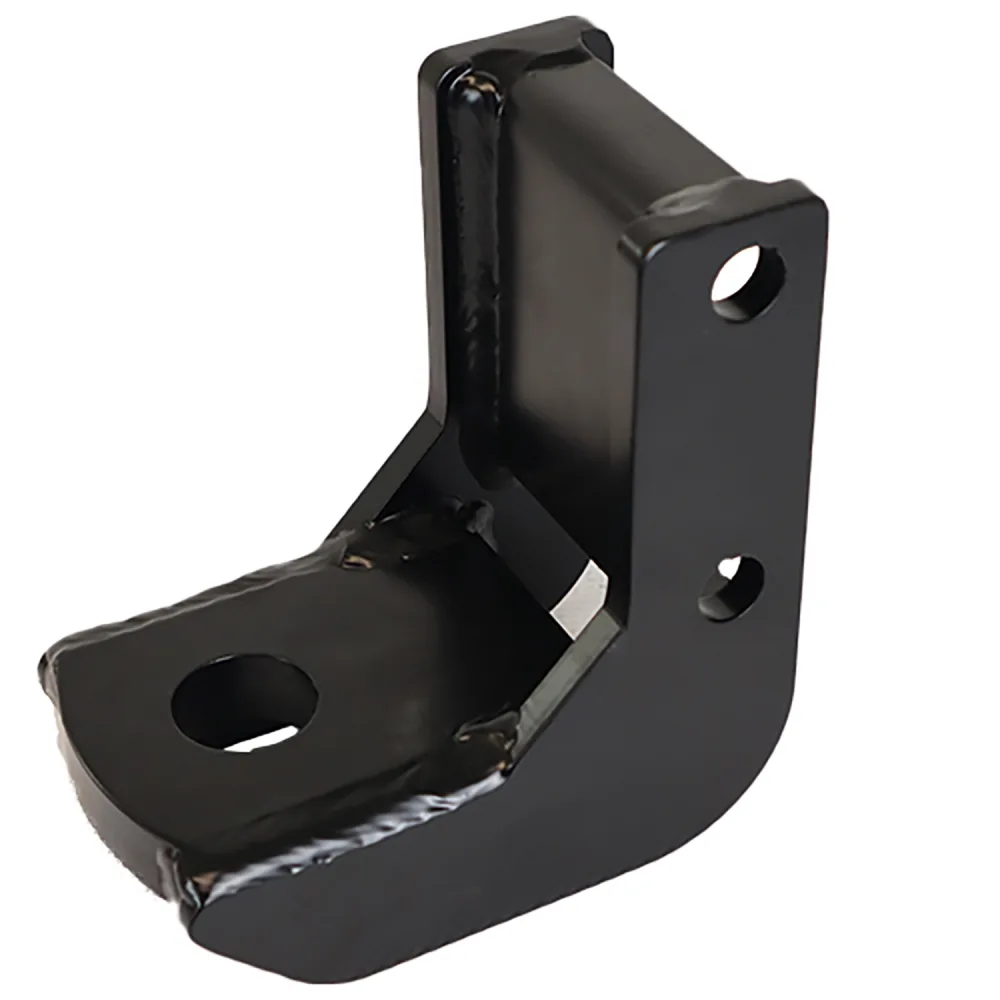

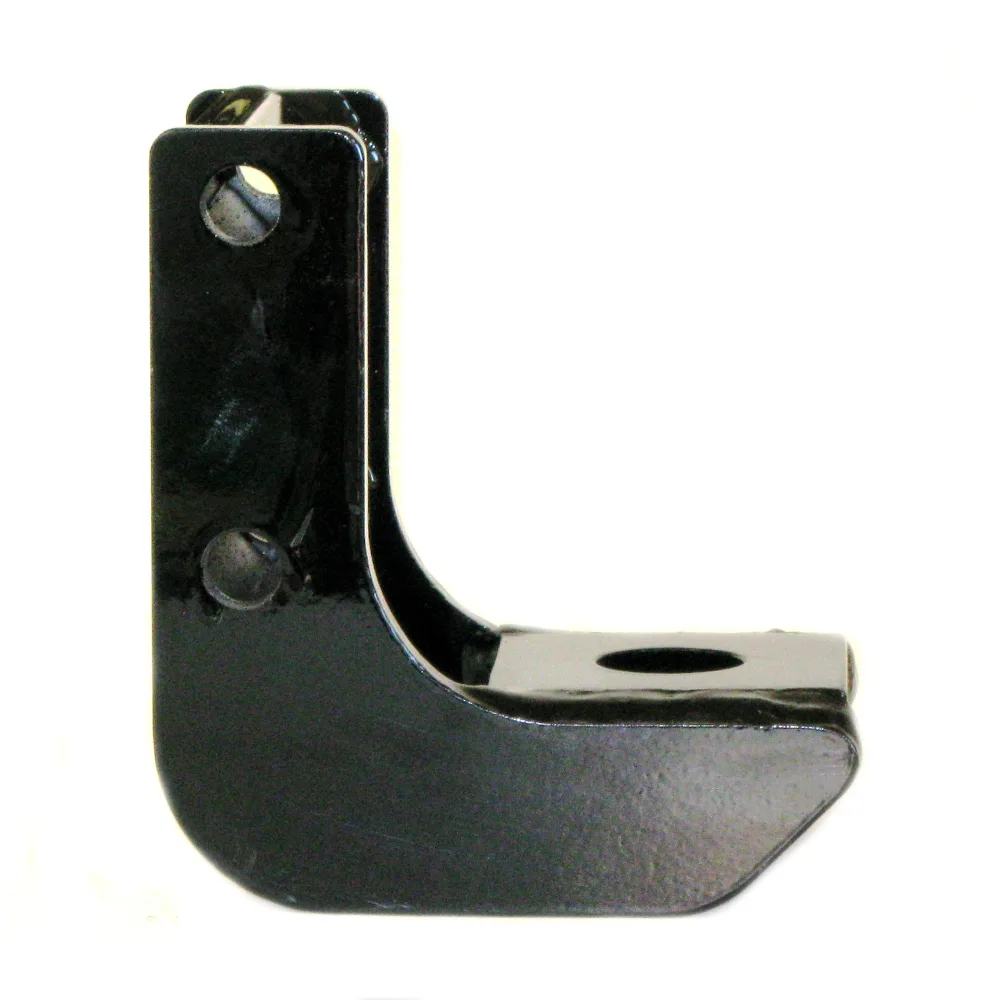

Shocker Drop Ball Mount w/No Ball - 1-1/4" Hole

Shocker Drop Ball Mount w/No Ball - 1-1/4" Hole

4.9 · 844 verified reviews

Rated for your tow

· 20,000 lbs GTW · 2,000 lbs TW

$184.78

$201.58 save $16.80

or as low as $16/mo with flexible financing — 4, 6, or 12 months. Options at checkout.

Free shippingShips from Canada1-year warranty60-day returns
20KGTW
2KTW
Standard
Out of Stock
2"2-5/16"
Black
1
Patent #11,370,25720,000+ Customers

Fits Shocker Bumper Hitches

Works with Shocker Air, Streamline & HD series bumper hitches & Shocker XR series hitches & Impact series cushion hitches. Fits 3-3/4" Shocker Bumper Hitch Channel.

Drop Range

4-1/2" to 8-1/2" for Air Bumper Hitches. 0 to 7-1/2" Drop on Impact Cushion Hitches. 0 to up to 9" Drop on Shocker XR hitches.

3-5/8" Wide Ball Mount Width

3-5/8" wide OD to fit a 3-3/4" hitch ID channel with a 3" on center hole pattern for 5/8" pin for Shocker bumper hitches.

Up to 20,000 lbs GTW

2-5/16" hitch ball has 20,000 lbs tow & 2,000 lbs tongue weight / 2" hitch ball has 10,000 lbs tow & 1,000 tongue weight.

Stop destroying your trailer and cargo.

Every bump, pothole, and expansion joint sends a violent jolt through your trailer frame, damaging cargo and wearing out your truck. Shocker Air Ride Hitches absorb that punishment at the coupling, before it reaches your trailer.

When your trailer coupler sits too high or too low, the whole rig fights you. The trailer rides nose-up or nose-down, it chucks and bucks over frost heaves, and every hard stop shoves the weight the wrong way. Getting the coupler level fixes that, and that starts with the right ball mount. This is the Shocker Drop Ball Mount with a 1-1/4" hole, which takes any hitch ball that has a matching 1-1/4" shank, so you can dial in your height and switch ball sizes when the trailer changes. It is built for heavy-duty towing and handles up to 20,000 lbs of gross towing weight. It drops into the 3-3/4" Shocker Bumper Hitch channel and works with Shocker Air, Streamline and HD series bumper hitches, the Shocker XR series hitches, and the Impact series cushion hitches, with your exact drop depending on which Shocker hitch you run it on. Stocked in Canada and ships direct, so there is no border wait.

Key Highlights

  • One mount for your whole Shocker lineup: drops into the 3-3/4" channel on Air, Streamline and HD series bumper hitches, Shocker XR series hitches, and Impact series cushion hitches.
  • The 1-1/4" ball hole takes any ball with a matching shank, so you set the ball size (no ball is included).
  • Level any trailer with real drop to work with: 4-1/2" to 8-1/2" on Air Bumper Hitches, 0 to 7-1/2" on Impact Cushion Hitches, and 0 to 9" on Shocker XR hitches.
  • Hauls up to 20,000 lbs: a 2-5/16" hitch ball tows 20,000 lbs with 2,000 lbs of tongue weight, and a 2" hitch ball tows 10,000 lbs with 1,000 lbs of tongue weight.
  • 3-5/8" wide outside for a tight fit in the 3-3/4" channel, with a 3" on-center hole pattern for the 5/8" pin on Shocker bumper hitches.

What It Fits

  • Drops into the 3-3/4" Shocker Bumper Hitch channel and fits Shocker Air, Streamline and HD series bumper hitches, Shocker XR series hitches, and Impact series cushion hitches.
  • 3-5/8" wide outside so it slides snug into a 3-3/4" hitch ID channel, with a 3" on-center hole pattern for the 5/8" pin on Shocker bumper hitches.

Sizes, Drop and Capacity

The 1-1/4" ball shank hole takes any hitch ball with a matching 1-1/4" shank, and no ball is included so you pick the one you need. How much drop you get depends on the frame: 4-1/2" to 8-1/2" on Air Bumper Hitches, 0 to 7-1/2" on Impact Cushion Hitches, and 0 to 9" on Shocker XR hitches, so you can level a trailer that sits low or bring a tall one down. Your capacity follows the ball you run. A 2-5/16" hitch ball pulls up to 20,000 lbs with 2,000 lbs of tongue weight, and a 2" hitch ball pulls 10,000 lbs with 1,000 lbs of tongue weight.

When to Choose This

Reach for this ball mount when you already run a Shocker bumper-pull air or cushion hitch frame and you need to switch ball sizes for a different trailer, flip the drop or rise to level things out, or swap in a fresh mount for one that is worn.
