Shocker Metric Off-Road Hitch Ball Mount - Off-road Ball Mount 22mm - 7/8" Hole

Shocker Metric Off-Road Hitch Ball Mount - Off-road Ball Mount 22mm - 7/8" Hole

4.9 · 844 verified reviews

Rated for your tow

· 16,000 lbs GTW · 1,600 lbs TW

$189.99 CAD

$218.38 save $28.39

or as low as $16/mo with flexible financing — 4, 6, or 12 months. Options at checkout.

Free shipping over $150Ships from Canada1-year warranty60-day returns
16KGTW
1.6KTW
Standard

SKU: SH-302875

Checking availability…

1

The details that matter

Product overview

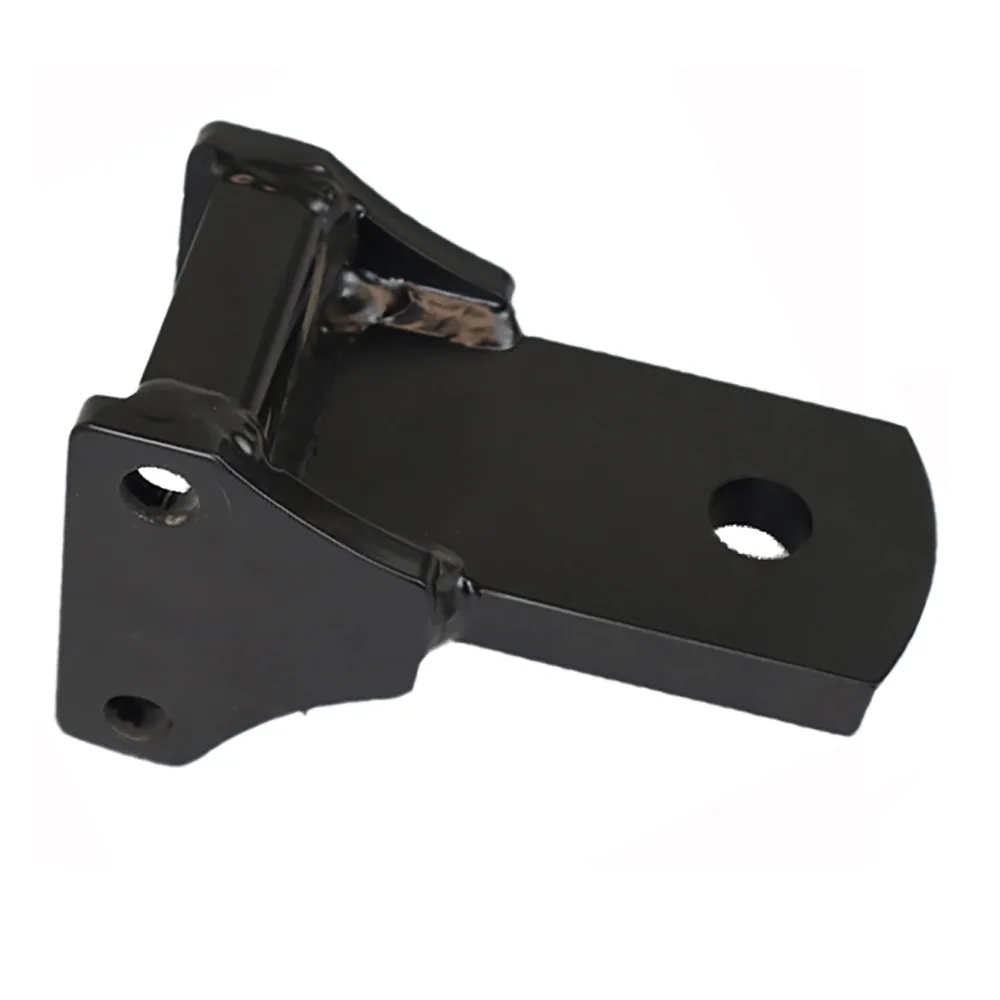

This Shocker metric offroad mount attachment comes without a hitch ball. The offroad mount features a longer tongue and is often used with a tregg or polyblock style connection.

What’s included

  • Mount attachment has a 22 mm / 7/8" inner diameter center hole to mount a trailer hitch ball with a 22 mm / 7/8" diameter shank. Hitch ball is not included.

Check your fit before ordering

  • Towing capacity limited by lowest rated component.
Full product description

This Shocker metric offroad mount attachment comes without a hitch ball. The offroad mount features a longer tongue and is often used with a tregg or polyblock style connection. The center inner diameter hole size is 22 mm or 7/8". Can also be used for a 50mm or 70mm hitch ball with a 7/8" or 22 mm shaft, which is then bolted onto the mount.

Compatible with Shocker Receiver Hitches. Works with Shocker Air, Streamline, Trail Force, Sport, Super Drop & HD series air receiver hitches & Shocker XR series receiver hitches, & Impact series cushion receiver hitches. Fits a 3-3/4" ID wide Shocker receiver hitch channel.

The drop and rise range varies by the Shocker Receiver Hitch the ball mount attachment is used with. Made by Shocker Hitch® USA in Jamestown, ND.

All features & technical notes

Features

Off-Road Ball Mount Design: Offroad style mount attachment for bumper pull trailer towing. Has longer tongue and used when towing Australian and European overland camper trailers equipped with articulating "Tregg" or "Polyblock" style connections.

Does Not Include Hitch Ball: Mount attachment has a 22 mm / 7/8" inner diameter center hole to mount a trailer hitch ball with a 22 mm / 7/8" diameter shank. Hitch ball is not included. Fits Shocker Receiver Hitches: Works with Shocker Air, HD, Streamline, Super Drop, Trail Force, Sport, Impact & XR series hitches.

Fits a 3-3/4" ID wide Shocker bumper hitch channel. Ball Shank Hole Diameter: Has a 22 mm or 7/8" inner diameter center hole in mount to bolt on a trailer hitch ball with a 22mm or 7/8" diameter shaft. Drop Range: Depending on Shocker Receiver Hitch Used With: 8 hole frame Air Receiver Hitches are 1/2" to 4-1/2" of drop. Super Drop is 1/2" to 8-1/2" of drop.

Trail Force is 1/2" to 6-1/2" of drop. Impact Series Hitch is 4" of rise to 4" of drop. XR Hitch with 8 holes is 4" of rise to 4" of drop. XR Hitch with 10 holes 6" of rise to 6" of drop. 3-5/8" Wide Ball Mount Width: 3-5/8" wide OD to fit a 3-3/4" hitch ID channel with a 3" on center hole pattern for 5/8" pin for Shocker bumper hitches.

Mount Attachment Features a 2 Pin Design: Shocker ball mounts are designed with a 2 pin hole design for adjustability, maximum strength & durability. Safety Notice: Towing capacity limited by lowest rated component. Manufactured by Shocker Hitch® USA in Jamestown, ND.
