Sway Control Friction Arm & Ball Kit - 1 Pair
$279.99 CAD
or as low as $24/mo with flexible financing — 4, 6, or 12 months. Options at checkout.
SKU: SH-1001-X2
Checking availability…
The details that matter
Product overview
Get 2 Friction Sway Arm Bar Kits. One for each side of your trailer.
What’s included
- One for the left side and one for the right. Two sway control friction bar assemblies, two 1-1/4" trailer mounted balls, two 1-1/4" mini hitch balls for sway control ball mount with 2 mounting tabs and install needed hardware.
Full product description
Get 2 Friction Sway Arm Bar Kits. One for each side of your trailer. If you are experiencing trailer sway while towing, check out the Shocker hitch sway bar arm kit will help reduce trailer sway. This is a very economical way to assist with fixing trailer sway problems.
Whether you are towing a camper, small or large trailer, you may experience trailer sway from wind, passing vehicles, and rough & uneven road surfaces. This friction sway control arm bar kit is made to prevent the trailer from swaying.
We offer a sway control arm bar system kit that works with the many different Shocker Hitch ball mounts that have sway bar mounting tabs. Available in combo, drop, or raised ball with sway bar tabs (sold separately).

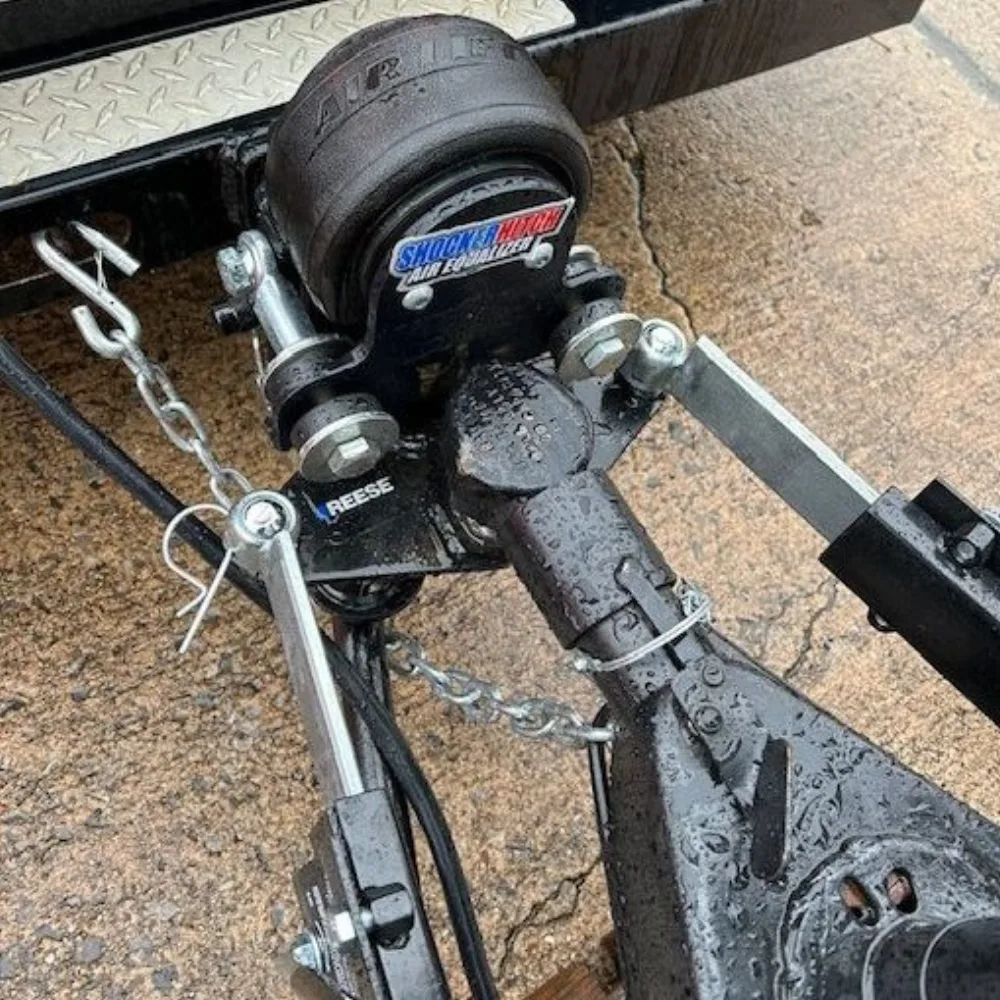

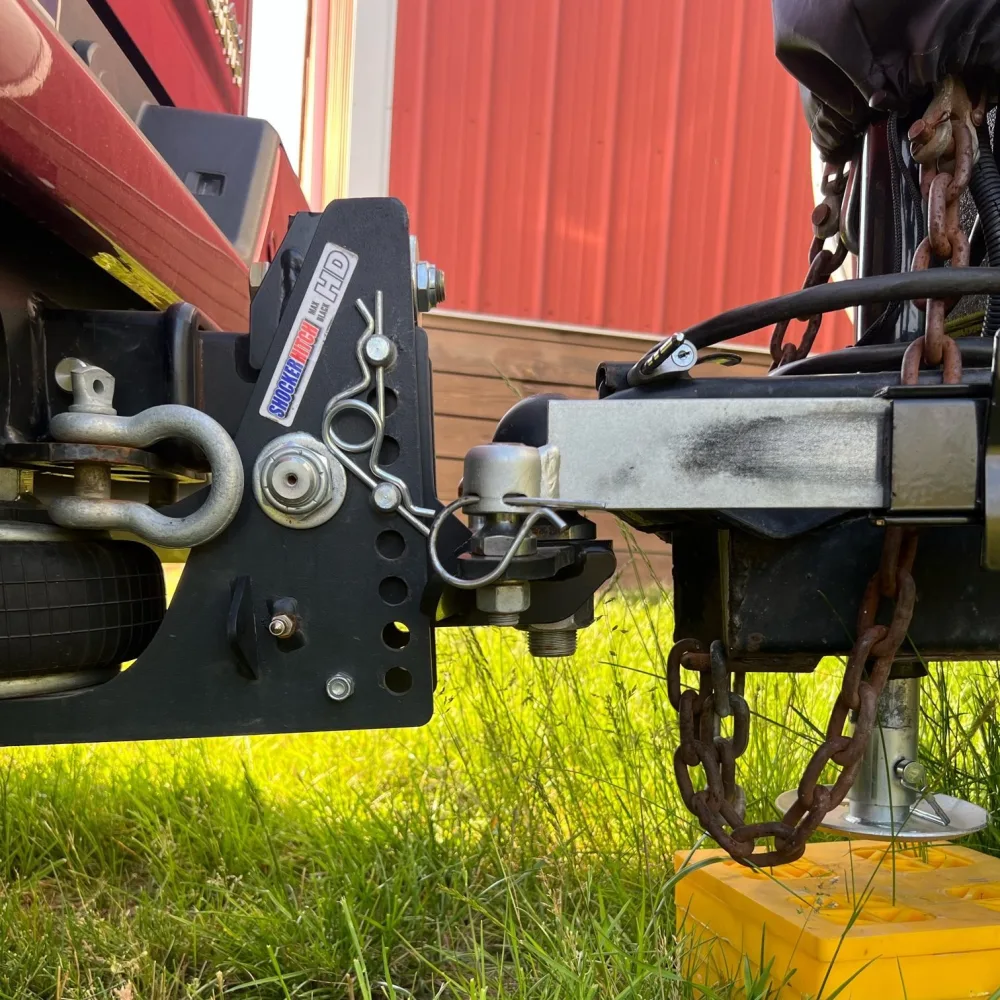

The friction sway bars attach to the front of your trailer frame, on the side of the a-frame, and then to your ball mount attachment equipped with sway bar tabs. This sway control system is used to stiffen the connection between the truck and trailer, keeping it straight and in line with the tow vehicle.

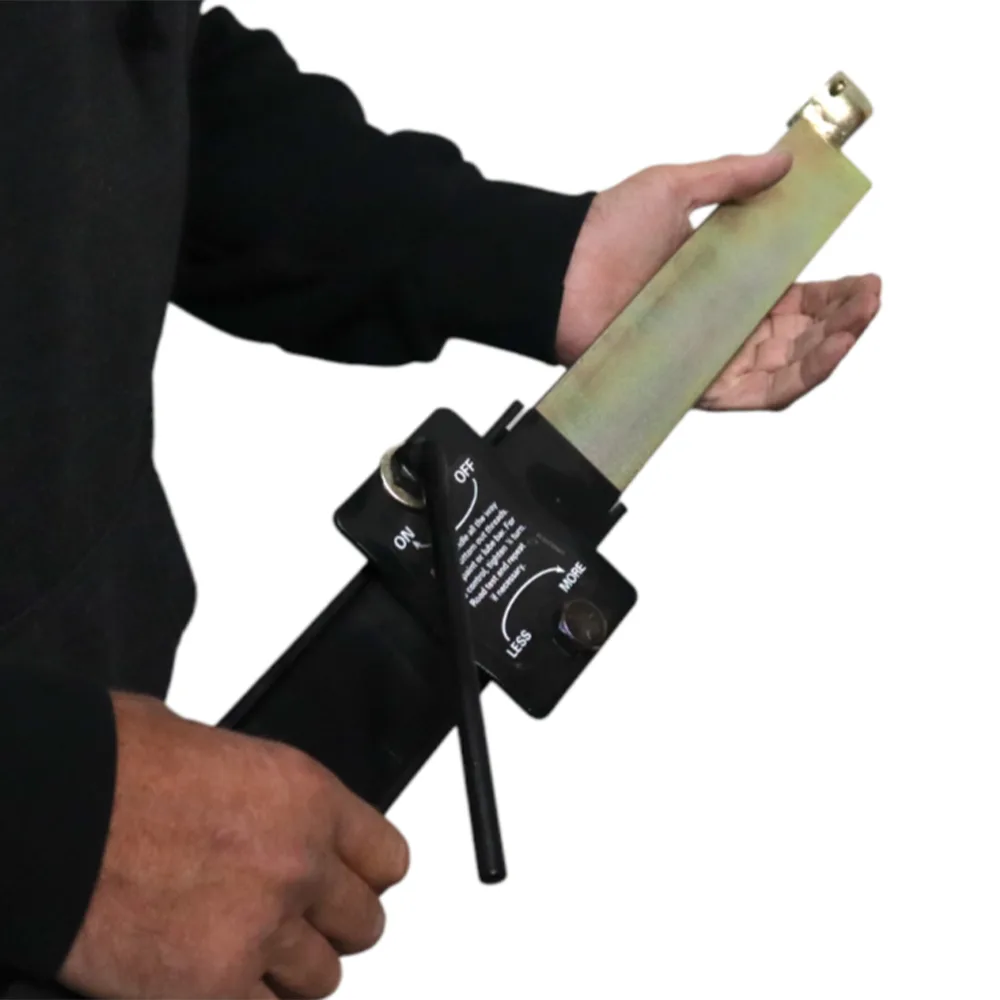

The arm is adjustable, and you can increase the resistance on the highway and reduce the resistance when in town or taking sharp corners. This kit works with Shocker sway control hitches, WD hitches and our air ride weight distribution hitches.
You will want to use one (1) Shocker sway control system when towing up to 10,000 pounds and/or trailers under 24' & when towing over 10,000 pounds and/or trailers longer than 24', two (2) Shocker sway control arm bar kits may be required.

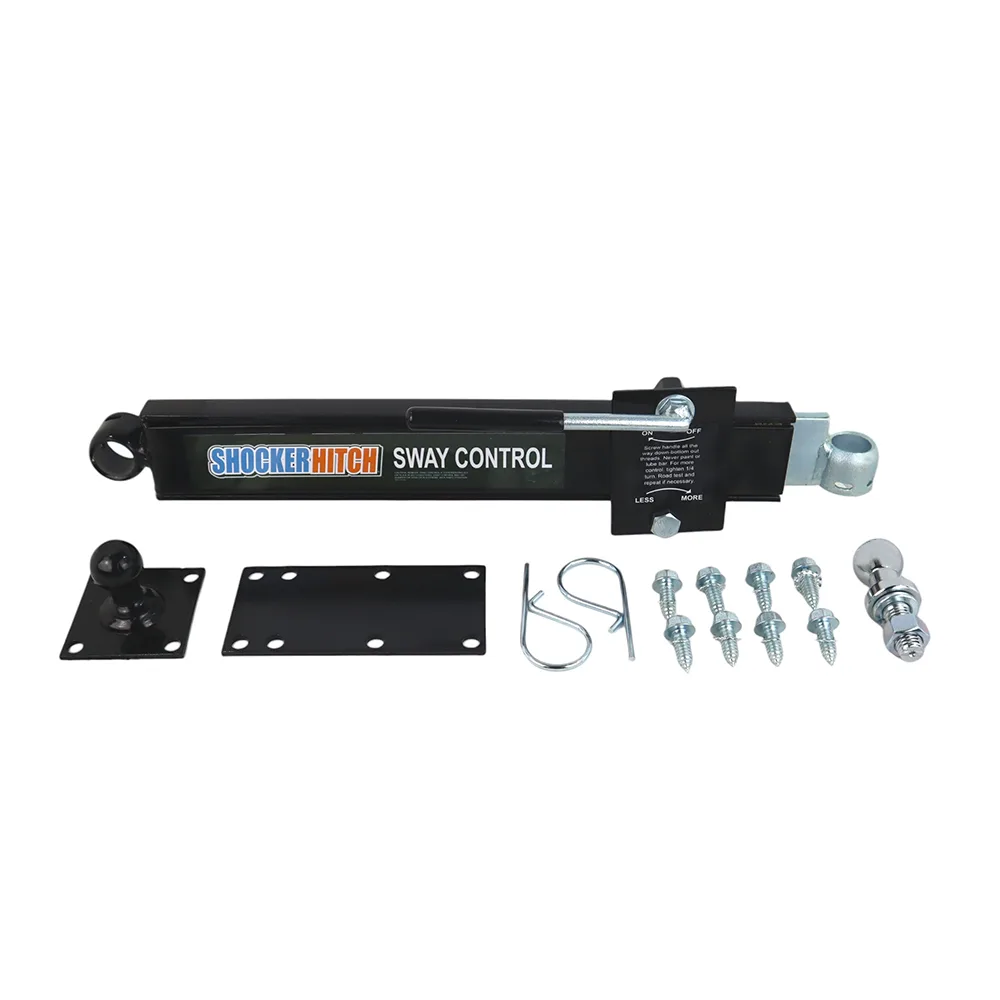

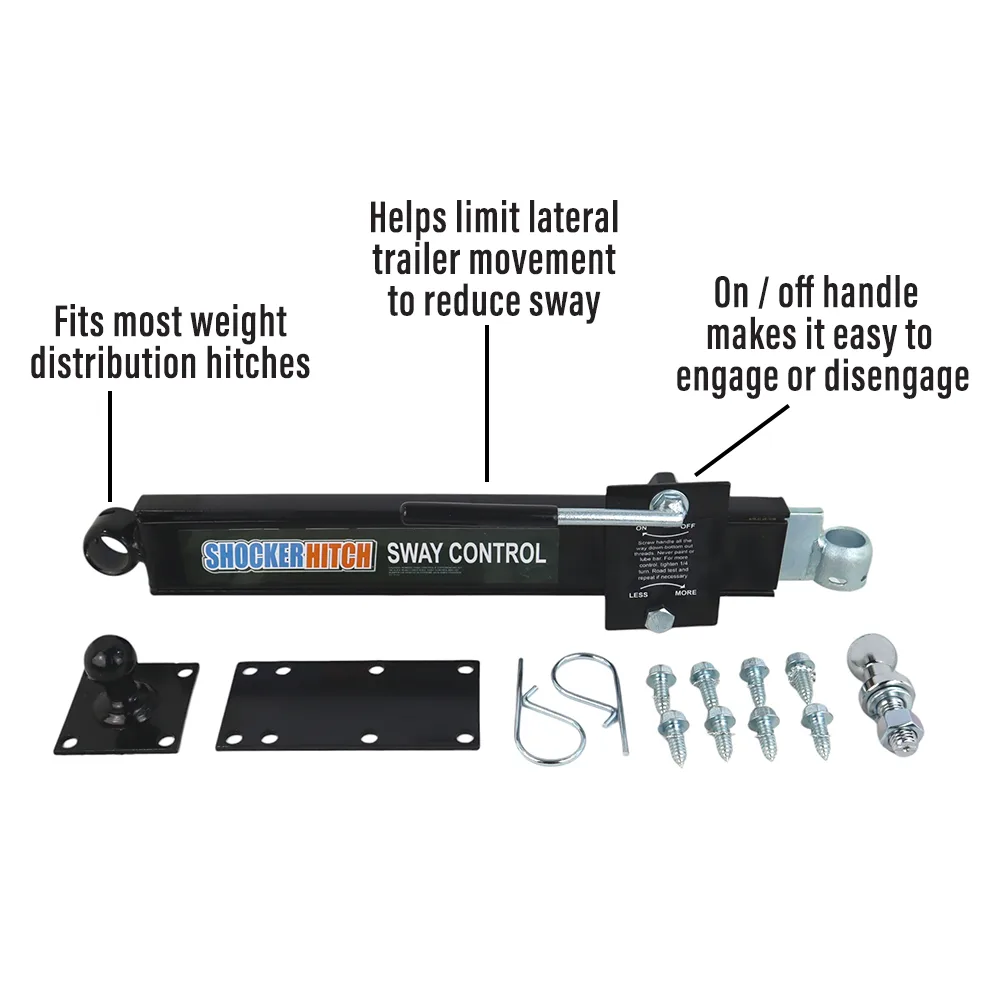

This double sway arm bar system comes with an 2 adjustable sway control friction arm assemblies, two 1-1/4" trailer-mounted mini balls, two 1-1/4" hitch-mounted balls with 2 lock washers and 2 nuts for a sway control ball mount that has mounting tabs on the left and right side, along with 8 metal lag screws and 4 retaining clips.
This is great for travel camping trailers, heavy-duty trailers, race trailers, and toy haulers. Made in China.
All features & technical notes
Features
Dual Sway Kit is Great for Fixing Trailer Sway: Includes 2 systems for trailers over 10,000 lbs GTW. Fine Tune with Two Adjustable Friction Arm Bars: Can be adjusted to fine-tune your towing experience. Tighten arms for more control and loosen arms when less is needed.
Dual Sway Arm Bar Kit Includes Everything You Need: One for the left side and one for the right. Two sway control friction bar assemblies, two 1-1/4" trailer mounted balls, two 1-1/4" mini hitch balls for sway control ball mount with 2 mounting tabs and install needed hardware.
Integrated Design for with WD Hitches & Shocker Sway Control Receiver Hitches: Works with weight distribution hitches and our Shocker Sway Control Hitches. Set up to a length of 24" from ball on sway bar tab mount to center of ball on trailer frame. Adjustment on each sway arm is 19.5" minimum to 33" maximum.
Ideal for Fixing Trailer Sway Problems: Camping travel trailers, race trailers, enclosed trailers, cargo trailers and about any trailer with sway issues. Receiver Hitch Ball Mount Attachment with Sway Bar Tabs Not Included: Shocker sway control ball mount attachments sold separately.
This kit works with weight distribution hitches, Shocker sway control receiver hitches & other ball mount attachments that have sway arm bar mounting tabs.
Double Friction Sway Air Bar Kit Includes: Comes with the 2 sway control friction arm bar assemblies, two 1-1/4" trailer mounted mini balls, two 1-1/4" hitch mounted balls with two lock washers and two nuts for a sway control ball mount with 2 mounting tabs along with 8 metal lag screws and 4 retaining clips.
HD Black Finish: Heavy-duty durable black painted finish. Have an Aluminum Trailer? Check out the no drill clamp on trailer frame mount brackets.
Installation
Download installation guide (PDF)Not sure this fits your setup?
